Цветное светодиодное освещение
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Цвет | Длина волны | Ток - Тест | Напряжение - прямое (Vf) (тип.) | Люмен/Ватт при токе - Тест | Ток - макс. | Световой поток при токе/температуре | Температура - Тест | Угол обзора | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XEGAPY-H2-0000-000-000000V2001XLAMP XEG PC YELLOW LED |
0 |
|
- |
XLamp® XE-G | 2-SMD, No Lead | Tape & Reel (TR) | Active | Yellow | - | 1A | 3.05V | 134 lm/W | 3A | 410lm (400lm ~ 420lm) | 85°C | 125° | Surface Mount | 2-SMD | 0.081" L x 0.063" W (2.05mm x 1.60mm) | 0.044" (1.13mm) |
|
ELSH-E71B1-0CPNM-CB7B8LED SHUEN BLUE 465NM SMD |
0 |
|
- |
SHUEN | 1218 (3246 Metric) | Cut Tape (CT) | Active | Blue | 465nm (460nm ~ 470nm) | 350mA | 3.25V | 15 lm/W | 600mA | 19lm (17lm ~ 20lm) | 25°C | 120° | Surface Mount | SMD | 0.120" L x 0.177" W (3.05mm x 4.50mm) | 0.085" (2.15mm) |
|
ELSH-F31Y1-0LPNM-AA4A6LED SHUEN AMBER 591NM SMD |
0 |
|
Технический лист |
SHUEN | 1218 (3246 Metric) | Cut Tape (CT) | Active | Amber | 591nm (588nm ~ 595nm) | 350mA | 2.35V | 51 lm/W | 600mA | 42lm (39lm ~ 45lm) | 25°C | 120° | Surface Mount | SMD | 0.120" L x 0.177" W (3.05mm x 4.50mm) | 0.085" (2.15mm) |
|
ELSW-F61R1-0PPNM-AR5R6LED SHWO RED 625NM SMD |
0 |
|
Технический лист |
SHWO | 1414 (3535 Metric) | Tape & Reel (TR) | Active | Red | 625nm (620nm ~ 630nm) | 350mA | 2.35V | 79 lm/W | 400mA | 65lm (60lm ~ 70lm) | 25°C | 120° | Surface Mount | SMD | 0.138" L x 0.138" W (3.50mm x 3.50mm) | 0.088" (2.23mm) |
|
SZG05A0ALED Z-POWER GREEN 525NM SMD |
0 |
|
Технический лист |
Z Power | 1414 (3535 Metric) | Tape & Reel (TR) | Obsolete | Green | 525nm (Typ) | 350mA | 3.3V | 87 lm/W | 700mA | 100lm (Typ) | 25°C | 128° | Surface Mount | SMD | 0.138" L x 0.138" W (3.50mm x 3.50mm) | 0.085" (2.15mm) |
|
XTEARY-00-0000-000000Q01LED XLAMP XTE BLUE 458NM SMD |
0 |
|
Технический лист |
XLamp® XT-E Horticulture | 1414 (3535 Metric) | Tape & Reel (TR) | Active | Blue | 458nm (450nm ~ 465nm) | 350mA | 2.85V | - | 1.5A | 613mW (600mW ~ 625mW) | 85°C | 140° | Surface Mount | SMD | 0.136" L x 0.136" W (3.45mm x 3.45mm) | 0.100" (2.54mm) |
|
LXZ1-PH01LED LUXEON Z RED-ORG 615NM SMD |
0 |
|
Технический лист |
LUXEON Z | 0705 (1713 Metric) | Tape & Reel (TR) | Active | Red-Orange | 615nm (610nm ~ 620nm) | 500mA | 2.2V | 58 lm/W | 700mA | 64lm (56lm ~ 72lm) | 25°C | 145° | Surface Mount | SMD | 0.067" L x 0.051" W (1.70mm x 1.30mm) | 0.026" (0.66mm) |
|
L1SP-LME0002000000LED SUNPLUS 20 LIME SMD |
0 |
|
Технический лист |
LUXEON SunPlus 20 Horticulture | 0707 (1919 Metric) | Tape & Reel (TR) | Active | Lime | - | 350mA | 2.75V | - | 1.225A | - | 85°C | 145° | Surface Mount | SMD | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.059" (1.50mm) |
|
QLSP06RGBXWAJ3030 PACKAGE LED, TOP VIEW WHITE |
0 |
|
Технический лист |
- | 1212 (3030 Metric) | Active | Red, Green, Blue, White (RGBW) | 625nm Red, 525nm Green, 455nm Blue, 5700K White | 350mA Red, 350mA Green, 350mA Blue, 350mA White | 2.2V Red, 3.2V Green, 3.2V Blue, 3.2V White | 71 lm/W Red, 98 lm/W Green, 20 lm/W Blue, 94 lm/W White | 400mA | 55lm Red, 110lm Green, 22lm Blue, 105lm White | 25°C | 120° | Surface Mount | 3030 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.075" (1.90mm) | |
|
|
SFT-10-RA-F35-MPALED SFT10 AMB/RED 613NM SMD |
0 |
|
Технический лист |
SFT-10 | 1414 (3535 Metric) | Tape & Reel (TR) | Active | Amber-Red | 613nm (Typ) | 700mA | 2.5V | 69 lm/W | 2.5A | 120lm (Typ) | 25°C | - | Surface Mount | SMD | 0.138" L x 0.138" W (3.50mm x 3.50mm) | 0.029" (0.74mm) |
|
|
XPEBGR-L1-0000-00M02XLAMP XP-E LIGHT EMITTING DIODE |
0 |
|
Технический лист |
XLamp® XP-E2 | 1414 (3535 Metric) | Tape & Reel (TR) | Active | Green | 525nm (520nm ~ 530nm) | 350mA | 2.7V | 186 lm/W | 1.5A | 176lm (172lm ~ 180lm) | 25°C | 135° | Surface Mount | 1414 | 0.136" L x 0.136" W (3.45mm x 3.45mm) | 0.094" (2.39mm) |
|

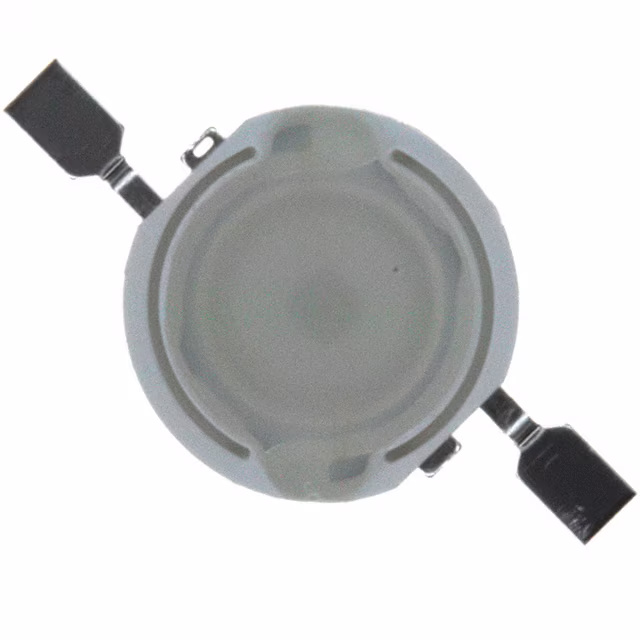

LOPL-E001CLED LOPL CYAN 505NM SMD |
0 |
|
Технический лист |
LOPL | 2-SMD, Gull Wing Exposed Pad | Tape & Reel (TR) | Obsolete | Cyan | 505nm (Typ) | 350mA | 3.7V | 27 lm/W | 350mA | 35lm (Typ) | 25°C | 110° | Surface Mount | SMD | 0.315" Dia (8.00mm) | 0.087" (2.20mm) |
|
|
XTEARY-02-0000-000000T05XLAMP XT-E LIGHT EMITTING DIODE |
0 |
|
Технический лист |
XLamp® XT-E | 1414 (3535 Metric) | Bulk | Active | Blue | 458nm | 350mA | 2.8V | - | 1.5A | 688mW (675mW ~ 700mW) | 85°C | 130° | Surface Mount | 1414 | 0.136" L x 0.136" W (3.45mm x 3.45mm) | 0.095" (2.41mm) |
|
|
XTEARY-02-0000-000000T07XLAMP XT-E LIGHT EMITTING DIODE |
0 |
|
Технический лист |
XLamp® XT-E | 1414 (3535 Metric) | Bulk | Active | Blue | 455nm | 350mA | 2.8V | - | 1.5A | 688mW (675mW ~ 700mW) | 85°C | 130° | Surface Mount | 1414 | 0.136" L x 0.136" W (3.45mm x 3.45mm) | 0.095" (2.41mm) |
|
|
XTEARY-02-0000-000000T04XLAMP XT-E LIGHT EMITTING DIODE |
0 |
|
Технический лист |
XLamp® XT-E | 1414 (3535 Metric) | Bulk | Active | Blue | 453nm | 350mA | 2.8V | - | 1.5A | 688mW (675mW ~ 700mW) | 85°C | 130° | Surface Mount | 1414 | 0.136" L x 0.136" W (3.45mm x 3.45mm) | 0.095" (2.41mm) |
|
ASM6-SR90-AHK0HLED ASM6-SXXX-XXXXH 625NM 3SMD |
0 |
|
Технический лист |
ASM6-Sxxx-xxxxH | 3-SMD, No Lead | Tape & Reel (TR) | Active | Red | 625nm (617nm ~ 635nm) | 350mA | 2.2V | 80 lm/W | 700mA | 62lm (50lm ~ 78lm) | 25°C | 90° | Surface Mount | 3-SMD | 0.136" L x 0.136" W (3.45mm x 3.45mm) | 0.106" (2.70mm) |
|
XPEAMB-L1-R250-00203LED XLAMP XPE AMB 593NM SMD |
0 |
|
Технический лист |
XLamp® XP-E | 1414 (3535 Metric) | Tape & Reel (TR) | Active | Amber | 593nm (590nm ~ 595nm) | 350mA | 2.1V | 58 lm/W | 500mA | 43lm (40lm ~ 46lm) | 25°C | 130° | Surface Mount | SMD | 0.136" L x 0.136" W (3.45mm x 3.45mm) | 0.084" (2.13mm) |
|
|
L1CU-MNT1000000000LED LUXEON CZ GREEN 3SMD |
0 |
|
Технический лист |
LUXEON CZ | 2-SMD, No Lead Exposed Pad | Tape & Reel (TR) | Active | Green | - | 350mA | 2.75V | 137 lm/W | 1.225A | 132lm (Typ) | 85°C | 120° | Surface Mount | SMD | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.036" (0.92mm) |
|
|
XEGAAM-H2-0000-000-000000T3001XLAMP XEG AMBER LED |
0 |
|
- |
XLamp® XE-G | 2-SMD, No Lead | Bulk | Active | Amber | 590nm (585nm ~ 595nm) | 1A | 3V | 77 lm/W | 3A | 230lm (220lm ~ 240lm) | 25°C | 125° | Surface Mount | 2-SMD | 0.081" L x 0.063" W (2.05mm x 1.60mm) | 0.044" (1.13mm) |
|
|
XPERDO-L1-0000-00A01LED XLAMP XPE RED-ORG 615NM SMD |
0 |
|
Технический лист |
XLamp® XP-E | 1414 (3535 Metric) | Tape & Reel (TR) | Active | Red-Orange | 615nm (610nm ~ 620nm) | 350mA | 2.1V | 124 lm/W | 700mA | 91lm (87lm ~ 94lm) | 25°C | 130° | Surface Mount | SMD | 0.136" L x 0.136" W (3.45mm x 3.45mm) | 0.084" (2.13mm) |
