Светодиодные COB, двигатели, модули, полосы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Цвет | CCT (K) | Длина волны | Конфигурация | Световой поток при токе/температуре | Ток - Тест | Температура - Тест | Напряжение - прямое (Vf) (тип.) | Люмен/Ватт при токе - Тест | Ток - макс. | CRI (индекс цветопередачи) | Угол обзора | Особенности | Размер/измерение | Высота | Светоизлучающая поверхность (LES) | Тип линзы |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTM-9-RGBW-12-TW01LED CTM9 RGBW |
313 |
|
Технический лист |
- | Tray | Active | LED Module | Red, Green, Blue, White (RGBW) | 2700K | 625nm, 530nm, 458nm | Square | 47lm Red, 325lm Green, 58lm Blue, 219lm White | 200mA Red, 200mA Green, 200mA Blue, 200mA White | 85°C | 12V | 20 lm/W Red, 135 lm/W Green, 24 lm/W Blue, 91 lm/W White | 250mA | 90 | 130° | - | 15.00mm L x 15.00mm W | 1.58mm | 9.50mm Dia | Flat |
|
SI-B8T11428001LED MOD LTM282C LNR STRP 4000K |
1,910 |
|
Технический лист |
LT-M282C Gen3 | Tray | Active | LED Module | White, Neutral | 4000K | - | Linear Light Strip | 1650lm | 450mA | - | 24.8V | 148 lm/W | 540mA | 80 | 115° | - | 275.00mm L x 18.00mm W | 5.80mm | - | Flat |
|
BXRE-65S2001-C-74V13C THRIVE |
635 |
|
Технический лист |
Gen 7 V13 Thrive™ Array | Tube | Active | Chip On Board (COB) | White, Cool | 6500K | - | Square | 2532lm (Typ) | 630mA | 85°C | 33.7V | 119 lm/W | 1.26A | 95 | 120° | Dimming | 19.00mm L x 19.00mm W | 1.70mm | 14.00mm Dia | Flat |
|
BXRE-27S2001-C-73V13C THRIVE |
339 |
|
Технический лист |
Gen 7 V13 Thrive™ Array | Tube | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 2330lm (Typ) | 630mA | 25°C | 34.4V | 108 lm/W | 1.26A | 95 | 120° | - | 19.00mm L x 19.00mm W | 1.70mm | 13.80mm Dia | Flat |
|

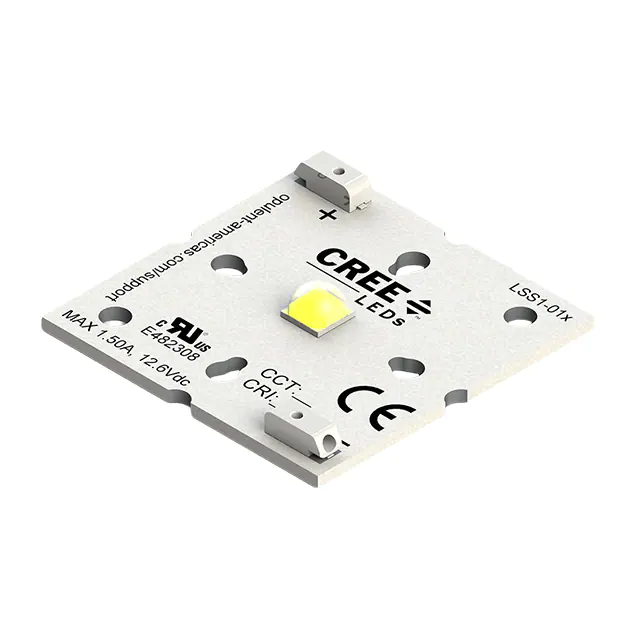

LSS1-01C22-5070-00LED MOD XHP50.2 COOL WH SQ 5000K |
156 |
|
Технический лист |
XHP50.2 | Tray | Active | LED Module | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Square | 1120lm (Typ) | 700mA | 85°C | 11.2V | 143 lm/W | 1.5A | 70 | - | - | 36.83mm L x 36.83mm W | - | - | Domed |
|
MTG7-001I-XTE00-CW-0G51LED MOD CREE XTE STARBRD 8300K |
150 |
|
Технический лист |
Cree XTE | - | Active | LED Module | White, Cool | 5000K ~ 8300K | - | Starboard | 135lm (130lm ~ 139lm) | 350mA | 85°C | 2.85V | 135 lm/W | 1.5A | - | 115° | - | 19.90mm Dia | - | - | Domed |
|
BXEB-L0280Z-50S1000-C-C3LED MOD EB SER WH LNR STRP 5000K |
113 |
|
Технический лист |
EB Series™ Gen 3 Thrive | Bulk | Active | LED Module | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 1345lm (Typ) | 480mA | 25°C | 20.3V | 138 lm/W | 960mA | 98 (Typ) | 120° | - | 280.00mm L x 24.00mm W | 6.10mm | - | Flat |
|
BXRC-35G2000-C-73LED COB VERO 13 WM WHT RND 3500K |
238 |
|
Технический лист |
Gen 7 Vero® 13 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Round | 2621lm (Typ) | 630mA | 85°C | 34.1V | 122 lm/W | 1.26A | 90 | 120° | With Connector | 36.20mm Dia | 1.90mm | 13.20mm Dia | Flat |
|
LST1-01G01-RYL1-00LED COB SST-10 BLUE STARBOARD |
1,285 |
|
Технический лист |
SST-10 | Tray | Active | Chip On Board (COB) | Blue | - | 450nm | Starboard | 600mW | 350mA | 25°C | 3V | - | - | - | 130° | - | - | - | - | - |
|
LST1-01F06-4070-00LED COB OSLON WHT STARBRD 4000K |
354 |
|
Технический лист |
OSLON® Square | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K | - | Starboard | 516mW | 350mA | 25°C | 3V | - | - | - | 120° | - | - | - | - | - |
|
CMU1519-0000-000N0Z0A30HLED COB XLAMP WARM WHT SQU 3000K |
225 |
|
Технический лист |
XLamp® CMU1519 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 2243lm (Typ) | 540mA | 85°C | 33.7V | 123 lm/W | 1.44A | 95 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | Flat |
|
XPEBRD-L1-0000-00901-SB01LED MOD XLAMP RED STARBOARD |
105 |
|
Технический лист |
XLamp® XP-E2 | Tray | Active | LED Module | Red | - | 625nm (620nm ~ 630nm) | Starboard | 84lm (81lm ~ 87lm) | 350mA | 25°C | 2.2V | 109 lm/W | 1A | - | 130° | - | 19.89mm Dia | - | - | Domed |
|
BXRV-TR-2765G-30A0-A-23LED COB VESTA WHITE SQUARE 4600K |
206 |
|
Технический лист |
Vesta™ | Tube | Active | Chip On Board (COB) | White, Warm / White, Cool | 4600K (2700K ~ 6500K) 3-Step MacAdam Ellipse | - | Square | 2954lm (Typ) | 650mA | 25°C | 35.5V | 128 lm/W | 950mA | 92 | 130° | - | 21.00mm L x 21.00mm W | 1.65mm | 16.30mm Dia | Flat |
|
L2C5-30901204E0900LED COB LUXEON WHT RECT 3000K |
173 |
|
Технический лист |
LUXEON CoB Core Range | Tube | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Rectangle | 2378lm (Typ) | 700mA | 85°C | 37V | 92 lm/W | 1.35A | 90 | 115° | - | 16.00mm L x 19.00mm W | 1.50mm | 9.00mm Dia | Flat |
|
LST1-01G01-GRN1-00LED COB SST-10 GREEN STARBOARD |
442 |
|
Технический лист |
SST-10 | Tray | Active | Chip On Board (COB) | Green | - | 527nm | Starboard | 270mW | 350mA | 25°C | 3.4V | - | - | - | 130° | - | - | - | - | - |
|
|
XPEBRY-L1-0000-00R01-SB01LED MOD XLAMP BLUE STARBOARD |
231 |
|
Технический лист |
XLamp® XP-E2 | Tray | Not For New Designs | LED Module | Blue | - | 458nm (450nm ~ 465nm) | Starboard | - | 350mA | 25°C | 3.1V | - | 1A | - | 135° | - | 19.89mm Dia | - | - | Domed |
|
|
5510LED MOD PINK LINEAR STRIP |
101 |
|
Технический лист |
- | Bulk | Active | LED Module | Pink | - | - | Linear Light Strip, Flexible | - | - | - | 3V | - | - | - | - | - | 300.00mm L | - | - | Flat |
|
BXRE-35G2000-C-83LED COB V SER GEN 8 WHT SQ 3500K |
500 |
|
Технический лист |
V Series™ Gen 8 | Tube | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | - | - | 25°C | - | 150 lm/W | - | 90 | - | - | - | - | 13.00mm Dia | Flat |
|
BXRE-40G2000-C-83LED COB V13 NEUT WHT SQU 4000K |
450 |
|
Технический лист |
Gen 8 V13 Array | Tube | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 2559lm (Typ) | 500mA | 25°C | 33.4V | 153 lm/W | 1.75A | 90 | 120° | - | 19.00mm L x 19.00mm W | 1.65mm | 14.80mm Dia | Flat |
|
|
BXRE-27G2000-C-83LED COB V13 WARM WHT SQU 2700K |
235 |
|
Технический лист |
Gen 8 V13 Array | Tube | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 2314lm (Typ) | 500mA | 25°C | 33.4V | 139 lm/W | 1.75A | 90 | 120° | - | 19.00mm L x 19.00mm W | 1.65mm | 14.80mm Dia | Flat |
