Светодиодные COB, двигатели, модули, полосы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Цвет | CCT (K) | Длина волны | Конфигурация | Световой поток при токе/температуре | Ток - Тест | Температура - Тест | Напряжение - прямое (Vf) (тип.) | Люмен/Ватт при токе - Тест | Ток - макс. | CRI (индекс цветопередачи) | Угол обзора | Особенности | Размер/измерение | Высота | Светоизлучающая поверхность (LES) | Тип линзы |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMB3090-0000-000R0U0A30GLED COB XLAMP WARM WHT SQ 3000K |
121 |
|
Технический лист |
XLamp® CMB3090 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 10586lm | 1.2A | 85°C | 68.1V | 130 lm/W | 2.4A | 90 | 115° | - | 27.35mm L x 27.35mm W | 1.75mm | 23.00mm Dia | Flat |
|
L2C5-50701211E1900LED COB LUXEON COOL WHT SQ 5000K |
445 |
|
Технический лист |
LUXEON CoB Core Range Gen 3 | Tube | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 6726lm (Typ) | 1.2A | 85°C | 34.8V | 161 lm/W | 2.4A | 70 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 18.50mm Dia | Flat |
|
|
L2C5-50801211E1900LED COB LUXEON COOL WHT SQ 5000K |
422 |
|
Технический лист |
LUXEON CoB Core Range Gen 3 | Tube | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 6238lm (Typ) | 1.2A | 85°C | 34.8V | 149 lm/W | 2.4A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 18.50mm Dia | Flat |
|
|
L2C5-35801211E1900LED COB LUXEON WARM WHT SQ 3500K |
379 |
|
Технический лист |
LUXEON CoB Core Range Gen 3 | Tube | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 6038lm (Typ) | 1.2A | 85°C | 34.8V | 145 lm/W | 2.4A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 18.50mm Dia | Flat |
|
|
L2C5-27901211E1900LED COB LUXEON WARM WHT SQ 2700K |
524 |
|
Технический лист |
LUXEON CoB Core Range Gen 3 | Tube | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 4783lm (Typ) | 1.2A | 85°C | 34.8V | 115 lm/W | 2.4A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 18.50mm Dia | Flat |
|
|
L2C5-30801211E1900LED COB LUXEON WM WHT SQ 3000K |
376 |
|
Технический лист |
LUXEON CoB Core Range Gen 3 | Tube | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 5920lm (Typ) | 1.2A | 85°C | 34.8V | 142 lm/W | 2.4A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 18.50mm Dia | Flat |
|
|
CLM-22-HM-61-36-AC30-P1-3LED COB CLM22 HORT WHITE SQU |
102 |
|
Технический лист |
CLM-22 Horticulture | Tray | Active | Chip On Board (COB) | White | - | - | Square | - | 1.1A | 85°C | 34.7V | - | 2.2A | - | 120° | - | 28.00mm L x 28.00mm W | 1.37mm | 22.00mm Dia | Flat |
|
|
CXM-22-HS-11-54-AC30-P1-7LED COB SENSUS HORT WHT SQUARE |
118 |
|
Технический лист |
Sensus™ Horticulture | Tray | Active | Chip On Board (COB) | White | - | - | Square | - | 1.1A | 85°C | 51.5V | - | 2.2A | - | 120° | - | 28.00mm L x 28.00mm W | 1.37mm | 22.00mm Dia | Flat |
|
SL-B8V4N90LAWWLED MOD H INFLUX LNR STRP 3000K |
599 |
|
Технический лист |
H inFlux | Tray | Active | LED Module | White, Warm | 3000K | - | Linear Light Strip | 7910lm (Typ) | 1A | 55°C | 44.6V | 178 lm/W | 1.6A | 80 | 118° | - | 560.00mm L x 41.00mm W | 5.20mm | - | Flat |
|
COB-DN-16-2420-27K-65K-90LED COB WHITE RECT 6500K |
238 |
|
Технический лист |
- | Tray | Active | Chip On Board (COB) | White, Warm / White, Cool | 2700K ~ 6500K | - | Rectangle | 2300lm, 2400lm | 700mA | 105°C | 35.5V | 95 lm/W, 97 lm/W | 800mA | 90 | - | - | 24.00mm L x 20.00mm W | 1.60mm | 16.00mm Dia | Flat |
|
|
L2C5-40801825G3200LED COB LUXEON NEUT WHT SQ 4000K |
156 |
|
Технический лист |
LUXEON CoB Core Range Gen 3 | Tube | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 17075lm (Typ) | 2.25A | 85°C | 51.7V | 150 lm/W | 4.5A | 80 | 115° | - | 38.00mm L x 38.00mm W | 1.50mm | 32.80mm Dia | Flat |
|
|
CMB3090-0000-000R0Z0A30HLED COB XLAMP WARM WHT SQU 3000K |
125 |
|
Технический лист |
XLamp® CMB3090 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 9381lm | 1.2A | 85°C | 68.1V | 115 lm/W | 2.4A | 95 | 115° | - | 27.35mm L x 27.35mm W | 1.75mm | 23.00mm Dia | Flat |
|
|
CMB3090-0000-000Q0Z0A30HLED COB XLAMP WARM WHT SQU 3000K |
124 |
|
Технический лист |
XLamp® CMB3090 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 9381lm | 1.8A | 85°C | 45.4V | 115 lm/W | 3.6A | 95 | 115° | - | 27.35mm L x 27.35mm W | 1.75mm | 23.00mm Dia | Flat |
|
CXM-32-HM-61-54-AC30-P1-3LED COB SENSUS HORT WHT SQUARE |
43 |
|
Технический лист |
Sensus™ Horticulture | Tray | Active | Chip On Board (COB) | White | - | - | Square | - | 2.2A | 85°C | 51V | - | 4.4A | - | 120° | - | 38.00mm L x 38.00mm W | 1.37mm | 32.80mm Dia | Flat |
|

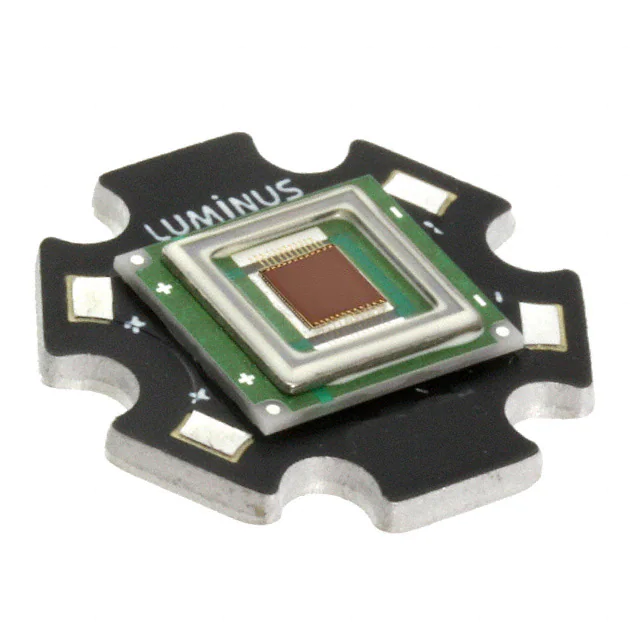

SBR-90-R-R75-HN101LED MOD SBR-90 RED STARBOARD |
32 |
|
Технический лист |
SBR-90 | Tray | Active | LED Module | Red | - | - | Starboard | 1350lm (Typ) | 13.5A | 25°C | 2.7V | 37 lm/W | 13.5A | - | - | - | 19.90mm Dia | 3.50mm | 3.00mm L x 3.00mm W | Flat |
|
CXB3590-0000-000N0HCD35HLED COB XLAMP WARM WHT SQU 3500K |
28 |
|
Технический лист |
XLamp® CXB3590 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 12500lm (12000lm ~ 13000lm) | 2.4A | 85°C | 36V | 145 lm/W | 3.6A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXB3590-0000-000N0YAB32QLED COB XLAMP WARM WHT SQ 3200K |
36 |
|
Технический лист |
XLamp® CXB3590 | Tray | Active | Chip On Board (COB) | White, Warm | 3200K | - | Square | 8750lm (8500lm ~ 9000lm) | 2.4A | 85°C | 36V | 101 lm/W | 3.6A | 93 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
CBT-140-WCS-L16-UA123LED MOD CBT-140 WHT RECT 8500K |
36 |
|
Технический лист |
CBT-140 | Tray | Active | LED Module | White, Cool | 7040K ~ 8500K | - | Rectangle | 3818lm (3680lm ~ 3955lm) | 21A | 85°C | 3.6V | 50 lm/W | 28A | 75 (Typ) | - | With Connector | 28.00mm L x 42.00mm W | 5.70mm | 4.25mm Dia | Flat |
|
LSB1-12G08-UV01-00LED MOD ULTRAVIO LNR LGT STRP |
56 |
|
Технический лист |
- | Bulk | Active | LED Module | UltraViolet | - | 275nm ~ 280nm | Linear Light Strip | - | 700mA | 25°C | 37.5V | - | 1.6A | - | 130° | - | 281.00mm L x 19.20mm W | 5.95mm | - | Flat |
|
|
SPHWH2L3D50CE4QNSFLED LH351C+ WHITE 5700K 3535 |
1,600 |
|
- |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
