Светодиодные COB, двигатели, модули, полосы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Цвет | CCT (K) | Длина волны | Конфигурация | Световой поток при токе/температуре | Ток - Тест | Температура - Тест | Напряжение - прямое (Vf) (тип.) | Люмен/Ватт при токе - Тест | Ток - макс. | CRI (индекс цветопередачи) | Угол обзора | Особенности | Размер/измерение | Высота | Светоизлучающая поверхность (LES) | Тип линзы |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

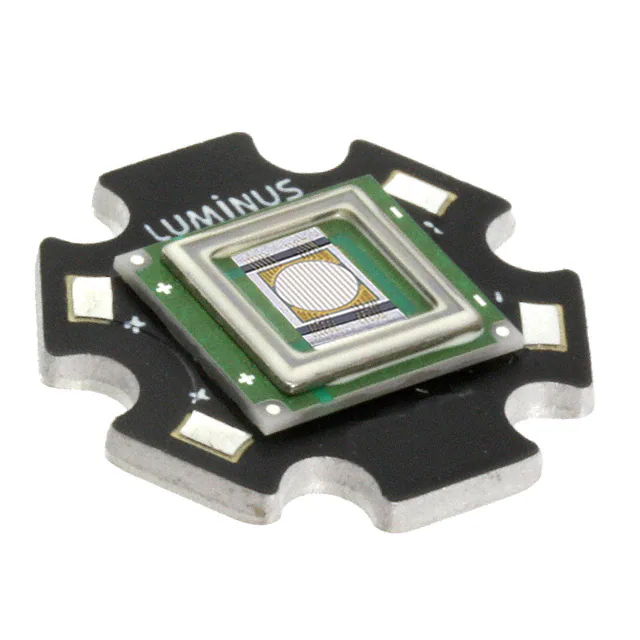

SBR-70-G-R75-JM202LED MOD SBR-70 GREEN STARBOARD |
67 |
|
Технический лист |
SBR-70 | Tray | Active | LED Module | Green | - | 530nm | Starboard | 2100lm (Typ) | 10.5A | 25°C | 4.5V | 44 lm/W | 14.0A | - | - | - | 19.90mm Dia | 3.44mm | 3.00mm Dia | Flat |
|
CBT-140-WDH-L16-QB220LED MOD CBT-140 WHT RECT 6020K |
45 |
|
Технический лист |
CBT-140 | Tray | Active | LED Module | White, Cool | 5310K ~ 6020K | - | Rectangle | 2340lm (2260lm ~ 2420lm) | 21A | 85°C | 3.6V | 31 lm/W | 28A | 92 (Typ) | - | With Connector | 28.00mm L x 42.00mm W | 5.70mm | 4.25mm Dia | Flat |
|
BXRH-30H0600-A-73LED COB V4 HD WARM WHT SQ 3000K |
101 |
|
Технический лист |
Gen 7 V4 HD LED Array | Tube | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 498lm (Typ) | 175mA | 85°C | 35.4V | 80 lm/W | 240mA | 97 (Typ) | 120° | - | 12.50mm L x 12.50mm W | 1.63mm | 5.20mm Dia | Flat |
|
SPHWHAHDNA27YZT3DCLED COB D GEN3 NEUT WHT SQ 4000K |
500 |
|
Технический лист |
COB D Gen3 Plus | Box | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 450lm (Typ) | 90mA | 85°C | 33.7V | 148 lm/W | 180mA | 90 | 115° | - | 13.50mm L x 13.50mm W | 1.50mm | 9.80mm Dia | Flat |
|
|
SPHWHAHDNA27YZU3DCLED COB D GEN3 WARM WHT SQ 3500K |
500 |
|
Технический лист |
COB D Gen3 Plus | Box | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 441lm (Typ) | 90mA | 85°C | 33.7V | 141 lm/W | 180mA | 90 | 115° | - | 13.50mm L x 13.50mm W | 1.50mm | 9.80mm Dia | Flat |
|
|
CXM-3-35-90-36-AC40-F5-3LED COB CXM-3 WARM WHT SQU 3500K |
768 |
|
Технический лист |
CXM-3 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 320lm (Typ) | 80mA | 25°C | 34.2V | 117 lm/W | 200mA | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.37mm | 3.50mm Dia | Flat |
|
CXM-3-40-90-36-AC40-F5-3LED COB CXM-3 NEUT WHT SQU 4000K |
2,355 |
|
Технический лист |
CXM-3 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 325lm (Typ) | 80mA | 25°C | 34.2V | 119 lm/W | 200mA | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.37mm | 3.50mm Dia | Flat |
|
CXM-3-27-90-36-AC40-F5-3LED COB CXM-3 WARM WHT SQU 2700K |
2,167 |
|
Технический лист |
CXM-3 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 295lm (Typ) | 80mA | 25°C | 34.2V | 108 lm/W | 200mA | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.37mm | 3.50mm Dia | Flat |
|
|
BXRH-30E0300-B-83LED COB V3 WARM WHT SQU 3000K |
190 |
|
Технический лист |
Gen 8 V3 HD LED Array | Tube | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 396lm (Typ) | 160mA | 25°C | 17.6V | 141 lm/W | 360mA | 80 | 120° | - | 12.50mm L x 12.50mm W | 1.63mm | 3.80mm Dia | Flat |
|
CXM-4-30-90-36-TC41-F5-2LED COB CXM-4 WARM WHT SQU 3000K |
2,098 |
|
Технический лист |
CXM-4 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 470lm (Typ) | 120mA | 25°C | 33.8V | 116 lm/W | 400mA | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.37mm | 4.50mm Dia | Flat |
|
|
CXM-4-30-90-18-AC40-F5-3LED COB WARM WHT SQUARE 3000K |
350 |
|
Технический лист |
- | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 440lm (Typ) | 240mA | 85°C | 16.9V | 108 lm/W | 800mA | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.37mm | 4.50mm Dia | Flat |
|
|
SPHWHAHDNB27YZT3DCLED COB D GEN3 NEUT WHT SQ 4000K |
500 |
|
Технический лист |
COB D Gen3 Plus | Box | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 884lm (Typ) | 180mA | 85°C | 33.7V | 145 lm/W | 360mA | 90 | 115° | - | 13.50mm L x 13.50mm W | 1.50mm | 9.80mm Dia | Flat |
|
|
SPHWHAHDNB27YZU3DCLED COB D GEN3 WARM WHT SQ 3500K |
499 |
|
Технический лист |
COB D Gen3 Plus | Box | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 865lm (Typ) | 180mA | 85°C | 33.7V | 142 lm/W | 360mA | 90 | 115° | - | 13.50mm L x 13.50mm W | 1.50mm | 9.80mm Dia | Flat |
|
|
SPHWHAHDNB25YZT3DCLED COB D GEN3 NEUT WHT SQ 4000K |
499 |
|
Технический лист |
COB D Gen3 Plus | Box | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 1038lm (Typ) | 180mA | 85°C | 33.7V | 170 lm/W | 360mA | 80 | 115° | - | 13.50mm L x 13.50mm W | 1.50mm | 9.80mm Dia | Flat |
|
|
SPHWHAHDNB25YZU3DCLED COB D GEN3 WARM WHT SQ 3500K |
498 |
|
Технический лист |
COB D Gen3 Plus | Box | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 1021lm (Typ) | 180mA | 85°C | 33.7V | 167 lm/W | 360mA | 80 | 115° | - | 13.50mm L x 13.50mm W | 1.50mm | 9.80mm Dia | Flat |
|
|
SPHWHAHDNB27YZR3DCLED COB D GEN3 COOL WHT SQ 5000K |
488 |
|
Технический лист |
COB D Gen3 Plus | Box | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 902lm (Typ) | 180mA | 85°C | 33.7V | 148 lm/W | 360mA | 90 | 115° | - | 13.50mm L x 13.50mm W | 1.50mm | 9.80mm Dia | Flat |
|
CXM-4-35-90-36-AC40-F5-3LED COB CXM-4 WARM WHT SQU 3500K |
1,525 |
|
Технический лист |
CXM-4 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 490lm (Typ) | 120mA | 25°C | 33.8V | 121 lm/W | 400mA | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.37mm | 4.50mm Dia | Flat |
|
|
SPHWHAHDNA27YZV3DCLED COB D GEN3 WM WHT SQ 3000K |
485 |
|
Технический лист |
COB D Gen3 Plus | Box | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 428lm (Typ) | 90mA | 85°C | 33.7V | 164 lm/W | 180mA | 90 | 115° | - | 13.50mm L x 13.50mm W | 1.50mm | 9.80mm Dia | Flat |
|
|
BXRH-40G0600-A-83LED COB V4 HD NEUT WHT SQU 4000K |
566 |
|
Технический лист |
Gen 8 V4 HD LED Array | Tube | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 745lm (Typ) | 175mA | 25°C | 36.6V | 116 lm/W | 300mA | 90 | 120° | - | 12.50mm L x 12.50mm W | 1.63mm | 4.80mm Dia | Flat |
|
|
SPHWHAHDNB25YZR3DCLED COB D GEN3 COOL WHT SQ 5000K |
489 |
|
Технический лист |
COB D Gen3 Plus | Box | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 1056lm (Typ) | 180mA | 85°C | 33.7V | 173 lm/W | 360mA | 80 | 115° | - | 13.50mm L x 13.50mm W | 1.50mm | 9.80mm Dia | Flat |
