Светодиодные COB, двигатели, модули, полосы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Цвет | CCT (K) | Длина волны | Конфигурация | Световой поток при токе/температуре | Ток - Тест | Температура - Тест | Напряжение - прямое (Vf) (тип.) | Люмен/Ватт при токе - Тест | Ток - макс. | CRI (индекс цветопередачи) | Угол обзора | Особенности | Размер/измерение | Высота | Светоизлучающая поверхность (LES) | Тип линзы |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LE-WB2W-12WLED MOD WARM WHT ROUND 3000K |
1 |
|
Технический лист |
- | - | Active | LED Module | White, Warm | 3000K | - | Round | 135lm (Typ) | - | 25°C | - | - | - | 80 | 100° | - | - | - | - | Flat |
|
S4SM-1063279736-0B000G3S-00001LED COB SUNLIKE WM WHT SQ 2700K |
0 |
|
Технический лист |
SunLike | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 895lm (Typ) | 290mA | 85°C | 34.8V | 89 lm/W | 580mA | 97 (Typ) | 115° | - | 13.50mm L x 13.50mm W | 1.45mm | 9.80mm Dia | Flat |
|
CXA1830-0000-000N00T40E3LED COB XLAMP COOL WHT SQ 5000K |
0 |
|
Технический лист |
XLamp® CXA1830 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K | - | Square | 3560lm (3440lm ~ 3680lm) | 800mA | 85°C | 37V | 120 lm/W | 1.4A | 70 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 14.00mm Dia | Flat |
|
CXB1816-0000-000N0HQ230GLED COB XLAMP WARM WHT SQ 3000K |
0 |
|
Технический лист |
XLamp® CXB1816 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 2180lm (2100lm ~ 2260lm) | 450mA | 85°C | 36V | 135 lm/W | 900mA | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia | Flat |
|
CXA2520-0000-000N0HR240GLED COB XLAMP NEUT WHT SQU 4000K |
0 |
|
Технический лист |
XLamp® CXA2520 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 2510lm (2420lm ~ 2600lm) | 550mA | 85°C | 36V | 127 lm/W | 1.25A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
CLU028-1202C4-403H5K2LED COB CLU028 NEUT WHT SQ 4000K |
6 |
|
Технический лист |
CLU028 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 782lm (Typ) | 180mA | 85°C | 34.6V | 126 lm/W | 460mA | 90 | - | - | 13.50mm L x 13.50mm W | 1.40mm | 9.80mm Dia | Flat |
|
|
CLU028-1202C4-303M2K1LED COB CLU028 WM WHT SQ 3000K |
1 |
|
Технический лист |
CLU028 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 918lm (Typ) | 180mA | 85°C | 34.6V | 147 lm/W | 460mA | 80 | - | - | 13.50mm L x 13.50mm W | 1.40mm | 9.80mm Dia | Flat |
|
|
CLU028-1202C4-50AL7K3LED COB CLU028 COOL WHT SQ 5000K |
0 |
|
Технический лист |
CLU028 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 1017lm (Typ) | 180mA | 85°C | 34.6V | 163 lm/W | 460mA | 70 | - | - | 13.50mm L x 13.50mm W | 1.40mm | 9.80mm Dia | Flat |
|
|
CLU028-1202C4-403M2K1LED COB CLU028 NEUT WHT SQ 4000K |
0 |
|
Технический лист |
CLU028 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 948lm (Typ) | 180mA | 85°C | 34.6V | 152 lm/W | 460mA | 80 | - | - | 13.50mm L x 13.50mm W | 1.40mm | 9.80mm Dia | Flat |
|
CXB1820-0000-000N0HR430GLED COB XLAMP WARM WHT SQ 3000K |
0 |
|
Технический лист |
XLamp® CXB1820 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 2690lm (2600lm ~ 2780lm) | 550mA | 85°C | 36V | 136 lm/W | 1.05A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia | Flat |
|
|
CLU028-1204C4-353M2K1LED COB CLU028 WARM WHT SQ 3500K |
24 |
|
Технический лист |
CLU028 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 1805lm (Typ) | 360mA | 85°C | 34.6V | 145 lm/W | 920mA | 80 | - | - | 13.50mm L x 13.50mm W | 1.40mm | 9.80mm Dia | Flat |
|
|
CLU028-1204C4-40AL7K3LED COB CLU028 NEUT WHT SQ 4000K |
6 |
|
Технический лист |
CLU028 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 1932lm (Typ) | 360mA | 85°C | 34.6V | 155 lm/W | 920mA | 70 | - | - | 13.50mm L x 13.50mm W | 1.40mm | 9.80mm Dia | Flat |
|
BXRC-50E1001-C-84-SELED COB VERO SE 10C WH RND 5000K |
0 |
|
Технический лист |
Gen 8 Vero® SE 10 Array | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 1661lm (Typ) | 300mA | 25°C | 30.7V | 180 lm/W | 1A | 80 | 120° | - | 30.80mm Dia | 3.60mm | 10.00mm Dia | Flat |
|
|
CMT1420-0000-00PN0U0A40GLED COB XLAMP NEUT WHT SQU 4000K |
0 |
|
Технический лист |
XLamp® CMT1420 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 2535lm (Typ) | 550mA | 85°C | 34.4V | 134 lm/W | 1.05A | 90 | 115° | - | 13.50mm L x 13.50mm W | 1.45mm | 9.80mm Dia | Flat |
|

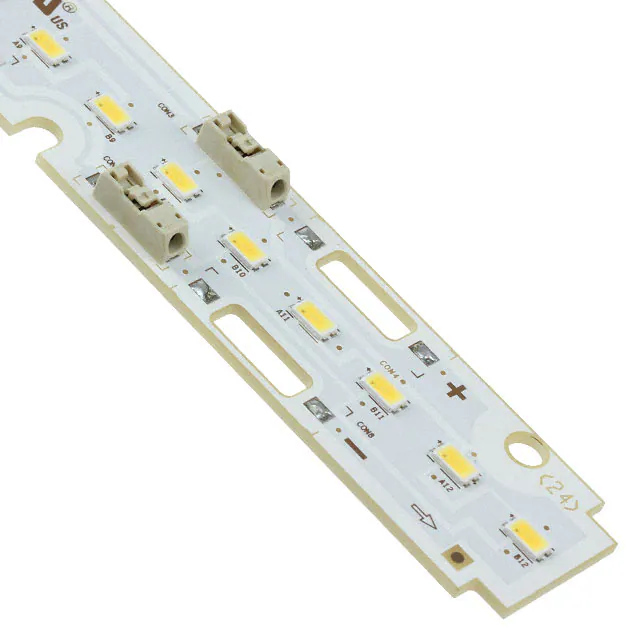

SI-B8V07128LWWLED MOD LT-S282L LNR STRP 3000K |
0 |
|
Технический лист |
LT-S282L | Tray | Not For New Designs | LED Module | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 1080lm (Typ) | 200mA | 50°C | 35.2V | 153 lm/W | 360mA | 80 | 115° | With Connector | 279.70mm L x 23.80mm W | 5.80mm | - | Flat |
|

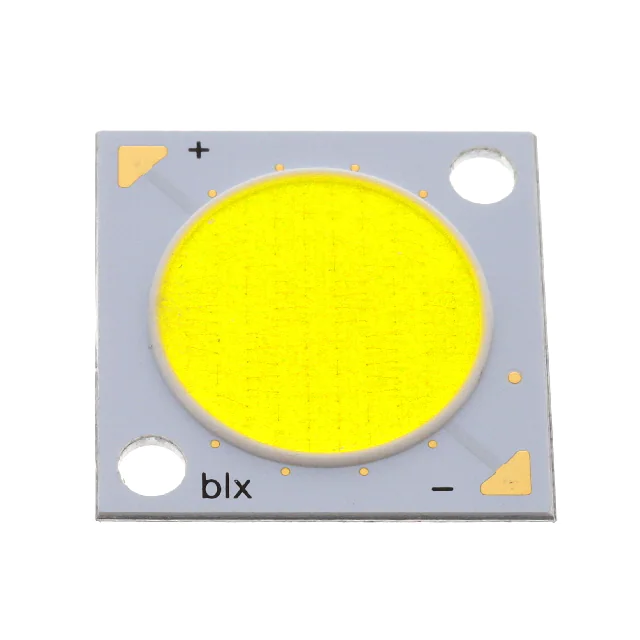

BXRE-50C3001-D-84LED COB V SER GEN 8 WHT SQ 5000K |
20 |
|
Технический лист |
V Series™ Gen 8 | Tube | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 3214lm (Typ) | 500mA | 25°C | 33.7V | 192 lm/W | - | 70 | - | - | - | - | 15.00mm Dia | Flat |
|
CLU711-1204C4-403M2K1LED COB CLU711 NEUT WH SQ 4000K |
10 |
|
Технический лист |
CLU711 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 3172lm (Typ) | 700mA | 85°C | 37.6V | 121 lm/W | 920mA | 80 | - | - | 19.00mm L x 19.00mm W | - | 8.50mm Dia | Flat |
|
BXRC-30G4000-D-73-SELED COB VERO WHT RND 3000K |
5 |
|
Технический лист |
Vero® SE 18 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 3468lm (Typ) | 1.05A | 85°C | 28.3V | 117 lm/W | 2.1A | 90 | 120° | - | 36.20mm Dia | 3.60mm | 18.40mm Dia | Flat |
|
|
BXRC-30G4000-B-73-SELED COB VERO WHT RND 3000K |
0 |
|
Технический лист |
Vero® SE 18 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 3567lm (Typ) | 900mA | 85°C | 34.1V | 116 lm/W | 1.8A | 90 | 120° | - | 36.20mm Dia | 3.60mm | 18.40mm Dia | Flat |
|
|
BXRC-40G4000-B-73-SELED COB VERO SE 18 WHT RND 4000K |
0 |
|
Технический лист |
Vero® SE 18 Array | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 3825lm (Typ) | 900mA | 85°C | 34.1V | 125 lm/W | 1.8A | 90 | 120° | - | 36.20mm Dia | 3.60mm | 18.40mm Dia | Flat |
