Светодиодные COB, двигатели, модули, полосы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Цвет | CCT (K) | Длина волны | Конфигурация | Световой поток при токе/температуре | Ток - Тест | Температура - Тест | Напряжение - прямое (Vf) (тип.) | Люмен/Ватт при токе - Тест | Ток - макс. | CRI (индекс цветопередачи) | Угол обзора | Особенности | Размер/измерение | Высота | Светоизлучающая поверхность (LES) | Тип линзы |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
98003LED MOD TROFFER LNR STRP 3000K |
0 |
|
Технический лист |
Troffer | Box | Obsolete | LED Module | White, Warm | 3000K | - | Linear Light Strip | 1639lm (Typ) | 700mA | 25°C | 17.9V | 131 lm/W | - | 83 (Typ) | 120° | - | 582.93mm L x 18.80mm W | 2.08mm | - | Flat |
|

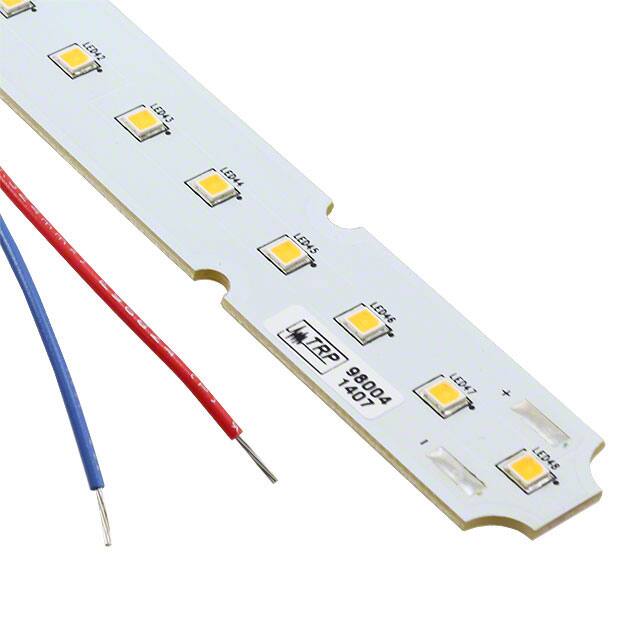

98004LED MOD TROFFER LNR 3500K 23" |
0 |
|
Технический лист |
Troffer | Box | Obsolete | LED Module | White, Warm | 3500K | - | Linear Light Strip | 893lm (Typ) | 700mA | 25°C | 17.9V | 71 lm/W | - | 83 (Typ) | 120° | - | 582.93mm L x 18.80mm W | 2.08mm | - | Flat |
|
98005LED MOD TROFFER LNR STRP 4000K |
0 |
|
Технический лист |
Troffer | Box | Obsolete | LED Module | White, Neutral | 4000K | - | Linear Light Strip | 1765lm (Typ) | 700mA | 25°C | 17.9V | 141 lm/W | - | 83 (Typ) | 120° | - | 582.93mm L x 18.80mm W | 2.08mm | - | Flat |
|
98008LED MOD FINGERBRD WHT SQ 4000K |
0 |
|
Технический лист |
Fingerboard | Box | Obsolete | LED Module | White, Neutral | 4000K | - | Square | 2353lm (Typ) | 700mA | 25°C | 22V ~ 23V | 149 lm/W | - | 83 (Typ) | 120° | - | 259.08mm L x 259.08mm W | 2.08mm | - | Flat |
|

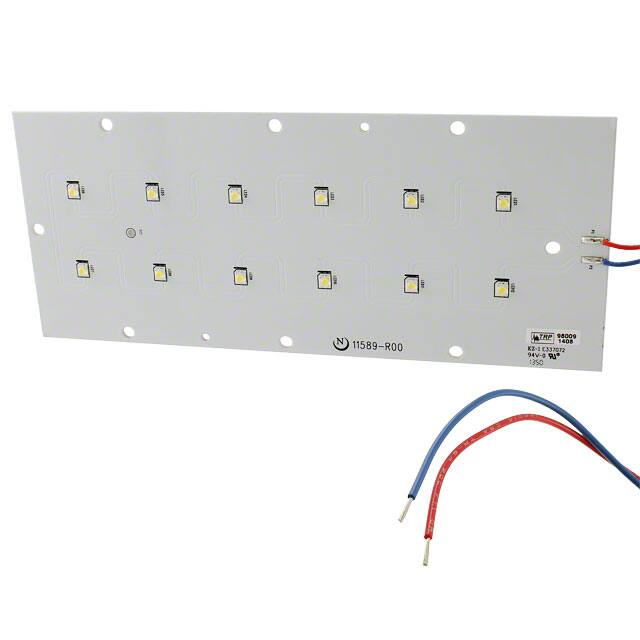

98009LED MOD CANOPY CL WH RECT 5000K |
0 |
|
Технический лист |
Canopy | Box | Obsolete | LED Module | White, Cool | 5000K | - | Rectangle | 3420lm (Typ) | 700mA | 25°C | 37V | 132 lm/W | - | 70 (Typ) | 120° | - | 81.28mm L x 177.80mm W | 3.56mm | - | Flat |
|
98010LED MOD LNR WHT LNR STRP 3000K |
0 |
|
Технический лист |
Linear | Box | Obsolete | LED Module | White, Warm | 3000K | - | Linear Light Strip | 465lm (Typ) | 445mA | 25°C | 12V | 87 lm/W | - | 85 (Typ) | 120° | - | 575.82mm L x 11.11mm W | 12.95mm | - | Flat |
|

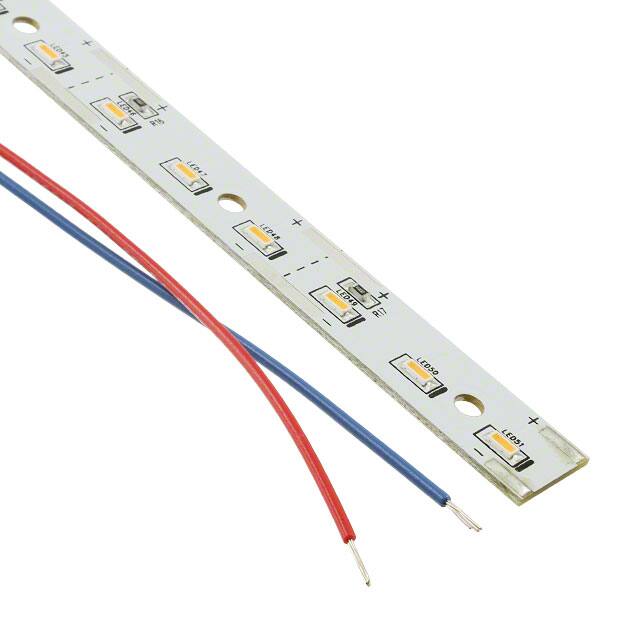

98011LED MOD LNR WHT LNR STRP 3500K |
0 |
|
Технический лист |
Linear | Box | Obsolete | LED Module | White, Warm | 3500K | - | Linear Light Strip | 465lm (Typ) | 445mA | 25°C | 12V | 87 lm/W | - | 85 (Typ) | 120° | - | 575.82mm L x 11.11mm W | 12.95mm | - | Flat |
|
98012LED MOD LNR WHT LNR STRP 4000K |
0 |
|
Технический лист |
Linear | Box | Obsolete | LED Module | White, Neutral | 4000K | - | Linear Light Strip | 504lm (Typ) | 445mA | - | 12V | 94 lm/W | - | 85 (Typ) | 120° | - | 575.82mm L x 11.11mm W | 12.95mm | - | Flat |

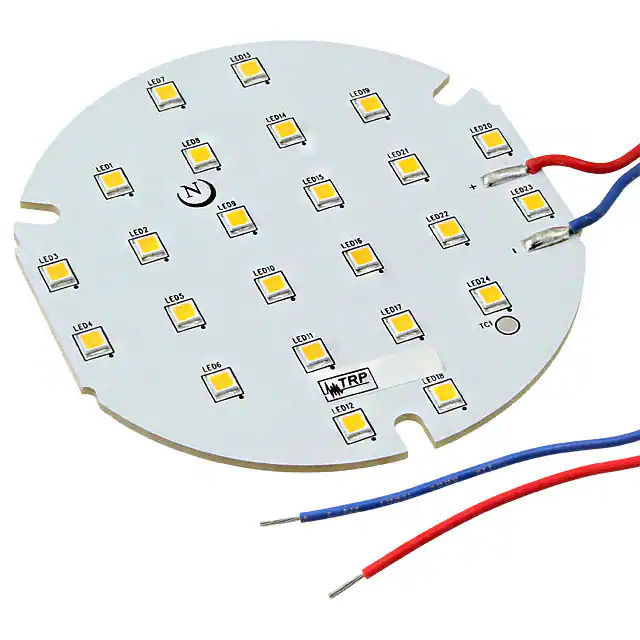

 3.0 Round Module.jpg)
|
98015LED MOD RND WM WHT RND 3500K |
0 |
|
Технический лист |
Round | Box | Obsolete | LED Module | White, Warm | 3500K | - | Round | 860lm (Typ) | 350mA | 25°C | 17.9V | 137 lm/W | - | 83 (Typ) | 120° | - | 76.20mm Dia | 2.08mm | - | Flat |
|
|
98016LED MOD RND NEUT WHT RND 4000K |
0 |
|
Технический лист |
Round | Box | Obsolete | LED Module | White, Neutral | 4000K | - | Round | 883lm (Typ) | 350mA | 25°C | 17.9V | 141 lm/W | - | 83 (Typ) | 120° | - | 76.20mm Dia | 2.08mm | - | Flat |
|

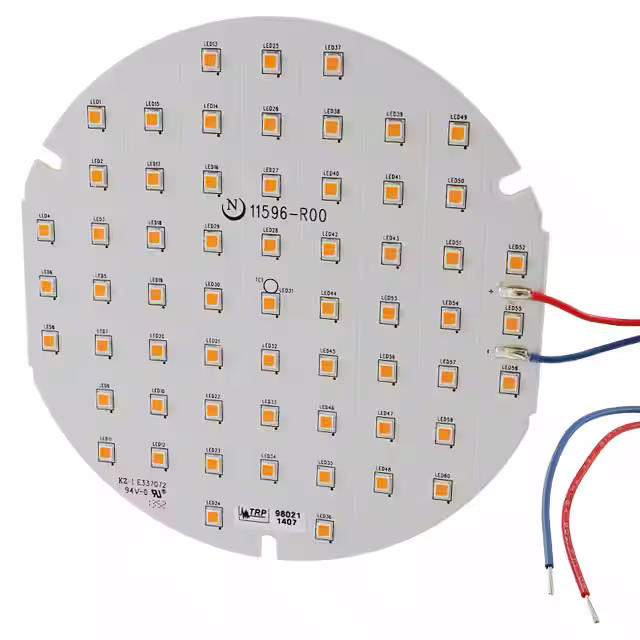

98021LED MOD RND WM WHT RND 2700K |
0 |
|
Технический лист |
Round | Box | Obsolete | LED Module | White, Warm | 2700K | - | Round | 1970lm (Typ) | 450mA | 25°C | 35.9V | 122 lm/W | - | 83 (Typ) | 120° | - | 119.38mm Dia | 2.08mm | - | Flat |
|
98024LED MOD RND NEUT WHT RND 4000K |
0 |
|
Технический лист |
Round | Box | Obsolete | LED Module | White, Neutral | 4000K | - | Round | 2265lm (Typ) | 450mA | 25°C | 35.9V | 140 lm/W | - | 83 (Typ) | 120° | - | 119.38mm Dia | 2.08mm | - | Flat |
|
XQERED-SB-0000-000000501LED MOD XLAMP RED STARBOARD |
0 |
|
Технический лист |
XLamp® XQ-E | Tray | Discontinued | LED Module | Red | - | 625nm | Starboard | 57lm (Typ) | 350mA | 25°C | 2.2V | 74 lm/W | 1A | - | 130° | - | - | 1.58mm | - | Domed |
|
|
XQEGRN-SB-0000-000000C01LED MOD XLAMP GREEN STARBOARD |
0 |
|
Технический лист |
XLamp® XQ-E | Tray | Discontinued | LED Module | Green | - | 528nm | Starboard | 100lm (Typ) | 350mA | 25°C | 3.2V | 89 lm/W | 1A | - | 125° | - | - | 1.44mm | - | Domed |
|
FLP-6060-030-CWLED ENG COOL WHT SQUARE 5700K |
0 |
|
- |
- | Box | Obsolete | LED Engine | White, Cool | 5700K | - | Square, Plug and Play | - | - | - | - | - | - | 70 | 111° | - | 598.00mm L x 598.00mm W | 18.50mm | 550.00mm L x 550.00mm W | Flat |
|
|
FLP-6060-030-WWLED ENG WARM WHT SQUARE 2700K |
0 |
|
Технический лист |
- | Box | Obsolete | LED Engine | White, Warm | 2700K | - | Square, Plug and Play | - | - | - | - | - | - | 70 | 111° | - | 598.00mm L x 598.00mm W | 18.50mm | 550.00mm L x 550.00mm W | Flat |
|
|
FLP-6060-040-CWLED ENG COOL WHT SQUARE 5700K |
0 |
|
Технический лист |
- | Box | Obsolete | LED Engine | White, Cool | 5700K | - | Square, Plug and Play | - | - | - | - | - | - | 70 | 111° | - | 598.00mm L x 598.00mm W | 18.50mm | 550.00mm L x 550.00mm W | Flat |
|
|
FLP-6060-040-WWLED ENG WARM WHT SQUARE 2700K |
0 |
|
Технический лист |
- | Box | Obsolete | LED Engine | White, Warm | 2700K | - | Square, Plug and Play | - | - | - | - | - | - | 70 | 111° | - | 598.00mm L x 598.00mm W | 18.50mm | 550.00mm L x 550.00mm W | Flat |
|
LMH020-8000-30G9-00001TWLED MOD LMH2 WM WH ROUND 3000K |
0 |
|
Технический лист |
LMH2 TrueWhite® | Tray | Obsolete | LED Module | White, Warm | 3000K | - | Round | 8000lm (Typ) | 2A | 55°C | 46.2V | 85 lm/W | 2.1A | 90 | 110° | Dimming - WhiteLight | 88.20mm Dia | 60.30mm | - | Domed |
|
|
LMH020-8000-40G9-00001TWLED MOD LMH2 WHT ROUND 4000K |
0 |
|
Технический лист |
LMH2 TrueWhite® | Tray | Obsolete | LED Module | White, Neutral | 4000K | - | Round | 8000lm (Typ) | 2A | - | 46.2V | 85 lm/W | 2.1A | 90 | 110° | Dimming - WhiteLight | 88.20mm Dia | 60.30mm | - | Domed |
