Светодиодные COB, двигатели, модули, полосы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Цвет | CCT (K) | Длина волны | Конфигурация | Световой поток при токе/температуре | Ток - Тест | Температура - Тест | Напряжение - прямое (Vf) (тип.) | Люмен/Ватт при токе - Тест | Ток - макс. | CRI (индекс цветопередачи) | Угол обзора | Особенности | Размер/измерение | Высота | Светоизлучающая поверхность (LES) | Тип линзы |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LMH020-6000-40G9-00000TWLED MOD LMH2 WHT ROUND 4000K |
0 |
|
Технический лист |
LMH2 | Tray | Obsolete | LED Module | White, Neutral | 4000K | - | Round | - | 1.7A | - | 42.8V | 85 lm/W | 1.87A | 90 | 86° | Dimming - WhiteLight | 88.20mm Dia | 30.00mm | 68.00mm Dia | Flat |
|

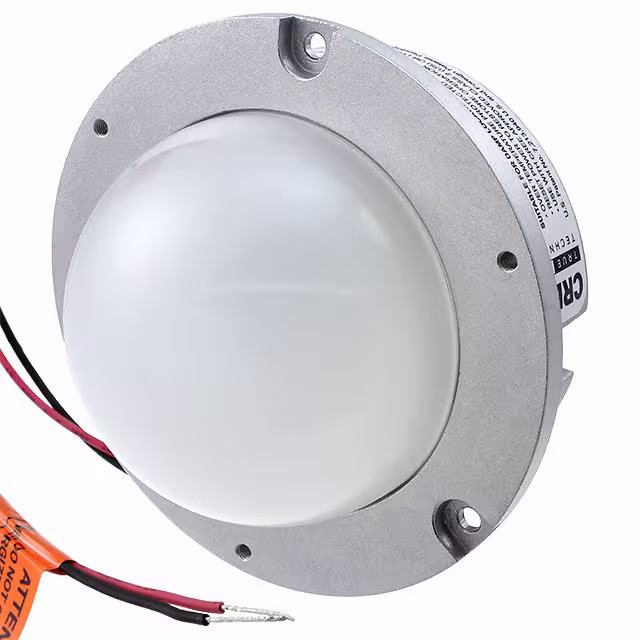

LMH020-6000-30G9-00001TWLED MOD LMH2 WM WH ROUND 3000K |
0 |
|
Технический лист |
LMH2 | Tray | Obsolete | LED Module | White, Warm | 3000K | - | Round | - | 1.7A | - | 42.8V | 85 lm/W | 1.87A | 90 | 110° | Dimming - WhiteLight | 88.20mm Dia | 30.00mm | 68.00mm Dia | Domed |
|
|
LMH020-6000-35G9-00001TWLED MOD LMH2 WM WH ROUND 3500K |
0 |
|
Технический лист |
LMH2 | Tray | Obsolete | LED Module | White, Warm | 3500K | - | Round | - | 1.7A | - | 42.8V | 85 lm/W | 1.87A | 90 | 110° | Dimming - WhiteLight | 88.20mm Dia | 30.00mm | 68.00mm Dia | Domed |
|
|
LMH020-6000-40G9-00001TWLED MOD LMH2 WHT ROUND 4000K |
0 |
|
Технический лист |
LMH2 | Tray | Obsolete | LED Module | White, Neutral | 4000K | - | Round | - | 1.7A | - | 42.8V | 85 lm/W | 1.87A | 90 | 110° | Dimming - WhiteLight | 88.20mm Dia | 30.00mm | 68.00mm Dia | Domed |
|

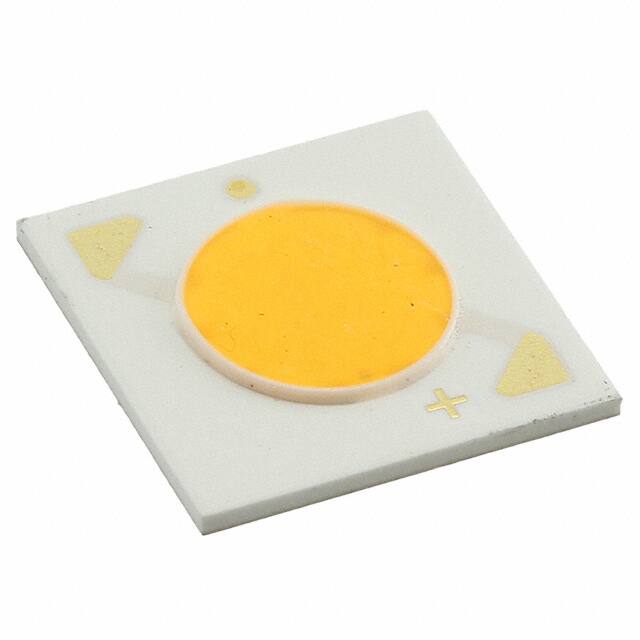

LTPL-M03614ZS30-T0LED COB LTPL WARM WHT SQU 3000K |
0 |
|
Технический лист |
LTPL | Tube | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1448lm (Typ) | 350mA | 85°C | 38.5V | 119 lm/W | 400mA | 80 | 120° | - | 15.85mm L x 15.85mm W | 1.60mm | 8.90mm Dia | Flat |
|
|
LTPL-M03614ZS50-F1LED COB LTPL CL WH SQUARE 5000K |
0 |
|
Технический лист |
LTPL | Tube | Obsolete | Chip On Board (COB) | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Square | 1723lm (Typ) | 350mA | 25°C | 38.5V | 128 lm/W | 400mA | 80 | 120° | - | 15.85mm L x 15.85mm W | 1.60mm | 8.90mm Dia | Flat |
|
LTPL-M03614ZS50-S1LED COB LUXEON M03 WHT SQ 5000K |
0 |
|
Технический лист |
LUXEON M03 | Tube | Obsolete | Chip On Board (COB) | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Square | 1723lm (Typ) | 350mA | 25°C | 38.5V | 128 lm/W | 400mA | 80 | 120° | - | 15.85mm L x 15.85mm W | 1.60mm | 8.90mm Dia | Flat |
|
|
LTPL-M03614ZS57-F1LED COB LUXEON M03 WHT SQ 5700K |
0 |
|
Технический лист |
LUXEON M03 | Tube | Obsolete | Chip On Board (COB) | White, Cool | 5700K 5-Step MacAdam Ellipse | - | Square | 1691lm (Typ) | 350mA | 25°C | 38.5V | 125 lm/W | 400mA | 80 | 120° | - | 15.85mm L x 15.85mm W | 1.60mm | 8.90mm Dia | Flat |
|
|
LTPL-M03614ZS57-S1LED COB LUXEON M03 WHT SQ 5700K |
0 |
|
Технический лист |
LUXEON M03 | Tube | Obsolete | Chip On Board (COB) | White, Cool | 5700K 5-Step MacAdam Ellipse | - | Square | 1691lm (Typ) | 350mA | 25°C | 38.5V | 125 lm/W | 400mA | 80 | 120° | - | 15.85mm L x 15.85mm W | 1.60mm | 8.90mm Dia | Flat |
|
|
LTPL-M03618ZS27-T0LED COB LUXEON M03 WHT SQ 2700K |
0 |
|
Технический лист |
LUXEON M03 | Tube | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1934lm (Typ) | 450mA | 25°C | 39.5V | 109 lm/W | 500mA | 80 | 120° | - | 15.85mm L x 15.85mm W | 1.60mm | 8.90mm Dia | Flat |
|
|
LTPL-M03618ZS30-T0LED COB LTPL-M03 WHT SQU 3000K |
0 |
|
Технический лист |
LTPL-M03 | Tube | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 2014lm (Typ) | 450mA | 25°C | 39.5V | 113 lm/W | 500mA | 80 | 120° | - | 15.85mm L x 15.85mm W | 1.60mm | 8.90mm Dia | Flat |
|
|
LTPL-M03618ZS40-T0LED COB LTPL-M03 WHT SQ 4000K |
0 |
|
Технический лист |
LTPL-M03 | Tube | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 2135lm (Typ) | 450mA | 25°C | 39.5V | 120 lm/W | 500mA | 80 | 120° | - | 15.85mm L x 15.85mm W | 1.60mm | 8.90mm Dia | Flat |
|
|
LTPL-M03622ZS30-T0LED COB LTPL-M03 WHT SQU 3000K |
0 |
|
Технический лист |
LTPL-M03 | Tube | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 2360lm (Typ) | 500mA | 25°C | 38.3V | 123 lm/W | 600mA | 80 | 120° | - | 15.85mm L x 15.85mm W | 1.60mm | 8.90mm Dia | Flat |
|
|
LTPL-M03622ZS50-F1LED COB LTPL-M03 CL WHT SQ 5000K |
0 |
|
Технический лист |
LTPL-M03 | Tube | Obsolete | Chip On Board (COB) | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Square | 2541lm (Typ) | 500mA | 25°C | 38.3V | 133 lm/W | 600mA | 80 | 120° | - | 15.85mm L x 15.85mm W | 1.60mm | 8.90mm Dia | Flat |
|
|
LTPL-M03622ZS50-S1LED COB LUXEON M03 WHT SQ 5000K |
0 |
|
Технический лист |
LUXEON M03 | Tube | Obsolete | Chip On Board (COB) | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Square | 2541lm (Typ) | 500mA | 25°C | 38.3V | 133 lm/W | 600mA | 80 | 120° | - | 15.85mm L x 15.85mm W | 1.60mm | 8.90mm Dia | Flat |
|
|
LTPL-M03622ZS57-F1LED COB LUXEON M03 WHT SQ 5700K |
0 |
|
Технический лист |
LUXEON M03 | Tube | Obsolete | Chip On Board (COB) | White, Cool | 5700K 5-Step MacAdam Ellipse | - | Square | 2492lm (Typ) | 500mA | 25°C | 38.3V | 130 lm/W | 600mA | 80 | 120° | - | 15.85mm L x 15.85mm W | 1.60mm | 8.90mm Dia | Flat |
|
|
LTPL-M03622ZS57-S1LED COB LUXEON M03 WHT SQ 5700K |
0 |
|
Технический лист |
LUXEON M03 | Tube | Obsolete | Chip On Board (COB) | White, Cool | 5700K 5-Step MacAdam Ellipse | - | Square | 2492lm (Typ) | 500mA | 25°C | 38.3V | 130 lm/W | 600mA | 80 | 120° | - | 15.85mm L x 15.85mm W | 1.60mm | 8.90mm Dia | Flat |
|
|
LEDS12LED MOD LNR LGT STRIP |
0 |
|
- |
- | - | Obsolete | LED Module | - | - | - | Linear Light Strip | - | - | - | - | - | - | - | - | - | 317.5mm L x 19.10mm W | 19.10mm | - | - |
|

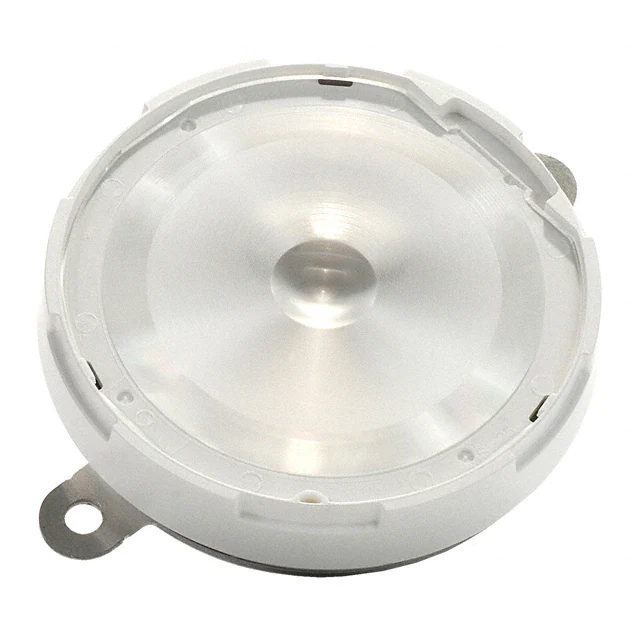

UL64064-L07LED MOD WARM WHT ROUND 3000K |
0 |
|
Технический лист |
- | Tray | Obsolete | LED Module | White, Warm | 3000K | - | Round | - | - | - | - | 72 lm/W | - | 80 | 12° | - | 64.00mm Dia | 15.40mm | 50.00mm Dia | Flat |
|
|
UL64064-L08LED MOD WARM WHT ROUND 3000K |
0 |
|
Технический лист |
- | Tray | Obsolete | LED Module | White, Warm | 3000K | - | Round | - | - | - | - | 72 lm/W | - | 80 | 25° | - | 64.00mm Dia | 15.40mm | 50.00mm Dia | Flat |
