Светодиодные COB, двигатели, модули, полосы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Цвет | CCT (K) | Длина волны | Конфигурация | Световой поток при токе/температуре | Ток - Тест | Температура - Тест | Напряжение - прямое (Vf) (тип.) | Люмен/Ватт при токе - Тест | Ток - макс. | CRI (индекс цветопередачи) | Угол обзора | Особенности | Размер/измерение | Высота | Светоизлучающая поверхность (LES) | Тип линзы |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BXRA-27E3500-F-03LED COB RS WARM WHT SQUARE 2700K |
0 |
|
Технический лист |
RS | Tray | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 2900lm (Typ) | 1.75A | 25°C | 17.9V | 93 lm/W | 2.25A | 80 | 120° | - | 45.60mm L x 50.80mm W | 3.00mm | - | Domed |
|

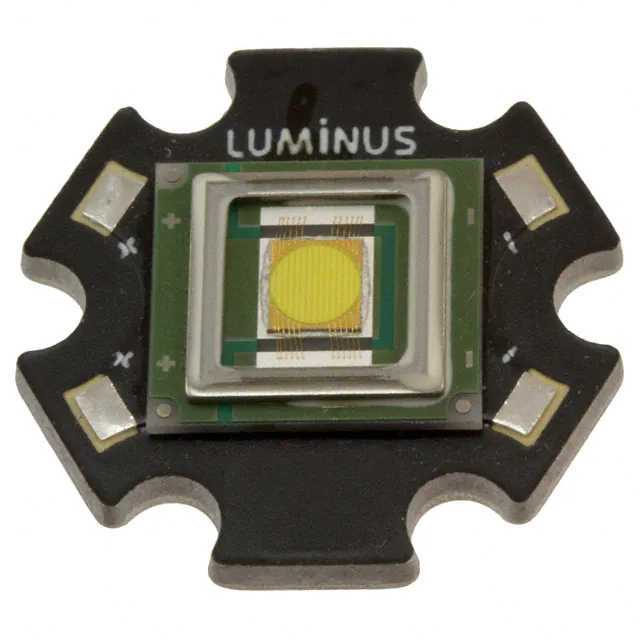

SBR-70-WCS-R75-NB121LED MOD SBR-70 WH STARBRD 8500K |
0 |
|
- |
SBR-70 | Tray | Obsolete | LED Module | White, Cool | 6020K ~ 8500K | - | Starboard | 1770lm (1710lm ~ 1830lm) | 10.5A | 25°C | 3.7V | 46 lm/W | 10.5A | 75 (Typ) | - | - | 19.90mm Dia | 3.44mm | 10.00mm W x 11.00mm L | Flat |
|
CBT-90-W57H-C11-LA200LED MOD CBT-90 CL WH RECT 5700K |
0 |
|
Технический лист |
CBT-90 | Tray | Obsolete | LED Module | White, Cool | 5700K | - | Rectangle | - | 9A | 70°C | 3.3V | - | 18A | 92 (Typ) | - | With Connector | 28.00mm L x 26.75mm W | 4.08mm | 3.00mm L x 3.00mm W | Flat |
|

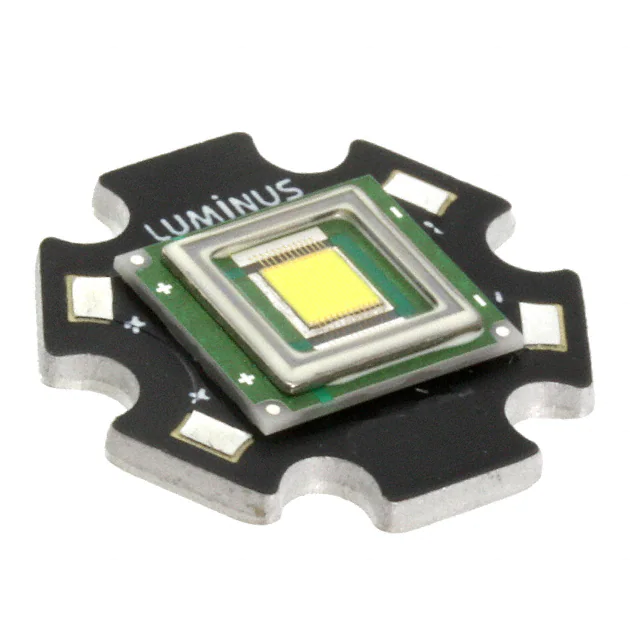

SBR-90-W65S-R71-NA101LED MOD SBR-90 WH STARBRD 6500K |
0 |
|
Технический лист |
SBR-90 | Tray | Obsolete | LED Module | White, Cool | 6500K | - | Starboard | 1650lm (1590lm ~ 1710lm) | 9A | 40°C | 3.5V | 52 lm/W | 9A | 70 (Typ) | - | - | 19.90mm Dia | 3.50mm | 3.00mm L x 3.00mm W | Flat |
|
|
SBR-90-W65S-R71-NA100LED MOD SBR-90 WH STARBRD 6500K |
0 |
|
Технический лист |
SBR-90 | Tray | Obsolete | LED Module | White, Cool | 6500K | - | Starboard | 1650lm (1590lm ~ 1710lm) | 9A | 40°C | 3.5V | 52 lm/W | 9A | 70 (Typ) | - | - | 19.90mm Dia | 3.50mm | 3.00mm L x 3.00mm W | Flat |
|
|
SBR-90-W65S-R71-NA102LED MOD SBR-90 WH STARBRD 6500K |
0 |
|
Технический лист |
SBR-90 | Tray | Obsolete | LED Module | White, Cool | 6500K | - | Starboard | 1650lm (1590lm ~ 1710lm) | 9A | 40°C | 3.5V | 52 lm/W | 9A | 70 (Typ) | - | - | 19.90mm Dia | 3.50mm | 3.00mm L x 3.00mm W | Flat |
|

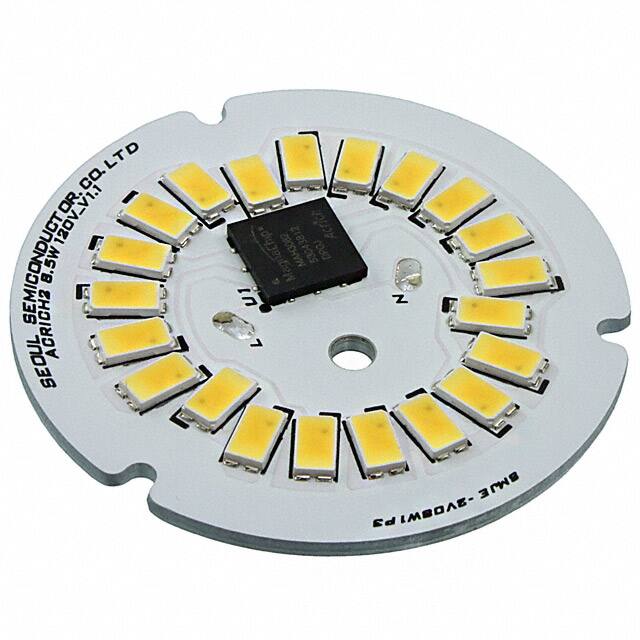

SMJE2V08W1P3-EALED ENG ACRICH2 WHT ROUND 4000K |
0 |
|
Технический лист |
Acrich2 | Tray | Obsolete | LED Engine | White, Neutral | 4000K | - | Round | 800lm (Typ) | - | 25°C | - | 87 lm/W | - | 80 | 120° | - | 46.00mm Dia | 2.50mm | - | Flat |
|
SML-LX12012MWC-WB3LED COB TITANBRITE WHT LNR STRP |
0 |
|
Технический лист |
TitanBrite Strip | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3500K | - | Linear Light Strip | 240lm (Typ) | 320mA | 25°C | 12V | 63 lm/W | 700mA | - | 170° | - | 120.00mm L x 12.00mm W | 2.80mm | - | Flat |
|
SML-LX12012UWC-WB3LED COB TITANBRITE WHT LNR STRP |
0 |
|
Технический лист |
TitanBrite Strip | Tray | Active | Chip On Board (COB) | White, Cool | 6500K | - | Linear Light Strip | 270lm (Typ) | 320mA | 25°C | 12V | 64 lm/W | 700mA | - | 170° | - | 120.00mm L x 12.00mm W | 2.80mm | - | Flat |
|

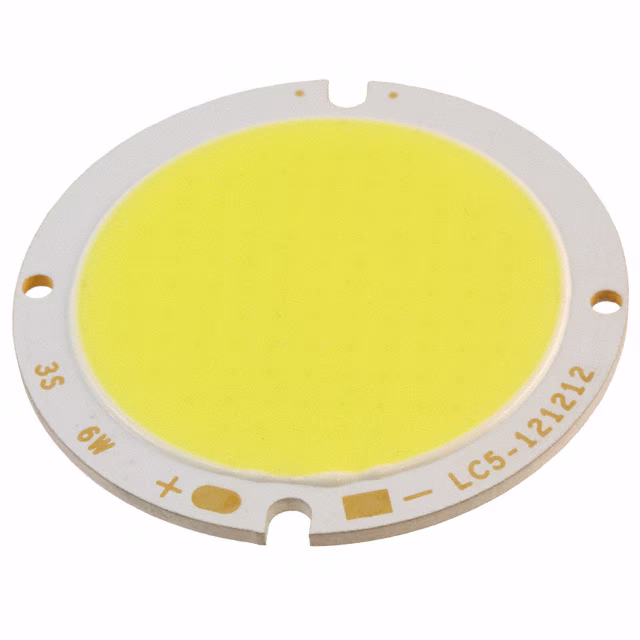

SML-LX5026MWC-WB6LED COB WARM WHT ROUND 3500K |
0 |
|
Технический лист |
- | Tray | Active | Chip On Board (COB) | White, Warm | 3500K | - | Round | 640lm (Typ) | 660mA | 25°C | 10.2V | 95 lm/W | 700mA | - | 170° | - | 50.00mm Dia | 2.80mm | 40.00mm Dia | Flat |
|
SML-LX5026UWC-WB6LED COB COOL WHT ROUND 6500K |
0 |
|
Технический лист |
- | Tray | Active | Chip On Board (COB) | White, Cool | 6500K | - | Round | 560lm (Typ) | 660mA | 25°C | 10.2V | 83 lm/W | 700mA | - | 170° | - | 50.00mm Dia | 2.80mm | 40.00mm Dia | Flat |
|
SSR-50-WCLS-R21-GG450LED MOD SSR-50 WHT STARBRD 4000K |
0 |
|
Технический лист |
SSR-50 | Tray | Obsolete | LED Module | White, Neutral | 4000K ~ 4500K | - | Starboard | - | 1.75A | - | 3.2V | - | 5A | 70 | 100° | - | 19.90mm L x 19.90mm W | 6.10mm | 5.60mm Dia | Domed |
|
|
SSR-50-WWRM-R21-G2750LED MOD SSR-50 WHITE STARBOARD |
0 |
|
Технический лист |
SSR-50 | Tray | Obsolete | LED Module | - | - | - | Starboard | - | 1.75A | 25°C | 3.2V | - | 5A | - | - | - | 19.90mm Dia | 6.10mm | 5.60mm Dia | Domed |
|
|
SSR-50-WCLS-R21-J2450LED MOD SSR-50 WHT STARBRD 4000K |
0 |
|
Технический лист |
SSR-50 | Tray | Obsolete | LED Module | White, Neutral | 4000K ~ 4500K | - | Starboard | 463lm (450lm ~ 475lm) | 1.75A | 25°C | 3.2V | 83 lm/W | 5A | 70 | 100° | - | 19.90mm L x 19.90mm W | 6.10mm | 5.60mm Dia | Domed |
|

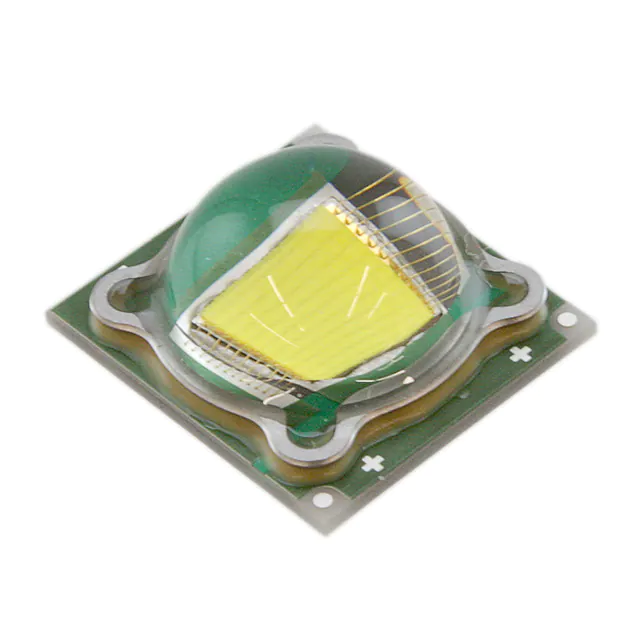

SST-90-W65S-T11-N3100LED COB SST-90 COOL WH SQ 6500K |
0 |
|
Технический лист |
SST-90 | Tape & Reel (TR) | Obsolete | Chip On Board (COB) | White, Cool | 6500K | - | Square | 975lm (950lm ~ 1000lm) | 3.15A | 25°C | 3.25V | 95 lm/W | 9A | 70 | 100° | - | 11.00mm L x 10.00mm W | 5.40mm | 8.00mm Dia | Domed |
|
|
SST-90-W65S-T11-N3102LED COB SST-90 COOL WH SQ 6500K |
0 |
|
Технический лист |
SST-90 | Tape & Reel (TR) | Obsolete | Chip On Board (COB) | White, Cool | 6500K | - | Square | 975lm (950lm ~ 1000lm) | 3.15A | 25°C | 3.25V | 95 lm/W | 9A | 70 | 100° | - | 11.00mm L x 10.00mm W | 5.40mm | 8.00mm Dia | Domed |
|
|
SST-90-W65S-T11-N2100LED COB SST-90 COOL WH SQ 6500K |
0 |
|
Технический лист |
SST-90 | Tape & Reel (TR) | Obsolete | Chip On Board (COB) | White, Cool | 6500K | - | Square | 925lm (900lm ~ 950lm) | 3.15A | 25°C | 3.25V | 90 lm/W | 9A | 70 | 100° | - | 11.00mm L x 10.00mm W | 5.40mm | 8.00mm Dia | Domed |
|

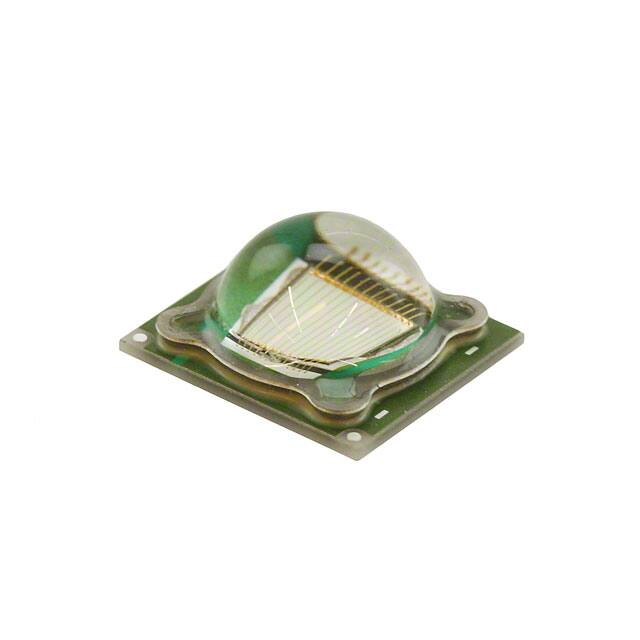

SST-90-B-F11-KE301LED COB SST-90 BLUE SQUARE |
0 |
|
Технический лист |
SST-90 | Tray | Obsolete | Chip On Board (COB) | Blue | - | 465nm | Square | 180lm (Typ) | 3.15A | 25°C | 3.4V | 17 lm/W | 27A | 70 | 100° | - | 11.00mm L x 10.00mm W | 5.40mm | 8.00mm Dia | Domed |
|

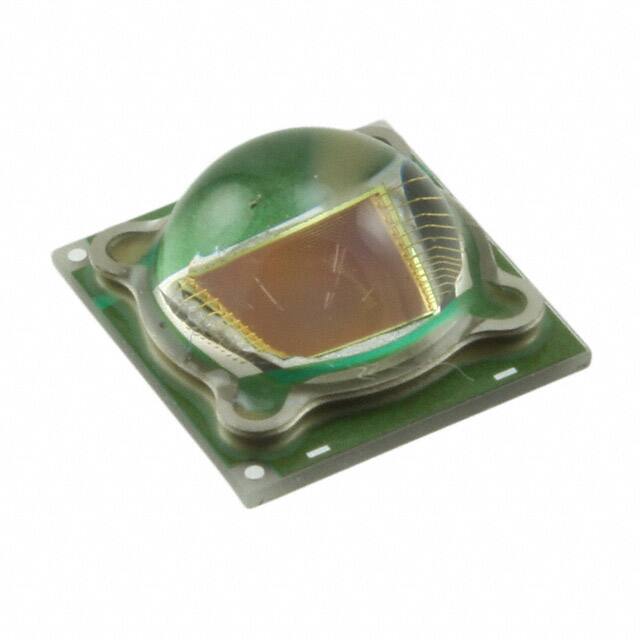

SST-90-R-F11-HG100LED COB SST-90 RED SQUARE |
0 |
|
Технический лист |
SST-90 | Tray | Obsolete | Chip On Board (COB) | Red | - | 624nm | Square | 400lm (Typ) | 3.2A | 25°C | 2V | 63 lm/W | 27A | 70 | 100° | - | 11.00mm L x 10.00mm W | 5.40mm | 8.00mm Dia | Domed |
|
|
SST-90-R-F11-HG101LED COB SST-90 RED SQUARE |
0 |
|
Технический лист |
SST-90 | Tray | Discontinued | Chip On Board (COB) | Red | - | 624nm | Square | 400lm (Typ) | 3.2A | 25°C | 2V | 63 lm/W | 27A | 70 | 100° | - | 11.00mm L x 10.00mm W | 5.40mm | 8.00mm Dia | Domed |
