Светодиодные COB, двигатели, модули, полосы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Цвет | CCT (K) | Длина волны | Конфигурация | Световой поток при токе/температуре | Ток - Тест | Температура - Тест | Напряжение - прямое (Vf) (тип.) | Люмен/Ватт при токе - Тест | Ток - макс. | CRI (индекс цветопередачи) | Угол обзора | Особенности | Размер/измерение | Высота | Светоизлучающая поверхность (LES) | Тип линзы |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NTB-D447W-PLED ENG WHITE LINEAR STRIP |
1 |
|
- |
- | Case | Active | LED Engine | White | - | - | Linear Light Strip, Plug and Play | - | 1.29A | - | - | - | - | - | - | - | 453.00mm L x 25.00mm W | 31.50mm | - | Flat |
|
CLU550-3626C1-30AL7G4-B24LED COB CLU550 WM WHT SQ 3000K |
0 |
|
Технический лист |
CLU550 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K | - | Square | 33900lm (Typ) | 2.34A | 85°C | 103.9V | 139 lm/W | 4.68A | 70 | - | - | 38.00mm L x 38.00mm W | 1.40mm | 32.80mm Dia | Flat |
|
|
CLU550-3626C1-40AL7G4-B24LED COB CLU550 NEUT WHT SQ 4000K |
0 |
|
Технический лист |
CLU550 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 35500lm (Typ) | 2.34A | 85°C | 103.9V | 146 lm/W | 4.68A | 70 | - | - | 38.00mm L x 38.00mm W | 1.40mm | 32.80mm Dia | Flat |
|
|
CLU550-3626C1-65AL7G4-B24LED COB CLU550 COOL WHT SQ 6500K |
0 |
|
Технический лист |
CLU550 | Tray | Obsolete | Chip On Board (COB) | White, Cool | 6500K 3-Step MacAdam Ellipse | - | Square | 36650lm (Typ) | 2.34A | 85°C | 103.9V | 151 lm/W | 4.68A | 70 | - | - | 38.00mm L x 38.00mm W | 1.40mm | 32.80mm Dia | Flat |
|
|
CLU550-3626C1-273M2G2-B24LED COB CLU550 WARM WHT SQ 2700K |
0 |
|
Технический лист |
CLU550 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 30250lm (Typ) | 2.34A | 85°C | 103.9V | 124 lm/W | 4.68A | 80 | - | - | 38.00mm L x 38.00mm W | 1.40mm | 32.80mm Dia | Flat |
|
|
CLU550-3626C1-653M2G2-B24LED COB CLU550 COOL WHT SQ 6500K |
0 |
|
Технический лист |
CLU550 | Tray | Active | Chip On Board (COB) | White, Cool | 6500K 3-Step MacAdam Ellipse | - | Square | 34400lm (Typ) | 2.34A | 85°C | 103.9V | 141 lm/W | 4.68A | 80 | - | - | 38.00mm L x 38.00mm W | 1.40mm | 32.80mm Dia | Flat |
|
NTB-C145W-ALED ENG WHITE LINEAR STRIP |
0 |
|
- |
- | Active | LED Engine | White | - | - | Linear Light Strip, Plug and Play | - | 420mA | - | - | - | - | - | - | - | 155.00mm L x 21.00mm W | 29.00mm | 147.00mm L x 14.00mm W | Flat | |
|

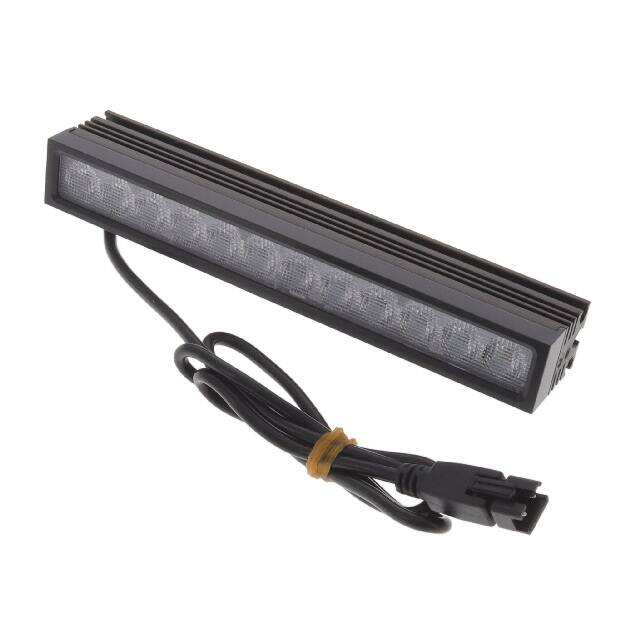

NTB-C145BLED ENG BLUE LINEAR STRIP |
0 |
|
Технический лист |
- | Active | LED Engine | Blue | - | - | Linear Light Strip, Plug and Play | - | 420mA | - | - | - | - | - | - | - | 155.00mm L x 21.00mm W | 29.00mm | 147.00mm L x 14.00mm W | Flat | |
|
|
CLU550-3626C1-353M2G2-B24LED COB CLU550 WARM WHT SQ 3500K |
0 |
|
Технический лист |
CLU550 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 32500lm (Typ) | 2.34A | 85°C | 103.9V | 134 lm/W | 4.68A | 80 | - | - | 38.00mm L x 38.00mm W | 1.40mm | 32.80mm Dia | Flat |
|
CVM-45-31-95-60-BA40-F5-2STUDIO COBS |
0 |
|
Технический лист |
CVM-45 Gen4 | Tray | Active | Chip On Board (COB) | White, Warm | 3150K 2-Step MacAdam Ellipse | - | Square | 28700lm (Typ) | 5A | 85°C | 59V | 97 lm/W | 10A | 95 | 120° | - | 55.00mm L x 55.00mm W | 1.70mm | 44.80mm Dia | Flat |
|
PT-120-G-L11-MPNLED MOD PT-120 GREEN RECT |
0 |
|
Технический лист |
PT-120 | Tray | Active | LED Module | Green | - | 525nm | Rectangle | 5550lm (4900lm ~ 6200lm) | 18A | 40°C | 5.2V | 59 lm/W | 27A | - | - | With Connector | 28.00mm L x 42.00mm W | 5.70mm | 2.60mm L x 4.60mm W | Flat |
|
LZP-D0UB00-00U4LED MOD LZP VIOLET STARBOARD |
0 |
|
Технический лист |
LZP | Tray | Obsolete | LED Module | Violet | - | 388nm (385nm ~ 390nm) | Starboard | - | 4 x 700mA | 25°C | 22V | - | 1A | - | 130° | - | 28.30mm Dia | 8.10mm | 10.50mm Dia | Domed |
|
|
LZP-D0UB00-00U5LED MOD LZP VIOLET STARBOARD |
0 |
|
Технический лист |
LZP | Tray | Active | LED Module | Violet | - | 393nm (390nm ~ 395nm) | Starboard | - | 4 x 700mA | 25°C | 22V | - | 1A | - | 130° | - | 28.30mm Dia | 8.10mm | 10.50mm Dia | Domed |
|
|
LZP-D0UB00-00U7LED MOD LZP VIOLET STARBOARD |
0 |
|
Технический лист |
LZP | Tray | Active | LED Module | Violet | - | 403nm (400nm ~ 405nm) | Starboard | - | 4 x 700mA | 25°C | 22V | - | 1A | - | 130° | - | 28.30mm Dia | 8.10mm | 10.50mm Dia | Domed |
|
|
2528010000LED MOD WIL-STD LNR STRP 6500K |
0 |
|
Технический лист |
WIL-STANDARD | Bulk | Active | LED Module | White, Cool | 6500K | - | Linear Light Strip | 711lm | - | - | 24V | - | 420mA | - | 40° | IP67 | 240.00mm L x 40.00mm W | 9.50mm | - | Flat |
|
|
CFT-90-WDH-X11-SA260CFT-90-WDH-X11-SA260 |
0 |
|
Технический лист |
CFT-90-WDH | Tray | Active | LED Module | White, Cool | 5665K ~ 6785K | - | Rectangle | 2885lm (2780lm ~ 2990lm) | 22.5A | 40°C | 3.5V | 37 lm/W | 27A | 93 (Typ) | 120° | - | 42.00mm L x 28.00mm W | 5.70mm | 3.00mm L x 3.00mm W | Flat |
|
|
CFT-90-WDH-X11-SA257CFT-90-WDH-X11-SA257 |
0 |
|
Технический лист |
CFT-90-WDH | Tray | Active | LED Module | White, Cool | 5310K ~ 6275K | - | Rectangle | 2885lm (2780lm ~ 2990lm) | 22.5A | 40°C | 3.5V | 37 lm/W | 27A | 93 (Typ) | 120° | - | 42.00mm L x 28.00mm W | 5.70mm | 3.00mm L x 3.00mm W | Flat |
|
ENFIS UNO TAG ARRAY WHITELED MOD WARM WHT SQUARE |
1 |
|
- |
- | - | Discontinued | LED Module | White, Warm | - | - | Square | - | 2.35A | - | 16V | - | 2.35A | - | - | - | 35.50mm L x 41.00mm W | 4.30mm | - | - |
|
|
AB-FB02406-19700-XA1LED MOD AB-FB RGB LNR STRIP |
0 |
|
- |
AB-FB | Bag | Active | LED Module | Red, Green, Blue (RGB) | - | 625nm Red, 528nm Green, 470nm Blue | Linear Light Strip, Flexible | 108lm Red, 290lm Green, 70lm Blue | 650mA Red, 650mA Green, 650mA Blue | 25°C | 24V | 18 lm/W Red, 58 lm/W Green, 14 lm/W Blue | - | - | 120° | IP67 | 5000.00mm L x 15.00mm W | 14.00mm | - | Flat |
|
|
AB-FF02406-19700-XA1LED MOD AB-FF RGB LNR STRIP |
0 |
|
Технический лист |
AB-FF | Bag | Active | LED Module | Red, Green, Blue (RGB) | - | 625nm Red, 528nm Green, 470nm Blue | Linear Light Strip, Flexible | 60lm Red, 190lm Green, 40lm Blue | 650mA Red, 650mA Green, 650mA Blue | 25°C | 24V | 10 lm/W Red, 38 lm/W Green, 8 lm/W Blue | - | - | - | IP67 | 5000.00mm L x 22.00mm W | 11.80mm | - | Flat |
