Светодиодные COB, двигатели, модули, полосы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Цвет | CCT (K) | Длина волны | Конфигурация | Световой поток при токе/температуре | Ток - Тест | Температура - Тест | Напряжение - прямое (Vf) (тип.) | Люмен/Ватт при токе - Тест | Ток - макс. | CRI (индекс цветопередачи) | Угол обзора | Особенности | Размер/измерение | Высота | Светоизлучающая поверхность (LES) | Тип линзы |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AB-FH02408-19712-8A1-12SLED MOD AB-FH RGBW LNR STRIP |
10 |
|
Технический лист |
AB-FH | Strip | Active | LED Module | Red, Green, Blue, White (RGBW) | - | 628nm Red, 523nm Green, 445nm Blue | Linear Light Strip, Flexible | - | - | 25°C | 24V Red, 24V Green, 24V Blue, 24V White | - | - | 80 | - | IP67 | 304.80mm L x 12.00mm W | 6.00mm | - | Flat |
|
|
AB-FB02406-19712-XA1-12SLED MOD AB-FB RGB LNR STRIP |
21 |
|
Технический лист |
AB-FB | Strip | Active | LED Module | Red, Green, Blue (RGB) | - | 623nm Red, 528nm Green, 470nm Blue | Linear Light Strip, Flexible | 220lm Red, 300lm Green, 153lm Blue | 830mA Red, 830mA Green, 830mA Blue | - | 24V Red, 24V Green, 24V Blue | 11 lm/W Red, 15 lm/W Green, 8 lm/W Blue | - | - | 120° | IP67 | 304.80mm L x 15.00mm W | 14.00mm | - | Flat |
|
|
AB-FB01208-19712-8A1-12SLED MOD AB-FB RGBW LNR STRIP |
25 |
|
Технический лист |
AB-FB | Strip | Active | LED Module | Red, Green, Blue, White (RGBW) | - | 628nm Red, 523nm Green, 445nm Blue | Linear Light Strip, Flexible | 108lm Red, 290lm Green, 70lm Blue, 490lm White | 1.5A Red, 1.5A Green, 1.5A Blue, 1.5A White | 25°C | 12V Red, 12V Green, 12V Blue, 12V White | 18 lm/W Red, 58 lm/W Green, 14 lm/W Blue, 60 lm/W White | - | 80 | 120° | IP67 | 304.80mm L x 15.00mm W | 14.00mm | - | Flat |
|
|
CMU2239-R040-00PN0U0A30GXLAMP CMU LED WHITE PRO9 |
20 |
|
Технический лист |
XLamp® CMU2239 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K | - | Square | - | 1.08A | 85°C | 33.7V | - | 2.88A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
CTM-22-4018-90-36-TWD6-F3-3TWO-CHANNEL COLOR TUNABLE COBS G |
38 |
|
- |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AB-FF02408-19712-8A1-12SLED MOD AB-FF RGBW LNR STRIP |
24 |
|
Технический лист |
AB-FF | Strip | Active | LED Module | Red, Green, Blue, White (RGBW) | - | 628nm Red, 523nm Green, 445nm Blue | Linear Light Strip, Flexible | 84lm Red, 197lm Green, 70lm Blue, 408lm White | 750mA Red, 750mA Green, 750mA Blue, 750mA White | 25°C | 24V Red, 24V Green, 24V Blue, 24V White | 14 lm/W Red, 43 lm/W Green, 14 lm/W Blue, 50 lm/W White | - | 80 | 90° | IP67 | 304.80mm L x 22.00mm W | 11.80mm | - | Flat |
|
|
AB-FF024I8-19712-XA2-12SLED MOD AB-FF RGB LNR STRIP |
22 |
|
Технический лист |
AB-FF | Strip | Active | LED Module | Red, Green, Blue (RGB) | - | 625nm Red, 525nm Green, 470nm Blue | Linear Light Strip, Flexible | 60lm Red, 190lm Green, 40lm Blue | - | 25°C | 24V Red, 24V Green, 24V Blue | - | - | - | 90°, 120° | IP67 | 304.80mm L x 22.00mm W | 11.80mm | - | Flat |
|

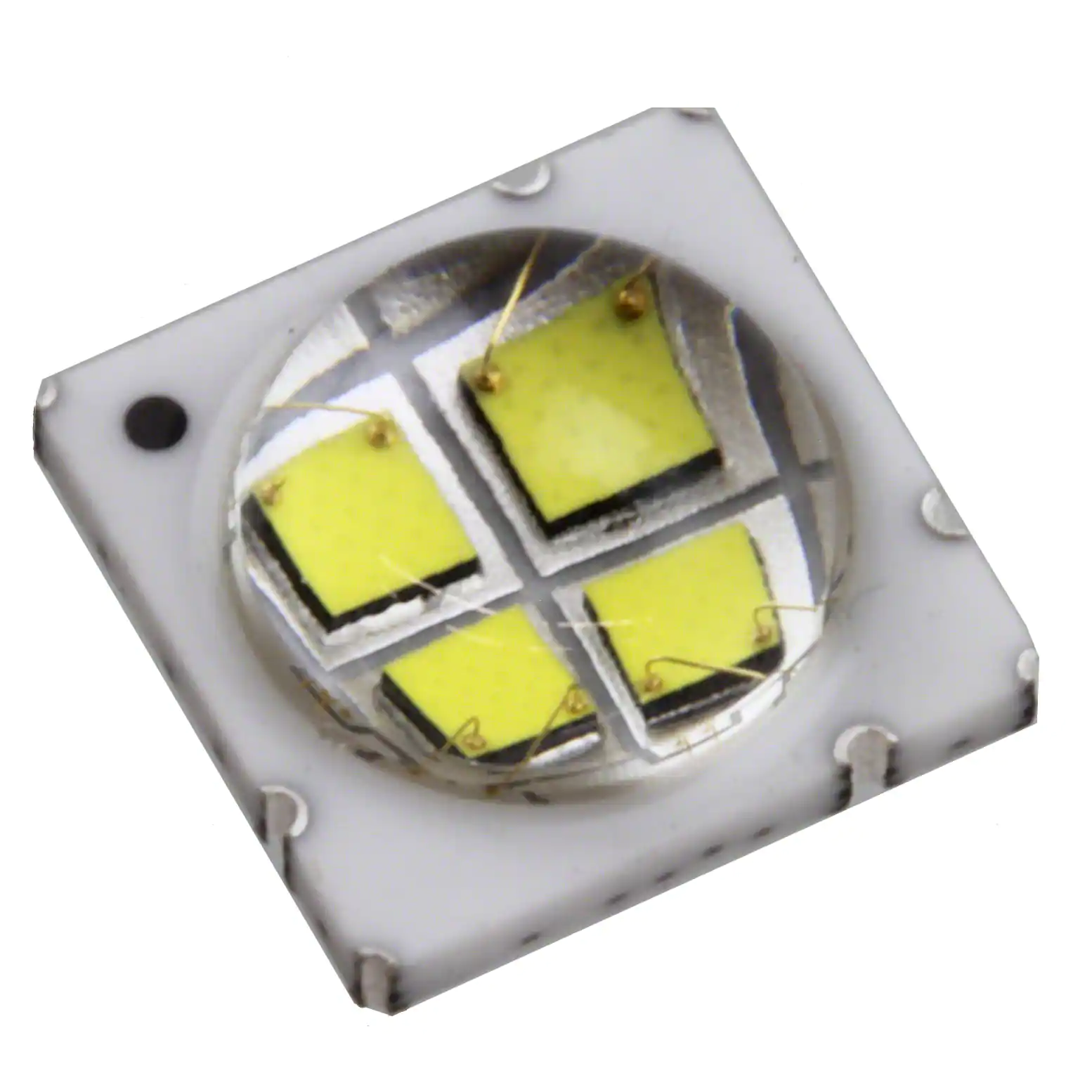

LZ4-40CW08-0055LED MOD LZ4 WHT STARBOARD 5500K |
80 |
|
Технический лист |
LZ4 | Tray | Active | LED Module | White, Cool | 5500K | - | Starboard | 890lm (695lm ~ 1085lm) | 700mA | 25°C | 12.6V | 101 lm/W | 1A | 75 (Typ) | 90° | - | 19.90mm Dia | 5.40mm | 5.60mm Dia | Domed |
|
LZ4-40R308-0000LED MOD LZ4 RED STARBOARD |
14 |
|
Технический лист |
LZ4 | Tray | Active | LED Module | Red | - | 740nm | Starboard | 200mW (160mW ~ 240mW) | 700mA | 25°C | 9V | - | 1A | - | 95° | - | 19.90mm Dia | 5.40mm | 5.60mm Dia | Domed |
|
|
AB-FF012I8-19712-XA2-12SLED MOD AB-FF RGB LNR STRIP |
24 |
|
Технический лист |
AB-FF | Strip | Active | LED Module | Red, Green, Blue (RGB) | - | 625nm Red, 525nm Green, 470nm Blue | Linear Light Strip, Flexible | 60lm Red, 190lm Green, 40lm Blue | - | 25°C | 12V Red, 12V Green, 12V Blue | - | - | - | 90°, 120° | IP67 | 304.80mm L x 22.00mm W | 11.80mm | - | Flat |
|
CXB1310-0000-000N0ZJ430HLED COB XLAMP WARM WHT SQU 3000K |
100 |
|
Технический лист |
XLamp® CXB1310 | Bulk | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 1191lm (Typ) | 350mA | 85°C | 36V | 95 lm/W | 700mA | 95 | 115° | - | 13.35mm L x 13.35mm W | 1.55mm | 6.00mm Dia | Flat |
|
|
CXB1310-0000-000F0ZJ430HLED COB XLAMP WARM WHT SQU 3000K |
97 |
|
Технический лист |
XLamp® CXB1310 | Bulk | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 1191lm (Typ) | 700mA | 85°C | 18V | 95 lm/W | 1.4A | 95 | 115° | - | 13.35mm L x 13.35mm W | 1.55mm | 6.00mm Dia | Flat |
|
|
AB-FF02406-19712-XA1-12SLED MOD AB-FF RGB LNR STRIP |
25 |
|
Технический лист |
AB-FF | Strip | Active | LED Module | Red, Green, Blue (RGB) | - | 625nm Red, 528nm Green, 470nm Blue | Linear Light Strip, Flexible | 159lm Red, 276lm Green, 117lm Blue | 830mA Red, 830mA Green, 830mA Blue | - | 24V Red, 24V Green, 24V Blue | 8 lm/W Red, 14 lm/W Green, 6 lm/W Blue | - | - | 90° | IP67 | 304.80mm L x 22.00mm W | 11.80mm | - | Flat |
|
|
AB-FB01206-19712-XA1-12SLED MOD AB-FB RGB LNR STRIP |
23 |
|
Технический лист |
AB-FB | Strip | Active | LED Module | Red, Green, Blue (RGB) | - | 623nm Red, 528nm Green, 470nm Blue | Linear Light Strip, Flexible | 220lm Red, 300lm Green, 153lm Blue | - | - | 12V Red, 12V Green, 12V Blue | - | - | - | 120° | IP67 | 304.80mm L x 15.00mm W | 14.00mm | - | Flat |
|
|
AB-FF01206-19712-XA1-12SLED MOD AB-FF RGB LNR STRIP |
20 |
|
Технический лист |
AB-FF | Strip | Active | LED Module | Red, Green, Blue (RGB) | - | 625nm Red, 528nm Green, 470nm Blue | Linear Light Strip, Flexible | 159lm Red, 276lm Green, 117lm Blue | - | - | 12V Red, 12V Green, 12V Blue | - | - | - | 90° | IP67 | 304.80mm L x 22.00mm W | 11.80mm | - | Flat |
|
|
AB-FB02408-19712-8A1-12SLED MOD AB-FB RGBW LNR STRIP |
13 |
|
Технический лист |
AB-FB | Strip | Active | LED Module | Red, Green, Blue, White (RGBW) | - | 628nm Red, 523nm Green, 445nm Blue | Linear Light Strip, Flexible | 108lm Red, 290lm Green, 70lm Blue, 490lm White | 750mA Red, 750mA Green, 750mA Blue, 750mA White | 25°C | 24V Red, 24V Green, 24V Blue, 24V White | 18 lm/W Red, 58 lm/W Green, 14 lm/W Blue, 60 lm/W White | - | 80 | 120° | IP67 | 304.80mm L x 15.00mm W | 14.00mm | - | Flat |
|
|
LE CG P1AQ-TUUS-A-0-F00LED MOD OSRAM OSTAR GREEN RECT |
60 |
|
Технический лист |
OSRAM OSTAR® Projection Power | Tray | Active | LED Module | Green | - | - | Rectangle | 4910lm (4190lm ~ 5630lm) | 6A | 25°C | 7V | 117 lm/W | 10A | - | 120° | With Connector | 27.00mm L x 15.50mm W | 1.90mm | - | Flat |
|
|
LE B P1MQ-FPFT-23-0-F00LED MOD OSRAM OSTAR BLUE RECT |
26 |
|
Технический лист |
OSRAM OSTAR® Projection Power | Tray | Active | LED Module | Blue | - | 456nm (452nm ~ 460nm) | Rectangle | 13800mW (11200lm ~ 16400lm) | 6A | 25°C | 7V | 392 lm/W | 10A | - | 120° | With Connector | 27.00mm L x 15.50mm W | 1.90mm | 8.20mm L x 1.55mm W | Flat |
|
|
5865NOODS - FLEXIBLE LED FILAMENT - |
42 |
|
- |
- | Bulk | Active | LED Module | Green | - | - | Linear Light Strip, Flexible | - | 650mA | - | 24V | - | - | - | - | - | 1200.00mm L | - | - | Flat |
|
|
5866NOODS - FLEXIBLE LED FILAMENT - |
40 |
|
- |
- | Bulk | Active | LED Module | Blue | - | - | Linear Light Strip, Flexible | - | 1A | - | 24V | - | - | - | - | - | 1200.00mm L | - | - | Flat |
