Светодиодные COB, двигатели, модули, полосы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Цвет | CCT (K) | Длина волны | Конфигурация | Световой поток при токе/температуре | Ток - Тест | Температура - Тест | Напряжение - прямое (Vf) (тип.) | Люмен/Ватт при токе - Тест | Ток - макс. | CRI (индекс цветопередачи) | Угол обзора | Особенности | Размер/измерение | Высота | Светоизлучающая поверхность (LES) | Тип линзы |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CXM-32-40-95-54-TC60-F7-2CXM-32-40-95-54-TC60-F7-2 |
0 |
|
Технический лист |
CXM-32 Gen 6 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 17560lm (Typ) | 2.4A | 85°C | 50.2V | 146 lm/W | 5.6A | 95 | 120° | - | 38.00mm L x 38.00mm W | 1.40mm | 32.80mm Dia | Flat |
|
|
CXM-32-30-95-54-TC60-F7-2CXM-32-30-95-54-TC60-F7-2 |
0 |
|
Технический лист |
CXM-32 Gen 6 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 15950lm (Typ) | 2.4A | 85°C | 50.2V | 132 lm/W | 5.6A | 95 | 120° | - | 38.00mm L x 38.00mm W | 1.40mm | 32.80mm Dia | Flat |
|
|
CXM-32-50-95-54-TC60-F7-2CXM-32-50-95-54-TC60-F7-2 |
0 |
|
Технический лист |
CXM-32 Gen 6 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 2-Step MacAdam Ellipse | - | Square | 18410lm (Typ) | 2.4A | 85°C | 50.2V | 153 lm/W | 5.6A | 95 | 120° | - | 38.00mm L x 38.00mm W | 1.40mm | 32.80mm Dia | Flat |
|
|
CXM-32-35-90-54-TC62-F7-2CXM-32-35-90-54-TC62-F7-2 |
0 |
|
Технический лист |
CXM-32 Gen 6 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 18690lm (Typ) | 2.4A | 85°C | 50.2V | 155 lm/W | 5.6A | 90 | 120° | - | 38.00mm L x 38.00mm W | 1.40mm | 32.80mm Dia | Flat |
|
|
CMT2890-0000-000P0U0A30ULED COB XLAMP WARM WHT SQ 3000K |
0 |
|
Технический лист |
XLamp® CMT2890 | Bulk | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 9875lm (Typ) | 1.6A | 85°C | 51.2V | 121 lm/W | 3.3A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.45mm | 22.00mm Dia | Flat |
|
|
CMT2890-0000-000P0U0A30QLED COB XLAMP WARM WHT SQU 3000K |
0 |
|
Технический лист |
XLamp® CMT2890 | Bulk | Obsolete | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 9875lm (Typ) | 1.6A | 85°C | 51.2V | 121 lm/W | 3.3A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.45mm | 22.00mm Dia | Flat |
|
|
CMT2890-0000-000P0U0A31QLED COB XLAMP WARM WHT SQ 3100K |
0 |
|
Технический лист |
XLamp® CMT2890 | Bulk | Obsolete | Chip On Board (COB) | White, Warm | 3100K 3-Step MacAdam Ellipse | - | Square | 9875lm (Typ) | 1.6A | 85°C | 51.2V | 121 lm/W | 3.3A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.45mm | 22.00mm Dia | Flat |
|
|
CMU2287-0000-00PP0Z0AL7CXLAMP CMU LED WHITE PRO9 |
0 |
|
Технический лист |
XLamp® CMU2287 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 11978lm (Typ) | 1.62A | 85°C | 50.5V | 146 lm/W | 4.32A | 95 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
CXA3590-0000-000R0YZ430HLED COB XLAMP WARM WHT SQU 3000K |
0 |
|
Технический лист |
XLamp® CXA3590 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 8073lm (7945lm ~ 8500lm) | 1.2A | 85°C | 77V | 87 lm/W | 1.8A | 93 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|

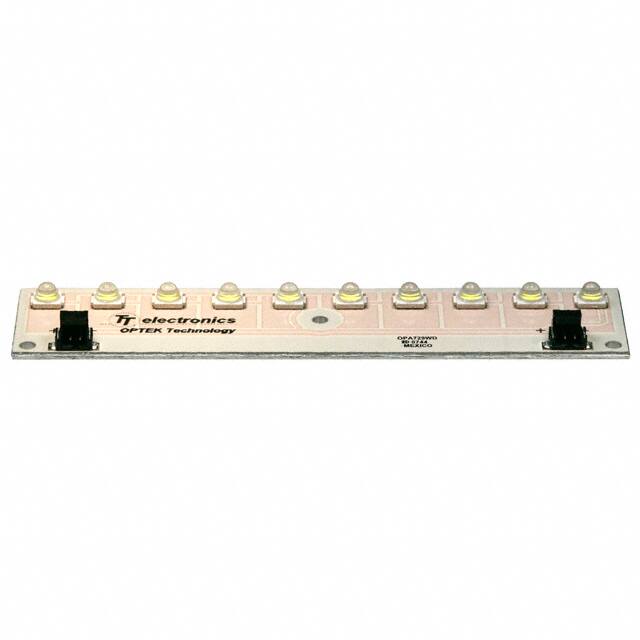

OPA729WDLED MOD OPA729 WH LNR STR 6500K |
0 |
|
Технический лист |
OPA729 | - | Obsolete | LED Module | White, Cool | 6500K | - | Linear Light Strip | 480lm (Typ) | 700mA | 25°C | 18V | 38 lm/W | 700mA | - | 40° | With Connector | 127.00mm L x 29.21mm W | 5.89mm | - | Flat |
|
|
CMU2258-R040-00PP0Z0AL7CXLAMP CMU LED WHITE PRO9 |
0 |
|
Технический лист |
XLamp® CMU2258 | Tray | Active | Chip On Board (COB) | - | - | - | Square | - | 1.08A | 85°C | 50.5V | - | 2.88A | 95 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
CXB3590-0000-000R0HCD50ELED COB XLAMP COOL WHT SQU 5000K |
0 |
|
Технический лист |
XLamp® CXB3590 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Square | 12500lm (12000lm ~ 13000lm) | 1.2A | 85°C | 72V | 145 lm/W | 1.8A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXB3590-0000-000R0UAD27GLED COB XLAMP WARM WHT SQU 2700K |
0 |
|
Технический лист |
XLamp® CXB3590 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 9250lm (9000lm ~ 9500lm) | 1.2A | 85°C | 72V | 107 lm/W | 1.8A | 90 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXB3590-0000-000R0UBB30GLED COB XLAMP WARM WHT SQ 3000K |
0 |
|
Технический лист |
XLamp® CXB3590 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 9750lm (9500lm ~ 10000lm) | 1.2A | 85°C | 72V | 113 lm/W | 1.8A | 90 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXB3590-0000-000R0UBB40GLED COB XLAMP NEUT WHT SQU 4000K |
0 |
|
Технический лист |
XLamp® CXB3590 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 9750lm (9500lm ~ 10000lm) | 1.2A | 85°C | 72V | 113 lm/W | 1.8A | 90 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CMU2287-R040-00PP0U0A30HXLAMP CMU LED WHITE PRO9 |
0 |
|
Технический лист |
XLamp® CMU2287 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K | - | Square | - | 1.62A | 85°C | 50.5V | - | 4.32A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
CMU2287-R040-00PP0U0A40HXLAMP CMU LED WHITE PRO9 |
0 |
|
Технический лист |
XLamp® CMU2287 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K | - | Square | - | 1.62A | 85°C | 50.5V | - | 4.32A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
CMU2287-R040-00PP0U0A27HXLAMP CMU LED WHITE PRO9 |
0 |
|
Технический лист |
XLamp® CMU2287 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K | - | Square | - | 1.62A | 85°C | 50.5V | - | 4.32A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
CMU2287-R040-00PP0U0A31QXLAMP CMU LED WHITE PRO9 |
0 |
|
Технический лист |
XLamp® CMU2287 | Tray | Active | Chip On Board (COB) | White, Warm | 3100K | - | Square | - | 1.62A | 85°C | 50.5V | - | 4.32A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
CMU2287-R040-00PP0U0A35HXLAMP CMU LED WHITE PRO9 |
0 |
|
Технический лист |
XLamp® CMU2287 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K | - | Square | - | 1.62A | 85°C | 50.5V | - | 4.32A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
