Светодиодные COB, двигатели, модули, полосы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Цвет | CCT (K) | Длина волны | Конфигурация | Световой поток при токе/температуре | Ток - Тест | Температура - Тест | Напряжение - прямое (Vf) (тип.) | Люмен/Ватт при токе - Тест | Ток - макс. | CRI (индекс цветопередачи) | Угол обзора | Особенности | Размер/измерение | Высота | Светоизлучающая поверхность (LES) | Тип линзы |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

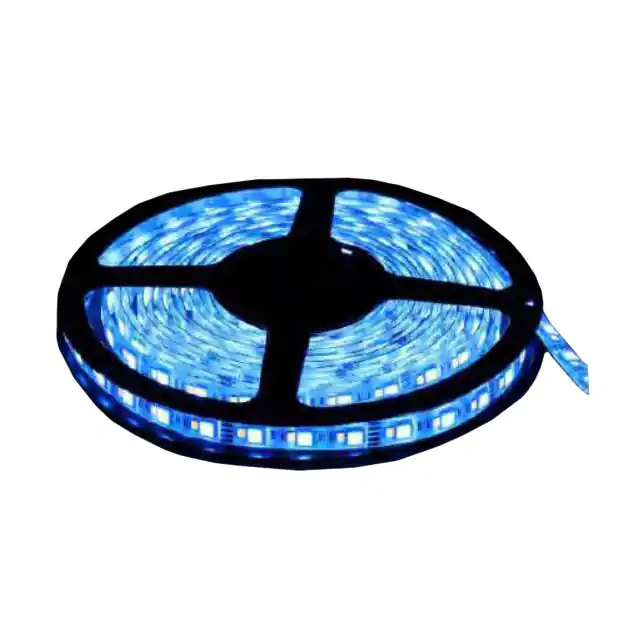

AB-FA012BL-19712-XA1LED MOD AB-FA BLUE LNR STRIP |
14 |
|
Технический лист |
AB-FA | Bag | Active | LED Module | Blue | - | 470nm (465nm ~ 475nm) | Linear Light Strip, Flexible | 144lm | 660mA | 25°C | 12V | 18 lm/W | - | - | 120° | IP20 | 5000.00mm L x 10.00mm W | 1.60mm | - | Flat |
|
CXB3590-0000-000N0HCB30GLED COB XLAMP WARM WHT SQ 3000K |
9 |
|
Технический лист |
XLamp® CXB3590 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 11500lm (11000lm ~ 12000lm) | 2.4A | 85°C | 36V | 133 lm/W | 3.6A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
CVM-27-56-95-36-AB00-F2-3LED COB CVM STUDIO WHT SQ 5600K |
7 |
|
Технический лист |
CVM Studio | Tray | Active | Chip On Board (COB) | White, Cool | 5600K 3-Step MacAdam Ellipse | - | Square | 12500lm (Typ) | 4.2A | 100°C | 36V | 83 lm/W | 4.2A | 95 | 120° | - | 31.50mm L x 31.50mm W | 1.37mm | 26.50mm Dia | Flat |
|
AB-FA01250-19712-8A1LED MOD AB-FA WH LNR STRP 5000K |
20 |
|
Технический лист |
AB-FA | Bag | Active | LED Module | White, Cool | 5000K | - | Linear Light Strip, Flexible | - | - | 25°C | 12V | - | - | 80 | 120° | IP20 | 5000.00mm L x 10.00mm W | 1.60mm | - | Flat |
|
|
AB-FA02450-19712-8A1LED MOD AB-FA WH LNR STRP 5000K |
14 |
|
Технический лист |
AB-FA | Bag | Active | LED Module | White, Cool | 5000K | - | Linear Light Strip, Flexible | - | - | 25°C | 24V | - | - | 80 | 120° | IP20 | 5000.00mm L x 10.00mm W | 1.60mm | - | Flat |
|
|
AB-FA02465-19712-8A1LED MOD AB-FA WH LNR STRP 6500K |
19 |
|
Технический лист |
AB-FA | Bag | Active | LED Module | White, Cool | 6500K | - | Linear Light Strip, Flexible | 760lm | 330mA | 25°C | 24V | 96 lm/W | - | 80 | 120° | IP20 | 5000.00mm L x 10.00mm W | 1.60mm | - | Flat |
|
CLU048-1818C4-273M2K1LED COB CLU048 WARM WHT SQ 2700K |
11 |
|
Технический лист |
CLU048 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 11367lm (Typ) | 1.62A | 85°C | 52V | 135 lm/W | 4.14A | 80 | - | - | 28.00mm L x 28.00mm W | 1.40mm | 22.00mm Dia | Flat |
|
|
CLU048-1818C4-353M2K1LED COB CLU048 WARM WHT SQ 3500K |
3 |
|
Технический лист |
CLU048 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 12121lm (Typ) | 1.62A | 85°C | 52V | 144 lm/W | 4.14A | 80 | - | - | 28.00mm L x 28.00mm W | 1.40mm | 22.00mm Dia | Flat |
|
|
CLU048-1818C4-403H5K2LED COB CLU048 NEUT WHT SQ 4000K |
3 |
|
Технический лист |
CLU048 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 10108lm (Typ) | 1.62A | 85°C | 52V | 120 lm/W | 4.14A | 90 | - | - | 28.00mm L x 28.00mm W | 1.40mm | 22.00mm Dia | Flat |
|
|
CLU048-1818C4-303M2K1LED COB CLU048 WM WHT SQ 3000K |
2 |
|
Технический лист |
CLU048 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 11881lm (Typ) | 1.62A | 85°C | 52V | 141 lm/W | 4.14A | 80 | - | - | 28.00mm L x 28.00mm W | 1.40mm | 22.00mm Dia | Flat |
|
AB-FC01250-19712-8A1LED MOD AB-FC WHITE LNR STRIP |
19 |
|
Технический лист |
AB-FC | Bag | Active | LED Module | White | - | - | Linear Light Strip, Flexible | - | - | - | 12V | - | - | - | 120° | IP65 | 5000.00mm L x 10.00mm W | 2.50mm | - | Flat |
|
|
AB-FC02450-19712-8A1LED MOD AB-FC WHITE LNR STRIP |
19 |
|
Технический лист |
AB-FC | Bag | Active | LED Module | White | - | - | Linear Light Strip, Flexible | - | - | - | 24V | - | - | - | 120° | IP65 | 5000.00mm L x 10.00mm W | 2.50mm | - | Flat |
|
|
AB-FC01265-19712-8A1LED MOD AB-FC WH LNR STRP 6500K |
17 |
|
Технический лист |
AB-FC | Bag | Active | LED Module | White, Cool | 6500K | - | Linear Light Strip, Flexible | 720lm | 660mA | - | 12V | 91 lm/W | - | 80 | 120° | IP65 | 5000.00mm L x 10.00mm W | 2.50mm | - | Flat |
|
|
CXB3590-0000-000N0YBB56QLED COB XLAMP COOL WHT SQ 5600K |
4 |
|
Технический лист |
XLamp® CXB3590 | Tray | Active | Chip On Board (COB) | White, Cool | 5600K | - | Square | 9750lm (9500lm ~ 10000lm) | 2.4A | 85°C | 36V | 113 lm/W | 3.6A | 93 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
AB-FD02440-19712-8A1LED MOD AB-FD WH LNR STRP 4000K |
11 |
|
Технический лист |
AB-FD | Bag | Active | LED Module | White, Neutral | 4000K | - | Linear Light Strip, Flexible | 720lm | 330mA | - | 24V | 91 lm/W | - | 80 | 120° | IP68 | 5000.00mm L x 12.50mm W | 6.50mm | - | Flat |
|
CLU058-1825C4-50AL7K3LED COB CLU058 COOL WHT SQ 5000K |
9 |
|
Технический лист |
CLU058 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 19274lm (Typ) | 2.25A | 85°C | 52V | 165 lm/W | 5.75A | 70 | - | - | 38.00mm L x 38.00mm W | 1.40mm | 32.80mm Dia | Flat |
|
|
ZFS-105000-24CWLED COOL WHT LNR LGT STRIP 6250K |
2 |
|
Технический лист |
- | Bulk | Active | LED Module | White, Cool | 6250K | - | Linear Light Strip, Flexible | 9600lm (Typ) | - | 25°C | 24V | - | 2.5A | - | 120° | - | 5000.00mm L x 10.00mm W | 2.00mm | - | Flat |
|
|
ZFS-105000-24WWLED WARM WHT LNR LGT STRIP 3050K |
2 |
|
Технический лист |
- | Bulk | Active | LED Module | White, Warm | 3050K | - | Linear Light Strip, Flexible | 8520lm (Typ) | - | 25°C | 24V | - | 2.5A | - | 120° | - | 5000.00mm L x 10.00mm W | 2.00mm | - | Flat |
|
|
ZFS-105000-12WWLED WARM WHT LNR LGT STRIP 3050K |
2 |
|
Технический лист |
- | Bulk | Active | LED Module | White, Warm | 3050K | - | Linear Light Strip, Flexible | 3750lm | - | 25°C | 12V | - | 2.5A | - | 120° | - | 5000.00mm L x 10.00mm W | 2.00mm | - | Flat |
|
AB-FH01206-19712-XA1LED MOD AB-FH RGB LNR STRIP |
9 |
|
Технический лист |
AB-FH | Bag | Active | LED Module | Red, Green, Blue (RGB) | - | 628nm Red, 523nm Green, 445nm Blue | Linear Light Strip, Flexible | 85lm Red, 140lm Green, 50lm Blue | 1.16A Red, 1.16A Green, 1.16A Blue | 25°C | 12V | 17 lm/W Red, 35 lm/W Green, 10 lm/W Blue | - | - | - | IP68 | 5000.00mm L x 12.00mm W | 6.00mm | - | Flat |
