Светодиодные COB, двигатели, модули, полосы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Цвет | CCT (K) | Длина волны | Конфигурация | Световой поток при токе/температуре | Ток - Тест | Температура - Тест | Напряжение - прямое (Vf) (тип.) | Люмен/Ватт при токе - Тест | Ток - макс. | CRI (индекс цветопередачи) | Угол обзора | Особенности | Размер/измерение | Высота | Светоизлучающая поверхность (LES) | Тип линзы |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CXA3050-0000-000N0UV440HLED COB XLAMP NEUT WHT SQU 4000K |
0 |
|
Технический лист |
XLamp® CXA3050 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 4703lm (4545lm ~ 4860lm) | 1.4A | 85°C | 37V | 91 lm/W | 2.5A | 90 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia | Flat |
|
|
CXA3050-0000-000N0UW250HLED COB XLAMP COOL WHT SQU 5000K |
0 |
|
Технический лист |
XLamp® CXA3050 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 2-Step MacAdam Ellipse | - | Square | 5043lm (4860lm ~ 5225lm) | 1.4A | 85°C | 37V | 97 lm/W | 2.5A | 90 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia | Flat |
|

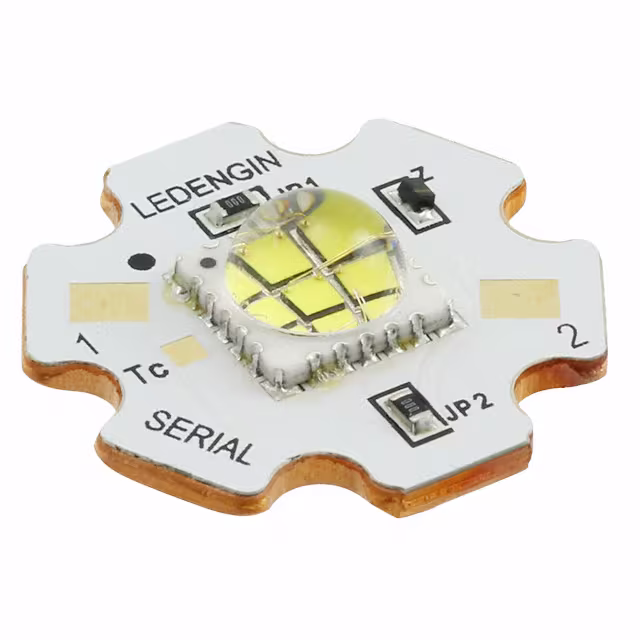

LZ9-J0CW00-0000LED MOD LZ9 WHT STARBOARD 6500K |
0 |
|
Технический лист |
LZ9 | Tray | Obsolete | LED Module | White, Cool | 5000K ~ 6500K | - | Starboard | 1800lm (1357lm ~ 2120lm) | 700mA | 25°C | 29.1V | 88 lm/W | 800mA | 75 (Typ) | 110° | - | 19.90mm Dia | 5.50mm | 6.20mm Dia | Domed |
|
|
LZ9-J0NW00-0040LED MOD LZ9 WHT STARBOARD 4000K |
0 |
|
Технический лист |
LZ9 | Tray | Obsolete | LED Module | White, Neutral | 4000K | - | Starboard | 1650lm (1357lm ~ 2120lm) | 700mA | 25°C | 29.1V | 81 lm/W | 800mA | 82 (Typ) | 110° | - | 19.90mm Dia | 5.50mm | 6.20mm Dia | Domed |
|
|
LZ9-J0WW00-0030LED MOD LZ9 WM WH STARBRD 3000K |
0 |
|
Технический лист |
LZ9 | Tray | Obsolete | LED Module | White, Warm | 3000K | - | Starboard | 1430lm (1085lm ~ 1696lm) | 700mA | 25°C | 29.1V | 70 lm/W | 800mA | 82 (Typ) | 110° | - | 19.90mm Dia | 5.50mm | 6.20mm Dia | Domed |
|
|
CXA3050-0000-000N00Y235FLED COB XLAMP WARM WHT SQU 3500K |
0 |
|
Технический лист |
XLamp® CXA3050 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 4-Step MacAdam Ellipse | - | Square | 6670lm (6430lm ~ 6910lm) | 1.4A | 85°C | 37V | 129 lm/W | 2.5A | 80 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia | Flat |
|
|
CXA3050-0000-000N00Y440FLED COB XLAMP NEUT WHT SQU 4000K |
0 |
|
Технический лист |
XLamp® CXA3050 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 4-Step MacAdam Ellipse | - | Square | 7150lm (6910lm ~ 7390lm) | 1.4A | 85°C | 37V | 138 lm/W | 2.5A | 70 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia | Flat |
|
|
CXA3050-0000-000N0HY240FLED COB XLAMP NEUT WHT SQU 4000K |
0 |
|
Технический лист |
XLamp® CXA3050 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 4-Step MacAdam Ellipse | - | Square | 6670lm (6430lm ~ 6910lm) | 1.4A | 85°C | 37V | 129 lm/W | 2.5A | 80 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia | Flat |
|
CXA3070-0000-000NT0Z40E1LED COB XLAMP COOL WHT SQ 6500K |
0 |
|
Технический лист |
XLamp® CXA3070 | Tray | Active | Chip On Board (COB) | White, Cool | 6500K | - | Square | 8223lm (7945lm ~ 8500lm) | 1.9A | 85°C | 36.2V | 120 lm/W | 2.8A | 70 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia | Flat |
|
|
CXA3070-0000-000NT0Z40E2LED COB XLAMP COOL WHT SQ 5700K |
0 |
|
Технический лист |
XLamp® CXA3070 | Tray | Active | Chip On Board (COB) | White, Cool | 5700K | - | Square | 8223lm (7945lm ~ 8500lm) | 1.9A | 85°C | 36.2V | 120 lm/W | 2.8A | 70 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia | Flat |
|
|
CXA3070-0000-000NT0Z40E3LED COB XLAMP COOL WHT SQ 5000K |
0 |
|
Технический лист |
XLamp® CXA3070 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K | - | Square | 8223lm (7945lm ~ 8500lm) | 1.9A | 85°C | 36.2V | 120 lm/W | 2.8A | 70 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia | Flat |
|
|
CXA3070-0000-000NTHZ40E1LED COB XLAMP COOL WHT SQ 6500K |
0 |
|
Технический лист |
XLamp® CXA3070 | Tray | Active | Chip On Board (COB) | White, Cool | 6500K | - | Square | 8223lm (7945lm ~ 8500lm) | 1.9A | 85°C | 36.2V | 120 lm/W | 2.8A | 80 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia | Flat |
|
|
CXA3070-0000-000NTHZ40E2LED COB XLAMP COOL WHT SQ 5700K |
0 |
|
Технический лист |
XLamp® CXA3070 | Tray | Active | Chip On Board (COB) | White, Cool | 5700K | - | Square | 8223lm (7945lm ~ 8500lm) | 1.9A | 85°C | 36.2V | 120 lm/W | 2.8A | 80 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia | Flat |
|
|
CXA3070-0000-000NTHZ40E3LED COB XLAMP COOL WHT SQ 5000K |
0 |
|
Технический лист |
XLamp® CXA3070 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K | - | Square | 8223lm (7945lm ~ 8500lm) | 1.9A | 85°C | 36.2V | 120 lm/W | 2.8A | 80 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia | Flat |
|
BXRC-27G10K0-C-73-SELED COB VERO SE 29 WHT RND 2700K |
0 |
|
Технический лист |
Vero® SE 29 Array | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 15072lm (Typ) | 1.71A | 25°C | 69.4V | 127 lm/W | 3.42A | 90 | 120° | - | 49.20mm Dia | 3.60mm | 29.20mm Dia | Flat |
|
|
BXRC-50E10K1-C-74-SELED COB VERO SE 29 WHT RND 5000K |
0 |
|
Технический лист |
Vero® SE 29 Array | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 20293lm (Typ) | 1.71A | 25°C | 69.4V | 171 lm/W | 3.42A | 80 | 120° | - | 49.20mm Dia | 3.60mm | 29.20mm Dia | Flat |
|
|
BXRC-50G10K1-C-74-SELED COB VERO SE 29 WHT RND 5000K |
0 |
|
Технический лист |
Vero® SE 29 Array | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 17208lm (Typ) | 1.71A | 25°C | 69.4V | 145 lm/W | 3.42A | 90 | 120° | - | 49.20mm Dia | 3.60mm | 29.20mm Dia | Flat |
|
|
BXRC-57C10K1-C-74-SELED COB VERO SE 29 WHT RND 5700K |
0 |
|
Технический лист |
Vero® SE 29 Array | Tray | Active | Chip On Board (COB) | White, Cool | 5700K 4-Step MacAdam Ellipse | - | Round | 20887lm (Typ) | 1.71A | 25°C | 69.4V | 176 lm/W | 3.42A | 70 | 120° | - | 49.20mm Dia | 3.60mm | 29.20mm Dia | Flat |
|
|
BXRC-57E10K1-C-74-SELED COB VERO SE 29 WHT RND 5700K |
0 |
|
Технический лист |
Vero® SE 29 Array | Tray | Active | Chip On Board (COB) | White, Cool | 5700K 4-Step MacAdam Ellipse | - | Round | 20056lm (Typ) | 1.71A | 25°C | 69.4V | 169 lm/W | 3.42A | 80 | 120° | - | 49.20mm Dia | 3.60mm | 29.20mm Dia | Flat |
|
|
BXRC-65C10K1-C-74-SELED COB VERO SE 29 WHT RND 6500K |
0 |
|
Технический лист |
Vero® SE 29 Array | Tray | Active | Chip On Board (COB) | White, Cool | 6500K 4-Step MacAdam Ellipse | - | Round | 21243lm (Typ) | 1.71A | 25°C | 69.4V | 179 lm/W | 3.42A | 70 | 120° | - | 49.20mm Dia | 3.60mm | 29.20mm Dia | Flat |
