Светодиодные COB, двигатели, модули, полосы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Цвет | CCT (K) | Длина волны | Конфигурация | Световой поток при токе/температуре | Ток - Тест | Температура - Тест | Напряжение - прямое (Vf) (тип.) | Люмен/Ватт при токе - Тест | Ток - макс. | CRI (индекс цветопередачи) | Угол обзора | Особенности | Размер/измерение | Высота | Светоизлучающая поверхность (LES) | Тип линзы |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CXA3070-0000-000N0HAB0E3LED COB XLAMP COOL WHT SQ 5000K |
0 |
|
Технический лист |
XLamp® CXA3070 | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5000K | - | Square | 8750lm (8500lm ~ 9000lm) | 1.925A | 85°C | 38.5V | 118 lm/W | 2.8A | 80 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia | Flat |
|
|
CXA3070-0000-000N0HZ40E5LED COB XLAMP NEUT WHT SQ 4000K |
0 |
|
Технический лист |
XLamp® CXA3070 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 8223lm (7945lm ~ 8500lm) | 1.925A | 85°C | 38.5V | 111 lm/W | 2.8A | 80 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia | Flat |
|
|
CXA3070-0000-000N0UY20E3LED COB XLAMP COOL WHT SQ 5000K |
0 |
|
Технический лист |
XLamp® CXA3070 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K | - | Square | 6670lm (6430lm ~ 6910lm) | 1.925A | 85°C | 38.5V | 90 lm/W | 2.8A | 90 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia | Flat |
|
CXA1850-0000-000N00W20E1LED COB XLAMP COOL WHT SQ 6500K |
0 |
|
Технический лист |
XLamp® CXA1850 | Tray | Obsolete | Chip On Board (COB) | White, Cool | 6500K | - | Square | 5043lm (4860lm ~ 5225lm) | 1.4A | 85°C | 35V | 103 lm/W | 2.1A | 70 | 115° | - | 17.85mm L x 17.85mm W | 1.55mm | 12.00mm Dia | Flat |
|
|
CXA1850-0000-000N00W20E2LED COB XLAMP COOL WHT SQ 5700K |
0 |
|
Технический лист |
XLamp® CXA1850 | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5700K | - | Square | 5043lm (4860lm ~ 5225lm) | 1.4A | 85°C | 35V | 103 lm/W | 2.1A | 70 | 115° | - | 17.85mm L x 17.85mm W | 1.55mm | 12.00mm Dia | Flat |
|
|
CXA1850-0000-000N00W20E3LED COB XLAMP COOL WHT SQ 5000K |
0 |
|
Технический лист |
XLamp® CXA1850 | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5000K | - | Square | 5043lm (4860lm ~ 5225lm) | 1.4A | 85°C | 35V | 103 lm/W | 2.1A | 70 | 115° | - | 17.85mm L x 17.85mm W | 1.55mm | 12.00mm Dia | Flat |
|
|
CXA1850-0000-000N00W20E5LED COB XLAMP NEUT WHT SQ 4000K |
0 |
|
Технический лист |
XLamp® CXA1850 | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 5043lm (4860lm ~ 5225lm) | 1.4A | 85°C | 35V | 103 lm/W | 2.1A | 70 | 115° | - | 17.85mm L x 17.85mm W | 1.55mm | 12.00mm Dia | Flat |
|
|
CXA1850-0000-000N0HW20E1LED COB XLAMP COOL WHT SQ 6500K |
0 |
|
Технический лист |
XLamp® CXA1850 | Tray | Obsolete | Chip On Board (COB) | White, Cool | 6500K | - | Square | 5043lm (4860lm ~ 5225lm) | 1.4A | 85°C | 35V | 103 lm/W | 2.1A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.55mm | 12.00mm Dia | Flat |
|
|
CXA1850-0000-000N0HW20E2LED COB XLAMP COOL WHT SQ 5700K |
0 |
|
Технический лист |
XLamp® CXA1850 | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5700K | - | Square | 5043lm (4860lm ~ 5225lm) | 1.4A | 85°C | 35V | 103 lm/W | 2.1A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.55mm | 12.00mm Dia | Flat |
|
|
CXA1850-0000-000N0HW20E3LED COB XLAMP COOL WHT SQ 5000K |
0 |
|
Технический лист |
XLamp® CXA1850 | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5000K | - | Square | 5043lm (4860lm ~ 5225lm) | 1.4A | 85°C | 35V | 103 lm/W | 2.1A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.55mm | 12.00mm Dia | Flat |
|
|
CXA1850-0000-000N0HW20E5LED COB XLAMP NEUT WHT SQ 4000K |
0 |
|
Технический лист |
XLamp® CXA1850 | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 5043lm (4860lm ~ 5225lm) | 1.4A | 85°C | 35V | 103 lm/W | 2.1A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.55mm | 12.00mm Dia | Flat |
|

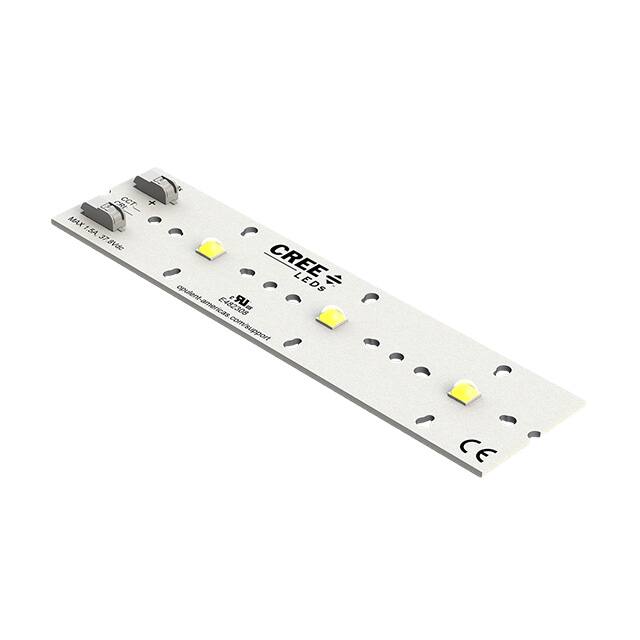

LSH1-03C22-4070-00LED MOD XHP50.2 WH LNR STR 4000K |
0 |
|
Технический лист |
XHP50.2 | Tray | Active | LED Module | White, Neutral | 4000K 5-Step MacAdam Ellipse | - | Linear Light Strip | 3360lm (Typ) | 700mA | 85°C | 33.6V | 143 lm/W | 1.5A | 70 | - | - | 132.08mm L x 32.99mm W | - | - | Domed |
|
|
LSH1-03C22-5070-00LED MOD XHP50.2 WH LNR STR 5000K |
0 |
|
Технический лист |
XHP50.2 | Tray | Active | LED Module | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Linear Light Strip | 3360lm (Typ) | 700mA | 85°C | 33.6V | 143 lm/W | 1.5A | 70 | - | - | 132.08mm L x 32.99mm W | - | - | Domed |
|
|
LSH1-03C22-5770-00LED MOD XHP50.2 LNR STRP 5700K |
0 |
|
Технический лист |
XHP50.2 | Tray | Active | LED Module | White, Cool | 5700K | - | Linear Light Strip | 3360lm (Typ) | 700mA | 85°C | 33.6V | 143 lm/W | 1.5A | 70 | - | - | 132.08mm L x 32.99mm W | - | - | Domed |
|
|
LSH1-03C22-4080-00LED MOD XHP50.2 WH LNR STR 4000K |
0 |
|
Технический лист |
XHP50.2 | Tray | Active | LED Module | White, Neutral | 4000K 5-Step MacAdam Ellipse | - | Linear Light Strip | 3360lm | 700mA | 85°C | 33.6V | 143 lm/W | 1.5A | 80 | - | - | 132.08mm L x 32.99mm W | 1.52mm | - | Domed |
|
|
LSH1-03C22-5080-00LED MOD XHP50.2 WH LNR STR 5000K |
0 |
|
Технический лист |
XHP50.2 | Tray | Active | LED Module | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Linear Light Strip | 3360lm | 700mA | 85°C | 33.6V | 143 lm/W | 1.5A | 80 | - | - | 132.08mm L x 32.99mm W | 1.52mm | - | Domed |
|
|
LSH1-03C22-5780-00LED MOD XHP50.2 LNR STRP 5700K |
0 |
|
Технический лист |
XHP50.2 | Tray | Active | LED Module | White, Cool | 5700K | - | Linear Light Strip | 3360lm | 700mA | 85°C | 33.6V | 143 lm/W | 1.5A | 80 | - | - | 132.08mm L x 32.99mm W | 1.52mm | - | Domed |
|
BXRC-27G1KH0-D-82VERO 29D WARM WHITE LED ARRAY |
0 |
|
Технический лист |
Gen 8 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Round | 9270lm (Typ) | 1.7A | 25°C | 36.4V | 150 lm/W | 5.5A | 90 | 120° | - | 49.20mm Dia | 1.90mm | 29.10mm Dia | Flat |
|
|
BXRC-30H10K0-D-83VERO 29D WARM WHITE LED ARRAY |
0 |
|
Технический лист |
Gen 8 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Cool | 2700K 2-Step MacAdam Ellipse | - | Round | 8415lm (Typ) | 1.3A | 25°C | 36.4V | 127 lm/W | 4.2A | 70 | 120° | - | 49.20mm Dia | 1.90mm | 29.10mm Dia | Flat |
|
|
BXRC-57E10K1-B-83VERO 29B COOL WHITE LED ARRAY |
0 |
|
Технический лист |
Gen 8 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Cool | 5700K 3-Step MacAdam Ellipse | - | Round | 13012lm (Typ) | 1.4A | 25°C | 50.2V | 185 lm/W | 4.75A | 80 | 120° | - | 49.20mm Dia | 1.90mm | 29.10mm Dia | Flat |
