Светодиодные COB, двигатели, модули, полосы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Цвет | CCT (K) | Длина волны | Конфигурация | Световой поток при токе/температуре | Ток - Тест | Температура - Тест | Напряжение - прямое (Vf) (тип.) | Люмен/Ватт при токе - Тест | Ток - макс. | CRI (индекс цветопередачи) | Угол обзора | Особенности | Размер/измерение | Высота | Светоизлучающая поверхность (LES) | Тип линзы |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BXRV-TR-2750S-40A0-A-23-S2TW ARRAY, LES=18MM, INTEGRATED H |
0 |
|
- |
Vesta™ SE | Tray | Last Time Buy | Chip On Board (COB) | White, Warm / White, Cool | 2700K 3-Step MacAdam Ellipse, 5000K 3-Step MacAdam Ellipse | - | Round | 2994lm (Typ) Warm White, 3422lm (Typ) Cool White | 900mA | 25°C | 35.2V Warm White, 35.8V Cool White | 95 lm/W Warm White, 106 lm/W Cool White | 1.4A | 95 | 130° | - | 44.80mm Dia | 3.80mm | 19.60mm Dia | Flat |
|
|
BXRV-TR-2765S-40A0-A-23-S2TW ARRAY, LES=18MM, INTEGRATED H |
0 |
|
- |
Vesta™ SE | Tray | Last Time Buy | Chip On Board (COB) | White, Warm / White, Cool | 2700K 3-Step MacAdam Ellipse, 6500K 3-Step MacAdam Ellipse | - | Round | 2994lm (Typ) Warm White, 3422lm (Typ) Cool White | 900mA | 25°C | 35.2V Warm White, 35.8V Cool White | 95 lm/W Warm White, 106 lm/W Cool White | 1.4A | 95 | 130° | - | 44.80mm Dia | 3.80mm | 19.60mm Dia | Flat |
|

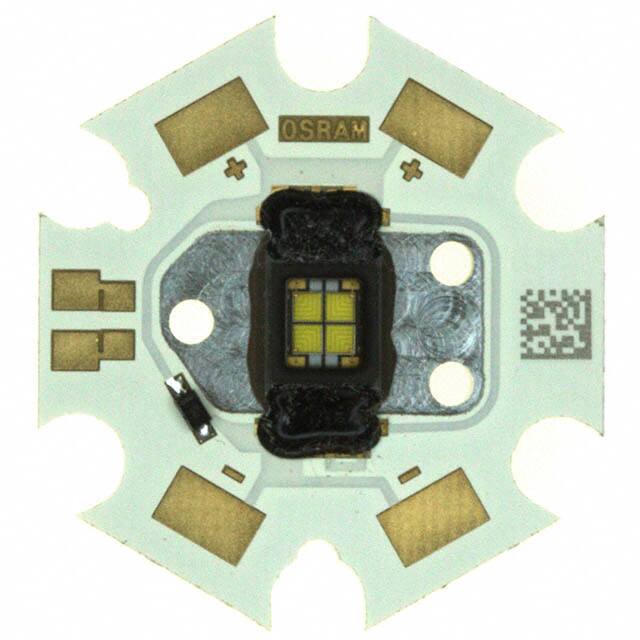

LE W E2A-LZNY-6K8LLED MOD OSTAR WHT STARBRD 5600K |
0 |
|
Технический лист |
Ostar | Tray | Obsolete | LED Module | White, Cool | 5600K | - | Starboard | - | 700mA | 25°C | 14V | - | 1A | 80 | 120° | - | 19.90mm Dia | 2.53mm | 2.11mm L x 2.11mm W | Flat |
|
|
SFT-20-CG-R35-MPCLED COB SFT-20 GREEN STARBOARD |
0 |
|
Технический лист |
SFT-20 | Tray | Last Time Buy | Chip On Board (COB) | Green | - | 555nm | Starboard | 520lm (Typ) | 1.4A | 25°C | 3V | 124 lm/W | 6A | - | - | - | 19.90mm Dia | 1.80mm | 1.60mm L x 1.30mm W | Flat |
|
CLU046-1212C1-30AL7G4LED COB WARM WHT SQUARE 3000K |
0 |
|
Технический лист |
- | Tray | Active | Chip On Board (COB) | White, Warm | 3000K | - | Square | 5678lm (Typ) | 1.08A | 85°C | 34.6V | 152 lm/W | 2.76A | 70 | - | - | 28.00mm L x 28.00mm W | 1.40mm | 22.00mm Dia | Flat |
|
|
CLU046-1212C1-40AL7G4LED COB CLU046 NEUT WHT SQ 4000K |
0 |
|
Технический лист |
CLU046 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 5864lm (Typ) | 1.08A | 85°C | 34.6V | 157 lm/W | 2.76A | 70 | - | - | 28.00mm L x 28.00mm W | 1.40mm | 22.00mm Dia | Flat |
|
|
CLU046-1212C1-50AL7G4LED COB CLU046 COOL WHT SQ 5000K |
0 |
|
Технический лист |
CLU046 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 5953lm (Typ) | 1.08A | 85°C | 34.6V | 159 lm/W | 2.76A | 70 | - | - | 28.00mm L x 28.00mm W | 1.40mm | 22.00mm Dia | Flat |
|
|
CLU046-1212C1-273M2G2LED COB CLU046 WARM WHT SQ 2700K |
0 |
|
Технический лист |
CLU046 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 5020lm (Typ) | 1.08A | 85°C | 34.6V | 134 lm/W | 2.76A | 80 | - | - | 28.00mm L x 28.00mm W | 1.40mm | 22.00mm Dia | Flat |
|
|
CLU046-1212C1-303M2G2LED COB CLU046 WM WHT SQ 3000K |
0 |
|
Технический лист |
CLU046 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 5257lm (Typ) | 1.08A | 85°C | 34.6V | 141 lm/W | 2.76A | 80 | - | - | 28.00mm L x 28.00mm W | 1.40mm | 22.00mm Dia | Flat |
|
|
CLU046-1212C1-403M2G2LED COB CLU046 NEUT WHT SQ 4000K |
0 |
|
Технический лист |
CLU046 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 5430lm (Typ) | 1.08A | 85°C | 34.6V | 145 lm/W | 2.76A | 80 | - | - | 28.00mm L x 28.00mm W | 1.40mm | 22.00mm Dia | Flat |
|
|
CLU046-1212C1-503M2G2LED COB CLU046 COOL WHT SQ 5000K |
0 |
|
Технический лист |
CLU046 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 5512lm (Typ) | 1.08A | 85°C | 34.6V | 148 lm/W | 2.76A | 80 | - | - | 28.00mm L x 28.00mm W | 1.40mm | 22.00mm Dia | Flat |
|
|
CLU046-1212C1-653M2G2LED COB COOL WHT SQUARE 6500K |
0 |
|
Технический лист |
- | Tray | Active | Chip On Board (COB) | White, Cool | 6500K 3-Step MacAdam Ellipse | - | Square | 5622lm (Typ) | 1.08A | 85°C | 34.6V | 150 lm/W | 2.76A | 80 | - | - | 28.00mm L x 28.00mm W | 1.40mm | 22.00mm Dia | Flat |
|
|
CLU046-1212C1-403H5G3LED COB CLU046 NEUT WHT SQ 4000K |
0 |
|
Технический лист |
CLU046 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 4507lm (Typ) | 1.08A | 85°C | 34.6V | 121 lm/W | 2.76A | 90 | - | - | 28.00mm L x 28.00mm W | 1.40mm | 22.00mm Dia | Flat |
|
|
CLU046-1212C1-403H7G5LED COB CLU046 NEUT WHT SQ 4000K |
0 |
|
Технический лист |
CLU046 | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 4073lm (Typ) | 1.08A | 85°C | 34.6V | 109 lm/W | 2.76A | 97 (Typ) | - | - | 28.00mm L x 28.00mm W | 1.40mm | 22.00mm Dia | Flat |
|
CLU048-1212C4-503M2K1LED COB CLU048 COOL WHT SQ 5000K |
0 |
|
Технический лист |
CLU048 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 5815lm (Typ) | 1.08A | 85°C | 34.6V | 156 lm/W | 2.76A | 80 | - | - | 28.00mm L x 28.00mm W | 1.40mm | 22.00mm Dia | Flat |
|
|
CLU048-1212C4-653M2K1LED COB CLU048 COOL WHT SQ 6500K |
0 |
|
Технический лист |
CLU048 | Tray | Active | Chip On Board (COB) | White, Cool | 6500K 3-Step MacAdam Ellipse | - | Square | 5920lm (Typ) | 1.08A | 85°C | 34.6V | 158 lm/W | 2.76A | 80 | - | - | 28.00mm L x 28.00mm W | 1.40mm | 22.00mm Dia | Flat |
|
|
CLU048-1212C4-30AL7K3LED COB CLU048 WM WHT SQ 3000K |
0 |
|
Технический лист |
CLU048 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 5877lm (Typ) | 1.08A | 85°C | 34.6V | 157 lm/W | 2.76A | 70 | - | - | 28.00mm L x 28.00mm W | 1.40mm | 22.00mm Dia | Flat |
|
|
CLU048-1212C4-40AL7K3LED COB CLU048 NEUT WHT SQ 4000K |
0 |
|
Технический лист |
CLU048 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 6069lm (Typ) | 1.08A | 85°C | 34.6V | 162 lm/W | 2.76A | 70 | - | - | 28.00mm L x 28.00mm W | 1.40mm | 22.00mm Dia | Flat |
|
|
CLU048-1212C4-273M2K1LED COB CLU048 WARM WHT SQ 2700K |
0 |
|
Технический лист |
CLU048 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 5321lm (Typ) | 1.08A | 85°C | 34.6V | 142 lm/W | 2.76A | 80 | - | - | 28.00mm L x 28.00mm W | 1.40mm | 22.00mm Dia | Flat |
|
|
CLU048-1212C4-273H5K2LED COB CLU048 WARM WHT SQ 2700K |
0 |
|
Технический лист |
CLU048 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 4396lm (Typ) | 1.08A | 85°C | 34.6V | 118 lm/W | 2.76A | 90 | - | - | 28.00mm L x 28.00mm W | 1.40mm | 22.00mm Dia | Flat |
