Светодиодные COB, двигатели, модули, полосы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Цвет | CCT (K) | Длина волны | Конфигурация | Световой поток при токе/температуре | Ток - Тест | Температура - Тест | Напряжение - прямое (Vf) (тип.) | Люмен/Ватт при токе - Тест | Ток - макс. | CRI (индекс цветопередачи) | Угол обзора | Особенности | Размер/измерение | Высота | Светоизлучающая поверхность (LES) | Тип линзы |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AB-FA01208-19712-8A2LED MOD AB-FA RGBW LNR STRIP |
16 |
|
Технический лист |
AB-FA | Bag | Active | LED Module | Red, Green, Blue, White (RGBW) | - | 625nm Red, 523nm Green, 468nm Blue | Linear Light Strip, Flexible | 81lm Red, 223lm Green, 50lm Blue, 334lm White | 1.18A Red, 1.18A Green, 1.18A Blue, 1.18A White | 25°C | 12V | - | - | 80 | 120° | IP20 | 5000.00mm L x 10.00mm W | 1.60mm | - | Flat |
|
AB-FD02408-19712-8A1LED MOD AB-FD RGBW LNR STRIP |
13 |
|
Технический лист |
AB-FD | Bag | Active | LED Module | Red, Green, Blue, White (RGBW) | - | 625nm Red, 528nm Green, 470nm Blue | Linear Light Strip, Flexible | 81lm Red, 223lm Green, 50lm Blue, 334lm White | 590mA Red, 590mA Green, 590mA Blue, 590mA White | - | 24V | 6 lm/W Red, 16 lm/W Green, 4 lm/W Blue, 24 lm/W White | - | 80 | 120° | IP68 | 5000.00mm L x 14.50mm W | 6.50mm | - | Flat |
|
AB-FC01208-19712-8A1LED MOD AB-FC RGBW LNR STRIP |
12 |
|
Технический лист |
AB-FC | Bag | Active | LED Module | Red, Green, Blue, White (RGBW) | - | 625nm Red, 528nm Green, 470nm Blue | Linear Light Strip, Flexible | 81lm Red, 223lm Green, 50lm Blue, 334lm White | 1.18A Red, 1.18A Green, 1.18A Blue, 1.18A White | 25°C | 12V | 6 lm/W Red, 16 lm/W Green, 4 lm/W Blue, 24 lm/W White | - | 80 | 120° | IP65 | 5000.00mm L x 10.00mm W | 2.50mm | - | Flat |
|
|
AB-FC02408-19712-8A1LED MOD AB-FC RGBW LNR STRIP |
7 |
|
Технический лист |
AB-FC | Bag | Active | LED Module | Red, Green, Blue, White (RGBW) | - | 625nm Red, 528nm Green, 470nm Blue | Linear Light Strip, Flexible | 81lm Red, 223lm Green, 50lm Blue, 334lm White | 590mA Red, 590mA Green, 590mA Blue, 590mA White | 25°C | 24V | 6 lm/W Red, 16 lm/W Green, 4 lm/W Blue, 24 lm/W White | - | 80 | 120° | IP65 | 5000.00mm L x 10.00mm W | 2.50mm | - | Flat |
|

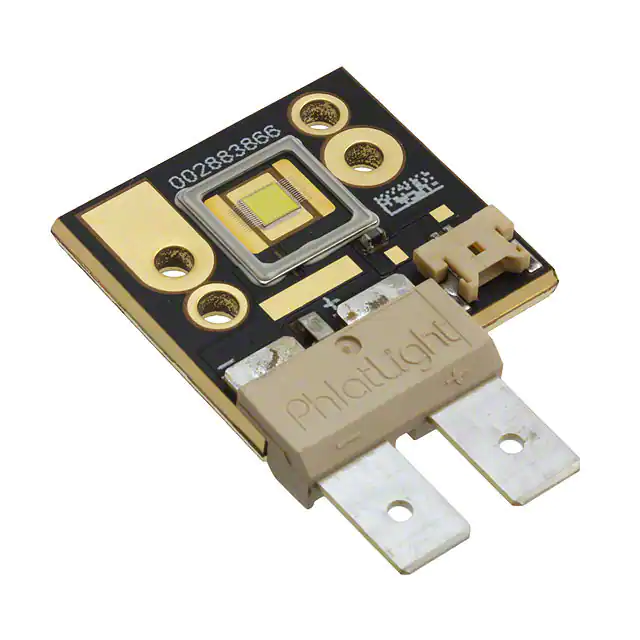

CBT-90-W65S-C11-NA100LED MOD CBT-90 CL WH RECT 6500K |
20 |
|
Технический лист |
CBT-90 | Tray | Active | LED Module | White, Cool | 6500K | - | Rectangle | - | 9A | - | 3.6V | - | 18A | 70 (Typ) | - | With Connector | 28.00mm L x 26.75mm W | 4.08mm | 3.00mm L x 3.00mm W | Flat |
|
ZFS-8500-CWLED ENG CL WHT LNR STRP 6000K 5M |
7 |
|
Технический лист |
- | - | Active | LED Engine | White, Cool | 6000K | - | Linear Light Strip, Flexible | 1092lm (Typ) | 1.8A | 25°C | 12V | 51 lm/W | 1.8A | - | 120° | - | 5000.00mm L x 8.00mm W (50.00mm L per Segment) | 2.43mm | - | Flat |
|
ZFS-245000NWLED ENG WHT LNR STRIP 4300K 5M |
17 |
|
Технический лист |
- | Strip | Active | LED Engine | White, Neutral | 3800K ~ 4300K | - | Linear Light Strip, Flexible | 4525lm | 2.8A | 25°C | 24V | 67 lm/W | - | - | 120° | - | 5000.00mm L x 10.00mm W (100.00mm L per Segment) | 2.08mm | - | Flat |
|
AB-FD01206-19712-XA2LED MOD AB-FD RGB LNR STRIP |
9 |
|
Технический лист |
AB-FD | Bag | Active | LED Module | Red, Green, Blue (RGB) | - | 630nm Red, 528nm Blue, 470nm Green | Linear Light Strip, Flexible | 90lm Red, 248lm Green, 56lm Blue | 840mA | - | 12V | 9 lm/W Red, 25 lm/W Green, 6 lm/W Blue | - | - | 120° | IP68 | 5000.00mm L x 14.50mm W | 6.50mm | - | Flat |
|

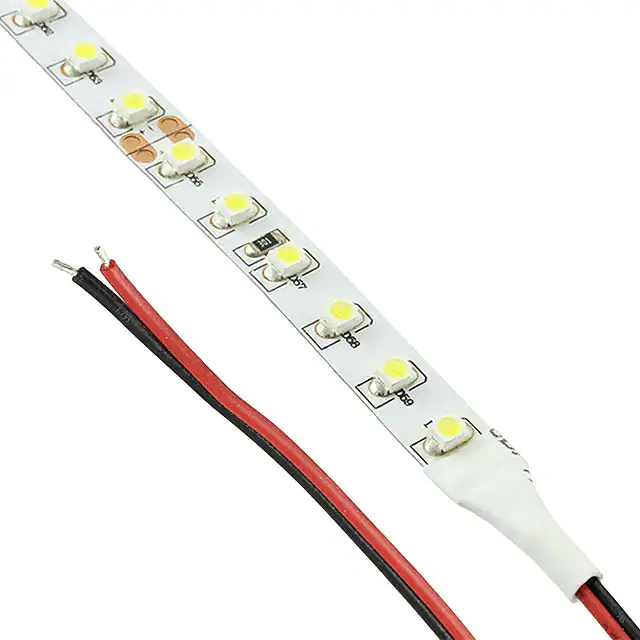

ZFS-84000-CWLED ENG CL WH LNR STRIP 6000K 4M |
3 |
|
Технический лист |
- | Bulk | Active | LED Engine | White, Cool | 6000K | - | Linear Light Strip, Flexible | 2200lm (Typ) | 1.44A | 25°C | 24V | 64 lm/W | - | - | 120° | - | 4000.00mm L x 8.00mm W | 2.43mm | - | Flat |
|
ZWF-1239-24CWLED MOD ALUMILINE WH LNR STRP 4' |
3 |
|
Технический лист |
ALUMILINE® ZWF | Tube | Active | LED Module | White, Cool | 6000K | - | Linear Light Strip, Plug and Play | 912lm | 480mA | 25°C | - | - | - | - | - | IP67 | 1240.00mm L x 12.70mm W | - | - | Flat |
|

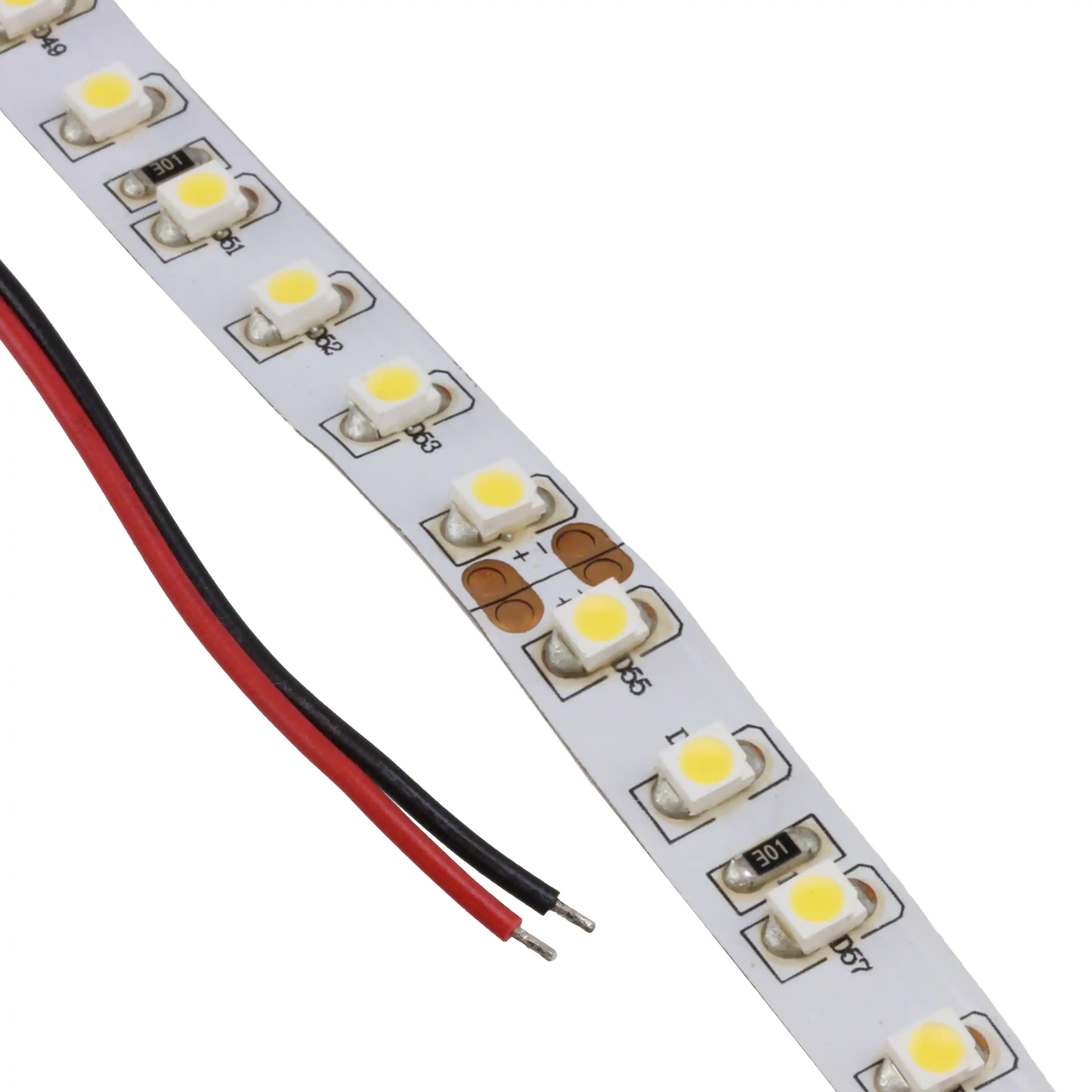

ZFS-84000-NWLED ENG WHT LNR STRIP 4100K 4M |
2 |
|
Технический лист |
- | Bulk | Active | LED Engine | White, Neutral | 4100K | - | Linear Light Strip, Flexible | 2070lm (Typ) | 1.44A | 25°C | 24V | 60 lm/W | - | - | 120° | - | 4000.00mm L x 8.00mm W | 2.43mm | - | Flat |
|
ZFS-105000HD-12WWLED WARM WHT LNR LGT STRIP 3050K |
2 |
|
Технический лист |
- | Bulk | Active | LED Module | White, Warm | 3050K | - | Linear Light Strip, Flexible | 7500lm (Typ) | - | 25°C | 12V | - | 5A | - | 120° | - | 5000.00mm L x 10.00mm W | 2.00mm | - | Flat |
|
|
ZFS-105000HD-12CWLED COOL WHT LNR LGT STRIP 6250K |
2 |
|
Технический лист |
- | Bulk | Active | LED Module | White, Cool | 6250K | - | Linear Light Strip, Flexible | 8400lm | - | 25°C | 12V | - | 5A | - | 120° | - | 5000.00mm L x 10.00mm W | 2.00mm | - | Flat |
|
|
ZFS-105000HD-24NWLED NEUT WHT LNR LGT STRIP 4250K |
2 |
|
Технический лист |
- | Bulk | Active | LED Module | White, Neutral | 4250K | - | Linear Light Strip, Flexible | 13550lm (Typ) | - | 25°C | 24V | - | 3.75A | - | 120° | - | 5000.00mm L x 10.00mm W | 2.00mm | - | Flat |
|
FX-CC-10-C-40K-80-5LED MOD NEUT WHT LNR STRP 4000K |
8 |
|
Технический лист |
- | Strip | Active | LED Module | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Linear Light Strip, Flexible | 2400lm | - | 85°C | 35V | 132 lm/W | 540mA | 80 | 120° | - | 5000.00mm L x 10.00mm W (25.40mm L per Segment) | 2.99mm | - | Flat |
|
PT-120-RAX-L15-MPKLED MOD PT-120 AMBER RECT |
13 |
|
Технический лист |
PT-120 | Tray | Active | LED Module | Amber | - | 613nm | Rectangle | 2925lm (2450lm ~ 3400lm) | 18A | 40°C | 3.1V | 52 lm/W | 27A | - | - | With Connector | 28.00mm L x 42.00mm W | 5.70mm | 2.60mm L x 4.60mm W | Flat |
|
|
CVM-45-56-95-60-BA42-F5-2LED COB COOL WHT SQUARE 5600K |
13 |
|
Технический лист |
- | Tray | Active | Chip On Board (COB) | White, Cool | 5600K 2-Step MacAdam Ellipse | - | Square | 32200lm (Typ) | 5A | 85°C | 59V | 109 lm/W | 10A | 95 | 120° | - | 55.00mm L x 55.00mm W | 1.70mm | 44.80mm Dia | Flat |
|
|
SPHWHAHDNA25YZV3DBLED COB D GEN2 WM WHT SQ 3000K |
500 |
|
Технический лист |
COB D Gen2 Plus | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 485lm (Typ) | 180mA | 85°C | 34V | 79 lm/W | 360mA | 80 | 115° | - | 13.50mm L x 13.50mm W | 1.50mm | 9.80mm Dia | Flat |
|
|
SPHWHAHDNA25YZV3DCLED COB D GEN3 WM WHT SQ 3000K |
500 |
|
Технический лист |
COB D Gen3 Plus | Box | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 498lm (Typ) | 90mA | 85°C | 33.7V | 164 lm/W | 180mA | 80 | 115° | - | 13.50mm L x 13.50mm W | 1.50mm | 9.80mm Dia | Flat |
|
|
SPHWHAHDNA25YZU3DCLED COB D GEN3 WARM WHT SQ 3500K |
490 |
|
Технический лист |
COB D Gen3 Plus | Box | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 516lm (Typ) | 90mA | 85°C | 33.7V | 170 lm/W | 180mA | 80 | 115° | - | 13.50mm L x 13.50mm W | 1.50mm | 9.80mm Dia | Flat |
