ЖК-дисплеи, OLED-символьные и цифровые
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Количество символов | Формат отображения | Формат символа | Тип дисплея | Режим отображения | Размер символа | Контур Д x Ш x В | Область просмотра | Подсветка | Напряжение - Питание | Размер точки | Интерфейс | Тип контроллера | Рабочая температура | Цвет текста | Цвет фона |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C404A-YTY-LW6340X4 STN YELLOW/GREEN CHARACTER |
9 |
|
Технический лист |
C404A | Tape & Box (TB) | Active | 160.0 | 40 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 4.89mm H x 2.78mm W | 190.00mm x 54.00mm x 13.00mm | 147.00mm L x 29.50mm W | LED - Yellow | 3.3V | 0.50mm W x 0.55mm H | Parallel | ST7066U | -20°C ~ 70°C | Black | Yellow/Green |
|
C204BLBSYLY6WT55XAA20X4 STN YELLOW/GREEN CHARACTER |
80 |
|
Технический лист |
- | Box | Active | 80.0 | 20 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 9.22mm H x 4.84mm W | 155.50mm x 73.00mm x 14.00mm | 123.00mm L x 42.50mm W | LED - Yellow | 5V | 0.92mm W x 1.10mm H | Parallel | ST7066U | -20°C ~ 70°C | Black | Yellow/Green |
|
C204ALBSYLY6WT33XAA20X4 STN YELLOW/GREEN CHARACTER |
48 |
|
Технический лист |
- | Box | Active | 80.0 | 20 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 9.22mm H x 4.84mm W | 155.50mm x 73.00mm x 14.00mm | 123.00mm L x 42.50mm W | LED - Yellow | 3.3V | 0.92mm W x 1.10mm H | Parallel | ST7066U | -20°C ~ 70°C | Black | Yellow/Green |
|
O202A-CW-SW3OLED MOD 50DIG 20 X 2 REFLECTIVE |
11 |
|
Технический лист |
- | Box | Active | 50.0 | 20 x 2 | 5 x 8 Dots | OLED | Reflective | 5.57mm H x 3.22mm W | 116.00mm x 37.00mm x 9.70mm | 75.52mm L x 13.52mm W | LED - White | 2.4V ~ 3.6V | 0.60mm W x 0.65mm H | Parallel, 8-Bit | KS0066 | -40°C ~ 70°C | - | - |
|
|
O162B-CY-SS5OLED MOD 16DIG 16x2 |
9 |
|
Технический лист |
- | Box | Active | 32.0 | 16 x 2 | 5 x 8 Dots | - | - | 5.95mm H x 3.55mm W | 80.00mm x 36.00mm x 9.70mm | 58.22mm L x 13.52mm W | - | 5V | 0.57mm W x 0.67mm H | Parallel, 8-Bit | - | -40°C ~ 70°C | Yellow | Black |
|
C204BLBSBSW6WN55XAA20X4 STN BLUE CHARACTER LCD |
93 |
|
Технический лист |
- | Box | Active | 80.0 | 20 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transmissive | 9.22mm H x 4.84mm W | 155.50mm x 73.00mm x 14.00mm | 123.00mm L x 42.50mm W | LED - White | 5V | 0.92mm W x 1.10mm H | Parallel | ST7066U | -20°C ~ 70°C | White | Blue |
|
C204ALBSBSW6WN33XAA20X4 STN BLUE CHARACTER LCD |
36 |
|
Технический лист |
- | Box | Active | 80.0 | 20 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transmissive | 9.22mm H x 4.84mm W | 155.50mm x 73.00mm x 14.00mm | 123.00mm L x 42.50mm W | LED - White | 3.3V | 0.92mm W x 1.10mm H | Parallel | ST7066U | -20°C ~ 70°C | White | Blue |
|
C204B-FTW-LW6520X4 FSTN GRAY CHARACTER LCD |
81 |
|
Технический лист |
C204B | Box | Active | 80.0 | 20 x 4 | 5 x 8 Dots | FSTN - Film Super-Twisted Nematic | Transflective | 9.22mm H x 4.84mm W | 146.00mm x 62.50mm x 14.50mm | 123.00mm L x 42.50mm W | LED - White | 5V | 0.92mm W x 1.10mm H | Parallel | ST7066U | -20°C ~ 70°C | Black | Gray |
|
C204BLBFKSW6WT55XAA20X4 FSTN GRAY CHARACTER LCD |
87 |
|
Технический лист |
- | Box | Active | 80.0 | 20 x 4 | 5 x 8 Dots | FSTN - Film Super-Twisted Nematic | Transflective | 9.22mm H x 4.84mm W | 155.50mm x 73.00mm x 14.00mm | 123.00mm L x 42.50mm W | LED - White | 5V | 0.92mm W x 1.10mm H | Parallel | ST7066U | -20°C ~ 70°C | Black | Gray |
|
NHD-0220JZ-FSPG-GBWLCD MOD 40DIG 20X2 TRANSFLCT GRN |
74 |
|
Технический лист |
- | Bulk | Active | 40.0 | 20 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 12.70mm H x 5.90mm W | 182.00mm x 60.00mm x 14.00mm | 147.00mm L x 35.20mm W | LED - Green | 4.7V ~ 5.5V | 1.10mm W x 1.50mm H | Parallel | S6A0069 | -20°C ~ 70°C | Blue | Green |
|
C204ALBFWSW6WT33XAA20X4 FSTN GRAY CHARACTER LCD |
47 |
|
Технический лист |
- | Box | Active | 80.0 | 20 x 4 | 5 x 8 Dots | FSTN - Film Super-Twisted Nematic | Transflective | 9.22mm H x 4.84mm W | 155.50mm x 73.00mm x 14.00mm | 123.00mm L x 42.50mm W | LED - White | 3.3V | 0.92mm W x 1.10mm H | Parallel | ST7066U | -20°C ~ 70°C | Black | Gray |
|
C404A-FTW-LW6540X4 FSTN GRAY CHARACTER LCD |
28 |
|
Технический лист |
C404A | Box | Active | 160.0 | 40 x 4 | 5 x 8 Dots | FSTN - Film Super-Twisted Nematic | Transflective | 4.89mm H x 2.78mm W | 190.00mm x 54.00mm x 13.00mm | 147.00mm L x 29.50mm W | LED - White | 5V | 0.50mm W x 0.55mm H | Parallel | ST7066 | -20°C ~ 70°C | Black | Gray |
|
C402ALBSGN06WT50PAB40X2 STN GRAY CHARACTER LCD |
23 |
|
Технический лист |
- | Box | Active | 80.0 | 40 x 2 | 5 x 7 Dots | STN - Super-Twisted Nematic | Transflective | 5.55mm H x 3.20mm W | 285.00mm x 56.00mm x 8.80mm | 246.00mm L x 38.00mm W | Without Backlight | 5V | 1.00mm W x 1.77mm H | Parallel | ST7066U | -20°C ~ 70°C | Black | Gray |
|
O204A-CW-SW3OLED MOD 80DIG 20 X 4 REFLECTIVE |
21 |
|
Технический лист |
- | Box | Active | 80.0 | 20 x 4 | 5 x 8 Dots | OLED | Reflective | 4.77mm H x 2.95mm W | 98.00mm x 60.00mm x 9.70mm | 72.42mm L x 22.82mm W | LED - White | 2.4V ~ 3.6V | 0.58mm W x 0.60mm H | Parallel, 8-Bit | KS0066 | -40°C ~ 70°C | - | - |
|
O402A-CW-SW3OLED MOD 80DIG 40 X 2 REFLECTIVE |
13 |
|
Технический лист |
- | Box | Active | 80.0 | 40 x 2 | 5 x 8 Dots | OLED | Reflective | 5.55mm H x 3.20mm W | 182.00mm x 33.50mm x 9.70mm | 149.70mm L x 13.50mm W | LED - White | 2.4V ~ 3.6V | 0.60mm W x 0.65mm H | Parallel, 8-Bit | KS0066 | -40°C ~ 70°C | - | - |
|

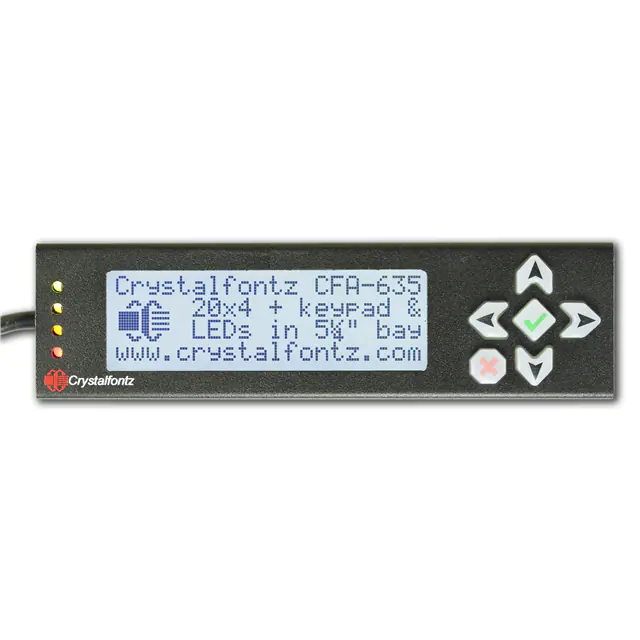

XES635BK-TFK-KUEnclosed 20x4 LCD with Keypad |
25 |
|
Технический лист |
- | Retail Package | Active | 80.0 | 20 x 4 | 5 x 8 Dots w/Cursor | - | Transflective | 3.25mm H x 5.60mm W | 146.00mm x 39.30mm x 23.60mm | 80.90mm L x 25.50mm W | LED - White | 3V ~ 5.5V | 0.60mm W x 0.65mm H | USB | STM32 | -20°C ~ 70°C | Black | White |
|
|
C81C-FTW-LW638X1 FSTN GRAY CHARACTER LCD |
43 |
|
Технический лист |
C81C | Tape & Box (TB) | Active | 8.0 | 8 x 1 | 5 x 8 Dots | FSTN - Film Super-Twisted Nematic | Transflective | 7.71mm H x 4.2mm W | 69.00mm x 27.00mm x 13.00mm | 45.00mm L x 13.50mm W | LED - White | 3.3V | 0.80mm W x 0.92mm H | Parallel | ST7066 | -20°C ~ 70°C | Black | Gray |
|
|
C162E-YTY-LW6316X2 STN YELLOW/GREEN CHARACTER |
58 |
|
Технический лист |
C162E | Tape & Box (TB) | Active | 32.0 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 3.23mm H x 1.85mm W | 53.00mm x 20.00mm x 8.50mm | 36.00mm L x 10.00mm W | LED - Yellow | 3.3V | 0.33mm W x 0.36mm H | Parallel | ST7066U | -20°C ~ 70°C | Black | Yellow/Green |
|
|
C162C-BW-LW6316X2 STN BLUE CHARACTER LCD |
46 |
|
Технический лист |
C162C | Tape & Box (TB) | Active | 32.0 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transmissive | 5.23mm H x 3.00mm W | 85.00mm x 29.50mm x 13.50mm | 64.50mm L x 16.40mm W | LED - White | 3.3V | 0.56mm W x 0.61mm H | Parallel | ST7066U | -20°C ~ 70°C | Blue | White |
|
|
C162E-FTW-LW6316X2 FSTN GRAY CHARACTER LCD |
43 |
|
Технический лист |
C162E | Tape & Box (TB) | Active | 32.0 | 16 x 2 | 5 x 8 Dots | FSTN - Film Super-Twisted Nematic | Transflective | 3.23mm H x 1.85mm W | 53.00mm x 20.00mm x 8.50mm | 36.00mm L x 10.00mm W | LED - White | 3.3V | 0.33mm W x 0.36mm H | Parallel | ST7066U | -20°C ~ 70°C | Black | Gray |
