Переключатели блокировки клавиш
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Схема | Количество положений | Функция переключения | Время контакта | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Съемные позиции ключа | Угол броска | Материал контакта | Покрытие контакта | Тип крепления | Тип вывода | Размеры выреза панели | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CKL12BTW01-001SWITCH KEYLOCK 2POS SPDT 3A 250V |
164 |
|
Технический лист |
CK | Box | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Tubular Key | 1 only | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
Y201132R203NQSWITCH KEYLOCK 2POS DPDT 4A 125V |
3,728 |
|
Технический лист |
Y | Tray | Active | DPDT | 2 | On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 only | 90° | Copper | Silver | Panel Mount | Solder Lug | Circular - 19.30mm Dia | Antistatic | - |
|
LK5ENB126N3SWITCH KEYLOCK 3POS SP3T 4A 125V |
1,173 |
|
Технический лист |
LK | Tray | Active | SP3T | 3 | Mom-On-Mom | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 only | 45° | Copper Alloy | Gold | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | -30°C ~ 85°C |
|
Y100AA2C203NQSWITCH KEYLOCK 3POS SP3T 4A 125V |
216 |
|
Технический лист |
Y | Tray | Active | SP3T | 3 | On-On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | All | 45° | Copper | Silver | Panel Mount | Solder Lug | Circular - 19.30mm Dia | - | - |
|
LK6SGB126M3SWITCH KEYLOCK 2POS DPDT 4A 125V |
168 |
|
Технический лист |
LK | Bag | Active | DPDT | 2 | On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | All | 90° | Copper Alloy | Gold | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | -30°C ~ 85°C |
|
LK68GB126M3SWITCH KEYLOCK 2POS DPDT 4A 125V |
145 |
|
Технический лист |
LK | Bag | Active | DPDT | 2 | On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 only | 90° | Copper Alloy | Gold | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | -30°C ~ 85°C |
|
SK22BG30SWITCH KEYLK 2POS DPDT 0.4VA 28V |
307 |
|
Технический лист |
SK | Box | Active | DPDT | 2 | On-On | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Flat Key | 1 only | 90° | Beryllium Copper | Gold | Through Hole, Right Angle | PC Pin | - | Process Sealed | -25°C ~ 70°C |
|
Y1900S2C207NQSWITCH KEYLOCK 4POS SP4T 4A 125V |
127 |
|
Технический лист |
Y | Bulk | Active | SP4T | 4 | On-On-On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | All | 90° | Copper | Silver | Panel Mount | Solder Lug | Circular - 19.30mm Dia | - | - |
|
YF21132C203NQSWITCH KEYLOCK 2POS DPDT 4A 125V |
988 |
|
Технический лист |
YF | Tray | Active | DPDT | 2 | On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 only | 90° | Copper | Silver | Panel Mount | Solder Lug | Circular - 11.99mm Dia | Epoxy Sealed Terminals | - |
|
84825-01SWITCH KEYLOCK 2POS SPST 20A 12V |
687 |
|
Технический лист |
- | Bulk | Active | SPST | 2 | Off-On | Not Specified | 20A (DC) | - | 12 V | Flat Key | Center | 45° | Brass | Tin | Panel Mount | Connector | Circular - 22.35mm Dia | - | -40°C ~ 85°C |
|
Y200AB2C203NQSWITCH KEYLOCK 4POS DP4T 4A 125V |
127 |
|
Технический лист |
Y | Tray | Active | DP4T | 4 | On-On-On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | All | 45° | Copper | Silver | Panel Mount | Solder Lug | Circular - 19.30mm Dia | - | - |
|
Y101132V203NQSWITCH KEYLOCK 2POS SPDT 4A 125V |
254 |
|
Технический лист |
Y | Tray | Active | SPDT | 2 | On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Tubular Key | 1 only | 90° | Copper | Silver | Panel Mount | Solder Lug | Circular - 19.30mm Dia | - | - |
|
84830-07SWITCH KEYLOCK 3POS DPDT 20A 12V |
257 |
|
Технический лист |
- | Bulk | Active | DPDT | 3 | On-Off-On | Not Specified | 20A (DC) | - | 12 V | Flat Key | Center | 45° | Copper | - | Panel Mount | Screw Terminal | Circular - 22.35mm Dia | - | -40°C ~ 85°C |
|
|
M-6110-05SWITCH KEYLOCK |
221 |
|
Технический лист |
- | Bulk | Active | - | 3 | Off-On | Not Specified | - | - | - | Flat Key | 1 only | 40° | - | - | Panel Mount | Screw Terminal | - | - | - |
|

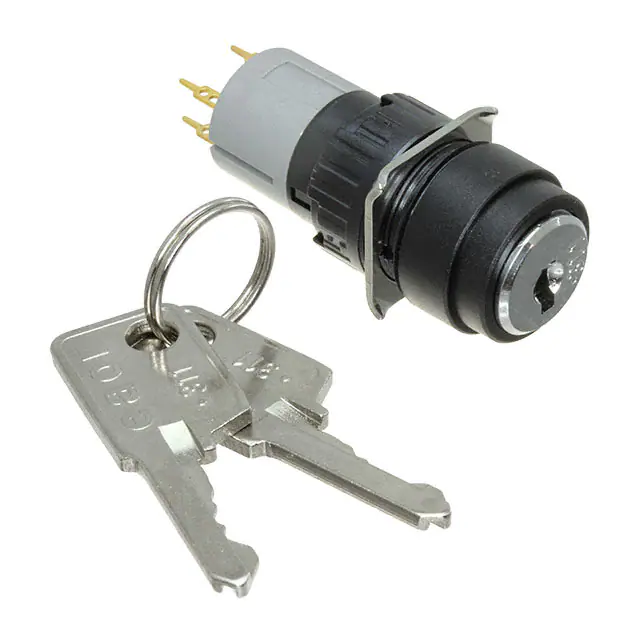

51-414.036DSWITCH KEYLK 2POS DPST 100MA 42V |
343 |
|
Технический лист |
51 | Bulk | Active | DPST-NO | 2 | Off-On | Not Specified | 100mA (AC/DC) | 42 V | 42 V | Flat Key | 1 only | 90° | - | - | Panel Mount | PC Pin, Solder Lug | Circular - 16.00mm Dia | IP65 | -25°C ~ 55°C |
|

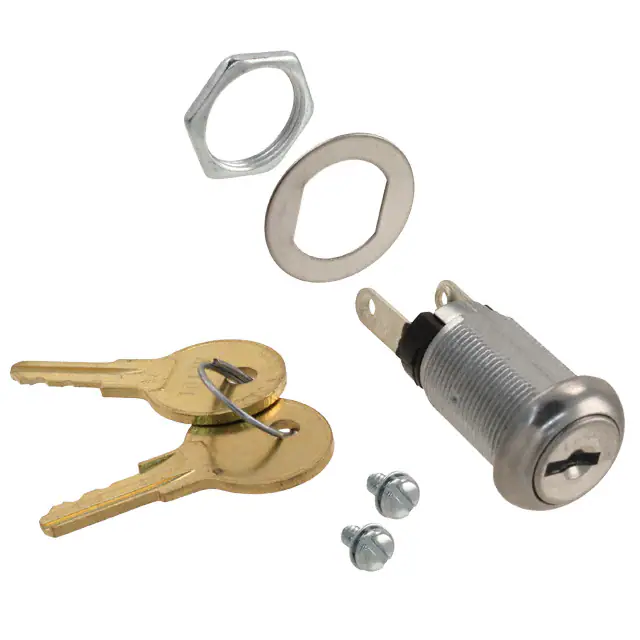

2SWK132AL101SWITCH KEYLOCK 2POS SPST 1A 120V |
0 |
|
Технический лист |
SWK | Bulk | Active | SPST | 2 | Off-On | Non-Shorting (BBM) | 1A (AC) | 120 V | - | Flat Key | All | 90° | Silver (Ag) | - | Panel Mount | Screw Terminal | Circular - 19.20mm Dia | - | - |
|
M-489SWITCH KEYLOCK 2POS 10A 12V |
47 |
|
Технический лист |
- | Bulk | Active | - | 2 | Off-Mom | Not Specified | 10A (DC) | - | 12 V | Flat Key | 1 only | - | Bronze | - | Panel Mount | Screw Terminal | - | - | - |
|
51-256.025DSWITCH KEYLOCK 2POS 4PST 5A 250V |
54 |
|
Технический лист |
51 | Bulk | Active | 4PST-2NO/2NC | 2 | On-Off, Off-On | Not Specified | 5A (AC) | 250 V | - | Flat Key | 1 only | 90° | - | - | Panel Mount | Solder Lug | Circular - 16.00mm Dia | IP65 | -25°C ~ 55°C |
|

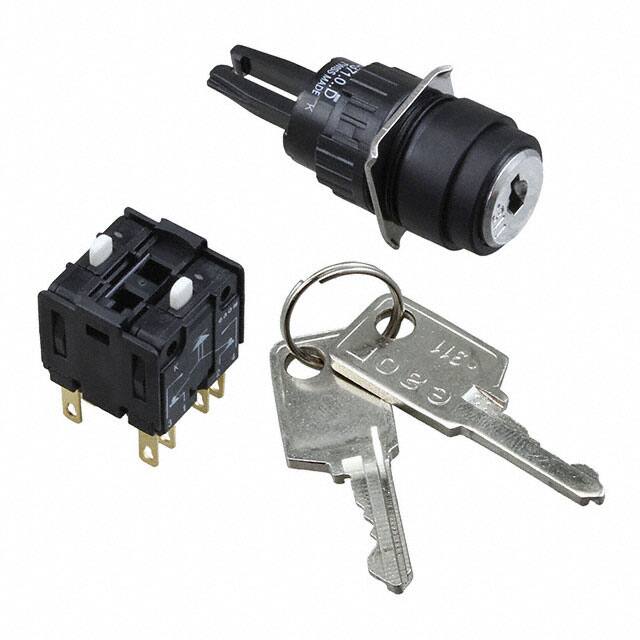

51-378.F22DSWITCH KEYLOCK 3POS 4PST 5A 250V |
34 |
|
Технический лист |
51 | Bulk | Active | 4PST-2NO/2NC | 3 | On-Off-Mom | Not Specified | 5A (AC) | 250 V | - | Flat Key | Left and Center | 42°, 90° | Silver (Ag) | Gold | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 16.20mm Dia | IP65 | -25°C ~ 55°C |
|
KO131A102SWITCH KEYLOCK 2POS SPST 1A 125V |
221 |
|
Технический лист |
KO | Bulk | Active | SPST | 2 | Off-On | Not Specified | 1A (AC) | 125 V | - | Tubular Key | All | 90° | Copper Alloy | Silver | Panel Mount | Solder Lug | Circular - 12.00mm Dia | - | - |
