Аналоговые переключатели, мультиплексоры, Демультиплексоры
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Схема переключения | Схема мультиплексора/демультиплексора | Количество цепей | Сопротивление в открытом состоянии (макс.) | Согласование каналов (ΔRon) | Напряжение - Питание, один (V+) | Напряжение - Питание, двойной (V±) | Время переключения (Ton, Toff) (макс.) | -3 дБ Пропускная способность | Ввод заряда | Емкость канала (CS(выкл.), CD(выкл.)) | Ток - Утечка (IS(выкл.)) (макс.) | Перекрестные помехи | Рабочая температура | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAX4615EUD+TIC SW SPST-NCX4 10OHM 14TSSOP |
0 |
|
Технический лист |
- | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 4 | 10Ohm | 200mOhm | 2V ~ 5.5V | - | 12ns, 10ns | 70MHz | 6.5pC | 5pF, 5pF | 1nA | -96dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 14-TSSOP |
|
|
MAX4610CUD+TIC SW SPST-NOX4 100OHM 14TSSOP |
0 |
|
Технический лист |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 4 | 100Ohm | 1Ohm | 2V ~ 12V | - | 65ns, 28ns | 300MHz | 1pC | 16pF, 16pF | 100pA | -80dB @ 1MHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 14-TSSOP |
|
MAX4736ETC+TIC SWITCH SPDTX2 800MOHM 12TQFN |
0 |
|
Технический лист |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 800mOhm | 100mOhm | 1.6V ~ 4.2V | - | 25ns, 20ns | 130MHz | 60pC | 33pF, 60pF | 1nA | -78dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 12-TQFN (3x3) |
|
MAX4734EGC+TIC SWITCH SP4T X 1 800MOHM 12QFN |
0 |
|
Технический лист |
- | Tape & Reel (TR) | Obsolete | SP4T | 4:1 | 1 | 800mOhm | 100mOhm | 1.6V ~ 3.6V | - | 25ns, 20ns | 90MHz | 60pC | 33pF, 117pF | 1nA | -56dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 12-QFN (3x3) |
|
MAX4854HETE+TIC SWITCH SPST-NOX4 9OHM 16TQFN |
0 |
|
- |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 4 | 9Ohm | 200mOhm | 2V ~ 5.5V | - | 60ns, 40ns | 150MHz | 8pC | 12pF | 2nA | -95dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TQFN (3x3) |
|
MAX4800CTM+TIC SWITCH SPST-NOX8 38OHM 48TQFN |
0 |
|
Технический лист |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 8 | 38Ohm | 1.9Ohm | 2.7V ~ 13.2V | - | 5µs, 5µs | - | 820pC | 18pF | 4µA | -80dB @ 5MHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 48-TQFN (6x6) |
|
MAX4754AETE+TIC SWITCH SPDTX4 850MOHM 16TQFN |
0 |
|
- |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 4 | 850mOhm | 100mOhm | 1.8V ~ 5.5V | - | 140ns, 50ns | 10MHz | 300pC | 180pF, 300pF | 4nA | -90dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TQFN (4x4) |
|
MAX4784EUE+TIC SWITCH SPDT X 4 1OHM 16TSSOP |
0 |
|
Технический лист |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 4 | 1Ohm | 100mOhm | 1.6V ~ 4.2V | - | 25ns, 10ns | 123MHz | 5pC | 33pF, 60pF | 1nA | -95dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
MAX4750EUD+TIC SWITCH SPDT X 2 25OHM 14TSSOP |
0 |
|
Технический лист |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 25Ohm | 100mOhm | 2V ~ 11V | - | 85ns, 45ns | 250MHz | 9pC | 20pF, 20pF | 100pA | -84dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 14-TSSOP |
|
MAX4632ESE+TIC SWITCH SPDT X 2 85OHM 16SOIC |
0 |
|
Технический лист |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 85Ohm | 3Ohm | 9V ~ 36V | ±4.5V ~ 18V | 150ns, 100ns | - | 5pC | 18pF, 18pF | 500pA | -66dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
MAX4947ETG+TIC SWITCH DPDT X 3 5.5OHM 24TQFN |
0 |
|
Технический лист |
- | Tape & Reel (TR) | Active | DPDT | 2:2 | 3 | 5.5Ohm | 300mOhm | 1.8V ~ 5.5V | - | 800ns, 800ns | 300MHz | 10pC | 15pF | 3nA | -90dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 24-TQFN (4x4) |
|
|
MAX4638ESE+TIC MUX 8:1 3.5OHM 16SOIC |
0 |
|
Технический лист |
- | Tape & Reel (TR) | Active | - | 8:1 | 1 | 3.5Ohm | 100mOhm | 1.8V ~ 5.5V | ±2.5V | 18ns, 7ns | 50MHz | 13pC | 9pF, 40pF | 250pA | -85dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
MAX4709ESE+TIC MUX 4:1 400OHM 16SOIC |
0 |
|
- |
- | Tape & Reel (TR) | Active | - | 4:1 | 1 | 400Ohm | 15Ohm (Max) | 9V ~ 36V | ±4.5V ~ 20V | 275ns, 200ns | - | - | 10pF, 19pF | 500pA | -62dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
MAX4512CSE+TIC SW SPST-NOX4 160OHM 16SOIC |
0 |
|
Технический лист |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 4 | 160Ohm | - | 9V ~ 36V | ±4.5V ~ 18V | 500ns, 400ns | - | 1.5pC | 10pF, 5pF | 500pA | -66dB @ 1MHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-SOIC |
|
MAX4596EXK+TIC SWITCH SPST-NOX1 10OHM SC70-5 |
0 |
|
Технический лист |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 1 | 10Ohm | - | 2V ~ 5.5V | - | 35ns, 40ns | 300MHz | 2pC | 8pF, 8pF | 500pA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-5 |
|
MAX4722EBL+TIC SWITCH SPST-NCX2 4.5OHM 9WLP |
0 |
|
Технический лист |
- | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 2 | 4.5Ohm | 100mOhm | 1.8V ~ 5.5V | - | 80ns, 40ns | 300MHz | 5pC | 9pF | 500pA | -110dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 9-WLP |
|
MAX4518ESD+TIC SWITCH SP4T X 1 100OHM 14SOIC |
0 |
|
Технический лист |
- | Tape & Reel (TR) | Active | SP4T | 4:1 | 1 | 100Ohm | 4Ohm (Max) | 2V ~ 15V | ±2.7V ~ 8V | 150ns, 150ns | - | 5pC (Max) | 5pF, 16pF | 100pA | -92dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 14-SOIC |
|
ISL43L840IVZIC SWITCH SP4TX2 750MOHM 16TSSOP |
0 |
|
Технический лист |
- | Tube | Obsolete | SP4T | 4:1 | 2 | 750mOhm | 120mOhm | 1.6V ~ 3.6V | - | - | - | -96pC | 62pF | 4nA | -100dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|

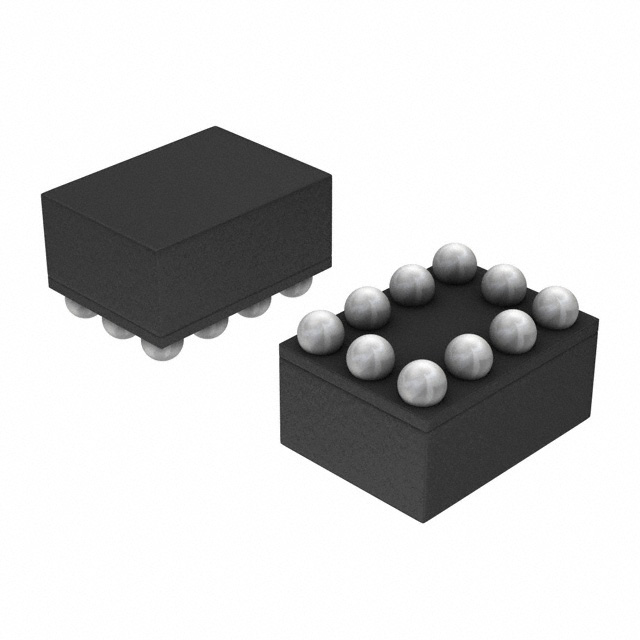

NLAS4684FCTCGIC SW SPDTX2 800MOHM 10MICROBUMP |
0 |
|
Технический лист |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 800mOhm | 60mOhm | 1.8V ~ 5.5V | - | 30ns, 30ns | 9.5MHz | 15pC | 102pF, 104pF | 1µA | -83dB @ 100kHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 10-Microbump |
|
ADG723ACPZ-REELIC SW SPST-NO/NCX2 4OHM 8LFCSP |
0 |
|
Технический лист |
- | Tape & Reel (TR) | Obsolete | SPST - NO/NC | 1:1 | 2 | 4Ohm | 300mOhm | 1.8V ~ 5.5V | - | 14ns, 6ns (Typ) | 200MHz | 2pC | 7pF, 7pF | 10pA (Typ) | -97dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-LFCSP-WD (2x3) |
