Аналоговые переключатели, мультиплексоры, Демультиплексоры
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Схема переключения | Схема мультиплексора/демультиплексора | Количество цепей | Сопротивление в открытом состоянии (макс.) | Согласование каналов (ΔRon) | Напряжение - Питание, один (V+) | Напряжение - Питание, двойной (V±) | Время переключения (Ton, Toff) (макс.) | -3 дБ Пропускная способность | Ввод заряда | Емкость канала (CS(выкл.), CD(выкл.)) | Ток - Утечка (IS(выкл.)) (макс.) | Перекрестные помехи | Рабочая температура | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAX327CSEIC SW SPST-NOX4 3.5KOHM 16SOIC |
0 |
|
Технический лист |
- | Tube | Obsolete | SPST - NO | 1:1 | 4 | 3.5kOhm | 175Ohm | 10V ~ 30V | ±5V ~ 18V | 1µs, 500ns | - | 2pC | 1.7pF, 1.7pF | 10pA | -90dB @ 100kHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-SOIC |
|
MAX4602CWEIC SW SPST-NOX4 2.5OHM 16SOIC |
0 |
|
Технический лист |
- | Tube | Obsolete | SPST - NO | 1:1 | 4 | 2.5Ohm | 100mOhm | 4.5V ~ 36V | ±4.5V ~ 20V | 250ns, 350ns | - | 120pC | 55pF, 55pF | 500pA | -59dB @ 1MHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-SOIC |
|
ADG453BRUZ-REELIC SW SPST-NO/NCX4 5OHM 16TSSOP |
0 |
|
Технический лист |
- | Tape & Reel (TR) | Active | SPST - NO/NC | 1:1 | 4 | 5Ohm | 100mOhm | 12V | ±4.5V ~ 20V | 180ns, 140ns | - | 20pC | 37pF, 37pF | 500pA | -90dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
MAX4661CWEIC SW SPST-NCX4 2.5OHM 16SOIC |
0 |
|
Технический лист |
- | Tube | Obsolete | SPST - NC | 1:1 | 4 | 2.5Ohm | 100mOhm | 4.5V ~ 36V | ±4.5V ~ 20V | 275ns, 175ns | - | 300pC | 55pF, 55pF | 500pA | -59dB @ 1MHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-SOIC |
|

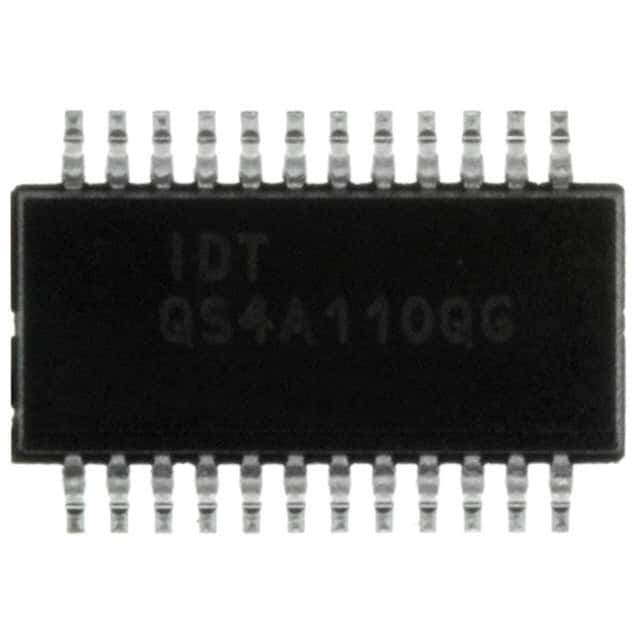

QS4A110QGIC SWITCH 5PST-NOX2 17OHM 24QSOP |
0 |
|
Технический лист |
- | Tube | Obsolete | 5PST - NO | - | 2 | 17Ohm | - | 5V | - | 6ns, 6.5ns | 1.8GHz | 1.5pC | 5pF | 1nA | -70dB @ 5.5MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 24-QSOP |
|
MAX303CPEIC SWITCH SPDT X 2 35OHM 16DIP |
0 |
|
Технический лист |
- | Tube | Obsolete | SPDT | 2:1 | 2 | 35Ohm | 500mOhm | 10V ~ 30V | ±4.5V ~ 20V | 150ns, 100ns | - | 10pC | 12pF, 12pF | 500pA | -90dB @ 1MHz | 0°C ~ 70°C (TA) | - | - | Through Hole | 16-PDIP |
|
|
MAX305CPEIC SWITCH DPST-NOX2 35OHM 16DIP |
0 |
|
Технический лист |
- | Tube | Obsolete | DPST - NO | 2:1 | 2 | 35Ohm | 500mOhm | 10V ~ 30V | ±4.5V ~ 20V | 150ns, 100ns | - | 10pC | 12pF, 12pF | 500pA | -90dB @ 1MHz | 0°C ~ 70°C (TA) | - | - | Through Hole | 16-PDIP |
|
DG407CJIC MUX DUAL 8:1 100OHM 28DIP |
0 |
|
Технический лист |
- | Tube | Obsolete | - | 8:1 | 2 | 100Ohm | 1.5Ohm | 5V ~ 30V | ±4.5V ~ 20V | 200ns, 150ns | - | 2pC | 8pF, 65pF | 500pA | -92dB @ 100kHz | 0°C ~ 70°C (TA) | - | - | Through Hole | 28-PDIP |
|
|
DG509AEWE-C30144IC SWITCH SP4T X 2 450OHM 16SOIC |
0 |
|
- |
- | Tube | Obsolete | SP4T | 4:1 | 2 | 450Ohm | 27Ohm | - | ±4.5V ~ 18V | 1.5µs, 1µs | - | - | 5pF, 12pF | 1nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
MAX4560CEE+TIC SWITCH SPDT X 3 160OHM 16QSOP |
0 |
|
Технический лист |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 3 | 160Ohm | 2Ohm | 2V ~ 12V | ±2V ~ 6V | 150ns, 120ns | - | 2.4pC | 2pF, 4pF | 1nA | -93dB @ 100kHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-QSOP |
|
|
MAX4559CSE+TIC SWITCH SP4T X 2 160OHM 16SOIC |
0 |
|
Технический лист |
- | Tape & Reel (TR) | Active | SP4T | 4:1 | 2 | 160Ohm | 2Ohm | 2V ~ 12V | ±2V ~ 6V | 150ns, 120ns | - | 2.4pC | 2.5pF, 6pF | 1nA | -93dB @ 100kHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-SOIC |
|
DG406BDN-E3IC MUX 16:1 60OHM 28PLCC |
0 |
|
Технический лист |
- | Tube | Last Time Buy | - | 16:1 | 1 | 60Ohm | 3Ohm | 7.5V ~ 44V | ±5V ~ 20V | 107ns, 88ns | - | 11pC | 6pF, 108pF | 500pA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 28-PLCC (11.51x11.51) |
|
|
MAX301CSE+TIC SWITCH SPST-NOX2 35OHM 16SOIC |
0 |
|
Технический лист |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 2 | 35Ohm | 500mOhm | 10V ~ 30V | ±4.5V ~ 20V | 150ns, 100ns | - | 10pC | 12pF, 12pF | 500pA | -90dB @ 1MHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
ALD4211SCLIC SW SPST-NCX4 135OHM 16SOIC |
0 |
|
Технический лист |
- | Tube | Active | SPST - NC | 1:1 | 4 | 135Ohm | 2.7Ohm | 3V ~ 12V | ±1.5V ~ 6V | 130ns, 130ns | - | 0.2pC | 3pF, 3pF | 100pA | -90dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
DG304ACWE+TIC SWITCH SPST-NOX2 50OHM 16SOIC |
0 |
|
Технический лист |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 2 | 50Ohm | - | - | ±5V ~ 18V | 250ns, 150ns | - | 12pC | 14pF, 14pF | 5nA | -74dB @ 500kHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-SOIC |
|
DG211CUE+TIC SW SPST-NCX4 175OHM 16TSSOP |
0 |
|
Технический лист |
- | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 4 | 175Ohm | - | - | ±4.5V ~ 18V | 1µs, 500ns | - | - | 5pF, 5pF | 5nA | -90dB @ 100kHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
MAX361ESE+TIC SWITCH SPST-NCX4 85OHM 16SOIC |
0 |
|
Технический лист |
- | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 4 | 85Ohm | 2Ohm (Max) | 10V ~ 30V | ±4.5V ~ 20V | 250ns, 120ns | - | 5pC | 4pF, 4pF | 500pA | -100dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
MAX361CSE+TIC SWITCH SPST-NCX4 85OHM 16SOIC |
0 |
|
Технический лист |
- | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 4 | 85Ohm | 2Ohm (Max) | 10V ~ 30V | ±4.5V ~ 20V | 250ns, 120ns | - | 5pC | 4pF, 4pF | 500pA | -100dB @ 1MHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
DG211EUE+TIC SW SPST-NCX4 175OHM 16TSSOP |
0 |
|
Технический лист |
- | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 4 | 175Ohm | - | - | ±4.5V ~ 18V | 1µs, 500ns | - | - | 5pF, 5pF | 5nA | -90dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
MAX4527EUA+TIC SWITCH SPDT X 2 175OHM 8UMAX |
0 |
|
Технический лист |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 175Ohm | 500mOhm | 4.5V ~ 36V | ±4.5V ~ 18V | - | - | 1pC | 13pF | 500pA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-uMAX/uSOP |
