Датчики давления, преобразователи - промышленные
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Применение | Тип давления | Рабочее давление | Тип выхода | Выход | Точность | Напряжение - Питание | Размер порта | Тип порта | Особенности | Тип вывода | Максимальное давление | Рабочая температура | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PS30-102R-NPRES SWITCH W/GAUGE NPN OPEN COL |
4 |
|
Технический лист |
PS30 | Module Box with Display | Box | Active | Industrial Automation | Compound | ±14.5PSI (±100kPa) | NPN - Open Collector | - | ±1% | 12V ~ 24V | Female - M5 | Threaded | Temperature Compensated | Cable | ±200PSI (±1378.95kPa) | -10°C ~ 50°C | - |
|
PS60-103R-NMCNPRES SWITCH W/GAUGE NPN OPEN COL |
3 |
|
Технический лист |
PS60 | Module Box with Display | Box | Active | Industrial Automation | Compound | -14.5PSI ~ 145.04PSI (-100kPa ~ 1000kPa) | NPN - Open Collector | - | ±1% | 12V ~ 24V | Female - M5 | Threaded | Temperature Compensated | Cable | 600PSI (4136.85kPa) | -10°C ~ 50°C | - |
|
|
PS60-102R-NMCNPRES SWITCH W/GAUGE NPN OPEN COL |
2 |
|
Технический лист |
PS60 | Module Box with Display | Box | Active | Industrial Automation | Compound | ±14.5PSI (±100kPa) | NPN - Open Collector | - | ±1% | 12V ~ 24V | Female - M5 | Threaded | Temperature Compensated | Cable | ±200PSI (±1378.95kPa) | -10°C ~ 50°C | - |
|
P51-50-G-B-I36-5V-000-000SENSOR 50PSIG 1/8NPT 5V |
10 |
|
Технический лист |
MediaSensor™ | Cylinder | Box | Active | Industrial Automation | Vented Gauge | 50PSI (344.74kPa) | Analog Voltage | 1 V ~ 5 V | ±1% | 8V ~ 30V | Male - 1/8" (3.18mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable 3' | - | -40°C ~ 105°C | - |
|

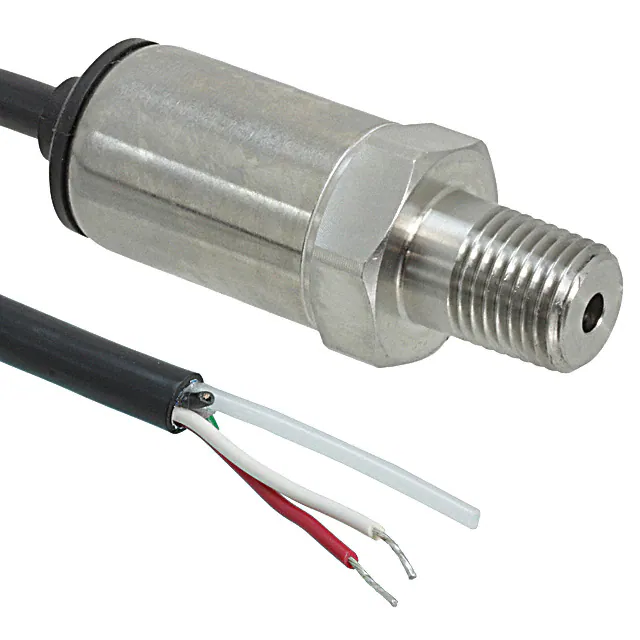

P51-75-G-A-I36-20MA-000-000SENSOR 75PSI 1/4-18NPT 4-20MA |
7 |
|
Технический лист |
MediaSensor™ | Cylinder | Box | Active | Industrial Automation | Vented Gauge | 75PSI (517.11kPa) | Analog Current | 4 mA ~ 20 mA | ±0.5% | 8V ~ 30V | Male - 1/4" (6.35mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable 3' | - | -40°C ~ 105°C | - |
|
P51-15-G-UB-I36-20MA-000-000SENSOR 15PSIG 1/8NPT 20MA |
8 |
|
Технический лист |
MediaSensor™ | Cylinder | Box | Active | Industrial Automation | Vented Gauge | 15PSI (103.42kPa) | Analog Current | 4 mA ~ 20 mA | ±1% | 8V ~ 30V | Male - 1/8" (3.18mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable 3' | - | -40°C ~ 105°C | - |
|
P51-03-G-UC-I36-5V-000-000SENSOR 3 PSIG 1-5 V 1/4-18 NPT |
8 |
|
Технический лист |
MediaSensor™ | Cylinder | Bulk | Active | Industrial Automation | Vented Gauge | 3PSI (20.68kPa) | Analog Voltage | 1 V ~ 5 V | ±2% | 8V ~ 30V | Male - 1/4" (6.35mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable 3' | - | -40°C ~ 105°C | - |
|
P51-05-G-UC-I36-20MA-000-000SENSOR 5 PSIG 20MA 1/4 - 18 NPT |
9 |
|
Технический лист |
MediaSensor™ | Cylinder | Bulk | Active | Industrial Automation | Vented Gauge | 5PSI (34.47kPa) | Analog Current | 4 mA ~ 20 mA | ±2% | 8V ~ 30V | Male - 1/4" (6.35mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable 3' | - | -40°C ~ 105°C | - |
|
P-7100-132A-R1PRESSURE TRANSDUCERS WITH AMP. |
13 |
|
Технический лист |
P-7100 | Cylinder | Bulk | Active | Industrial Automation | Absolute | 19.33PSI (133.3kPa) | Analog Voltage | 0.5 V ~ 4.5 V | - | 4.5V ~ 5.5V | Male - 1/8" (3.18mm) BSPT | Threaded | Temperature Compensated | Cable | 29.01PSI (200kPa) | -20°C ~ 70°C | - |
|
P-7100-102G-R1PRESSURE TRANSDUCERS WITH AMP. |
3 |
|
Технический лист |
P-7100 | Cylinder, Threaded | Bulk | Active | Industrial Automation | Gauge | 14.5PSI (100kPa) | Analog Voltage | 0.5 V ~ 4.5 V | - | 4.5V ~ 5.5V | Male - 1/8" (3.18mm) BSPT | Threaded | Temperature Compensated | Cable | 29.01PSI (200kPa) | -20°C ~ 70°C | - |
|
|
P-7100-103G-R1PRESSURE TRANSDUCERS WITH AMP. |
2 |
|
Технический лист |
P-7100 | Cylinder, Threaded | Bulk | Active | Industrial Automation | Gauge | 145.04PSI (1000kPa) | Analog Voltage | 0.5 V ~ 4.5 V | - | 4.5V ~ 5.5V | Male - 1/8" (3.18mm) BSPT | Threaded | Temperature Compensated | Cable | 290.08PSI (2000kPa) | -20°C ~ 70°C | - |
|
M5231-000005-300PGTRANSDUCER 0.5-4.5VDC 300PSI |
24 |
|
Технический лист |
M5200 | Cylinder | Box | Active | Industrial Automation | Vented Gauge | 300PSI (2068.43kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 1/4" (6.35mm) NPT | Threaded | Temperature Compensated | Cable | 600PSI (4136.85kPa) | -40°C ~ 125°C | - |
|
|
M5251-000005-03KPGTRANSDUCER 4-20MA 3000PSI |
24 |
|
Технический лист |
M5200 | Cylinder | Box | Active | Industrial Automation | Vented Gauge | 3000PSI (20684.27kPa) | Analog Current | 4 mA ~ 20 mA | ±0.25% | 9V ~ 30V | Male - 1/4" (6.35mm) NPT | Threaded | Temperature Compensated | Cable | 6000PSI (41368.54kPa) | -40°C ~ 125°C | - |
|
MG-50-A-9V-RSENSOR DIGITAL GAUGE 50PSI LCD |
3 |
|
Технический лист |
MG-9V | Module Box with Display | Box | Active | Industrial Automation | Vented Gauge | 50PSI (344.74kPa) | Wheatstone Bridge | LCD Display | ±0.5% | 9V | Male - 1/4" (6.35mm) NPT | Threaded | Temperature Compensated | - | 150PSI (1034.21kPa) | -10°C ~ 60°C | MediaGauge |
|
6050338PRESSURE TRANS 0-1500 PSI |
2 |
|
Технический лист |
- | Cylinder | Bulk | Active | Industrial Automation | Gauge | - | Analog Current | 4 mA ~ 20 mA | 1% | 8V ~ 35V | - | Threaded | - | Connector | - | 0°C ~ 80°C | - |
|
U5244-000005-005PGSENSOR |
23 |
|
Технический лист |
U5200 | Cylinder | Box | Active | Industrial Automation | Vented Gauge | 5PSI (34.47kPa) | Analog Voltage | 1 V ~ 5 V | ±0.25% | 8V ~ 30V | Male - 1/4" (6.35mm) NPT | Threaded | Temperature Compensated | Connector | 15PSI (103.42kPa) | -40°C ~ 125°C | - |
|
PX2EN1XX015PAAAXPRESSURE TRANSDUCER |
25 |
|
Технический лист |
PX2 | Cylinder | Tray | Active | Industrial Automation | Absolute | 15PSI (103.42kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 1/4" (6.35mm) NPT | Threaded | Temperature Compensated | Wire Leads | 70PSI (482.63kPa) | -40°C ~ 125°C | - |
|

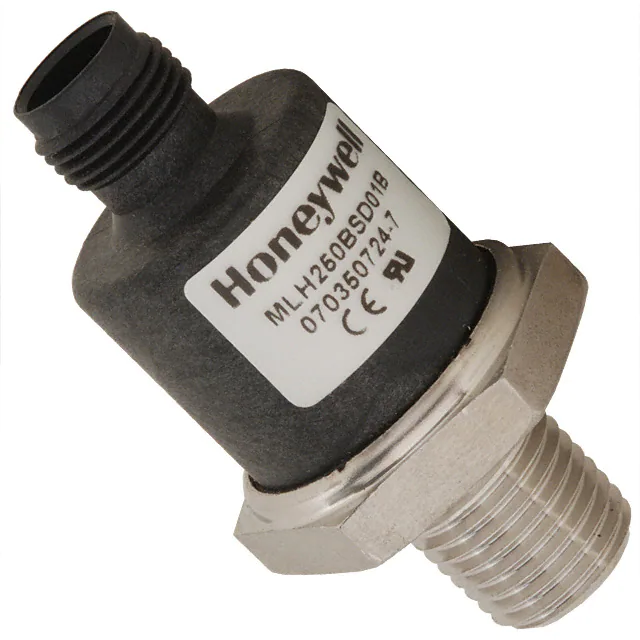

MLH250BSD01BSENSOR AMP 250BAR 4-20MA OUT |
22 |
|
Технический лист |
MLH | Cylinder, Metal | Bulk | Active | Industrial Automation | Sealed Gauge | 3625.94PSI (25000kPa) | Analog Current | 4 mA ~ 20 mA | ±0.25% | 9.5V ~ 30V | Male - 1/4" (6.35mm) NPT | Threaded | Amplified Output, Temperature Compensated | M12 | 7251.89PSI (50000kPa) | -40°C ~ 125°C | - |
|
PA-758-102R-R2PRESSURE TRANSDUCERS WITH AMP. |
2 |
|
Технический лист |
PA-758 | Cylinder | Bulk | Active | Industrial Automation | Compound | -14.5 ~ 14.5PSI (-100 ~ 100kPa) | Analog Current | 4 mA ~ 20 mA | - | 24V | Female - M5 | Threaded | Temperature Compensated | Cable | 29.01PSI (200kPa) | -20°C ~ 70°C | - |
|
XMLG016D23ELECTRONIC PRESSURE SENSORS, PRE |
8 |
|
Технический лист |
XM | Cylinder, Threaded | Box | Active | Industrial Automation | - | 232.06PSI (1600kPa) | Analog Current | 4 mA ~ 20 mA | ±0.3% | 8V ~ 33V | Male - 1/4" (6.35mm) NPT | Threaded | - | Connector | 522.14PSI (3600kPa) | -15°C ~ 85°C (TA) | - |
