Фотоэлектрические, промышленные
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Метод измерения | Расстояние срабатывания | Напряжение - Питание | Время отклика | Конфигурация выхода | Источник света | Метод подключения | Защита от проникновения | Длина кабеля | Тип регулировки | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Q25RW3LP W/15RANGE: 2 M; INPUT: 20-250 V AC |
1 |
|
Технический лист |
Q25 | Box | Active | Retroreflective, Polarized | 78.740" (2m) | 20 ~ 250 VAC | 16ms | Dark-On | LED | - | NEMA 6P, IEC IP67 | - | - | -40°C ~ 70°C |
|
FT-V24WSENSOR THROUGH-BEAM 110MM |
0 |
|
Технический лист |
FX-500 | Box | Active | Through-Beam | 4.331" (110mm) | - | - | - | - | Cable | - | 78.74" (2m) | - | - |
|
QS18VP6FF100Q9-78537PHOTO SEN FIXED CUSTOM GAIN |
0 |
|
Технический лист |
QS18 | Box | Active | Background Suppression | 3.937" (100mm) | 10V ~ 30V | 850µs | PNP - Dark-ON/Light-ON | LED | Connector | NEMA 6P, IEC IP67 | - | - | -20°C ~ 70°C |
|
E3C-S30TSENSOR THROUGH-BEAM 300MM |
1 |
|
Технический лист |
E3C | Bulk | Active | Through-Beam | 11.811" (300mm) | - | - | - | Infrared (940nm) | Cable | IEC IP60 | - | - | -25°C ~ 70°C |
|
E3T-SR41 2MSENSOR RETROREFLECTIVE 200MM NPN |
1 |
|
Технический лист |
E3T | Bulk | Active | Retroreflective | 7.874" (200mm) | 12V ~ 24V | 1ms | NPN - Open Collector/Light-ON | Red (650nm) | Cable | IEC IP67 | - | - | -25°C ~ 55°C |
|
E3ZM-D82 2MSENSOR REFLECTIVE 1M PNP |
1 |
|
Технический лист |
E3ZM | Bulk | Active | Reflective, Diffuse | 39.370" (1m) | 10V ~ 30V | 1ms | PNP - Dark-ON/Light-ON - Selectable | Infrared (860nm) | Cable | IEC IP67, IP69K | - | Single-Turn | -25°C ~ 55°C |
|
SE612LV W/30RANGE: 5 M; INPUT: 10-30V DC |
1 |
|
- |
SE61 | Box | Active | - | 196.850" (5m) | 10V ~ 30V | - | - | - | - | - | - | - | - |
|
XU2S18PP340L5SAFETY THRU BEAM PAIR PHOTO ELEC |
1 |
|
Технический лист |
- | Box | Active | Through-Beam | 26.25' (8m) | 12V ~ 24V | 1ms | PNP - Dark-ON/Light-ON | - | Cable | IP67 | 196.85" (5m) | - | -25°C ~ 55°C |
|
PC50CND10BAM1SENSOR REFLECTIVE 1M NPN/PNP |
0 |
|
Технический лист |
PC | Box | Active | Reflective, Diffuse | 39.370" (1m) | 10V ~ 30V | 1ms | NPN/PNP | Infrared (880nm) | Connector | IEC 60529 IP67 | - | Adjustable, 1-Turn Potentiometer | -20°C ~ 60°C |
|

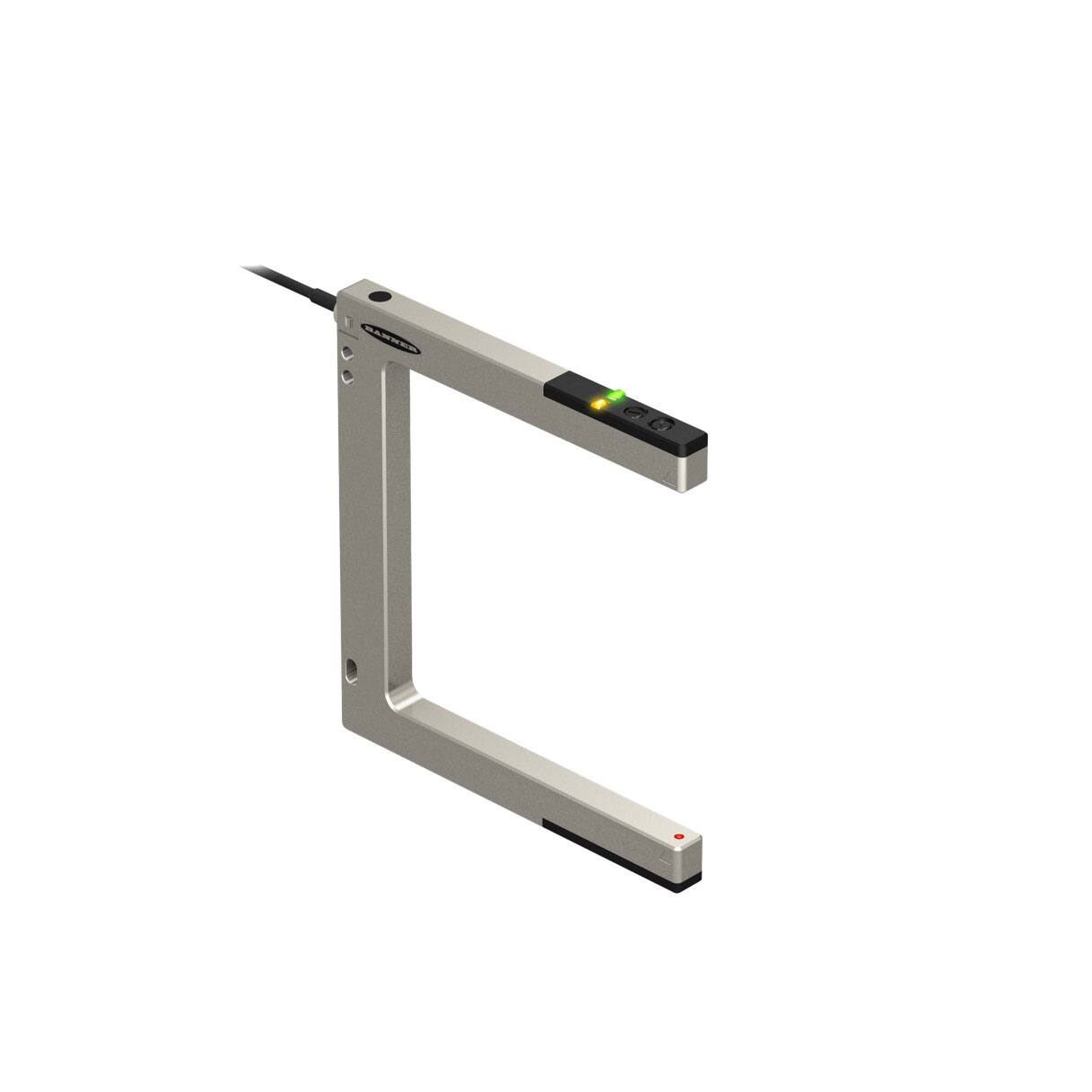

SLM120B6SLM SERIES: RUGGED NICKEL PLATED |
1 |
|
Технический лист |
SLM | Box | Active | - | 4.724" (120mm) | 10V ~ 30V | 500µs | NPN/PNP - Dark-ON/Light-ON - Selectable | LED | Cable | NEMA 6P, IEC IP67 | 78.74" (2m) | Adjustable, Potentiometer | -20°C ~ 60°C |
|
SLM220N6QSLM SERIES: RUGGED NICKEL PLATED |
1 |
|
Технический лист |
SLM | Box | Active | - | 8.661" (220mm) | 10V ~ 30V | 500µs | NPN - Dark-ON/Light-ON - Selectable | LED | Connector | NEMA 6P, IEC IP67 | - | Adjustable, Potentiometer | -20°C ~ 60°C |
|

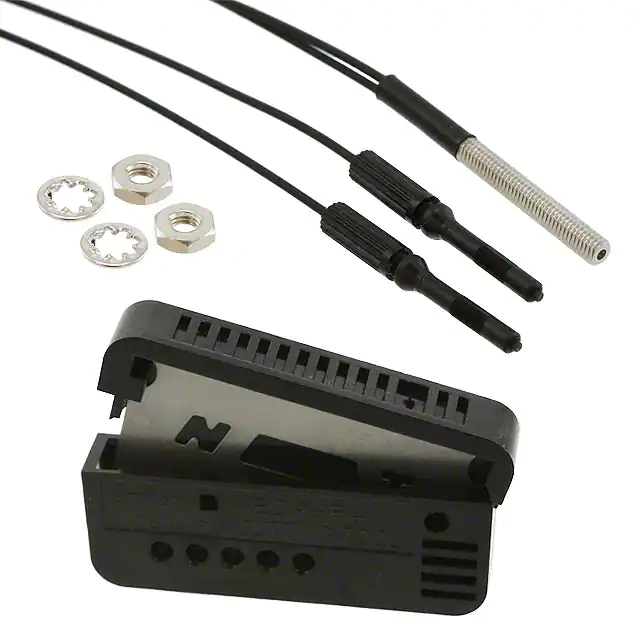

E32-D21R 5MSENSOR REFLECTVE FBR FLEXIBLE 5M |
1 |
|
Технический лист |
E32 | Bulk | Active | Reflective | - | - | - | - | - | Cable | IEC IP67 | - | - | -40°C ~ 70°C |
|
QS30ARXQP-74010SEN MATES TO QS30EXQP-74009 NPN |
1 |
|
Технический лист |
QS30 | Box | Active | Through-Beam | 698.82' (213m) | 10V ~ 30V | 100ms | NPN - Light-ON | Infrared LED | Connector | NEMA 6P, IP67 | - | - | -20°C ~ 70°C |
|
VS8ANFF30BQ3VS8 SERIES: BLUE LED FIXED FIELD |
1 |
|
Технический лист |
VS8 | Box | Active | Background Suppression | 1.181" (30mm) | 10V ~ 30V | 500µs | NPN - Light-ON | Blue LED | Connector | NEMA 6P, IEC IP67 | - | - | -20°C ~ 60°C |
|
PFCVA-34X25-EPLASTIC FIBER, OPPOSED MODEC |
1 |
|
Технический лист |
- | Box | Active | - | - | 12V ~ 24V | 300µs | NPN/PNP - Dark-ON/Light-ON - Selectable | Red (680nm) | Cable | NEMA 1 IEC IP50 | 354.33" (9m) | - | -20°C ~ 55°C |
|

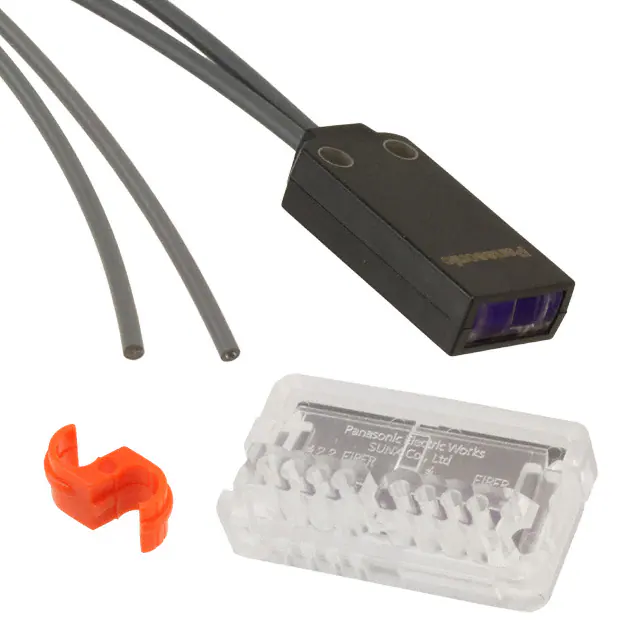

FD-A16SENSOR REFLECTIVE 200MM |
1 |
|
Технический лист |
FX-500 | Box | Active | Reflective | 7.874" (200mm) | - | - | - | - | Cable | - | 78.74" (2m) | - | - |
|
PBT23TMB5PLASTIC FIBER, DIFFUSE REFLECTIV |
0 |
|
- |
PBT2 | Box | Active | Reflective, Diffuse | - | - | - | - | - | - | - | - | - | 70°C |
|
|
1064694SENSOR 950MM PNP PHT M12 |
1 |
|
Технический лист |
- | Bulk | Active | - | 0.787" ~ 37.402" (20mm ~ 950mm) | 10V ~ 30V | 500µs | PNP - Dark-ON/Light-ON - Selectable | Red LED | Connector, M12, 4POS | IP67 | - | Adjustable, 5-Turn Potentiometer | -30°C ~ 60°C |
|
|
6030587SENSOR 9MM NPN DO/LO |
1 |
|
Технический лист |
- | Bulk | Active | - | 0.039" ~ 0.354" (1mm ~ 9mm) | 12V ~ 24V | 500µs | NPN - Dark-ON/Light-ON - Selectable | Red LED | Cable | IP67 | - | - | -20°C ~ 55°C |
|
XU2S18PP340WL5SAFETY THRU BEAM PAIR PHOTO ELEC |
1 |
|
Технический лист |
- | Box | Active | Through-Beam | 26.25' (8m) | 12V ~ 24V | 1ms | PNP - Dark-ON/Light-ON | - | Cable | IP67 | 196.85" (5m) | - | -25°C ~ 55°C |
