Фотоэлектрические, промышленные
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Метод измерения | Расстояние срабатывания | Напряжение - Питание | Время отклика | Конфигурация выхода | Источник света | Метод подключения | Защита от проникновения | Длина кабеля | Тип регулировки | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

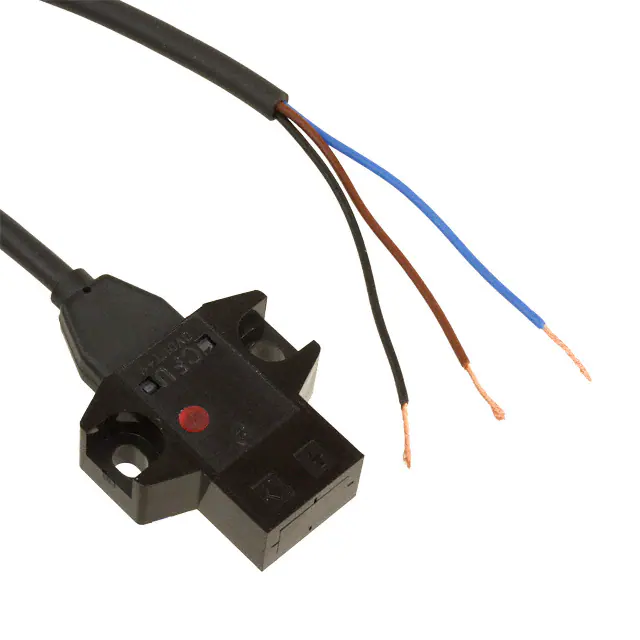

PM2-LH10B-C1SENSOR REFLECTV 5MM NPN OPEN COL |
0 |
|
Технический лист |
PM2 | Box | Active | Reflective, Convergent | 0.197" (5mm) | 5V ~ 24V | 800µs | NPN - Open Collector | Infrared (880nm) | Cable | - | 39.37" (1m) | - | -10°C ~ 55°C |
|
MD17/73THRU BEAM EMITTER 0-15M |
1 |
|
Технический лист |
- | Box | Active | Through-Beam | 0" ~ 590.551" (0m ~ 15m) | 10V ~ 30V | 3ms | Light-On/Dark-On | Infrared (950nm) | Connector, M12 | IP67 | - | - | -20°C ~ 55°C |
|
XUB5APANM12PHOTOELECTRIC SENSORS XU, XUB, D |
1 |
|
Технический лист |
- | Box | Active | Diffuse | 23.622" (600mm) | 12V ~ 24V | 1ms | PNP-NO | Yellow LED | Connector, M12 | IP65 | - | - | -25°C ~ 55°C |
|
S18SN6DLPHOTO SEN DIFFUSE 300MM NPN |
1 |
|
Технический лист |
S18 | Box | Active | Diffuse | 11.811" (300mm) | 10V ~ 30V | 3ms | NPN - Dark-ON/Light-ON | Infrared (880nm) | Cable | NEMA 6P, IEC IP67, IEC IP69K | 78.74" (2m) | - | -40°C ~ 70°C |
|
S18SP6DLPHOTO SEN DIFFUSE 300MM PNP |
1 |
|
Технический лист |
S18 | Box | Active | Diffuse | 11.811" (300mm) | 10V ~ 30V | 3ms | PNP - Dark-ON/Light-ON | Infrared (880nm) | Cable | NEMA 6P, IEC IP67, IEC IP69K | 78.74" (2m) | - | -40°C ~ 70°C |
|

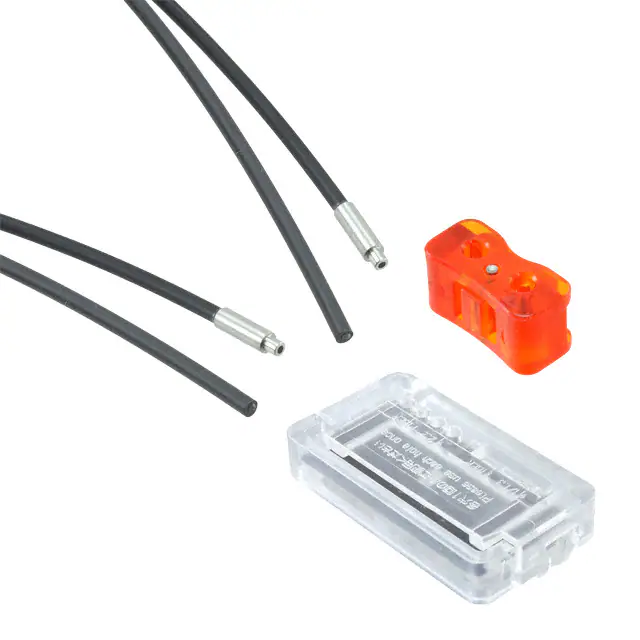

FT-S31WSENSOR THROUGH-BEAM 800MM |
0 |
|
Технический лист |
FX-500 | Box | Active | Through-Beam | 31.496" (800mm) | - | - | - | - | Cable | - | 78.74" (2m) | - | - |
|
TM186EQ8EZ-BEAM SEN EMITTER 20M |
0 |
|
Технический лист |
TM18 | Box | Active | Through-Beam | 787.402" (20m) | 10V ~ 30V | 1.5ms | - | Red (625nm) | Connector | IEC IP67, IEC IP69K | - | - | -40°C ~ 70°C |
|
XUB2BPBWM12RPHOTOELECTRIC SENSORS XU, XUB, R |
1 |
|
Технический лист |
- | Box | Active | Through-Beam | 590.551" (15m) | 12V ~ 24V | 1ms | SCR, NO | Yellow LED | Connector, M12 | IP65, IP67, IP69K | - | Adjustable | -25°C ~ 55°C |
|
E3Z-FRP11 2MSENSOR RETROREFLECTIVE 4M PNP |
1 |
|
Технический лист |
E3Z | Bulk | Active | Retroreflective | 157.480" (4m) | 10V ~ 30V | 500µs | PNP - Open Collector | Red LED | Wire Leads | IP69K | 78.74" (2m) | Single-Turn | -25°C ~ 55°C |
|
Q406EQPHOTO SEN EMITTER FIXED 60M |
1 |
|
Технический лист |
Q40 | Box | Active | Through-Beam | 196.85' (60m) | 10V ~ 30V | - | - | LED | Connector | NEMA 6P IEC, IP69K | - | - | -40°C ~ 70°C |
|
Q2XNAE-Q3SENSOR, EMITTER, 3000MM 10-30VDC |
1 |
|
Технический лист |
Q2X | Bag | Active | Through-Beam | 118.110" (3m) | 10V ~ 30V | 1ms, 600µs | - | Red (645nm) | Connector, M8 | IP67 | - | Adjustable, Potentiometer | -25°C ~ 50°C |
|
E3FB-DN21SENSOR REFLECTVE 100MM NPN DO/LO |
1 |
|
Технический лист |
E3FB | Bulk | Active | Reflective, Diffuse | 3.937" (100mm) | 10V ~ 30V | 500µs | NPN - Dark-ON/Light-ON - Selectable | Red LED | Connector, M12, 4POS | IEC IP67, IP69K | - | Single-Turn | -25°C ~ 55°C |
|
QS186E W/30WORLD-BEAM QS18 SERIES: EMITTER< |
1 |
|
Технический лист |
QS18 | Box | Active | Through-Beam | 787.402" (20m) | 10V ~ 30V | - | - | Infrared | Cable | NEMA 6P, IEC IP67 | 354.33" (9m) | - | -20°C ~ 70°C |
|
XUB9BPBNM12PHOTOELECTRIC SENSORS XU, XUB, P |
1 |
|
Технический лист |
- | Box | Active | Reflective, Polarized | 78.740" (2m) | 12V ~ 24V | 100µs | SCR, NC | Yellow LED | Connector, M12 | IP65, IP67, IP69K | - | Adjustable | -25°C ~ 55°C |
|
T18-2VPRS-2MPHOTO SEN RECEIVER 25M COMP PNP |
1 |
|
Технический лист |
T18-2 | Box | Active | Through-Beam | 82.02' (25m) | 10V ~ 30V | 1.5ms | PNP - Dark-ON/Light-ON | Red LED | Cable | IEC IP67, IEC IP68,IEC IP69K | 78.74" (2m) | Adjustable, Potentiometer | -40°C ~ 70°C |
|

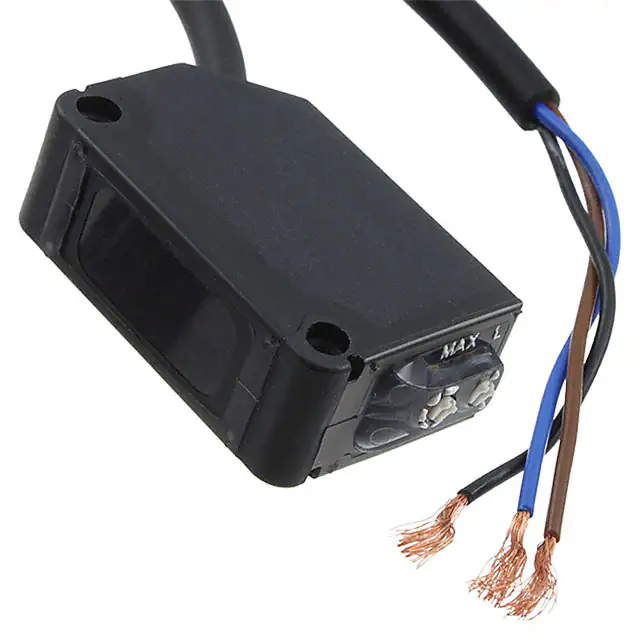

CX-424-PSENSOR REFLECTIVE 100MM PNP |
1 |
|
Технический лист |
CX-400 | Box | Active | Reflective, Diffuse | 3.937" (100mm) | 12V ~ 24V | 1ms | PNP - Open Collector | Infrared (860nm) | Cable | IP67 | 78.74" (2m) | - | -25°C ~ 55°C |
|
Q12AB6RPHOTO SEN OPPOSED 2M LO BIPOLAR |
1 |
|
Технический лист |
Q12 | Box | Active | Through-Beam | 78.740" (2m) | 10V ~ 30V | 1.3ms | NPN/PNP - Light-ON | Red LED | Cable | IEC IP67 | 78.74" (2m) | - | -20°C ~ 55°C |
|
E3FA-DP12 2MSENSOR REFLECTIVE 300MM PNP |
1 |
|
Технический лист |
E3FA | Bulk | Active | Reflective | 11.811" (300mm) | 10V ~ 30V | 500µs | PNP - Dark-ON/Light-ON - Selectable | Red LED | Cable | IEC IP67, IP69K | 78.74" (2m) | Single-Turn | -25°C ~ 55°C |
|
E3FA-DP24-F2SENSOR REFLECTIVE 100MM PNP |
1 |
|
- |
E3FA | Bulk | Active | Reflective | 3.937" (100mm) | 10V ~ 30V | 500µs | PNP - Dark-ON/Light-ON - Selectable | Red LED | Connector | IEC IP67, IP69K | - | Single-Turn | -25°C ~ 55°C |
|
|
E3FB-RP22SENSOR RETROREFLECTIVE 500MM PNP |
1 |
|
Технический лист |
E3FB | Bulk | Active | Retroreflective | 0" ~ 19.685" (0mm ~ 500mm) | 10V ~ 30V | 500µs | PNP - Dark-ON/Light-ON - Selectable | Red LED | Connector, M12, 4POS | IEC IP67, IP69K | - | Single-Turn | -25°C ~ 55°C |
