Фотоэлектрические, промышленные
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Метод измерения | Расстояние срабатывания | Напряжение - Питание | Время отклика | Конфигурация выхода | Источник света | Метод подключения | Защита от проникновения | Длина кабеля | Тип регулировки | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BX15M-TFRSENSOR, PHOTO, THROUGH BEAM, 15M |
102 |
|
Технический лист |
BX | Box | Active | Through-Beam | 590.551" (15m) | 24 ~ 240VAC/DC | 20ms | Relay - Dark-ON/Light-ON | Infrared (850nm) | Terminal | IP66 | - | Adjustable | -20°C ~ 55°C (TA) |
|
|
BX15M-TFRSENSOR THROUGH-BEAM 15M RELAY |
95 |
|
Технический лист |
BX | Bag | Active | Through-Beam | 590.551" (15m) | 24V ~ 240VAC, 24 ~ 240VDC | 20ms | Relay - Dark-ON/Light-ON | Infrared (850nm) | Terminal | IEC IP66 | - | Adjustable | -20°C ~ 55°C (TA) |
|
BX700-DFR-TSENSOR, PHOTO, DIFFUSE REFLECTIV |
73 |
|
Технический лист |
BX | Box | Active | Reflective, Diffuse | 27.559" (700mm) | 24 ~ 240VAC/DC | 20ms | Relay - Dark-ON/Light-ON | Infrared (940nm) | Terminal | IP66 | - | Adjustable | -20°C ~ 55°C (TA) |
|
BOS0129SERIES=5K, DIMENSION=10.8 X 32.7 |
45 |
|
Технический лист |
5K | Bag | Active | Diffuse, Background Suppression | 7.874" (200mm) | 10V ~ 30V | - | PNP-NO | Red (660nm) | Cable | IP67 | 78.74" (2m) | Adjustable, Potentiometer | -25°C ~ 55°C |
|
608-11061 - FT 25-RF2-PNSL-K4Photoelectric proximity sensor w |
498 |
|
Технический лист |
F25 | Retail Package | Active | Diffuse, Background Suppression | 0.039" ~ 2.362" (1mm ~ 60mm) | 10V ~ 30V | 500µs | NPN/PNP-NC/NO | Red (632nm) | Cable | IP69 | 78.74" (2m) | - | -20°C ~ 60°C |
|
BOS01Y2SERIES=12M, DIMENSION= 12 X 60 M |
216 |
|
Технический лист |
12M | Bag | Active | Diffuse | 15.748" (400mm) | 10V ~ 30V | - | PNP-NO | Infrared (850nm) | Connector, M12 | IP67 | - | Adjustable, 270° Turn Potentiometer | -5°C ~ 55°C |
|
|
BOS01TPSERIES=12M, DIMENSION= 12 X 60 M |
32 |
|
Технический лист |
12M | Bag | Active | Diffuse | 9.843" (250mm) | 10V ~ 30V | - | PNP-NO | Red (650nm) | Connector, M12 | IP67 | - | Adjustable, 270° Turn Potentiometer | -5°C ~ 55°C |
|

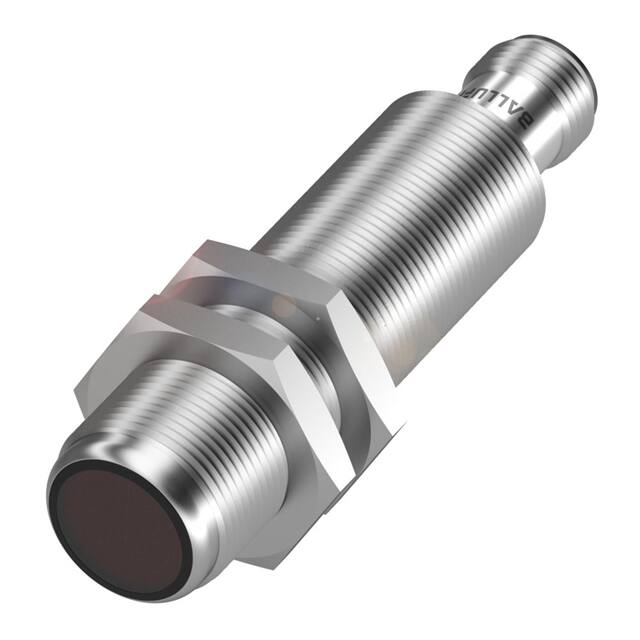

BOS023USERIES=18E, DIMENSION= 18 X 75 M |
33 |
|
Технический лист |
18E | Bag | Active | Through-Beam | 787.402" (20m) | 10V ~ 30V | - | - | Red (640nm) | Connector, M12 | IP67, IP68, IPx9K | - | Adjustable | -25°C ~ 60°C |
|
BOS021CSERIES=R020K, DIMENSION=7.7 X 26 |
27 |
|
Технический лист |
R020K | Bag | Active | Diffuse, Background Suppression | 0.591" (15mm) | 10V ~ 30V | - | PNP-NO | Red (660nm) | Cable with Connector, M8 | IP67 | 7.87" (200.00mm) | - | -25°C ~ 50°C |
|
BL13-TDTLIQUID LEVEL SENSOR NPN 12-24VDC |
479 |
|
Технический лист |
BL | Box | Active | Through-Beam | - | 12V ~ 24V | 2ms | NPN - Open Collector | Infrared (950nm) | Cable | IP64 | 39.37" (1m) | - | 10°C ~ 55°C |
|
BGS-ZL30CPBGS SENSOR LASER 10-300MM PNP M8 |
30 |
|
Технический лист |
BGS-ZL | Box | Active | Background Suppression | 0.394" ~ 11.811" (10mm ~ 300mm) | 10V ~ 30V | 250µs | PNP - Open Collector, Light-ON\Dark-ON | Red (650nm) | Connector, M8 | IP67 | - | Adjustable, 4-Turn Potentiometer | -10°C ~ 50°C (TA) |
|
BGS-DL30CPBGS LASER SENSOR 50-300MM PNP M8 |
26 |
|
Технический лист |
BGS-DL | Box | Active | Background Suppression | 1.97" ~ 11.81" (50mm ~ 300mm) | 10V ~ 30V | 700µs | PNP - Open Collector, Light-ON\Dark-ON | Red (650nm) | Connector, M8 | IP67 | - | Adjustable, 4-Turn Potentiometer | -10°C ~ 40°C (TA) |
|
|
605-11013 - FS 25-RL-L-M4MThrough-beam laser sensor |
498 |
|
Технический лист |
F25 | Retail Package | Active | Through-Beam | 708.661" (18m) | 10V ~ 30V | 250µs | - | Red (650nm) | Connector, M8 | IP69 | - | Teaching Method | -20°C ~ 60°C |
|
|
607-21029 - FT 25-R-PNSL-KL4Photoelectric diffuse sensor |
499 |
|
Технический лист |
F25 | Retail Package | Active | Diffuse | 31.496" (800mm) | 10V ~ 30V | 500µs | NPN/PNP-NC/NO | Red (632nm) | Connector, M12 | IP69 | - | Teaching Method | -20°C ~ 60°C |
|
|
580-51402 - FE 12 RL-PSL4Laser photoelectric through-beam |
497 |
|
Технический лист |
M12 | Retail Package | Active | Through-Beam | 196.850" (5m) | 10V ~ 30V | - | PNP | Red (650nm) | Connector, M12 | IP67 | - | - | -25°C ~ 55°C |
|

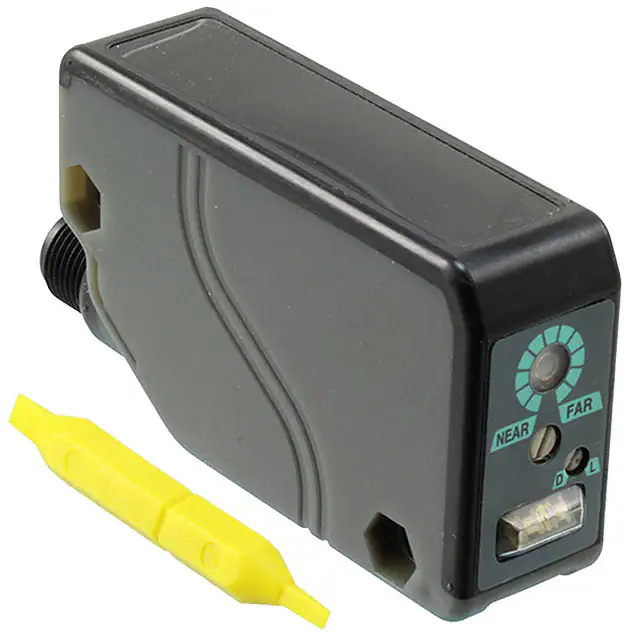

EQ-34-JSENSOR REFLECTVE 2M NPN OPEN COL |
74 |
|
Технический лист |
EQ-30 | Box | Obsolete | Reflective | 78.7" (2m) 6.6' | 10V ~ 30V | 2ms | NPN - Open Collector | Infrared | Connector, M12, 4POS | IP67 | 78.74" (2m) | Adjustable | -20°C ~ 55°C |
|
EQ-34-PNSENSOR REFLECTIVE 2M PNP |
39 |
|
Технический лист |
EQ-30 | Box | Obsolete | Reflective | 78.7" (2m) 6.6' | 10V ~ 30V | 2ms | PNP - Open Collector | Infrared | Cable | IP67 | 78.74" (2m) | Adjustable | -20°C ~ 55°C |
|
|
600-11027 - FT 10-BF2-PS-KM4BlueLight-Photoelectric diffuse |
498 |
|
Технический лист |
F10 | Retail Package | Active | Diffuse, Background Suppression | 0.079" ~ 1.181" (2mm ~ 30mm) | 10V ~ 30V | 625µs | PNP | Blue (450nm) | Cable with Connector, M8 | IP67 | 7.87" (200.00mm) | - | -20°C ~ 50°C |
|
|
600-11026 - FT 10-BF2-PS-K4BlueLight-Photoelectric diffuse |
493 |
|
Технический лист |
F10 | Retail Package | Active | Diffuse, Background Suppression | 0.079" ~ 1.181" (2mm ~ 30mm) | 10V ~ 30V | 625µs | PNP | Blue (450nm) | Cable | IP67 | 78.74" (2m) | - | -20°C ~ 50°C |
|
|
600-11038 - FT 10-BF3-PS-KM3BlueLight-Photoelectric diffuse |
462 |
|
Технический лист |
F10 | Retail Package | Active | Diffuse, Background Suppression | 0.079" ~ 1.969" (2mm ~ 50mm) | 10V ~ 30V | 625µs | PNP | Blue (450nm) | Cable with Connector, M8 | IP67 | 7.87" (200.00mm) | - | -20°C ~ 50°C |
