Промышленные блоки питания на DIN-рейку
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCP30S24B-UDNAC/DC DIN RAIL SUPPLY 24V 31W |
0 |
|
Технический лист |
SCP | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 100V | 375V | 24V | - | - | - | - | - | 1.3A | 31W | - | ITE (Commercial) | 77% | -25°C ~ 65°C | IP20, Universal Input | 2.67" L x 1.37" W x 4.43" H (68.0mm x 35.0mm x 113.0mm) | CE, cURus | 60950-1 |
|
|
2569000000PRO TOP1 120W 12V 10A F |
0 |
|
Технический лист |
PRO TOP1 (120W) | Box | Active | AC or DC | 1 | 85 ~ 277 VAC | 80V | 410V | 12V | - | - | - | - | - | 10A | 120W | 3.5 kV | Industrial, ITE (Commercial) | 90% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 4.92" L x 1.38" W x 5.12" H (125.0mm x 35.0mm x 130.0mm) | cULus, TUV | 60950-1; UL 508 |
|
|
S8VS-09024BES-FAC/DC DIN RAIL SUPPLY 24V 90W |
0 |
|
Технический лист |
S8VS (90W) | Bulk | Active | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 3.75A | 90W | 3 kV | ITE (Commercial) | 80% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 4.78" L x 1.97" W x 4.53" H (121.3mm x 50.0mm x 115.0mm) | CE, cULus, cURus, VDE | - |
|
SCP30D15B-DNAC/DC DIN RAIL SUPPLY +/-15V 30W |
0 |
|
Технический лист |
SCP (30W) | Bulk | Discontinued | AC or DC | 2 | 85 ~ 264 VAC | 100V | 375V | 15V | -15V | - | - | - | - | 1A, 1A | 30W | - | ITE (Commercial) | 68% | -25°C ~ 65°C | IP20, Universal Input | 2.67" L x 1.37" W x 4.43" H (68.0mm x 35.0mm x 113.0mm) | CE, cURus | - |
|
SDR-480-48AC/DC DIN RAIL SUPPLY 48V 480W |
0 |
|
Технический лист |
SDR-480 (480W) | Box | Active | AC or DC | 1 | 90 ~ 264 VAC | 127V | 370V | 48V | - | - | - | - | - | 10A | 480W | 3 kV | Industrial, ITE (Commercial) | 94% | -25°C ~ 70°C | Adjustable Output, PFC, Universal Input | 5.06" L x 3.37" W x 4.93" H (128.5mm x 85.5mm x 125.2mm) | CB, CE, cULus, TUV | - |
|
|
SCP30T512-DNAC/DC DIN RAIL SUP 5V +/-12V 29W |
0 |
|
- |
SCP (30W) | Bulk | Discontinued | AC or DC | 3 | 85 ~ 264 VAC | 100V | 375V | 5V | -12V | 12V | - | - | - | 3A, 600mA, 600mA | 29W | - | ITE (Commercial) | 68% | -25°C ~ 65°C | IP20, Universal Input | 2.55" L x 1.29" W x 4.71" H (65.0mm x 33.0mm x 120.0mm) | CE, cURus | - |
|
9919371205DC/DC DIN RAIL SUPPLY 5V 50W |
0 |
|
Технический лист |
CP-DCDC (50W) | Bulk | Obsolete | DC | 1 | - | 9V | 16V | 5V | - | - | - | - | - | 8A | 50W | - | ITE (Commercial) | 75% | -10°C ~ 50°C | - | 5.16" L x 2.24" W x 3.86" H (131.0mm x 57.0mm x 98.0mm) | CE, CSA, UL | - |
|
|
SCP30S5B-UDNAC/DC DIN RAIL SUPPLY 5V 30W |
0 |
|
- |
SCP | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 100V | 375V | 5V | - | - | - | - | - | 6A | 30W | - | ITE (Commercial) | 70% | -25°C ~ 65°C | IP20, Universal Input | 2.67" L x 1.37" W x 4.43" H (68.0mm x 35.0mm x 113.0mm) | CE, cURus | 60950-1 |
|
|
DRV-24V240W1PNAC/DC DIN RAIL SUPPLY 24V 240W |
0 |
|
Технический лист |
CliQ VA (240W) | Bulk | Active | AC or DC | 1 | 85 ~ 276 VAC | 88V | 375V | 24V | - | - | - | - | - | 10A | 240W | 3 kV | Industrial, ITE (Commercial) | 94.73% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, PFC, Universal Input | 5.47" L x 2.36" W x 4.88" H (139.0mm x 60.0mm x 124.0mm) | CB Scheme, CE, EN, SIQ, UL | 508; 50581; 55011; 55024; 55032; 60950-1; 61000-3-2; 61000-3-3; 61000-6-1; 61000-6-2; 61000-6-3; 61000-6-4; 61204-3 |
|

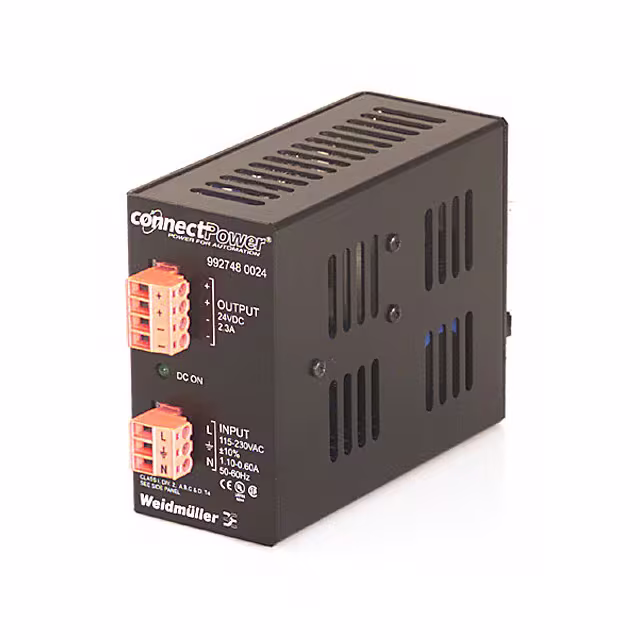

9927480024AC/DC DIN RAIL SUPPLY 24V 55W |
0 |
|
Технический лист |
- | Bulk | Obsolete | AC | 1 | 85 ~ 265 VAC | - | - | 24V | - | - | - | - | - | 2.3A | 55W | 3 kV | ITE (Commercial) | 78% | -10°C ~ 70°C | Adjustable Output, Universal Input | 5.16" L x 2.24" W x 3.86" H (131.0mm x 57.0mm x 98.0mm) | CSA, GOST | - |
|

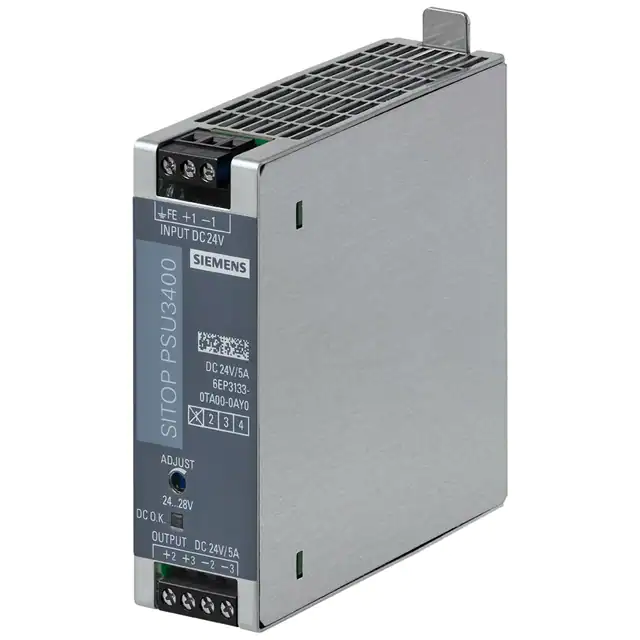

6EP31330TA000AY0DC/DC DIN RAIL SUPPLY 24V |
0 |
|
Технический лист |
6EP3 | Box | Active | DC | 1 | - | 14V | 32V | 24V | - | - | - | - | - | 5A | - | - | Industrial, ITE (Commercial) | 93% | -25°C ~ 70°C | Adjustable Output, IP20 | 3.94" L x 1.26" W x 3.94" H (100.0mm x 32.0mm x 100.0mm) | CB, CE, cULus | 60950-1; UL 508 |
|
|
PS-C24024AC/DC DIN RAIL SUPPLY 24V 240W |
0 |
|
- |
PS-C240 (240W) | Bulk | Active | AC or DC | 1 | 88 ~ 264 VAC | 124V | 370V | 24V | - | - | - | - | - | 10A | 240W | 3 kV | Industrial, ITE (Commercial) | 94% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 4.47" L x 2.48" W x 4.93" H (113.5mm x 63.0mm x 125.2mm) | CE, cULus, cURus | 508; 60950-1 |
|
|
PS-C24048AC/DC DIN RAIL SUPPLY 48V 240W |
0 |
|
- |
PS-C240 (240W) | Bulk | Active | AC or DC | 1 | 88 ~ 264 VAC | 124V | 370V | 48V | - | - | - | - | - | 5A | 240W | 3 kV | Industrial, ITE (Commercial) | 94% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 4.47" L x 2.48" W x 4.93" H (113.5mm x 63.0mm x 125.2mm) | CE, cULus, cURus | 508; 60950-1 |
|

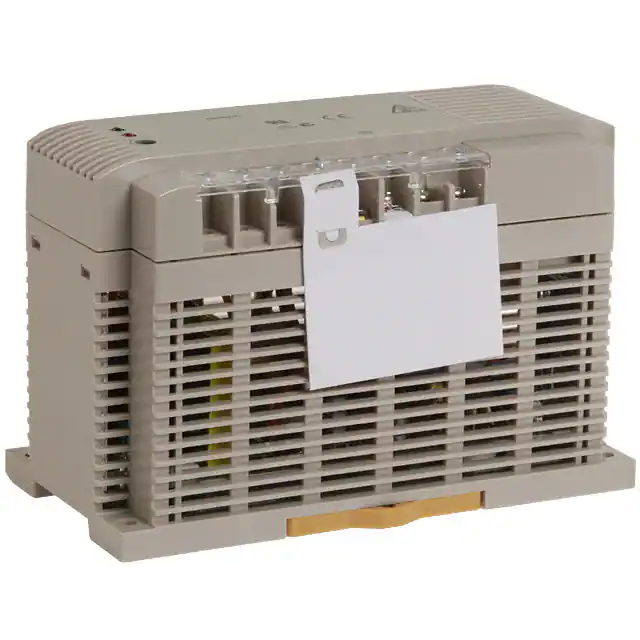

S82K-09024AC/DC DIN RAIL SUPPLY 24V 90W |
0 |
|
Технический лист |
S82K (90W) | Bulk | Obsolete | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 3.75A | 90W | 3 kV | ITE (Commercial) | 80% | -10°C ~ 60°C (With Derating) | Adjustable Output, PFC, Remote Sense, Universal Input | 3.58" L x 5.71" W x 2.95" H (91.0mm x 145.0mm x 75.0mm) | CE, cULus, cURus, VDE | - |
|

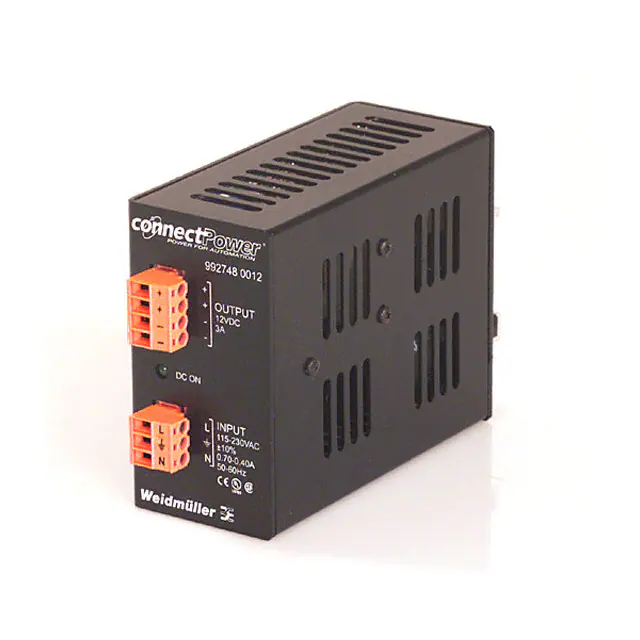

9927480012AC/DC DIN RAIL SUPPLY 12V 55W |
0 |
|
Технический лист |
- | Bulk | Obsolete | AC | 1 | 85 ~ 265 VAC | - | - | 12V | - | - | - | - | - | 3A | 55W | 3 kV | ITE (Commercial) | 78% | -10°C ~ 70°C | Adjustable Output, Universal Input | 5.16" L x 2.24" W x 3.86" H (131.0mm x 57.0mm x 98.0mm) | CSA, GOST | - |
|
VHK75W-Q24-S12-DINDC/DC DIN RAIL SUPPLY 12V 75W |
1 |
|
Технический лист |
VHK75W-DIN (75W) | Box | Active | DC | 1 | - | 9V | 36V | 12V | - | - | - | - | - | 6.25A | 75W | - | - | 81.5% | -40°C ~ 85°C | - | 4.23" L x 4.01" W x 2.07" H (107.4mm x 101.9mm x 52.6mm) | CE | - |
|
ABL8BPK24A03DC/DC DIN RAIL SUPPLY 24V |
0 |
|
Технический лист |
- | Box | Active | DC | 1 | - | 21V | 29V | 24V | - | - | - | - | - | 32A | - | - | ITE (Commercial) | - | 0°C ~ 40°C | - | 10.63" L x 7.09" W x 6.50" H (270.0mm x 180.0mm x 165.0mm) | CE, UL | - |
|
|
TSP480-124-3PAC400AC/DC DIN RAIL SUPPLY 24V 480W |
0 |
|
Технический лист |
TSP-3P (480W) | Box | Obsolete | AC | 1 | 320 ~ 440 VAC (3 Phase) | - | - | 24V | - | - | - | - | - | 20A | 480W | - | Hazardous Locations, Industrial, ITE (Commercial) | 92% | -25°C ~ 60°C | IP20 | 4.92" L x 3.15" W x 4.92" H (125.0mm x 80.0mm x 125.0mm) | CB, CE, SIQ | - |
|
|
S82J-15024DDAC/DC DIN RAIL SUPPLY 24V 150W |
0 |
|
- |
S82J (150W) | Bulk | Obsolete | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 7A | 150W | 3 kV | ITE (Commercial) | 77% | -10°C ~ 60°C | Adjustable Output, Load Sharing, Remote Sense, Universal Input | 7.80" L x 1.97" W x 3.82" H (198.0mm x 50.0mm x 97.0mm) | CE, CSA, UL, UR, VDE | - |
|
SCP30D512-DNAC/DC DIN RAIL SUPPLY 5V 12V 29W |
0 |
|
Технический лист |
SCP (30W) | Bulk | Discontinued | AC or DC | 2 | 85 ~ 264 VAC | 100V | 375V | 5V | 12V | - | - | - | - | 3A, 1.2A | 29W | - | ITE (Commercial) | 68% | -25°C ~ 65°C | IP20, Universal Input | 2.55" L x 1.29" W x 4.71" H (65.0mm x 33.0mm x 120.0mm) | CE, cURus | - |
