Промышленные блоки питания на DIN-рейку
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECE40US48-SDAC/DC DIN RAIL SUPPLY 48V 40W |
0 |
|
Технический лист |
ECE (40W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 830mA | 40W | 3 kV | ITE (Commercial) | 86% | -25°C ~ 70°C | Universal Input | 3.78" L x 1.57" W x 1.12" H (96.0mm x 40.0mm x 28.5mm) | - | 62368-1 |
|
SPDM24301AC/DC DIN RAIL SUPPLY 24V 30W |
1 |
|
Технический лист |
SPDM (30W) | Box | Obsolete | AC or DC | 1 | 85 ~ 264 VAC | 120V | 375V | 24V | - | - | - | - | - | 1.25A | 30W | 3 kV | Industrial, ITE (Commercial) | 86% | -25°C ~ 71°C (With Derating) | Adjustable Output, IP20, Universal Input | 3.94" L x 0.89" W x 3.60" H (100.0mm x 22.5mm x 90.0mm) | CE, cULus, TUV | - |
|
SPDM24301BAC/DC DIN RAIL SUPPLY 24V 30W |
0 |
|
Технический лист |
SPDM (30W) | Box | Obsolete | AC or DC | 1 | 85 ~ 264 VAC | 120V | 375V | 24V | - | - | - | - | - | 1.25A | 30W | 3 kV | Industrial, ITE (Commercial) | 86% | -25°C ~ 71°C (With Derating) | Adjustable Output, IP20, Universal Input | 3.94" L x 0.89" W x 3.60" H (100.0mm x 22.5mm x 90.0mm) | CE, cULus, TUV | - |
|
DRB120-48-1AC/DC DIN RAIL SUPPLY 48V 120W |
0 |
|
Технический лист |
DRB120 (120W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 2.5A | 120W | 3 kV | Industrial, ITE (Commercial) | 91% | -25°C ~ 70°C | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | 4.92" L x 4.88" W x 1.38" H (125.0mm x 124.0mm x 35.0mm) | CE, CSA, EN, IEC, UKCA, UL | 60950-1; 62368-1; UL 508 |
|
IS.AC12VDC2.5ADINAC/DC DIN RAIL SUPPLY 12V 30W |
0 |
|
- |
- | Box | Obsolete | AC | 1 | 90 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 2.5A | 30W | - | ITE (Commercial) | - | - | Universal Input | - | - | - |
|
DLP75-24-1/C2EJAC/DC DIN RAIL SUPPLY 24V 60W |
0 |
|
Технический лист |
DLP75 (75W) | Bulk | Obsolete | AC | 1 | 85 ~ 132 VAC, 170 ~ 265 VAC | - | - | 24V | - | - | - | - | - | 2.5A | 60W | 3 kV | ITE (Commercial) | 83% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 4.33" L x 1.97" W x 3.81" H (110.0mm x 50.0mm x 97.0mm) | CE | - |
|
DTE4024S5V1-DDC/DC DIN RAIL SUPPLY 5.1V 40W |
0 |
|
Технический лист |
DTE40 (40W) | Bulk | Active | DC | 1 | - | 9V | 36V | 5.1V | - | - | - | - | - | 8A | 40W | - | ITE (Commercial) | 90% | -40°C ~ 85°C | - | 4.41" L x 2.51" W x 1.01" H (112.0mm x 63.8mm x 25.6mm) | CB, CE, cURus | 62368-1 |
|
|
DTE4024S24-DDC/DC DIN RAIL SUPPLY 24V 40W |
0 |
|
Технический лист |
DTE40 (40W) | Bulk | Active | DC | 1 | - | 9V | 36V | 24V | - | - | - | - | - | 1.67A | 40W | - | ITE (Commercial) | 90% | -40°C ~ 85°C | - | 4.41" L x 2.51" W x 1.01" H (112.0mm x 63.8mm x 25.6mm) | CB, CE, cURus | 62368-1 |
|
|
DTE4024S48-DDC/DC DIN RAIL SUPPLY 48V 40W |
0 |
|
Технический лист |
DTE40 (40W) | Bulk | Active | DC | 1 | - | 9V | 36V | 48V | - | - | - | - | - | 835mA | 40W | - | ITE (Commercial) | 89% | -40°C ~ 85°C | - | 4.41" L x 2.51" W x 1.01" H (112.0mm x 63.8mm x 25.6mm) | CB, CE, cURus | 62368-1 |
|
|
DTE4048S5V1-DDC/DC DIN RAIL SUPPLY 5.1V 40W |
0 |
|
Технический лист |
DTE40 (40W) | Bulk | Active | DC | 1 | - | 18V | 75V | 5.1V | - | - | - | - | - | 8A | 40W | - | ITE (Commercial) | 89% | -40°C ~ 85°C | - | 4.41" L x 2.51" W x 1.01" H (112.0mm x 63.8mm x 25.6mm) | CB, CE, cURus | 62368-1 |
|
|
DTE4048S24-DDC/DC DIN RAIL SUPPLY 24V 40W |
0 |
|
Технический лист |
DTE40 (40W) | Bulk | Active | DC | 1 | - | 18V | 75V | 24V | - | - | - | - | - | 1.67A | 40W | - | ITE (Commercial) | 92% | -40°C ~ 85°C | - | 4.41" L x 2.51" W x 1.01" H (112.0mm x 63.8mm x 25.6mm) | CB, CE, cURus | 62368-1 |
|
|
DTE4048S48-DDC/DC DIN RAIL SUPPLY 48V 40W |
0 |
|
Технический лист |
DTE40 (40W) | Bulk | Active | DC | 1 | - | 18V | 75V | 48V | - | - | - | - | - | 835mA | 40W | - | ITE (Commercial) | 90% | -40°C ~ 85°C | - | 4.41" L x 2.51" W x 1.01" H (112.0mm x 63.8mm x 25.6mm) | CB, CE, cURus | 62368-1 |
|
XCSD1015W012VAAAC/DC DIN RAIL SUPPLY 12V 15W |
1 |
|
Технический лист |
- | Box | Discontinued | AC or DC | 1 | 120 ~ 230 VAC | 100V | 370V | 12V | - | - | - | - | - | 1.2A | 15W | - | Industrial | 86% | - | - | - | CB, CE | - |
|
PS-S6024AC/DC DIN RAIL SUPPLY 24V 60W |
0 |
|
- |
PS-S60 (60W) | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 24V | - | - | - | - | - | 2.5A | 60W | 3 kV | Industrial, ITE (Commercial) | 88% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.94" L x 1.57" W x 3.54" H (100.0mm x 40.0mm x 90.0mm) | CE, cULus | 508; 60950-1 |
|
S82K-00305AC/DC DIN RAIL SUPPLY 5V 3W |
0 |
|
Технический лист |
S82K (3W) | Bulk | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 5V | - | - | - | - | - | 600mA | 3W | 3 kV | ITE (Commercial) | 60% | -10°C ~ 60°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | 2.56" L x 1.48" W x 2.95" H (65.0mm x 37.5mm x 75.0mm) | CE, cULus, cURus, VDE | - |
|
S82K-00312AC/DC DIN RAIL SUPPLY 12V 3W |
0 |
|
Технический лист |
S82K (3W) | Bulk | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 250mA | 3W | 3 kV | ITE (Commercial) | 60% | -10°C ~ 60°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | 2.56" L x 1.48" W x 2.95" H (65.0mm x 37.5mm x 75.0mm) | CE, cULus, cURus, VDE | - |
|

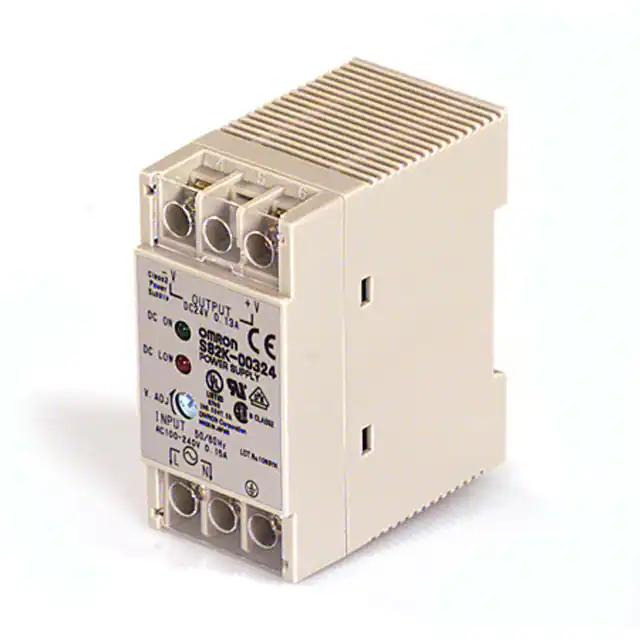

S82K-00324AC/DC DIN RAIL SUPPLY 24V 3W |
0 |
|
Технический лист |
S82K (3W) | Bulk | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 130mA | 3W | 3 kV | ITE (Commercial) | 60% | -10°C ~ 60°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | 2.56" L x 1.48" W x 2.95" H (65.0mm x 37.5mm x 75.0mm) | CE, cULus, cURus, VDE | - |
|
SPMA15151SCCAC/DC DIN RAIL SUPPLY 15V 15W |
0 |
|
Технический лист |
SPMA | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 350V | 15V | - | - | - | - | - | 1A | 15W | 4 kV | Industrial, ITE (Commercial) | 84% | -30°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 2.50" L x 0.70" W x 3.60" H (63.5mm x 17.8mm x 91.4mm) | CE | 62368-1; UL 508 |
|
|
SPMA12151SCCAC/DC DIN RAIL SUPPLY 12V 15W |
0 |
|
Технический лист |
SPMA | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 350V | 12V | - | - | - | - | - | 1.25A | 15W | 4 kV | Industrial, ITE (Commercial) | 83% | -30°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 2.50" L x 0.70" W x 3.60" H (63.5mm x 17.8mm x 91.4mm) | CE | 62368-1; UL 508 |
|
|
SPMA24151SCCAC/DC DIN RAIL SUPPLY 24V 15W |
0 |
|
Технический лист |
SPMA | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 350V | 24V | - | - | - | - | - | 630mA | 15W | 4 kV | Industrial, ITE (Commercial) | 85% | -30°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 2.50" L x 0.70" W x 3.60" H (63.5mm x 17.8mm x 91.4mm) | CE | 62368-1; UL 508 |
