Промышленные блоки питания на DIN-рейку
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PYBE30-Q48-S5-DINDC/DC DIN RAIL SUPPLY 5V 30W |
0 |
|
Технический лист |
PYBE30 (30W) | Tray | Not For New Designs | DC | 1 | - | 18V | 75V | 5V | - | - | - | - | - | 6A | 30W | 1.5 kV | ITE (Commercial) | 87% | -40°C ~ 80°C (With Derating) | Adjustable Output, Remote On/Off | 2.99" L x 1.24" W x 0.87" H (76.0mm x 31.5mm x 22.2mm) | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1 |
|
PYBE30-Q24-S15H-DINDC/DC DIN RAIL SUPPLY 15V 30W |
0 |
|
Технический лист |
PYBE30 (30W) | Tray | Not For New Designs | DC | 1 | - | 9V | 36V | 15V | - | - | - | - | - | 2A | 30W | 1.5 kV | ITE (Commercial) | 90% | -40°C ~ 80°C (With Derating) | Adjustable Output, Heat Sink, Remote On/Off | 2.99" L x 1.24" W x 1.18" H (76.0mm x 31.5mm x 29.9mm) | CE, cURus, UKCA | 60950-1; 62368-1 |
|
|
PYBE30-Q48-S15H-DINDC-DC ISOLATED, 30 W, 18~75 VDC |
0 |
|
Технический лист |
PYBE30 (30W) | Tray | Not For New Designs | DC | 1 | - | 18V | 75V | 15V | - | - | - | - | - | 2A | 30W | 1.5 kV | ITE (Commercial) | 89% | -40°C ~ 80°C (With Derating) | Heat Sink | 2.99" L x 1.24" W x 1.18" H (76.0mm x 31.5mm x 29.9mm) | CE, cURus, UKCA | 62368-1 |
|
PYBE20-Q24-S24-DINDC/DC DIN RAIL SUPPLY 24V 20W |
1 |
|
Технический лист |
PYBE20 (20W) | Tray | Not For New Designs | DC | 1 | - | 9V | 36V | 24V | - | - | - | - | - | 834mA | 20W | 1.5 kV | ITE (Commercial) | 90% | -40°C ~ 85°C (With Derating) | Adjustable Output, Remote On/Off | 2.99" L x 1.24" W x 0.87" H (76.0mm x 31.5mm x 22.2mm) | CE, cURus | - |
|
DPC30US12AC/DC DIN RAIL SUPPLY 12V 30W |
4 |
|
Технический лист |
DPC30 (30W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 2A | 30W | 3 kV | ITE (Commercial) | 85% | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.94" L x 0.89" W x 3.60" H (100.0mm x 22.5mm x 90.0mm) | CE | - |
|
|
DPC30US24AC/DC DIN RAIL SUPPLY 24V 30W |
0 |
|
Технический лист |
DPC30 (30W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 1.25A | 30W | 3 kV | ITE (Commercial) | 86% | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.94" L x 0.89" W x 3.60" H (100.0mm x 22.5mm x 90.0mm) | CE | - |
|
|
LH60-20B24A6ENCLOSED AC DC CONVERTER 1 OUTOU |
0 |
|
- |
LH60 (60W) | Tray | Obsolete | DC | 2 | - | 122V | 370V | 24V | -24V | - | - | - | - | 2.5A | 60W | 4 kV | ITE (Commercial) | 86% | -40°C ~ 70°C | Adjustable Output, Remote On/Off | 5.32" L x 2.76" W x 1.56" H (135.1mm x 70.1mm x 39.6mm) | CB, CE, cURus | 60950-1 |
|
|
LH60-20B12A6ENCLOSED AC DC CONVERTER 1 OUTOU |
0 |
|
- |
LH60 (60W) | Tray | Obsolete | DC | 2 | - | 122V | 370V | 12V | -12V | - | - | - | - | 5A | 60W | 4 kV | ITE (Commercial) | 86% | -40°C ~ 70°C | Adjustable Output, Remote On/Off | 5.32" L x 2.76" W x 1.56" H (135.1mm x 70.1mm x 39.6mm) | CB, CE, cURus | 60950-1 |
|

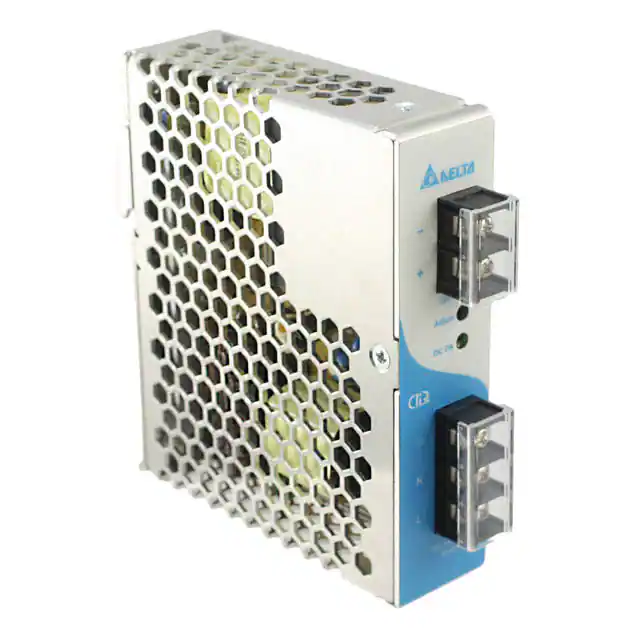

DRP012V060W1AAAC/DC DIN RAIL SUPPLY 12V 60W |
0 |
|
Технический лист |
CliQ (60W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 5A | 60W | 4 kV | ITE (Commercial) | 86% | -20°C ~ 80°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | 4.72" L x 1.26" W x 4.76" H (120.0mm x 32.0mm x 121.0mm) | ATEX EN, CB Scheme, CE, CSA, DNV GL, EAC, EN, SIQ, UL | 107.1-01; 213, 12.12.09; 508; 50581; 55011; 55024; 55032; 60079-15; 60950-1; 61000-3-2; 61000-3-3; 61000-6-1; 61000-6-2 |
|
PQAE50-D48-S12-DINHDC/DC DIN RAIL SUPPLY 12V 50W |
0 |
|
Технический лист |
PQAE50 (50W) | Tray | Not For New Designs | DC | 1 | - | 36V | 75V | 12V | - | - | - | - | - | 4.167A | 50W | 1.5 kV | ITE (Commercial) | 92% | -40°C ~ 105°C (With Derating) | Adjustable Output, Heat Sink, Remote On/Off | 2.99" L x 1.24" W x 1.18" H (76.0mm x 31.5mm x 29.9mm) | CE | 62368-1 |
|
|
PQAE50-D48-S15-DINHDC/DC DIN RAIL SUPPLY 15V 50W |
0 |
|
Технический лист |
PQAE50 (50W) | Tray | Not For New Designs | DC | 1 | - | 36V | 75V | 15V | - | - | - | - | - | 3.333A | 50W | 1.5 kV | ITE (Commercial) | 92% | -40°C ~ 105°C (With Derating) | Adjustable Output, Heat Sink, Remote On/Off | 2.99" L x 1.24" W x 1.18" H (76.0mm x 31.5mm x 29.9mm) | CE | 62368-1 |
|
|
PQAE50-D48-S24-DINHDC/DC DIN RAIL SUPPLY 24V 50W |
0 |
|
Технический лист |
PQAE50 (50W) | Tray | Not For New Designs | DC | 1 | - | 36V | 75V | 24V | - | - | - | - | - | 2.083A | 50W | 1.5 kV | ITE (Commercial) | 92% | -40°C ~ 105°C (With Derating) | Adjustable Output, Heat Sink, Remote On/Off | 2.99" L x 1.24" W x 1.18" H (76.0mm x 31.5mm x 29.9mm) | CE | 62368-1 |
|
|
PQAE50-D48-S3-DINHDC/DC DIN RAIL SUPPLY 3.3V 33W |
0 |
|
Технический лист |
PQAE50 (50W) | Tray | Not For New Designs | DC | 1 | - | 36V | 75V | 3.3V | - | - | - | - | - | 10A | 33W | 1.5 kV | ITE (Commercial) | 91% | -40°C ~ 105°C (With Derating) | Adjustable Output, Heat Sink, Remote On/Off | 2.99" L x 1.24" W x 1.18" H (76.0mm x 31.5mm x 29.9mm) | CE | 62368-1 |
|
|
PQAE50-D48-S5-DINHDC/DC DIN RAIL SUPPLY 5V 50W |
0 |
|
Технический лист |
PQAE50 (50W) | Tray | Not For New Designs | DC | 1 | - | 36V | 75V | 5V | - | - | - | - | - | 10A | 50W | 1.5 kV | ITE (Commercial) | 91% | -40°C ~ 105°C (With Derating) | Adjustable Output, Heat Sink, Remote On/Off | 2.99" L x 1.24" W x 1.18" H (76.0mm x 31.5mm x 29.9mm) | CE | 62368-1 |
|
|
DRP024V060W1AAAC/DC DIN RAIL SUPPLY 24V 60W |
0 |
|
Технический лист |
CliQ (60W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 2.5A | 60W | 4 kV | ITE (Commercial) | 87% | -20°C ~ 75°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | 4.72" L x 1.26" W x 4.76" H (120.0mm x 32.0mm x 121.0mm) | ATEX EN, CB Scheme, CE, CSA, DNV GL, EAC, EN, SEMI, SIQ, UL | 107.1-01; 213, 12.12.09; 508; 50581; 55011; 55024; 55032; 60079-15; 60950-1; 61000-3-2; 61000-6-1; 61000-6-2; 61204-3; 62368-1 |
|
DRS-12V50W1NRAC/DC DIN RAIL SUPPLY 12V 50W |
0 |
|
Технический лист |
Sync (50W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 4A | 50W | 3 kV | ITE (Commercial) | 89% | -20°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, Universal Input | 3.52" L x 1.18" W x 2.95" H (89.5mm x 30.0mm x 75.0mm) | CB, CE, cULus, cURus, TUV | - |
|
DRS-24V50W1NRAC/DC DIN RAIL SUPPLY 24V 50W |
0 |
|
Технический лист |
Sync (50W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 2.1A | 50W | 3 kV | ITE (Commercial) | 90% | -20°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, Universal Input | 3.52" L x 1.18" W x 2.95" H (89.5mm x 30.0mm x 75.0mm) | CB, CE, cULus, cURus, TUV | - |
|
|
120ACDRN_48SCAC-DC DIN RAIL |
0 |
|
- |
- | Retail Package | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
120ACDRN_24SCAC-DC DIN RAIL |
0 |
|
- |
- | Retail Package | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
120ACDRN_12SCAC-DC DIN RAIL |
0 |
|
- |
- | Retail Package | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
