Промышленные блоки питания на DIN-рейку
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NTPS-24-20AC/DC DIN RAIL SUPPLY 24V 480W |
1 |
|
Технический лист |
N-TRON® | Bulk | Active | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 20A | 480W | 3 kV | ITE (Commercial) | 94% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC | 5.00" L x 2.56" W x 4.88" H (127.0mm x 65.0mm x 124.0mm) | cCSAus, CE, cULus, cURus, EX | - |
|
DRL60-15-1AC/DC DIN RAIL SUPPLY 15V 54W |
0 |
|
Технический лист |
DRL (10-100W) | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 373V | 15V | - | - | - | - | - | 3.6A | 54W | 3 kV | Hazardous Locations, ITE (Commercial) | 87% | -20°C ~ 71°C (With Derating) | Adjustable Output, Universal Input | 2.19" L x 2.13" W x 3.58" H (55.6mm x 54.0mm x 90.9mm) | CE | - |
|
2868716AC/DC DIN RAIL SUPPLY 24V 12W |
1 |
|
Технический лист |
Step | Bulk | Active | AC or DC | 1 | 43 ~ 52 VAC | 60V | 80V | 24V | - | - | - | - | - | 500mA | 12W | 4 kV | Industrial, ITE (Commercial) | 81% | -25°C ~ 70°C (With Derating) | IP20, Load Sharing, Universal Input | 2.40" L x 0.71" W x 3.54" H (61.0mm x 18.0mm x 90.0mm) | CB, cUL, cULus, cUR, cURus, UL, UR | 508; 60950-1; 62368-1 |
|
TBL 030-124AC/DC DIN RAIL SUPPLY 24V 30W |
0 |
|
Технический лист |
TBL (30W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 1.25A | 30W | - | Industrial, ITE (Commercial) | 83% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 2.15" L x 2.07" W x 3.52" H (54.5mm x 52.6mm x 89.4mm) | CB, CE, CSAus, cULus, cURus, SIQ | - |
|
PW-301DIN RAIL POWER SUPPLY 48V 96W |
0 |
|
Технический лист |
PW-301 (96W) | Box | Active | AC | 1 | 100 ~ 240 VAC | - | - | 48V | - | - | - | - | - | 2A | 96W | 3 kV | ITE (Commercial) | 85% | -10°C ~ 40°C | Adjustable Output | 3.60" L x 3.50" W x 2.40" H (91.4mm x 88.9mm x 61.0mm) | CE, UKCA, UL | 62368-1 |
|
TPC 120-124AC/DC DIN RAIL SUPPLY 24V 120W |
0 |
|
Технический лист |
TPC (120W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 90V | 375V | 24V | - | - | - | - | - | 5A | 120W | - | Industrial, ITE (Commercial) | 87% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 4.33" L x 2.83" W x 3.54" H (110.0mm x 71.9mm x 89.9mm) | CB, CE, cCSAus, SIQ | - |
|
S8FS-G10015CDAC/DC DIN RAIL SUPPLY 15V 105W |
1 |
|
Технический лист |
S8FS-G (100W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 15V | - | - | - | - | - | 7A | 105W | 3 kV | Industrial, ITE (Commercial) | 87% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 5.08" L x 1.54" W x 3.82" H (129.0mm x 39.2mm x 97.0mm) | CE, cURus, TUV, UL | - |
|
RNF22-AABDC/DC DIN RAIL SUPPLY |
1 |
|
Технический лист |
RNF22 | Box | Active | DC | 1 | - | 19.2V | 30V | - | - | - | - | - | - | 3.75A | - | - | ITE (Commercial) | - | -20°C ~ 60°C | - | 4.57" L x 0.69" W x 4.23" H (116.1mm x 17.5mm x 107.4mm) | CE | - |
|
|
RNF22-8KBDC/DC DIN RAIL SUPPLY |
1 |
|
Технический лист |
RNF22 | Box | Active | DC | 1 | - | 19.2V | 30V | - | - | - | - | - | - | 3.75A | - | - | ITE (Commercial) | - | -20°C ~ 60°C | - | 4.57" L x 0.69" W x 4.23" H (116.1mm x 17.5mm x 107.4mm) | CE | - |
|
S8VS-09024BPAC/DC DIN RAIL SUPPLY 24V 90W |
1 |
|
Технический лист |
S8VS (90W) | Bulk | Active | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 3.75A | 90W | 3 kV | ITE (Commercial) | 80% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 4.78" L x 1.97" W x 4.53" H (121.3mm x 50.0mm x 115.0mm) | CE, cULus, cURus, VDE | - |
|
DRB120-24-3-A0AC/DC DIN RAIL SUPPLY 24V 120W |
0 |
|
Технический лист |
DRB (120-240W) | Box | Active | AC | 1 | 350 ~ 575 VAC (3 Phase) | - | - | 24V | - | - | - | - | - | 5A | 120W | 3.51 kV | ITE (Commercial), Laboratory | 91.3% | -25°C ~ 55°C | Adjustable Output, PFC, Remote On/Off, Remote Sense | 4.87" L x 2.17" W x 5.08" H (123.8mm x 55.2mm x 129.0mm) | CE | 61010-1;60950-1;62368-1 |
|
DRB120-12-3-A1AC/DC DIN RAIL SUPPLY 12V 120W |
1 |
|
Технический лист |
DRB (120-240W) | Box | Active | AC | 1 | 350 ~ 575 VAC (3 Phase) | - | - | 12V | - | - | - | - | - | 10A | 120W | 3.51 kV | ITE (Commercial), Laboratory | 89.4% | -25°C ~ 55°C | Adjustable Output, PFC, Remote On/Off, Remote Sense | 5.44" L x 5.08" W x 2.17" H (138.2mm x 129.0mm x 55.1mm) | CE | 61010-1;60950-1;62368-1 |
|
|
RNB22-AAAAC/DC DIN RAIL SUPPLY 24V 60W |
1 |
|
Технический лист |
RNB22 | Box | Active | AC or DC | 1 | 100 ~ 240 VAC | 110V | 250V | 24V | - | - | - | - | - | 2.5A | 60W | 4 kV | ITE (Commercial) | 92.6% | -25°C ~ 70°C (With Derating) | Adjustable Output | 3.74" L x 1.26" W x 3.90" H (95.0mm x 32.0mm x 99.1mm) | CE | 60950-1 |
|
|
DRV-24V120W1PNAC/DC DIN RAIL SUPPLY 24V 120W |
0 |
|
Технический лист |
CliQ VA (120W) | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 88V | 375V | 24V | - | - | - | - | - | 5A | 120W | 3 kV | Industrial, ITE (Commercial) | 91.42% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, PFC, Universal Input | 5.47" L x 2.36" W x 4.88" H (139.0mm x 60.0mm x 124.0mm) | CB Scheme, CE, EN, SIQ, UL | 508; 50581; 55011; 55024; 55032; 60950-1; 61000-3-2; 61000-3-3; 61000-6-1; 61000-6-2; 61000-6-3; 61000-6-4; 61204-3 |
|
|
DRB240-24-3-A0AC/DC DIN RAIL SUPPLY 24V 240W |
0 |
|
Технический лист |
DRB (120-240W) | Box | Active | AC | 1 | 350 ~ 575 VAC (3 Phase) | - | - | 24V | - | - | - | - | - | 10A | 240W | 3.51 kV | ITE (Commercial), Laboratory | 93.1% | -25°C ~ 55°C | Adjustable Output, PFC, Remote On/Off, Remote Sense | 4.87" L x 2.17" W x 5.08" H (123.8mm x 55.2mm x 129.0mm) | CE | 61010-1;60950-1;62368-1 |
|
S8VK-G24048-400AC/DC DIN RAIL SUPPLY 48V 240W |
1 |
|
Технический лист |
S8VK-G (240W) | Bulk | Active | AC | 1 | 85 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 5A | 240W | 3 kV | ITE (Commercial) | 92% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 5.91" L x 2.36" W x 4.92" H (150.0mm x 60.0mm x 125.0mm) | CE, cULus, cURus, TUV | - |
|

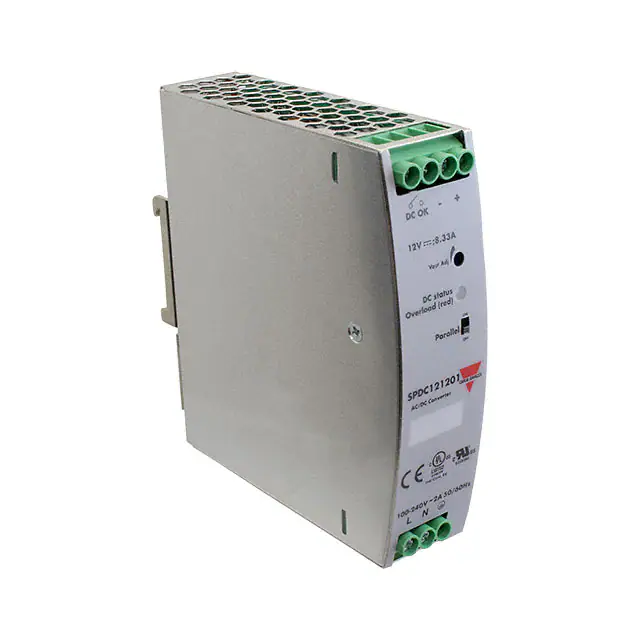

SPDC121201AC/DC DIN RAIL SUPPLY 12V 120W |
0 |
|
Технический лист |
SPDC (120W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 127V | 375V | 12V | - | - | - | - | - | 10A | 120W | 3 kV | Industrial, ITE (Commercial) | 89.5% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, PFC, Universal Input | 4.49" L x 1.26" W x 4.88" H (114.0mm x 32.0mm x 124.0mm) | CE, cULus, cURus | - |
|
S8VS-18024BPAC/DC DIN RAIL SUPPLY 24V 180W |
1 |
|
Технический лист |
S8VS (180W) | Bulk | Active | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 7.5A | 180W | 3 kV | ITE (Commercial) | 80% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 4.93" L x 2.95" W x 4.53" H (125.3mm x 75.0mm x 115.0mm) | CE, cULus, cURus, VDE | - |
|
S8VS-24024BPAC/DC DIN RAIL SUPPLY 24V 240W |
1 |
|
Технический лист |
S8VS (240W) | Bulk | Active | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | 3 kV | ITE (Commercial) | 80% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 4.78" L x 1.97" W x 4.53" H (121.3mm x 50.0mm x 115.0mm) | CE, cULus, cURus, VDE | - |
|

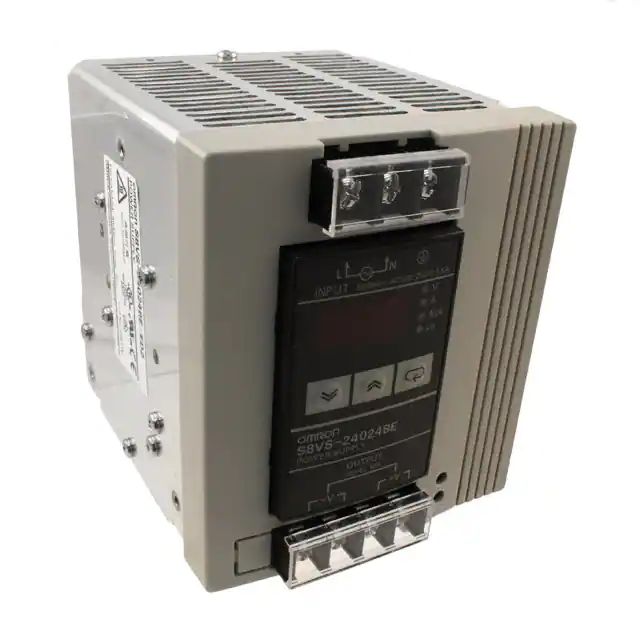

S8VS-24024BEAC/DC DIN RAIL SUPPLY 24V 240W |
1 |
|
Технический лист |
S8VS (240W) | Box | Active | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | 3 kV | ITE (Commercial) | 80% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 4.93" L x 3.94" W x 4.53" H (125.3mm x 100.0mm x 115.0mm) | CE, cULus, cURus, VDE | - |
