Модули IGBT
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип IGBT | Конфигурация | Напряжение - Коллектор-Эмиттер Пробой (Макс.) | Ток - Коллектор (Ic) (Макс.) | Мощность - макс. | Vce(on) (макс.) @ Vge, Ic | Ток - Коллектор Отсечка (Макс.) | Входная емкость (Cies) @ Vce | Вход | NTC термистор | Рабочая температура | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APTGF350A60GIGBT MODULE 600V 430A 1562W SP6 |
8,807 |
|
- |
- | SP6 | Bulk | Obsolete | NPT | Half Bridge | 600 V | 430 A | 1562 W | 2.5V @ 15V, 360A | 200 µA | 17.2 nF @ 25 V | Standard | No | - | Chassis Mount | SP6 |
|
APTGT75DU120TGIGBT MODULE 1200V 100A 350W SP4 |
6,677 |
|
- |
- | SP4 | Bulk | Active | Trench Field Stop | Dual, Common Source | 1200 V | 100 A | 350 W | 2.1V @ 15V, 75A | 250 µA | 5.34 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP4 |
|
MG06300D-BN4MMIGBT MODULE 600V 300A 940W D3 |
4,967 |
|
- |
- | Module | Bulk | Obsolete | - | Half Bridge | 600 V | 400 A | 940 W | 1.45V @ 15V, 300A (Typ) | 1 mA | 19 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | D3 |
|
|
APTGT580U60D4GIGBT MODULE 600V 760A 1600W D4 |
2,804 |
|
- |
- | D4 | Bulk | Obsolete | Trench Field Stop | Single | 600 V | 760 A | 1600 W | 1.9V @ 15V, 600A | 1 mA | 37 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | D4 |
|
|
FS150R12N3T4PB81BPSA1LOW POWER ECONO |
5,118 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
IRG7T300CL12BIGBT MOD 1200V 570A POWIR 62 |
7,178 |
|
- |
- | POWIR® 62 Module | Box | Obsolete | - | Single | 1200 V | 570 A | 1600 W | 2.2V @ 15V, 300A | 4 mA | 42.4 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | POWIR® 62 |
|
APTGT100TL60T3GIGBT MODULE 600V 150A 340W SP3 |
2,536 |
|
- |
- | SP3 | Bulk | Active | Trench Field Stop | Three Level Inverter | 600 V | 150 A | 340 W | 1.9V @ 15V, 100A | 250 µA | 6.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3 |
|
|
FF450R12KE7PEHPSA1MEDIUM POWER 62MM |
5,148 |
|
- |
C, TRENCHSTOP™ | Module | Tray | Active | Trench Field Stop | Half Bridge | 1200 V | 450 A | - | 1.75V @ 15V, 450A | 100 µA | 70800 pF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | AG-62MMHB |
|
|
FF450R12KE7PHPSA1MEDIUM POWER 62MM |
8,134 |
|
- |
C, TRENCHSTOP™ | Module | Tray | Active | Trench Field Stop | Half Bridge | 1200 V | 450 A | - | 1.75V @ 15V, 450A | 100 µA | 70800 pF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | AG-62MMHB |
|
|
NXH160T120L2Q2F2SGPIM 1200V, 160A SPLIT TNP |
1 |
|
- |
* | - | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MG12200D-BN2MMIGBT MODULE 1200V 290A 1050W D3 |
7,226 |
|
- |
- | Module | Bulk | Obsolete | Trench Field Stop | Half Bridge | 1200 V | 290 A | 1050 W | 1.7V @ 15V, 200A (Typ) | 1 mA | 14 nF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | D3 |
|
|
APTGL40X120T3GIGBT MODULE 1200V 65A 220W SP3 |
9,728 |
|
- |
- | SP3 | Bulk | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 65 A | 220 W | 2.25V @ 15V, 35A | 250 µA | 1.95 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3 |
|
|
CM50MXA-24SIGBT MOD 1200V 50A 355W |
8,962 |
|
- |
- | Module | Bulk | Discontinued | - | Three Phase Inverter with Brake | 1200 V | 50 A | 355 W | 2.25V @ 15V, 50A | 1 mA | 5 nF @ 10 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | - | Module |
|
MG1250W-XBN2MMIGBT MOD 1200V 75A 260W |
5,626 |
|
- |
- | Module | Bulk | Obsolete | - | Three Phase Inverter with Brake | 1200 V | 75 A | 260 W | 1.7V @ 15V, 50A (Typ) | 1 mA | 3.6 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | Module |
|
APTGT50DH120TGIGBT MODULE 1200V 75A 277W SP4 |
7,245 |
|
- |
- | SP4 | Bulk | Active | Trench Field Stop | Asymmetrical Bridge | 1200 V | 75 A | 277 W | 2.1V @ 15V, 50A | 250 µA | 3.6 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP4 |
|
|
MII150-12A4IGBT MOD 1200V 180A 760W Y3DCB |
9,348 |
|
- |
- | Y3-DCB | Box | Obsolete | NPT | Half Bridge | 1200 V | 180 A | 760 W | 2.7V @ 15V, 100A | 7.5 mA | 6.6 nF @ 25 V | Standard | No | 150°C (TJ) | Chassis Mount | Y3-DCB |
|
CM200EXS-34SAIGBT MOD 1700V 200A 2000W |
7,005 |
|
- |
- | Module | Bulk | Discontinued | - | Single | 1700 V | 200 A | 2000 W | 2.7V @ 15V, 200A | 1 mA | 35 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | - | Module |
|

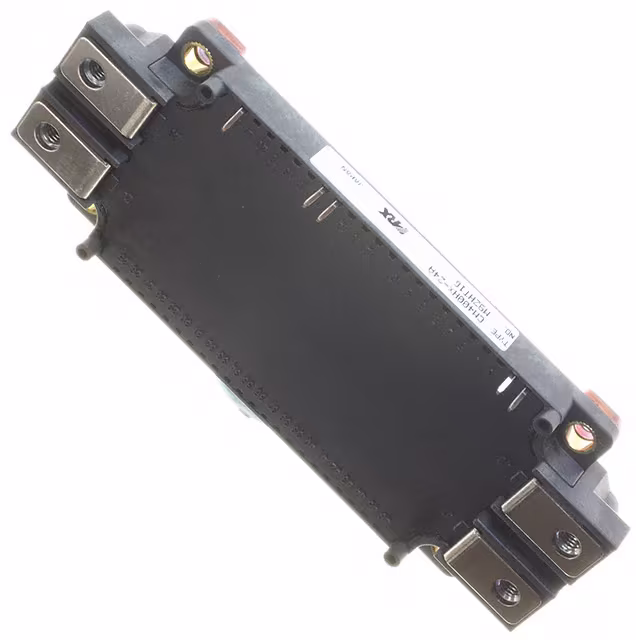

CM400HX-24AIGBT MOD 1200V 400A 2450W |
4,981 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Single | 1200 V | 400 A | 2450 W | 2.6V @ 15V, 400A | 1 mA | 66 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
MWI75-12T7TIGBT MODULE 1200V 110A 355W E2 |
9,890 |
|
- |
- | E2 | Box | Obsolete | Trench | Three Phase Inverter | 1200 V | 110 A | 355 W | 2.15V @ 15V, 75A | 4 mA | 5.35 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E2 |
|
|
APTGT35X120T3GIGBT MODULE 1200V 55A 208W SP3 |
8,510 |
|
- |
- | SP3 | Bulk | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 55 A | 208 W | 2.1V @ 15V, 35A | 250 µA | 2.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP3 |
