Модули IGBT
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип IGBT | Конфигурация | Напряжение - Коллектор-Эмиттер Пробой (Макс.) | Ток - Коллектор (Ic) (Макс.) | Мощность - макс. | Vce(on) (макс.) @ Vge, Ic | Ток - Коллектор Отсечка (Макс.) | Входная емкость (Cies) @ Vce | Вход | NTC термистор | Рабочая температура | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FS50R07N2E4BOSA1IGBT MODULE 650V 70A 190W |
280 |
|
- |
EconoPACK™ 2 | Module | Tray | Obsolete | - | Full Bridge Inverter | 650 V | 70 A | 190 W | 1.95V @ 15V, 50A | 1 mA | 3.1 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount | Module |
|
FS15R06VL4B2BOMA1MOD IGBT LOW PWR EASY750-1 |
6,104 |
|
- |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
HGT1N30N60A4DIGBT, 96A, 600V, N-CHANNEL |
677 |
|
- |
- | SOT-227-4, miniBLOC | Tube | Obsolete | - | Single | 600 V | 96 A | 255 W | 2.7V @ 15V, 30A | 250 µA | - | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227B |
|
|
FS10R12VT3BOMA1IGBT MODULE 1200V 16A 64W |
8,324 |
|
- |
- | Module | Bulk | Obsolete | - | Three Phase Inverter | 1200 V | 16 A | 64 W | 2.45V @ 15V, 10A | 1 mA | 700 pF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
|

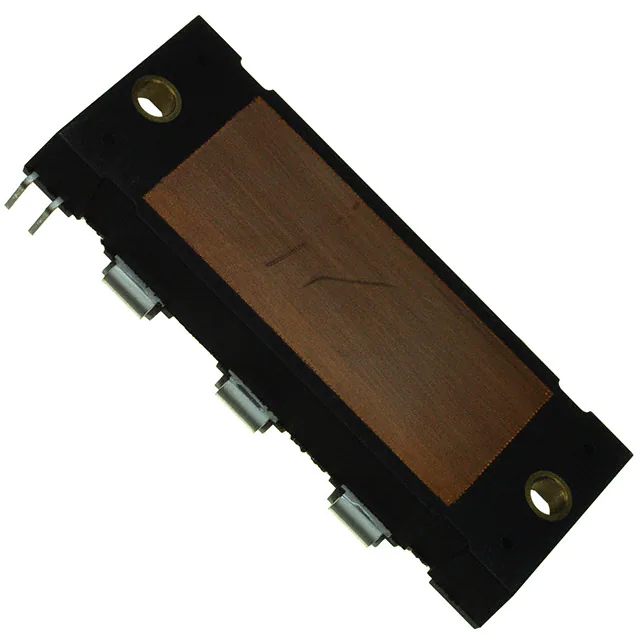

FP7G50US60IGBT |
2,076 |
|
- |
Power-SPM™ | EPM7 | Tube | Obsolete | - | Half Bridge | 600 V | 50 A | 250 W | 2.8V @ 15V, 50A | 250 µA | 2.92 nF @ 30 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | EPM7 |
|
|
FDDF80R12W1H3B52BOMA1IGBT MODULE |
672 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
VS-GT55NA120UXSOT-227 - HIGH SIDE CHOPPER IGBT |
129 |
|
- |
- | SOT-227-4, miniBLOC | Tube | Active | Trench Field Stop | Single Chopper | 1200 V | 68 A | 291 W | 2.8V @ 15V, 50A | 50 µA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|

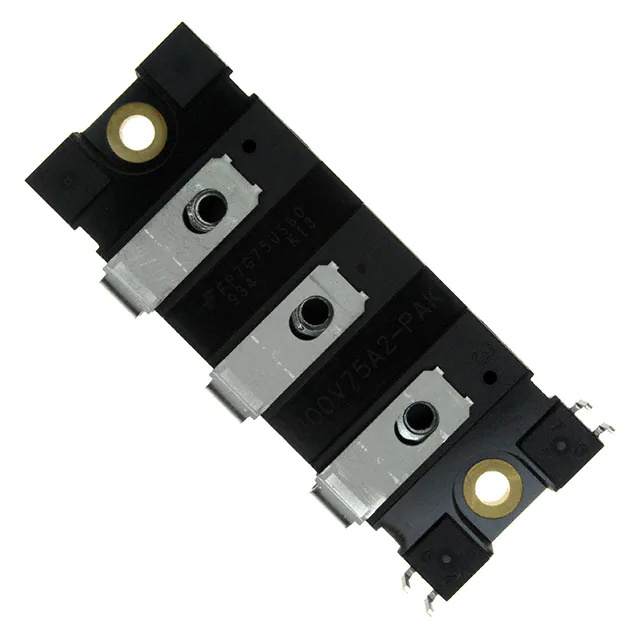

FP7G75US60IGBT |
2,882 |
|
- |
Power-SPM™ | EPM7 | Tube | Obsolete | - | Half Bridge | 600 V | 75 A | 310 W | 2.8V @ 15V, 75A | 250 µA | 4.515 nF @ 30 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | EPM7 |
|
|
FB10R06KL4BOMA1MOD IGBT LOW PWR EASY1-1 |
5,312 |
|
- |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
VS-GT55LA120UXSOT-227 - LOW SIDE CHOPPER IGBT |
212 |
|
- |
- | SOT-227-4, miniBLOC | Tube | Active | Trench Field Stop | Single Chopper | 1200 V | 68 A | 291 W | 2.8V @ 15V, 50A | 50 µA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
.JPG)
|
FP7G100US60IGBT, 100A, 600V, N-CHANNEL |
3,236 |
|
- |
Power-SPM™ | EPM7 | Tube | Obsolete | - | Half Bridge | 600 V | 100 A | 400 W | 2.8V @ 15V, 100A | 250 µA | 6.085 nF @ 30 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | EPM7 |
|
FP15R12W1T7PB3BPSA1LOW POWER EASY |
7,588 |
|
- |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DF80R12W2H3B11BOMA1IGBT MODULE |
285 |
|
- |
- | Module | Bulk | Active | - | Dual Boost Chopper | 1200 V | 50 A | 190 W | 1.7V @ 15V, 20A | 1 mA | 2.35 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | - |
|
|
DF100R07W1H5FPB53BPSA1IGBT MODULE |
233 |
|
- |
EasyPACK™ | Module | Bulk | Active | - | Half Bridge Inverter | 650 V | 40 A | - | 1.55V @ 15V, 25A | 40 µA | 2.8 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-EASY1B |
|
|
FS35R12YT3BOMA1IGBT MODULE |
232 |
|
- |
- | Module | Bulk | Active | - | Three Phase Inverter | 1200 V | 40 A | 225 W | 2.15V @ 15V, 35A | 5 mA | 2.5 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | - |
|
|
NXH80T120L3Q0P3GPIM GENERATION3 Q0PACK 1200V, 80 |
4,006 |
|
- |
- | Module | Tray | Active | Trench Field Stop | Three Level Inverter | 1200 V | 75 A | 188 W | 2.4V @ 15V, 80A | 300 µA | 18150 pF @ 20 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | 20-PIM/Q0PACK (55x32.5) |
|
APT45GP120JDQ2IGBT MOD 1200V 75A 329W ISOTOP |
114 |
|
- |
POWER MOS 7® | ISOTOP | Tube | Active | PT | Single | 1200 V | 75 A | 329 W | 3.9V @ 15V, 45A | 750 µA | 4 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
|
|
FB15R06KL4B1BOMA1MOD IGBT LOW PWR EASY2-1 |
3,263 |
|
- |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FP15R06KL4BOMA1MOD IGBT LOW PWR EASY2-1 |
2,301 |
|
- |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FP50R06W2E3B11BOMA1IGBT MODULE 600V 65A 175W |
7,713 |
|
- |
EasyPIM™ 2B | Module | Bulk | Active | Trench Field Stop | Three Phase Inverter | 600 V | 65 A | 175 W | 1.9V @ 15V, 50A | 1 mA | 3.1 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
