Модули IGBT
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип IGBT | Конфигурация | Напряжение - Коллектор-Эмиттер Пробой (Макс.) | Ток - Коллектор (Ic) (Макс.) | Мощность - макс. | Vce(on) (макс.) @ Vge, Ic | Ток - Коллектор Отсечка (Макс.) | Входная емкость (Cies) @ Vce | Вход | NTC термистор | Рабочая температура | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FF600R12ME4PB72BPSA1MEDIUM POWER ECONO |
9,989 |
|
- |
EconoDUAL™ 3 | Module | Bulk | Active | Trench Field Stop | 2 Independent | 1200 V | 600 A | - | 2.1V @ 15V, 600A | 3 mA | 37 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONOD-5 |
|
FS150R07PE4BOSA1IGBT MOD 650V 150A 430W |
3,339 |
|
- |
EconoPACK™ 4 | Module | Bulk | Obsolete | Trench Field Stop | Three Phase Inverter | 650 V | 150 A | 430 W | 1.95V @ 15V, 150A | 1 mA | 9.3 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FF450R17ME4PB11BOSA1IGBT MODULE 1700V 450A |
8,728 |
|
- |
EconoDUAL™ 3 | Module | Bulk | Active | Trench Field Stop | 2 Independent | 1700 V | 450 A | - | 2.3V @ 15V, 450A | 3 mA | 36 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
IFS150B12N3E4B31BOSA1IGBT MOD 1200V 300A 750W |
7,624 |
|
- |
- | Module | Bulk | Active | - | Full Bridge | 1200 V | 300 A | 750 W | 2.15V @ 15V, 150A | 1 mA | 9.35 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
F3L300R12MT4PB23BPSA1IGBT MOD 1200V 300A 20MW |
9,935 |
|
- |
EconoDUAL™ 3 | Module | Bulk | Discontinued | Trench Field Stop | Half Bridge | 1200 V | 300 A | - | 2.1V @ 15V, 300A | 1 mA | 19 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
F3L300R12MT4PB22BPSA1IGBT MODULE MED POWER ECONO |
8,803 |
|
- |
EconoDUAL™ 3 | - | Bulk | Discontinued | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

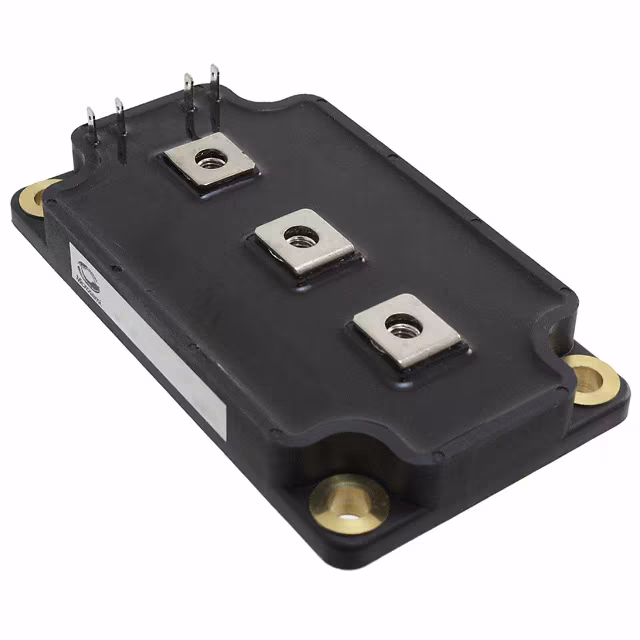

APTGT200DU120GIGBT MODULE 1200V 280A 890W SP6 |
16 |
|
- |
- | SP6 | Bulk | Active | Trench Field Stop | Dual, Common Source | 1200 V | 280 A | 890 W | 2.1V @ 15V, 200A | 350 µA | 14 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SP6 |
|
|
BSM200GB170DLCHOSA1BSM200GB170DL - IGBT MODULE |
23 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FS215R04A1E3DBOMA1IGBT MODULE |
4,211 |
|
- |
* | - | Bulk | Discontinued | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FF600R12ME4AB11BOSA1IGBT MODULE 1200V 3350W |
5 |
|
- |
EconoDUAL™ 3 | Module | Bulk | Discontinued | Trench Field Stop | 2 Independent | 1200 V | - | 3350 W | 2.1V @ 15V, 600A | 3 mA | 37 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FF600R17ME4PB11BOSA1IGBT MODULE VCES 1200V 600A |
8,648 |
|
- |
EconoDUAL™ 3 | Module | Bulk | Active | Trench Field Stop | Half Bridge Inverter | 1700 V | 600 A | - | 2.3V @ 15V, 600A | 1 mA | 48 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
MSCGLQ75H120CTBL3NGPM-IGBT-SBD-BL3 |
8 |
|
- |
- | Module | Bulk | Active | - | Full Bridge | 1200 V | 160 A | 470 W | 2.4V @ 15V, 75A | 50 µA | 4.4 nF @ 25 V | Standard | Yes | -55°C ~ 175°C (TJ) | Chassis Mount | - |
|
|
MSCGLQ75DDU120CTBL3NGPM-IGBT-SBD-BL3 |
7 |
|
- |
- | Module | Bulk | Active | - | Full Bridge | 1200 V | 160 A | 470 W | 2.4V @ 15V, 75A | 50 µA | 4.4 nF @ 25 V | Standard | Yes | -55°C ~ 175°C (TJ) | Chassis Mount | - |
|
|
FS150R12KE3GBOSA1IGBT MOD 1200V 200A 695W |
4,606 |
|
- |
EconoPACK™+ | Module | Bulk | Not For New Designs | Trench Field Stop | Three Phase Inverter | 1200 V | 200 A | 695 W | 2.15V @ 15V, 150A | 5 mA | 10.5 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount | Module |
|
|
BSM300GB120DLCHOSA1IGBT MOD 1200V 625A 2500W |
3,088 |
|
- |
- | Module | Bulk | Obsolete | - | Half Bridge | 1200 V | 625 A | 2500 W | 2.6V @ 15V, 300A | 5 mA | 21 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
|
DF600R12IP4DBOSA1IGBT MOD 1200V 600A 3350W |
7,623 |
|
- |
PrimePACK™2 | Module | Bulk | Active | Trench Field Stop | Single | 1200 V | 600 A | 3350 W | 2.05V @ 15V, 600A | 5 mA | 37 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
FS225R17OE4PBOSA1IGBT MODULE MED PWR ECONOPP-2 |
2,853 |
|
- |
EconoPACK™+ | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BSM100GD120DLCBOSA1LOW POWER ECONO |
4 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FS300R17OE4PBOSA1MOD IGBT MED PWR ECONOPP-2 |
5,393 |
|
- |
EconoPACK™+ | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FS770R08A6P2LBBPSA1FS770R08 - IGBT MODULE |
6 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
