Модули IGBT
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип IGBT | Конфигурация | Напряжение - Коллектор-Эмиттер Пробой (Макс.) | Ток - Коллектор (Ic) (Макс.) | Мощность - макс. | Vce(on) (макс.) @ Vge, Ic | Ток - Коллектор Отсечка (Макс.) | Входная емкость (Cies) @ Vce | Вход | NTC термистор | Рабочая температура | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VS-GT400TH60NIGBT MOD 600V 530A INT-A-PAK |
7,555 |
|
- |
- | Double INT-A-PAK (3 + 8) | Bulk | Active | Trench | Half Bridge | 600 V | 530 A | 1600 W | 2.05V @ 15V, 400A | 5 mA | 30.8 nF @ 30 V | Standard | No | 175°C (TJ) | Chassis Mount | Double INT-A-PAK |
|
|
VS-GT50TP120NIGBT MOD 1200V 100A INT-A-PAK |
2,541 |
|
- |
- | INT-A-PAK (3 + 4) | Bulk | Obsolete | Trench | Half Bridge | 1200 V | 100 A | 405 W | 2.35V @ 15V, 50A | 5 mA | 6.24 nF @ 30 V | Standard | No | 175°C (TJ) | Chassis Mount | INT-A-PAK |
|
|
VS-GT50TP60NIGBT MOD 600V 85A 208W INT-A-PAK |
4,039 |
|
- |
- | INT-A-PAK (3 + 4) | Bulk | Obsolete | Trench | Half Bridge | 600 V | 85 A | 208 W | 2.1V @ 15V, 50A | 1 mA | 3.03 nF @ 30 V | Standard | No | 175°C (TJ) | Chassis Mount | INT-A-PAK |
|
|
VS-100MT060WDFIGBT MODULE 600V 121A 462W MTP |
2,573 |
|
- |
- | 16-MTP Module | Tray | Obsolete | - | - | 600 V | 121 A | 462 W | 2.29V @ 15V, 60A | 100 µA | 9.5 nF @ 30 V | Standard | Yes | 150°C (TJ) | Chassis Mount | MTP |
|
|
VS-20MT120UFAPBFIGBT MODULE 1200V 20A 240W MTP |
6,748 |
|
- |
- | 16-MTP Module | Tray | Obsolete | NPT | Full Bridge Inverter | 1200 V | 20 A | 240 W | 4.66V @ 15V, 40A | 250 µA | 3.79 nF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | MTP |
|
|
VS-20MT120UFPIGBT MODULE 1200V 40A 240W MTP |
8,024 |
|
- |
- | 16-MTP Module | Tray | Obsolete | NPT | Full Bridge Inverter | 1200 V | 40 A | 240 W | 4.66V @ 15V, 40A | 250 µA | 3.79 nF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | MTP |
|
|
VS-25MT060WFAPBFIGBT MODULE 600V 69A 195W MTP |
9,873 |
|
- |
- | 16-MTP Module | Tray | Obsolete | - | Full Bridge Inverter | 600 V | 69 A | 195 W | 3.25V @ 15V, 50A | 250 µA | 5.42 nF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | MTP |
|
|
VS-40MT120UHAPBFIGBT MODULE 1200V 80A 463W MTP |
7,296 |
|
- |
- | 12-MTP Module | Tube | Obsolete | NPT | Half Bridge | 1200 V | 80 A | 463 W | 4.91V @ 15V, 80A | 250 µA | 8.28 nF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | MTP |
|
|
VS-40MT120UHTAPBFIGBT MODULE 1200V 80A 463W MTP |
4,861 |
|
- |
- | 12-MTP Module | Tray | Obsolete | NPT | Half Bridge | 1200 V | 80 A | 463 W | 4.91V @ 15V, 80A | 250 µA | 8.28 nF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | MTP |
|

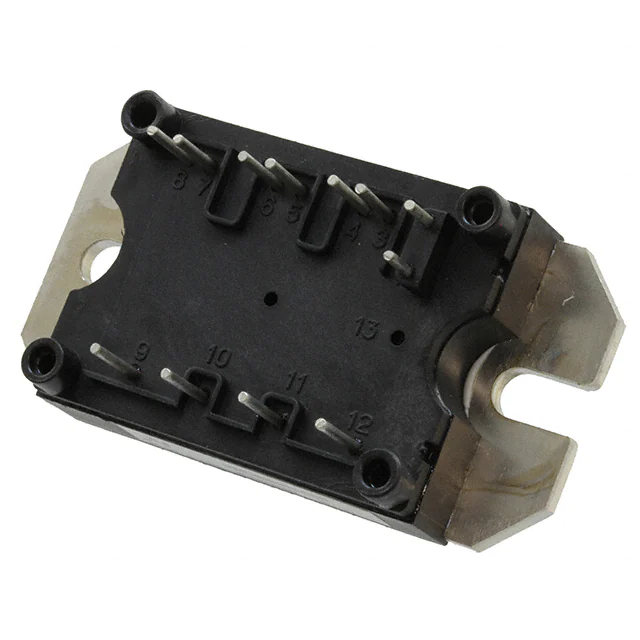

VS-50MT060WHTAPBFIGBT MODULE 600V 114A 658W MTP |
8,417 |
|
- |
- | 12-MTP Module | Tray | Obsolete | - | Half Bridge | 600 V | 114 A | 658 W | 3.2V @ 15V, 100A | 400 µA | 7.1 nF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | MTP |
|
|
VS-70MT060WHTAPBFIGBT MODULE 600V 100A 347W MTP |
9,501 |
|
- |
- | 12-MTP Module | Tray | Obsolete | NPT | Half Bridge | 600 V | 100 A | 347 W | 3.4V @ 15V, 140A | 700 µA | 8 nF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | MTP |
|
|
VS-70MT060WSPIGBT MODULE 600V 96A 378W MTP |
4,258 |
|
- |
- | 12-MTP Module | Tray | Obsolete | - | Single | 600 V | 96 A | 378 W | 2.15V @ 15V, 40A | 100 µA | 7.43 nF @ 30 V | Single Phase Bridge Rectifier | Yes | 150°C (TJ) | Chassis Mount | MTP |
|
|
FPF1C2P5MF07AMIGBT MODULE 620V 39A 231W F1 |
6,785 |
|
- |
- | F1 Module | Tray | Obsolete | - | Full Bridge Inverter | 620 V | 39 A | 231 W | 1.6V @ 15V, 30A | 25 µA | - | Single Phase Bridge Rectifier | No | -40°C ~ 150°C (TJ) | Chassis Mount | F1 |
|
VS-ETF150Y65UIGBT MOD 650V 142A EMIPAK-2B |
3,153 |
|
- |
- | EMIPAK-2B | Tray | Obsolete | Trench | Three Level Inverter | 650 V | 142 A | 417 W | 2.06V @ 15V, 100A | 100 µA | 6.6 nF @ 30 V | Standard | No | 175°C (TJ) | Chassis Mount | EMIPAK-2B |
|
VS-GB55LA120UXIGBT MOD 1200V 84A 431W SOT227 |
9,410 |
|
- |
HEXFRED® | SOT-227-4, miniBLOC | Tube | Obsolete | NPT | Single | 1200 V | 84 A | 431 W | - | 50 µA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|
|
VS-GB55NA120UXIGBT MOD 1200V 84A 431W SOT227 |
3,593 |
|
- |
HEXFRED® | SOT-227-4, miniBLOC | Tube | Obsolete | NPT | Single | 1200 V | 84 A | 431 W | - | 50 µA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|
|
VS-GB75LA60UFIGBT MOD 600V 109A 447W SOT227 |
3,735 |
|
- |
- | SOT-227-4, miniBLOC | Tube | Obsolete | NPT | Single | 600 V | 109 A | 447 W | 2V @ 15V, 35A | 50 µA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|
|
VS-GB75NA60UFIGBT MOD 600V 109A 447W SOT227 |
5,896 |
|
- |
- | SOT-227-4, miniBLOC | Tube | Obsolete | NPT | Single | 600 V | 109 A | 447 W | 2V @ 15V, 35A | 50 µA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|
|
VS-GT105LA120UXIGBT MOD 1200V 134A 463W SOT227 |
8,276 |
|
- |
- | SOT-227-4, miniBLOC | Tube | Obsolete | NPT | Single | 1200 V | 134 A | 463 W | - | 75 µA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|
|
VS-GT105NA120UXIGBT MOD 1200V 134A 463W SOT227 |
5,693 |
|
- |
- | SOT-227-4, miniBLOC | Tube | Obsolete | Trench | Single | 1200 V | 134 A | 463 W | - | 75 µA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
