Модули IGBT
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип IGBT | Конфигурация | Напряжение - Коллектор-Эмиттер Пробой (Макс.) | Ток - Коллектор (Ic) (Макс.) | Мощность - макс. | Vce(on) (макс.) @ Vge, Ic | Ток - Коллектор Отсечка (Макс.) | Входная емкость (Cies) @ Vce | Вход | NTC термистор | Рабочая температура | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MWI75-12E8IGBT MODULE 1200V 130A 500W E3 |
4,264 |
|
- |
- | E3 | Box | Obsolete | NPT | Three Phase Inverter | 1200 V | 130 A | 500 W | 2.5V @ 15V, 75A | 1.1 mA | 5.7 nF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | E3 |
|
|
VDI100-06P1IGBT MOD 600V 93A 294W ECO-PAC2 |
2,660 |
|
- |
- | ECO-PAC2 | Box | Obsolete | NPT | Single | 600 V | 93 A | 294 W | 2.8V @ 15V, 100A | 1.4 mA | 4.2 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | ECO-PAC2 |
|
|
VDI125-12P1IGBT MOD 1200V 138A ECO-PAC2 |
6,511 |
|
- |
- | ECO-PAC2 | Box | Obsolete | NPT | Single | 1200 V | 138 A | 568 W | 3.4V @ 15V, 125A | 5 mA | 5.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | ECO-PAC2 |
|
|
VDI130-06P1IGBT MOD 600V 121A 379W ECO-PAC2 |
6,573 |
|
- |
- | ECO-PAC2 | Box | Obsolete | NPT | Single | 600 V | 121 A | 379 W | 2.9V @ 15V, 130A | 1.2 mA | 4.2 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | ECO-PAC2 |
|
|
VDI75-12P1IGBT MOD 1200V 92A 379W ECO-PAC2 |
3,334 |
|
- |
- | ECO-PAC2 | Box | Obsolete | NPT | Single | 1200 V | 92 A | 379 W | 3.2V @ 15V, 75A | 3.7 mA | 3.3 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | ECO-PAC2 |
|
|
VID100-06P1IGBT MOD 600V 93A 294W ECO-PAC2 |
2,951 |
|
- |
- | ECO-PAC2 | Box | Obsolete | NPT | Single | 600 V | 93 A | 294 W | 2.8V @ 15V, 100A | 1.4 mA | 4.2 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | ECO-PAC2 |
|
|
VID125-12P1IGBT MOD 1200V 138A ECO-PAC2 |
2,756 |
|
- |
- | ECO-PAC2 | Box | Obsolete | NPT | Single | 1200 V | 138 A | 568 W | 3.4V @ 15V, 125A | 5 mA | 5.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | ECO-PAC2 |
|
|
VID25-06P1IGBT MOD 600V 24.5A 82W ECO-PAC2 |
2,924 |
|
- |
- | ECO-PAC2 | Box | Obsolete | NPT | Single | 600 V | 24.5 A | 82 W | 2.9V @ 15V, 25A | 600 µA | 8 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | ECO-PAC2 |
|
|
VID25-12P1IGBT MOD 1200V 30A 130W ECO-PAC2 |
4,353 |
|
- |
- | ECO-PAC2 | Box | Obsolete | NPT | Single | 1200 V | 30 A | 130 W | 3.3V @ 15V, 25A | 900 µA | 1 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | ECO-PAC2 |
|
|
VID75-12P1IGBT MOD 1200V 92A 379W ECO-PAC2 |
2,996 |
|
- |
- | ECO-PAC2 | Box | Obsolete | NPT | Single | 1200 V | 92 A | 379 W | 3.2V @ 15V, 75A | 3.7 mA | 3.3 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | ECO-PAC2 |
|
|
VII130-06P1IGBT MOD 600V 121A 379W ECO-PAC2 |
7,920 |
|
- |
- | ECO-PAC2 | Box | Active | NPT | Half Bridge | 600 V | 121 A | 379 W | 2.9V @ 15V, 130A | 1.2 mA | 4.2 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | ECO-PAC2 |
|
|
VII25-12P1IGBT MOD 1200V 30A 130W ECO-PAC2 |
4,610 |
|
- |
- | ECO-PAC2 | Box | Obsolete | NPT | Half Bridge | 1200 V | 30 A | 130 W | 3.3V @ 15V, 25A | 900 µA | 1 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | ECO-PAC2 |
|
|
VII50-12P1IGBT MOD 1200V 49A 208W ECO-PAC2 |
5,294 |
|
- |
- | ECO-PAC2 | Box | Obsolete | NPT | Half Bridge | 1200 V | 49 A | 208 W | 3.7V @ 15V, 50A | 1.1 mA | 1.65 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | ECO-PAC2 |
|

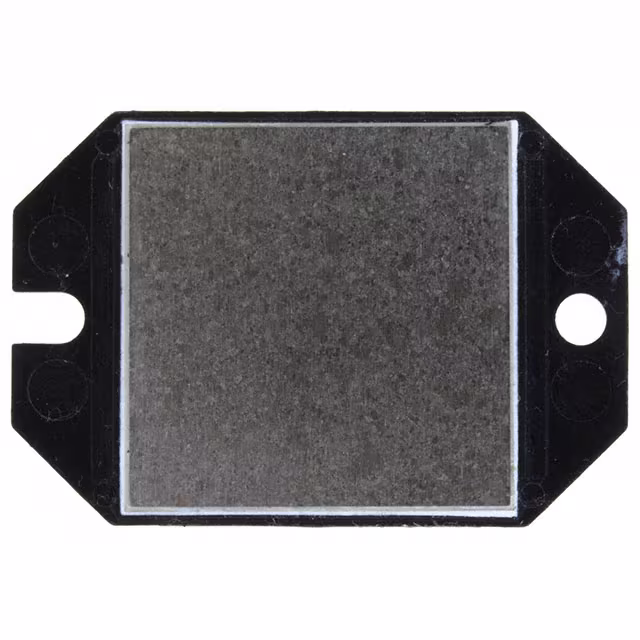

VKI75-06P1IGBT MOD 600V 69A 208W ECO-PAC2 |
2,641 |
|
- |
- | ECO-PAC2 | Box | Active | NPT | Full Bridge Inverter | 600 V | 69 A | 208 W | 2.8V @ 15V, 75A | 800 µA | 2.8 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | ECO-PAC2 |
|
|
VWI35-06P1IGBT MOD 600V 31A 100W ECO-PAC2 |
3,323 |
|
- |
- | ECO-PAC2 | Box | Active | NPT | Three Phase Inverter | 600 V | 31 A | 100 W | 2.4V @ 15V, 20A | 600 µA | 1.1 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | ECO-PAC2 |
|
APTGF165A60D1GIGBT MODULE 600V 230A 781W D1 |
6,691 |
|
- |
- | D1 | Bulk | Obsolete | NPT | Half Bridge | 600 V | 230 A | 781 W | 2.45V @ 15V, 200A | 250 µA | 9 nF @ 25 V | Standard | No | - | Chassis Mount | D1 |
|
|
APTGF90A60TGIGBT MODULE 600V 110A 416W SP4 |
5,485 |
|
- |
- | SP4 | Bulk | Obsolete | NPT | Half Bridge | 600 V | 110 A | 416 W | 2.5V @ 15V, 90A | 250 µA | 4.3 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP4 |
|
APTGT100A120D1GIGBT MODULE 1200V 150A 520W D1 |
5,355 |
|
- |
- | D1 | Bulk | Obsolete | Trench Field Stop | Half Bridge | 1200 V | 150 A | 520 W | 2.1V @ 15V, 100A | 3 mA | 7 nF @ 25 V | Standard | No | - | Chassis Mount | D1 |
|
|
APTGT150H170GIGBT MODULE 1700V 250A 890W SP6 |
8,321 |
|
- |
- | SP6 | Bulk | Active | Trench Field Stop | Full Bridge Inverter | 1700 V | 250 A | 890 W | 2.4V @ 15V, 150A | 350 µA | 13.5 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SP6 |
|
|
APTGT225DA170GIGBT MODULE 1700V 340A 1250W SP6 |
7,539 |
|
- |
- | SP6 | Bulk | Active | Trench Field Stop | Single | 1700 V | 340 A | 1250 W | 2.4V @ 15V, 225A | 500 µA | 20 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SP6 |
