Фиксированные индукторы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDRH8D38NP-220NCFIXED IND 22UH 2A 105 MOHM SMD |
4,587 |
|
Технический лист |
CDRH8D38 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±30% | 2 A | 2.3A | Shielded | 105mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
ETQ-P3M150KVNFIXED IND 15UH 3A 109.12MOHM SMD |
4,557 |
|
Технический лист |
PCC-M0630M-LP | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 15 µH | ±20% | 3 A | 5.1A | Shielded | 109.12mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.252" L x 0.236" W (6.40mm x 6.00mm) | 0.118" (3.00mm) |
|

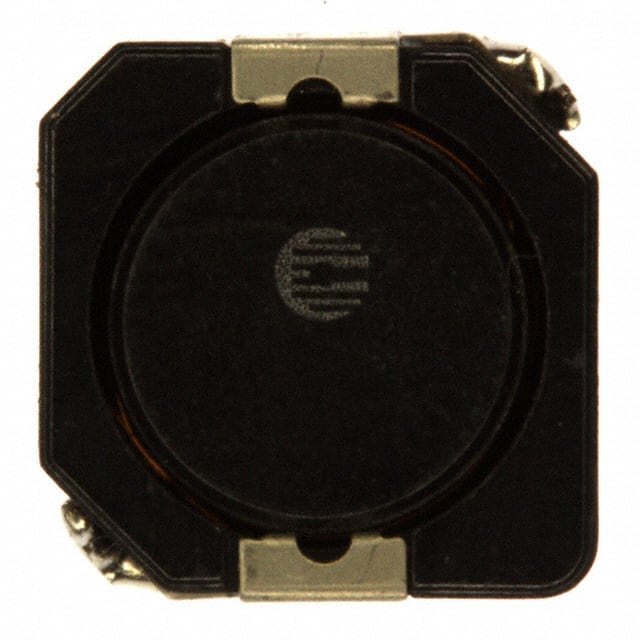

DR1050-680-RFIXED IND 68UH 1.84A 139MOHM SMD |
4,539 |
|
Технический лист |
DR1050 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±30% | 1.84 A | 1.7A | Shielded | 139mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.197" (5.00mm) |
|
CR75NP-330KCFIXED IND 33UH 1.2A 130 MOHM SMD |
4,442 |
|
Технический лист |
CR75 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 1.2 A | - | Unshielded | 130mOhm Max | - | 15MHz | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
BMRF00101040100MA1FIXED IND 10UH 6.5A 30 MOHM SMD |
3,126 |
|
Технический лист |
BMRF | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 6.5 A | 7A | Shielded | 30mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.457" L x 0.398" W (11.60mm x 10.10mm) | 0.157" (4.00mm) |
|
B82473A1333K000FIXED IND 33UH 1.2A 130 MOHM SMD |
3,095 |
|
Технический лист |
B82473A1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 1.2 A | 1.3A | Unshielded | 130mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.327" L x 0.287" W (8.30mm x 7.30mm) | 0.217" (5.50mm) |
|
SRU8043-220YFIXED IND 22UH 2.2A 72.5MOHM SMD |
2,932 |
|
Технический лист |
SRU8043 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±30% | 2.2 A | 1.7A | Shielded | 72.5mOhm | 24 @ 2.52MHz | 12MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.181" (4.60mm) |
|

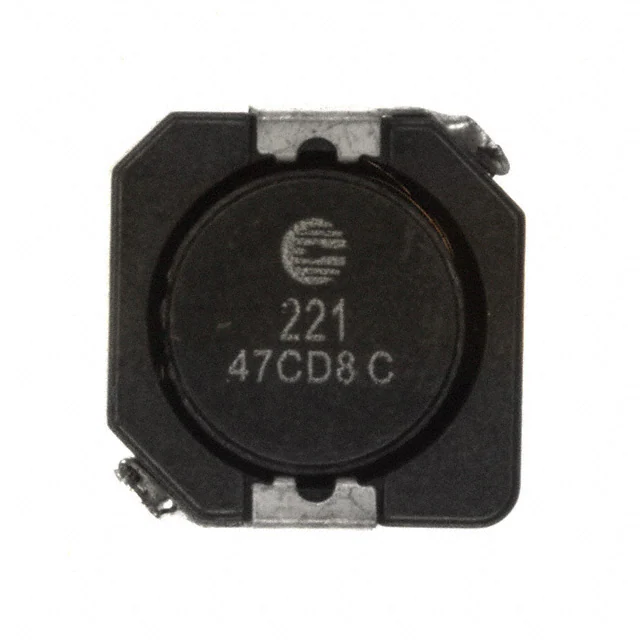

DR1050-221-RFIXED IND 220UH 1A 472 MOHM SMD |
2,220 |
|
Технический лист |
DR1050 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±30% | 1 A | 980mA | Shielded | 472mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.197" (5.00mm) |
|

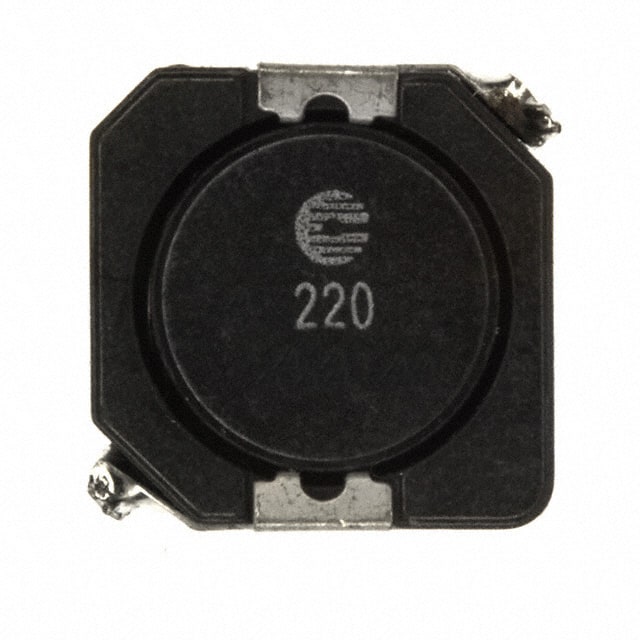

DR1050-220-RFIXED IND 22UH 3.12A 48.4MOHM SM |
1,792 |
|
Технический лист |
DR1050 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±30% | 3.12 A | 3A | Shielded | 48.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.197" (5.00mm) |
|

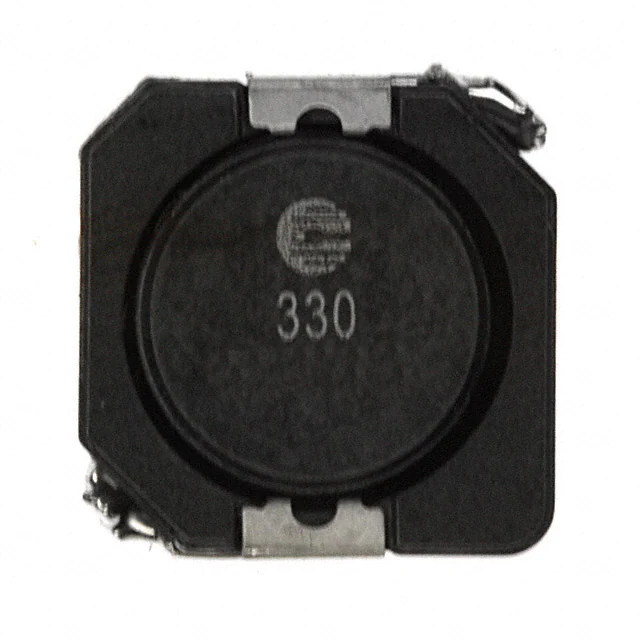

DR1050-330-RFIXED IND 33UH 2.56A 71.9MOHM SM |
1,647 |
|
Технический лист |
DR1050 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±30% | 2.56 A | 2.5A | Shielded | 71.9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.197" (5.00mm) |
|
SRU1038-150YFIXED IND 15UH 2.8A 37 MOHM SMD |
45,235 |
|
Технический лист |
SRU1038 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±30% | 2.8 A | 2.7A | Shielded | 37mOhm | 24 @ 2.52MHz | 16MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.161" (4.10mm) |
|
|
SRU1038-220YFIXED IND 22UH 2.2A 55.8MOHM SMD |
34,510 |
|
Технический лист |
SRU1038 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±30% | 2.2 A | 2.3A | Shielded | 55.8mOhm | 20 @ 2.52MHz | 12MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.161" (4.10mm) |
|
|
SRU1038-330YFIXED IND 33UH 1.8A 86 MOHM SMD |
26,492 |
|
Технический лист |
SRU1038 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±30% | 1.8 A | 1.8A | Shielded | 86mOhm | 22 @ 2.52MHz | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.161" (4.10mm) |
|
|
SRU1038-101YFIXED IND 100UH 1.3A 220MOHM SMD |
20,773 |
|
Технический лист |
SRU1038 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±30% | 1.3 A | 1.1A | Shielded | 220mOhm | 24 @ 796kHz | 6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.161" (4.10mm) |
|
SRU1028-1R0YFIXED IND 1UH 7A 4.9 MOHM SMD |
11,931 |
|
Технический лист |
SRU1028 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 7 A | 8A | Shielded | 4.9mOhm | 14 @ 7.96MHz | 100MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.122" (3.10mm) |
|
SLF7045T-330MR82-PFFIXED IND 33UH 1.09A 115.2 MOHM |
6,666 |
|
Технический лист |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.09 A | 820mA | Shielded | 115.2mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|
SLF7045T-681MR20-PFFIXED IND 680UH 270MA 1.776 OHM |
3,778 |
|
Технический лист |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 270 mA | 200mA | Shielded | 1.776Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|
|
SRU1028-6R8YFIXED IND 6.8UH 3.5A 15 MOHM SMD |
3,038 |
|
Технический лист |
SRU1028 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 3.5 A | 3A | Shielded | 15mOhm | 12 @ 7.96MHz | 30MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.122" (3.10mm) |
|
CLF6045T-151M-DFIXED IND 150UH 600MA 576MOHM SM |
2,882 |
|
Технический лист |
CLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 600 mA | 500mA | Shielded | 576mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.244" L x 0.232" W (6.20mm x 5.90mm) | 0.189" (4.80mm) |
|
|
SLF7045T-331MR25-PFFIXED IND 330UH 370MA 888MOHM SM |
2,590 |
|
Технический лист |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 370 mA | 250mA | Shielded | 888mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
