Фиксированные индукторы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NR10050T470MFIXED IND 47UH 1.8A 119.6MOHM SM |
7,365 |
|
Технический лист |
NR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.8 A | 2A | Unshielded | 119.6mOhm Max | - | 7MHz | - | -25°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.386" W (10.00mm x 9.80mm) | 0.197" (5.00mm) |
|
0630CDMCDDS-100MCFIXED IND 10UH 4.5A 62 MOHM SMD |
7,200 |
|
Технический лист |
0630CDMCD/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 10 µH | ±20% | 4.5 A | 4.6A | Shielded | 62mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
0630CDMCCDS-6R8MCFIXED IND 6.8UH 5A 48 MOHM SMD |
6,271 |
|
Технический лист |
0630CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 6.8 µH | ±20% | 5 A | 6.3A | Shielded | 48mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
CDRH4D28NP-101NCFIXED IND 100UH 290MA 1.02OHM SM |
6,185 |
|
Технический лист |
CDRH4D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±30% | 290 mA | - | Shielded | 1.02Ohm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.118" (3.00mm) |
|

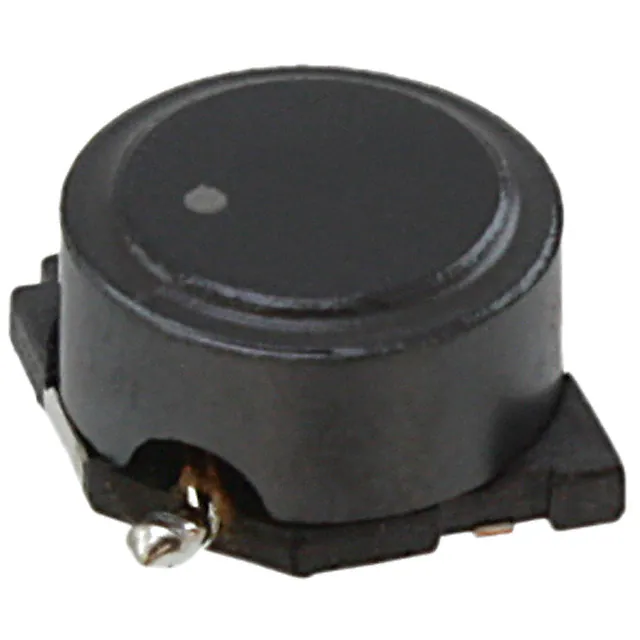

NS10155T4R7NNAFIXED IND 4.7UH 6.01A 13.2 MOHM |
4,693 |
|
Технический лист |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 6.01 A | 7.4A | Shielded | 13.2mOhm Max | - | 33.4MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.230" (5.85mm) |
|
|
NS10155T150MNAFIXED IND 15UH 3.65A 33.6MOHM SM |
4,600 |
|
Технический лист |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 3.65 A | 4.03A | Shielded | 33.6mOhm Max | - | 15.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.230" (5.85mm) |
|
CLF7045NIT-101M-DFIXED IND 100UH 810MA 310MOHM SM |
3,207 |
|
Технический лист |
CLF-NI-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 810 mA | 810mA | Shielded | 310mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.291" L x 0.276" W (7.40mm x 7.00mm) | 0.189" (4.80mm) |
|
CDRH3D18NP-4R7NCFIXED IND 4.7UH 1.35A 107.5 MOHM |
3,124 |
|
Технический лист |
CDRH3D18 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±30% | 1.35 A | 1.35A | Shielded | 107.5mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.079" (2.00mm) |
|
PA4987.102HLTFIXED IND 1UH 16.2A 0.81MOHM SMD |
2,436 |
|
Технический лист |
PA4987 | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±15% | 16.2 A | 20.5A | Shielded | 0.81mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.276" W (10.00mm x 7.00mm) | 0.394" (10.00mm) |
|
SLF7045T-102MR14-PFFIXED IND 1MH 250MA 2.736OHM SMD |
2,027 |
|
Технический лист |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 250 mA | 140mA | Shielded | 2.736Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|
SRP7050WA-220MIND POWER HC 22UH 5A SHLD |
1,632 |
|
Технический лист |
SRP7050WA | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 5 A | 6.3A | Shielded | 93.5mOhm Max | 20 @ 100kHz | 7MHz | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.311" L x 0.287" W (7.90mm x 7.30mm) | 0.213" (5.40mm) |
|
CDRH3D16NP-220NCFIXED IND 22UH 400MA 430MOHM SMD |
48,973 |
|
Технический лист |
CDRH3D16 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±30% | 400 mA | - | Shielded | 430mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.071" (1.80mm) |
|
|
CDRH4D28NP-6R8NCFIXED IND 6.8UH 1.12A 108.9 MOHM |
22,354 |
|
Технический лист |
CDRH4D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±30% | 1.12 A | - | Shielded | 108.9mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.118" (3.00mm) |
|
B82432C1105K000FIXED IND 1MH 55MA 32 OHM SMD |
13,658 |
|
Технический лист |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 55 mA | - | Unshielded | 32Ohm Max | 30 @ 796kHz | 2.8MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
CDRH6D38NP-5R0NCFIXED IND 5UH 2.9A 24 MOHM SMD |
10,649 |
|
Технический лист |
CDRH6D38 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 5 µH | ±30% | 2.9 A | - | Shielded | 24mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.157" (4.00mm) |
|
|
CLF5030NIT-100M-DFIXED IND 10UH 1.6A 114MOHM SMD |
9,669 |
|
Технический лист |
CLF-NI-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.6 A | 1.6A | Shielded | 114mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.118" (3.00mm) |
|

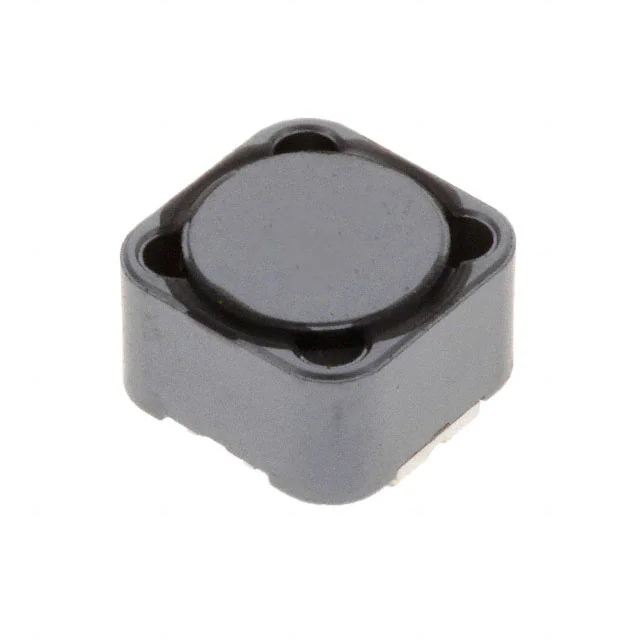

CDRH127L125NP-100MCFIXED IND 10UH 6A 23.6 MOHM SMD |
8,954 |
|
Технический лист |
CDRH127/L125 | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | Drum Core | Ferrite | 10 µH | ±20% | 6 A | 8.4A | Shielded | 23.6mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
NR10050T2R1NFIXED IND 2.1UH 8.3A 10.4MOHM SM |
7,948 |
|
Технический лист |
NR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.1 µH | ±30% | 8.3 A | 10A | Shielded | 10.4mOhm Max | - | 37MHz | - | -25°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.386" W (10.00mm x 9.80mm) | 0.197" (5.00mm) |
|
0630CDMCDDS-3R3MCFIXED IND 3.3UH 8.4A 22MOHM SMD |
6,925 |
|
Технический лист |
0630CDMCD/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 3.3 µH | ±20% | 6.3 A | 11.5A | Shielded | 30mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
|
CDRH4D28NP-220NCFIXED IND 22UH 700MA 235MOHM SMD |
6,171 |
|
Технический лист |
CDRH4D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±30% | 700 mA | - | Shielded | 235mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.118" (3.00mm) |
