Пленочные конденсаторы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Корпус/корпус | Емкость | Допуск | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Материал диэлектрика | ESR (эквивалентное последовательное сопротивление) | Рабочая температура | Тип крепления | Размер/измерение | Высота - в сидячем положении (макс.) | Оконечная нагрузка | Расстояние между выводами | Применение | Номинальные значения | Особенности |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECQ-E2475JBCAP FILM 4.7UF 5% 250VDC RADIAL |
675 |
|
Технический лист |
Radial | 4.7 µF | ±5% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.819" L x 0.469" W (20.80mm x 11.90mm) | 0.866" (22.00mm) | PC Pins | 0.689" (17.50mm) | General Purpose | - | - |
|

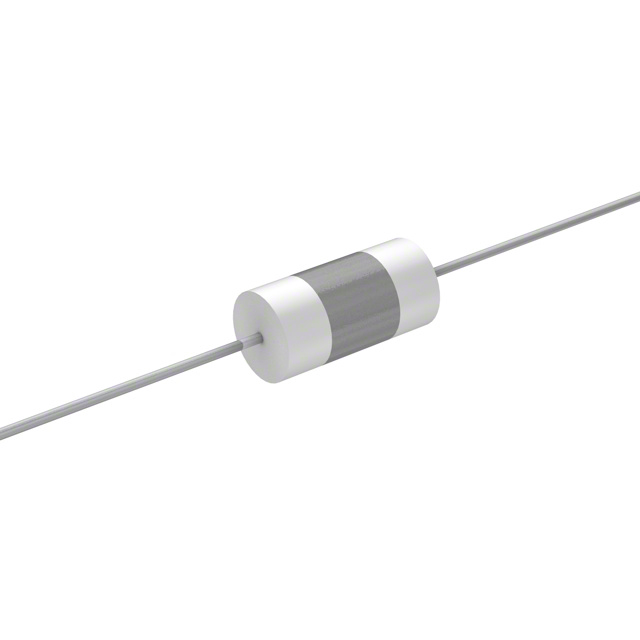

150562K630BBCAP FILM 5600PF 10% 630VDC AXIAL |
2,879 |
|
Технический лист |
Axial | 5600 pF | ±10% | 220V | 630V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.236" Dia x 0.650" L (6.00mm x 16.50mm) | - | PC Pins | - | General Purpose | - | - |
|
PME271M610KR30CAP FILM 0.1UF 10% 630VDC RADIAL |
815 |
|
Технический лист |
Radial | 0.1 µF | ±10% | 275V | 630V | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 0.945" L x 0.299" W (24.00mm x 7.60mm) | 0.551" (14.00mm) | PC Pins | 0.799" (20.30mm) | EMI, RFI Suppression | X2 | - |
|

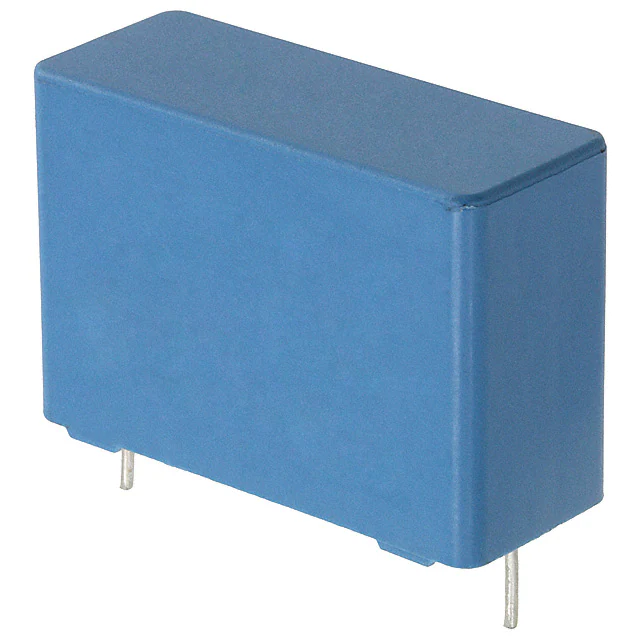

B32924C3155K189CAP FILM 1.5UF 10% 630VDC RADIAL |
758 |
|
Технический лист |
Radial | 1.5 µF | ±10% | 305V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.492" W (31.50mm x 12.50mm) | 0.846" (21.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
R46KN4220JHP0MCAP FILM 2.2UF 20% 560VDC RADIAL |
203 |
|
Технический лист |
Radial | 2.2 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.512" W (26.50mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
B32774X4505K000CAP FILM 5UF 10% 500VDC RADIAL |
5,363 |
|
Технический лист |
Radial | 5 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 21.1 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | Long Life |
|
MKP1T031006B00KSSDCAP FILM 0.1UF 10% 1.6KVDC RAD |
1,488 |
|
Технический лист |
Radial | 0.1 µF | ±10% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
ECW-F6154JLCAP FILM 0.15UF 5% 630VDC RADIAL |
601 |
|
Технический лист |
Radial | 0.15 µF | ±5% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.358" W (18.00mm x 9.10mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
B32023A3104M189CAP FILM 0.1UF 20% 1.5KVDC RAD |
1,713 |
|
Технический лист |
Radial | 0.1 µF | ±20% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | Y2 | - |
|
B32913A3334M000CAP FILM 0.33UF 20% 760VDC RAD |
3,622 |
|
Технический лист |
Radial | 0.33 µF | ±20% | 330V | 760V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X1 | - |
|
B32654A0334K000CAP FILM 0.33UF 10% 1KVDC RADIAL |
1,897 |
|
Технический лист |
Radial | 0.33 µF | ±10% | 250V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|
225P47392XD3CAP FILM 0.047UF 10% 200VDC RAD |
1,112 |
|
Технический лист |
Radial | 0.047 µF | ±10% | 140V | 200V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.799" L x 0.280" W (20.30mm x 7.10mm) | 0.610" (15.50mm) | PC Pins | 0.375" (9.52mm) | Audio; DC Link, DC Filtering | - | - |
|
KP1830233011CAP FILM 3300PF 1% 100VDC RADIAL |
9,254 |
|
Технический лист |
Radial | 3300 pF | ±1% | 63V | 100V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | - | - | PC Pins | 0.197" (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
ECQ-UAAF225KCAP FILM 2.2UF 10% 275VAC RADIAL |
5,870 |
|
Технический лист |
Radial | 2.2 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.220" L x 0.571" W (31.00mm x 14.50mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
890334026030CSCAP FILM 1.5UF 10% 310VAC RADIAL |
5,094 |
|
Технический лист |
Radial | 1.5 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.846" (21.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
B32522C1335K189CAP FILM 3.3UF 10% 100VDC RADIAL |
4,205 |
|
Технический лист |
Radial | 3.3 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.571" (14.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
B32674D3335K000CAP FILM 3.3UF 10% 300VDC RADIAL |
1,013 |
|
Технический лист |
Radial | 3.3 µF | ±10% | - | 300V | Polypropylene (PP), Metallized | 12.2 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.492" W (31.50mm x 12.50mm) | 0.846" (21.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | AEC-Q200 | Long Life |
|
PWS2152100KGCAP FILM 10000PF 10% 1.5KVDC AXL |
348 |
|
Технический лист |
Axial | 10000 pF | ±10% | 450V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.335" Dia x 1.063" L (8.50mm x 27.00mm) | - | PC Pins | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
225MWR050KCAP FILM 2.2UF 10% 50VDC AXIAL |
240 |
|
Технический лист |
Axial | 2.2 µF | ±10% | - | 50V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.354" Dia x 0.571" L (9.00mm x 14.50mm) | - | PC Pins | - | General Purpose | - | Low ESR |
|

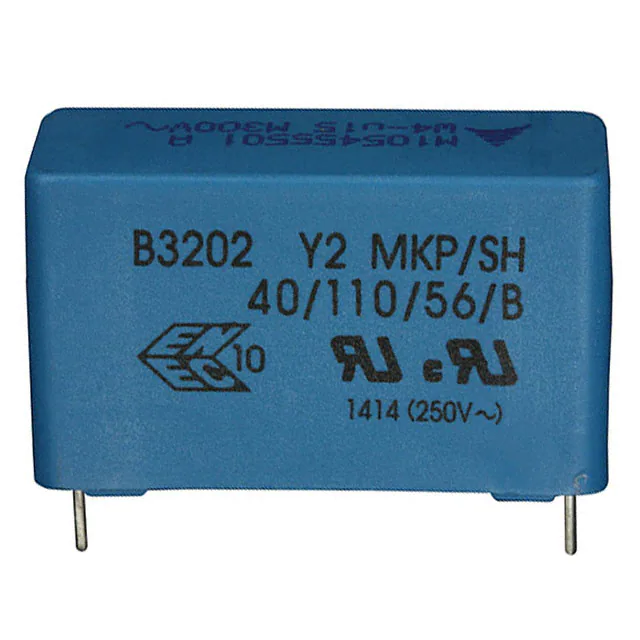

B32024A3154M000CAP FILM 0.15UF 20% 1.5KVDC RAD |
9,838 |
|
Технический лист |
Radial | 0.15 µF | ±20% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.748" (19.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | Y2 | - |
