Пленочные конденсаторы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Корпус/корпус | Емкость | Допуск | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Материал диэлектрика | ESR (эквивалентное последовательное сопротивление) | Рабочая температура | Тип крепления | Размер/измерение | Высота - в сидячем положении (макс.) | Оконечная нагрузка | Расстояние между выводами | Применение | Номинальные значения | Особенности |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
715P68356LD3CAP FILM 0.068UF 5% 600VDC RAD |
978 |
|
Технический лист |
Radial | 0.068 µF | ±5% | 200V | 600V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.598" Dia x 1.252" L (15.20mm x 31.80mm) | 0.894" (22.70mm) | PC Pins | 0.720" (18.30mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
|
715P33356LD3CAP FILM 0.033UF 5% 600VDC RAD |
1,001 |
|
Технический лист |
Radial | 0.033 µF | ±5% | 200V | 600V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.461" Dia x 1.252" L (11.70mm x 31.80mm) | 0.752" (19.10mm) | PC Pins | 0.720" (18.30mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
R523R468050P0KCAP FILM 6.8UF 10% 630VDC RADIAL |
276 |
|
Технический лист |
Radial | 6.8 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.461" (37.10mm) | PC Pins | 1.083" (27.50mm) | Automotive | AEC-Q200, X2 | - |
|
942C16S33K-FCAP FILM 0.033UF 1.6KVDC AXIAL |
106 |
|
Технический лист |
Axial | 0.033 µF | ±10% | 460V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 14 mOhms | -55°C ~ 105°C | Through Hole | 0.571" Dia x 1.339" L (14.50mm x 34.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
63MU474MB23225CAP FILM 0.47UF 20% 63VDC 1210 |
1,844 |
|
Технический лист |
1210 (3225 Metric) | 0.47 µF | ±20% | - | 63V | Acrylic, Metallized | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.079" (2.00mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|
SMDID04100XA00MT00CAP FILM 1UF 20% 100VDC 5040 |
693 |
|
Технический лист |
5040 (127102 Metric) | 1 µF | ±20% | 63V | 100V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 140°C | Surface Mount | 0.500" L x 0.402" W (12.70mm x 10.20mm) | 0.248" (6.30mm) | Solder Pads | - | General Purpose | - | - |
|
MKP1839433124HQCAP FILM 0.33UF 5% 1.25KVDC AXL |
306 |
|
Технический лист |
Axial | 0.33 µF | ±5% | 425V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.551" Dia x 1.240" L (14.00mm x 31.50mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
SMR15105J100B06L16.5CBULKCAP FILM 1UF 5% 100VDC RADIAL |
1,603 |
|
Технический лист |
Radial | 1 µF | ±5% | 63V | 100V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 150°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.571" (14.50mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | High Temperature |
|
R586R368050T0KCAP FILM 600VAC(X1) 0.68 UF 10% |
388 |
|
Технический лист |
Radial | 0.68 µF | ±10% | 600V | 1200V (1.2kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.311" (33.30mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1 | - |
|
BFC237390032CAP FILM 4.7UF 10% 100VDC RADIAL |
420 |
|
Технический лист |
Radial | - | - | - | - | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.354" W (31.00mm x 9.00mm) | 0.748" (19.00mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | Long Life |
|
C4AQCBU5100A11JCAP FILM 10UF 5% 650VDC RADIAL |
256 |
|
Технический лист |
Radial | 10 µF | ±5% | - | 650V | Polypropylene (PP), Metallized | 6.8 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.748" W (31.50mm x 19.00mm) | 1.150" (29.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
DPPM10S33K-FCAP FILM 0.033UF 10% 1KVDC RAD |
2,475 |
|
Технический лист |
Radial | 0.033 µF | ±10% | 450V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.866" (22.00mm) | PC Pins | 1.043" (26.50mm) | High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
|
R523W468050P0KCAP FILM 6.8UF 10% 630VDC RADIAL |
142 |
|
Технический лист |
Radial | 6.8 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.634" L x 0.748" W (41.50mm x 19.00mm) | 1.264" (32.10mm) | PC Pins | 1.476" (37.50mm) | Automotive | AEC-Q200, X2 | - |
|
F339X254730MKM2T0CAP FILM 4.7UF 20% 630VDC RADIAL |
3,952 |
|
Технический лист |
Radial | 4.7 µF | ±20% | 305V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.496" (38.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | 85C/85% Humidity |
|
|
KP1830322061CAP FILM 0.022UF 1% 63VDC RADIAL |
802 |
|
Технический лист |
Radial | 0.022 µF | ±1% | 40V | 63V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.283" W (7.20mm x 7.20mm) | - | PC Pins | 0.197" (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
B32924H3475MCAP FILM 4.7UF 20% 630VDC RADIAL |
457 |
|
Технический лист |
Radial | 4.7 µF | ±20% | 305V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.437" (36.50mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | 85C/85% Humidity |
.JPG)
|
334PPB102KCAP FILM 0.33UF 10% 1KVDC RADIAL |
4,902 |
|
Технический лист |
Radial | 0.33 µF | ±10% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.673" L x 0.669" W (42.50mm x 17.00mm) | 1.102" (28.00mm) | PC Pins | 1.476" (37.50mm) | Commutation; High Pulse, DV/DT; Snubber | - | - |
|
|
DCP4P045006ID2KSSDCAP FILM 5UF 10% 1.1KVDC RADIAL |
2,809 |
|
Технический лист |
Radial | 5 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 14 mOhms | -55°C ~ 105°C | Through Hole | 1.240" L x 0.669" W (31.50mm x 17.00mm) | 1.358" (34.50mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|

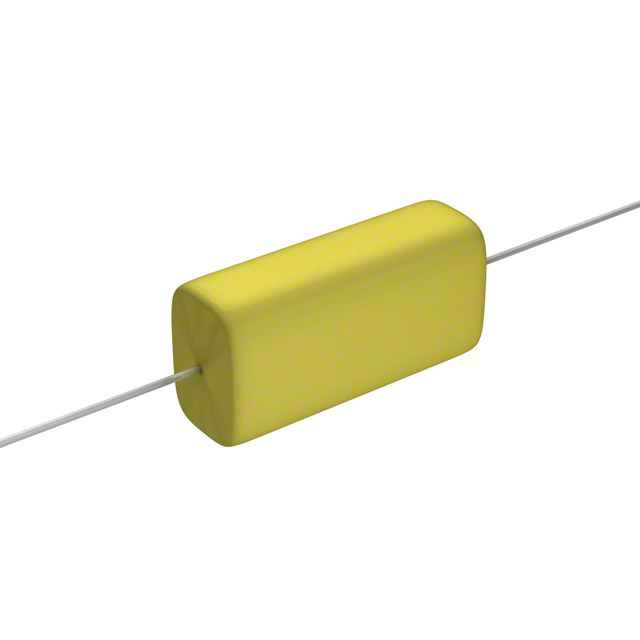

MMP6P47K-FCAP FILM 0.47UF 10% 630VDC AXIAL |
949 |
|
Технический лист |
Axial | 0.47 µF | ±10% | 250V | 630V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.689" W, 0.472" T x 1.378" L (17.50mm, 12.00mm x 35.00mm) | - | PC Pins | - | General Purpose | - | Long Life |
|
C4AEHBU4560A1XJCAP FILM 5.6UF 5% 600VDC RADIAL |
824 |
|
Технический лист |
Radial | 5.6 µF | ±5% | - | 600V | Polypropylene (PP), Metallized | 10.7 mOhms | -40°C ~ 85°C | Through Hole | 1.240" L x 0.512" W (31.50mm x 13.00mm) | 0.992" (25.20mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
