Пленочные конденсаторы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Корпус/корпус | Емкость | Допуск | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Материал диэлектрика | ESR (эквивалентное последовательное сопротивление) | Рабочая температура | Тип крепления | Размер/измерение | Высота - в сидячем положении (макс.) | Оконечная нагрузка | Расстояние между выводами | Применение | Номинальные значения | Особенности |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
715P22358LD3CAP FILM 0.022UF 5% 800VDC RAD |
1,346 |
|
Технический лист |
Radial | 0.022 µF | ±5% | 450V | 800V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.441" Dia x 1.252" L (11.20mm x 31.80mm) | 0.752" (19.10mm) | PC Pins | 0.720" (18.30mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
B32674D1225K000CAP FILM 2.2UF 10% 750VDC RADIAL |
995 |
|
Технический лист |
Radial | 2.2 µF | ±10% | - | 750V | Polypropylene (PP), Metallized | 11.3 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.083" (27.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | AEC-Q200 | Long Life |
|
R46KR433050M2KCAP FILM 3.3UF 10% 560VDC RADIAL |
243 |
|
Технический лист |
Radial | 3.3 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.303" (33.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
C4AQUBU4330A11JCAP FILM 3.3UF 5% 1.3KVDC RADIAL |
156 |
|
Технический лист |
Radial | 3.3 µF | ±5% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 11.2 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.748" W (31.50mm x 19.00mm) | 1.150" (29.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
PPA2123100KJCAP FILM 0.1UF 10% 1.2KVDC AXIAL |
153 |
|
Технический лист |
Axial | 0.1 µF | ±10% | 550V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 10.7 mOhms | -40°C ~ 85°C | Through Hole | 0.472" Dia x 1.260" L (12.00mm x 32.00mm) | - | PC Pins | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
475MKP275KJCAP FILM 4.7UF 10% 310VAC RADIAL |
10,076 |
|
Технический лист |
Radial | 4.7 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.634" L x 0.669" W (41.50mm x 17.00mm) | 1.193" (30.30mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X2 | - |
|
F17724472030CAP FILM 0.47UF 10% 630VDC RAD |
661 |
|
Технический лист |
Radial | 0.47 µF | ±10% | 310V | 630V | Polyester, Metallized | - | -40°C ~ 110°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
B32654A6155K000CAP FILM 1.5UF 10% 630VDC RADIAL |
467 |
|
Технический лист |
Radial | 1.5 µF | ±10% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.083" (27.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|
QXP2E225KRPTCAP FILM 2.2UF 10% 250VDC RADIAL |
247 |
|
Технический лист |
Radial | 2.2 µF | ±10% | 125V | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.240" L x 0.496" W (31.50mm x 12.60mm) | 0.882" (22.40mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching | - | - |
|
R463W447000M1MCAP FILM 4.7UF 20% 630VDC RADIAL |
194 |
|
Технический лист |
Radial | 4.7 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.634" L x 0.748" W (41.50mm x 19.00mm) | 1.264" (32.10mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X2 | - |
|
|
C4AQJLU4500M12JCAP FILM 5UF 5% 700VDC RADIAL |
153 |
|
Технический лист |
Radial | 5 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 11.5 mOhms | -55°C ~ 105°C | Through Hole | 1.260" L x 0.945" W (32.00mm x 24.00mm) | 0.598" (15.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
ECW-FG60605JCAP FILM 6UF 600VDC RADIAL |
117 |
|
Технический лист |
Radial | 6 µF | ±5% | - | 600V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.472" W (31.50mm x 12.00mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 | High Temperature |
|
R474R36805001KCAP FILM 0.68UF 10% 1KVDC RADIAL |
696 |
|
Технический лист |
Radial | 0.68 µF | ±10% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.551" W (32.00mm x 14.00mm) | 1.106" (28.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
BFC233840104CAP FILM 0.1UF 20% 800VDC RADIAL |
1,771 |
|
Технический лист |
Radial | 0.1 µF | ±20% | 300V | 800V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.236" W (17.50mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
BFC241641204CAP FILM 0.12UF 2% 63VDC RADIAL |
9,187 |
|
Технический лист |
Radial | 0.12 µF | ±2% | 25V | 63V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.283" L x 0.236" W (7.20mm x 6.00mm) | 0.433" (11.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching | - | - |
|

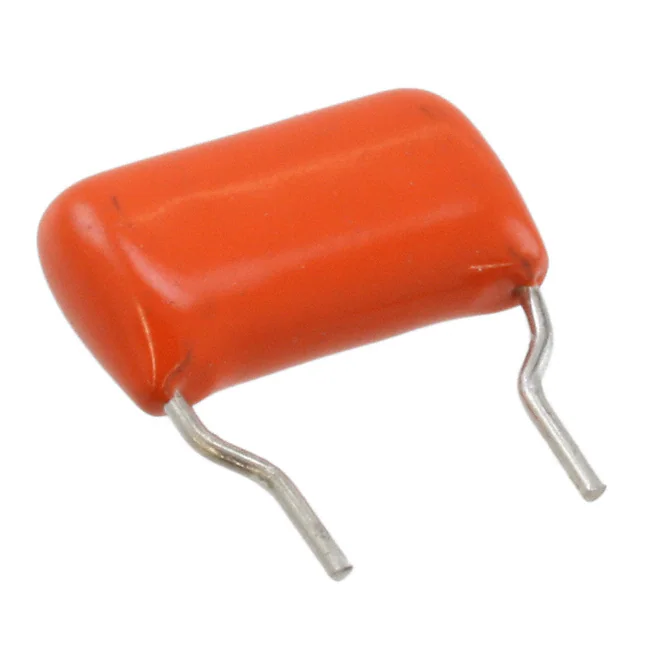

225P47391WD1CAP FILM 0.047UF 10% 100VDC RAD |
998 |
|
Технический лист |
Radial | 0.047 µF | ±10% | 70V | 100V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.701" L x 0.299" W (17.80mm x 7.60mm) | 0.421" (10.70mm) | PC Pins | 0.375" (9.52mm) | Audio; DC Link, DC Filtering | - | - |
|
RA6105K250-FACAP FILM 1UF 10% 250VDC RADIAL |
276 |
|
Технический лист |
Radial | 1 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 0.650" L x 0.240" W (16.50mm x 6.10mm) | 0.339" (8.60mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching; High Pulse, DV/DT; EMI, RFI Suppression | - | Low ESR; Low ESL; Long Life |
|
|
C4AQIBU4400A1XJCAP FILM 4UF 5% 800VDC RADIAL |
2,559 |
|
Технический лист |
Radial | 4 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 12.9 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.512" W (31.50mm x 13.00mm) | 0.992" (25.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
BFC233810153CAP FILM 0.015UF 20% 1KVDC RAD |
1,617 |
|
Технический лист |
Radial | 0.015 µF | ±20% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.197" W (17.50mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
B32524R6475K000CAP FILM 4.7UF 10% 400VDC RADIAL |
462 |
|
Технический лист |
Radial | 4.7 µF | ±10% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.551" W (31.50mm x 14.00mm) | 0.965" (24.50mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | - | - |
