FET, MOSFET
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип полевого транзистора | Технология | Напряжение сток-исток (Vdss) | Ток - Непрерывный сток (Id) @ 25°C | Напряжение управления (Макс. Rds On, Мин. Rds On) | Rds On (Макс.) @ Id, Vgs | Vgs(th) (Макс.) @ Id | Заряд затвора (Qg) (Макс.) @ Vgs | Vgs (макс.) | Входная емкость (Ciss) (Макс.) @ Vds | Характеристика FET | Рассеиваемая мощность (макс.) | Рабочая температура | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXTU64N055TMOSFET N-CH 55V 64A TO251 |
7,760 |
|
- |
Trench | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 55 V | 64A (Tc) | - | - | 4V @ 25µA | - | - | - | - | - | - | - | - | Through Hole | TO-251AA |
|

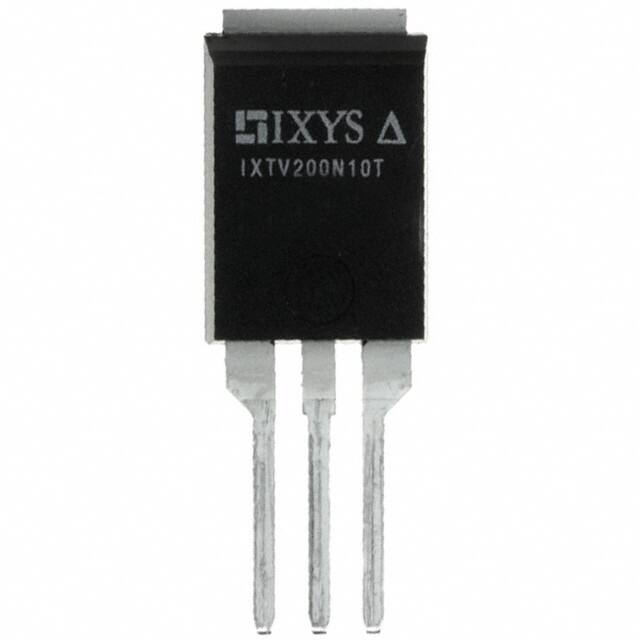

IXTV200N10TMOSFET N-CH 100V 200A PLUS220 |
7,263 |
|
- |
TrenchMV™ | TO-220-3, Short Tab | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 200A (Tc) | 10V | 5.5mOhm @ 50A, 10V | 4.5V @ 250µA | 152 nC @ 10 V | ±30V | 9400 pF @ 25 V | - | 550W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | PLUS220 |
|

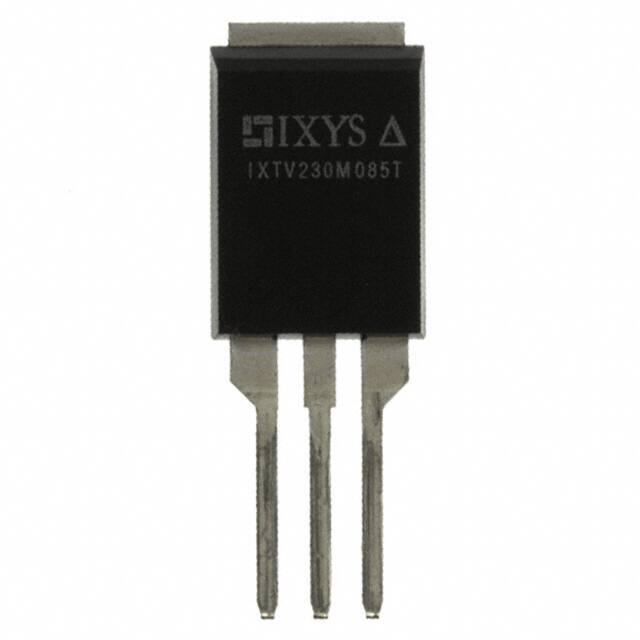

IXTV230N085TMOSFET N-CH 85V 230A PLUS220 |
3,034 |
|
- |
TrenchMV™ | TO-220-3, Short Tab | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 85 V | 230A (Tc) | 10V | 4.4mOhm @ 50A, 10V | 4V @ 250µA | 187 nC @ 10 V | ±20V | 9900 pF @ 25 V | - | 550W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | PLUS220 |
|
IXTY2N80PMOSFET N-CH 800V 2A TO252 |
7,380 |
|
- |
PolarHV™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 800 V | 2A (Tc) | 10V | 6Ohm @ 1A, 10V | 5.5V @ 50µA | 10.6 nC @ 10 V | ±30V | 440 pF @ 25 V | - | 70W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA |
|
|
IXTY50N085TMOSFET N-CH 85V 50A TO252 |
9,798 |
|
- |
TrenchMV™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 85 V | 50A (Tc) | 10V | 23mOhm @ 25A, 10V | 4V @ 25µA | 34 nC @ 10 V | ±20V | 1460 pF @ 25 V | - | 130W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-252AA |
|
|
IXTY55N075TMOSFET N-CH 75V 55A TO252 |
8,854 |
|
Технический лист |
TrenchMV™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 55A (Tc) | 10V | 19.5mOhm @ 27.5A, 10V | 4V @ 25µA | 33 nC @ 10 V | ±20V | 1400 pF @ 25 V | - | 130W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-252AA |
|
|
IXTY64N055TMOSFET N-CH 55V 64A TO252 |
4,874 |
|
Технический лист |
TrenchMV™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 64A (Tc) | 10V | 13mOhm @ 500mA, 10V | 4V @ 25µA | 37 nC @ 10 V | ±20V | 1420 pF @ 25 V | - | 130W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-252AA |
|
IXUV170N075SMOSFET N-CH 75V 175A PLUS-220SMD |
3,808 |
|
- |
- | PLUS-220SMD | Box | Active | N-Channel | MOSFET (Metal Oxide) | 75 V | 175A (Tc) | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | PLUS-220SMD |
|
SI1419DH-T1-E3MOSFET P-CH 200V 300MA SC70-6 |
2,419 |
|
- |
TrenchFET® | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 200 V | 300mA (Ta) | 6V, 10V | 5Ohm @ 400mA, 10V | 4.5V @ 100µA | 6.2 nC @ 10 V | ±20V | - | - | 1W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-70-6 |
|
|
SI1433DH-T1-E3MOSFET P-CH 30V 1.9A SC70-6 |
6,670 |
|
- |
TrenchFET® | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 1.9A (Ta) | 4.5V, 10V | 150mOhm @ 2.2A, 10V | 3V @ 100µA | 5 nC @ 4.5 V | ±20V | - | - | 950mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-70-6 |
|
|
SI1471DH-T1-E3MOSFET P-CH 30V 2.7A SC70-6 |
8,093 |
|
Технический лист |
TrenchFET® | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 2.7A (Tc) | 2.5V, 10V | 100mOhm @ 2A, 10V | 1.6V @ 250µA | 9.8 nC @ 4.5 V | ±12V | 445 pF @ 15 V | - | 1.5W (Ta), 2.78W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-70-6 |
|
|
SI1473DH-T1-E3MOSFET P-CH 30V 2.7A SC70-6 |
2,456 |
|
Технический лист |
TrenchFET® | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 2.7A (Tc) | 4.5V, 10V | 100mOhm @ 2A, 10V | 3V @ 250µA | 6.2 nC @ 4.5 V | ±20V | 365 pF @ 15 V | - | 1.5W (Ta), 2.78W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-70-6 |
|
|
SI1488DH-T1-E3MOSFET N-CH 20V 6.1A SC70-6 |
2,001 |
|
Технический лист |
TrenchFET® | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 6.1A (Tc) | 1.8V, 4.5V | 49mOhm @ 4.6A, 4.5V | 950mV @ 250µA | 10 nC @ 5 V | ±8V | 530 pF @ 10 V | - | 1.5W (Ta), 2.8W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-70-6 |
|
SI3467DV-T1-E3MOSFET P-CH 20V 3.8A 6TSOP |
8,638 |
|
- |
TrenchFET® | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 3.8A (Ta) | 4.5V, 10V | 54mOhm @ 5A, 10V | 3V @ 250µA | 13 nC @ 10 V | ±20V | - | - | 1.14W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-TSOP |
|
|
SI3851DV-T1-E3MOSFET P-CH 30V 1.6A 6TSOP |
3,188 |
|
- |
LITTLE FOOT® | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 1.6A (Ta) | 4.5V, 10V | 200mOhm @ 1.8A, 10V | 1V @ 250µA (Min) | 3.6 nC @ 5 V | ±20V | - | Schottky Diode (Isolated) | 830mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-TSOP |
|
|
SI3853DV-T1-E3MOSFET P-CH 20V 1.6A 6TSOP |
4,028 |
|
Технический лист |
LITTLE FOOT® | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 1.6A (Ta) | 2.5V, 4.5V | 200mOhm @ 1.8A, 4.5V | 500mV @ 250µA (Min) | 4 nC @ 4.5 V | ±12V | - | Schottky Diode (Isolated) | 830mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-TSOP |
|
SI4348DY-T1-E3MOSFET N-CH 30V 8A 8SO |
8,574 |
|
- |
TrenchFET® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 8A (Ta) | 4.5V, 10V | 12.5mOhm @ 11A, 10V | 2V @ 250µA | 23 nC @ 4.5 V | ±12V | - | - | 1.31W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
SI4620DY-T1-E3MOSFET N-CH 30V 6A/7.5A 8SO |
4,786 |
|
Технический лист |
LITTLE FOOT® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 6A (Ta), 7.5A (Tc) | 4.5V, 10V | 35mOhm @ 6A, 10V | 2.5V @ 250µA | 13 nC @ 10 V | ±20V | 1040 pF @ 15 V | Schottky Diode (Isolated) | 2W (Ta), 3.1W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
SI4621DY-T1-E3MOSFET P-CH 20V 6.2A 8SO |
4,209 |
|
Технический лист |
LITTLE FOOT® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 6.2A (Tc) | 4.5V, 10V | 54mOhm @ 5A, 10V | 3V @ 250µA | 13 nC @ 10 V | ±20V | 450 pF @ 10 V | Schottky Diode (Isolated) | 2W (Ta), 3.1W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
SI4632DY-T1-E3MOSFET N-CH 25V 40A 8SO |
4,688 |
|
Технический лист |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 25 V | 40A (Tc) | 4.5V, 10V | 2.7mOhm @ 20A, 10V | 2.6V @ 250µA | 161 nC @ 10 V | ±16V | 11175 pF @ 15 V | - | 3.5W (Ta), 7.8W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
