Ферритовые сердечники
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип ядра | Устройство поставщика Упаковка | Материал | Диаметр | Коэффициент индуктивности (Al) | Допуск | Зазор | Эффективная проницаемость (µe) | Начальная проницаемость (µi) | Коэффициент сердечника (ΣI/A) мм⁻¹ | Эффективная длина (le) мм | Эффективная площадь (Ae) мм² | Минимальное поперечное сечение сердечника (Amin) мм² | Эффективная Магнитный объем (Ve) мм³ | Отделка | Высота | Длина | Ширина |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9595444502FERRITE CORE ETD 95 SET |
137 |
|
Технический лист |
- | Bulk | Active | ETD | - | 95 | - | - | ±25% | Ungapped | - | 3000 | 60.0 | 103.5 | 173.0 | 117.7 | 17940.0 | Uncoated | 0.878" (22.30mm) | - | - |
|
6695323121FERRITE CORE PQ 95 SET |
200 |
|
Технический лист |
- | Bulk | Active | PQ | - | 95 | - | - | ±25% | Ungapped | - | 3000 | 45.9 | 75.3 | 164.2 | 140.1 | 12370.0 | Uncoated | - | 1.260" (32.00mm) | 0.866" (22.00mm) |
|
9595354202FERRITE CORE EER 95 SET |
159 |
|
Технический лист |
- | Bulk | Active | EER | - | 95 | - | - | ±25% | Ungapped | - | 3000 | 82.0 | 91.1 | 111.0 | 100.0 | 10140.0 | Uncoated | - | 1.378" (35.00mm) | 0.445" (11.30mm) |
|
B65803N0100A048FERRITE CORE RM 100NH N48 2PCS |
2,114 |
|
Технический лист |
RM4 | Box | Active | RM | RM 4 | N48 | - | 100 nH | ±3% | Gapped | 152.0 | - | 1.9 | 21.0 | 11.0 | - | 231.0 | Uncoated | 0.207" (5.25mm) | 0.433" (11.00mm) | 0.181" (4.60mm) |
|
B64290L0647X065FERRITE CORE TOROID 6.8UH T65 |
555 |
|
Технический лист |
TX29/19/15 | Box | Active | Toroid | - | T65 | 1.220" (31.00mm) | 6.8 µH | ±30% | Ungapped | - | 5200 | 0.96 | 73.78 | 76.98 | - | 5680.0 | Epoxy | 0.634" (16.10mm) | - | - |
|
9498206002FERRITE CORE E SET |
190 |
|
Технический лист |
- | Bulk | Active | E | - | - | - | - | ±25% | Ungapped | - | 2400 | 28.0 | 62.1 | 221.0 | 215.0 | 13700.0 | Uncoated | - | - | - |
|
TX32/19/13-3E12FERRITE CORE TOROID |
381 |
|
Технический лист |
- | Bulk | Active | Toroid | TX 32 x 19 x 13 | - | 1.281" (32.55mm) | - | - | - | - | - | - | - | - | - | - | Epoxy | 0.528" (13.40mm) | - | - |
|
TX29/19/15-3E12FERRITE CORE TOROID |
315 |
|
Технический лист |
- | Bulk | Active | Toroid | TX 29 x 19 x 15 | - | 1.179" (29.95mm) | - | - | - | - | - | - | - | - | - | - | Epoxy | 0.632" (16.05mm) | - | - |
|
|
B65813H3200X041FERRITE CORE RM N41 |
600 |
|
Технический лист |
RM10 | Box | Active | RM | RM 10 | N41 | - | - | - | Gapped | - | 2800 | 0.45 | 42.0 | 83.0 | - | 3490.0 | Uncoated | 0.368" (9.35mm) | 1.122" (28.50mm) | 0.531" (13.50mm) |
|
TX36/23/15-3E27-M7FERRITE CORE TOROID 3E+27 |
200 |
|
Технический лист |
- | Bulk | Active | Toroid | TX 36 x 23 x 15 | 3E27 | 1.463" (37.15mm) | - | ±25% | Ungapped | 7000.0 | - | 0.919 | 89.7 | 97.5 | - | 8740.0 | Epoxy | 0.630" (16.00mm) | - | - |
|

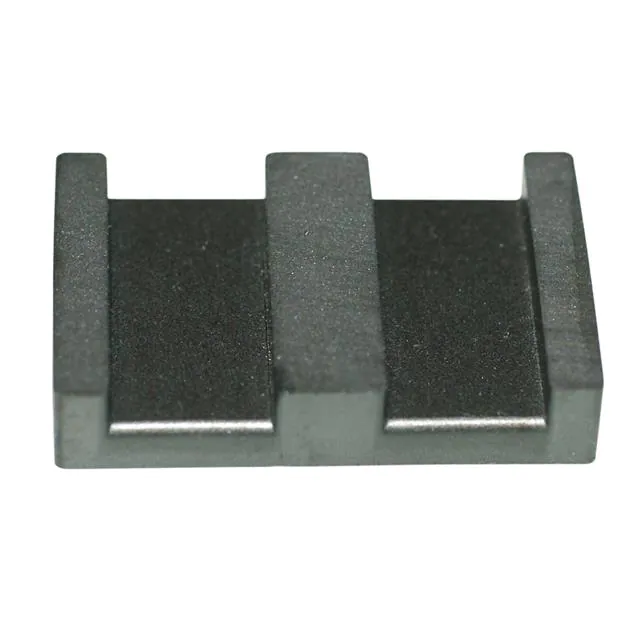

9495205002FERRITE CORE E 95 SET |
135 |
|
Технический лист |
- | Bulk | Active | E | - | 95 | - | - | ±25% | Ungapped | - | 3000 | 30.0 | 52.9 | 190.0 | 180.0 | 10100.0 | Uncoated | 0.325" (8.26mm) | 1.500" (38.10mm) | 1.000" (25.40mm) |
|

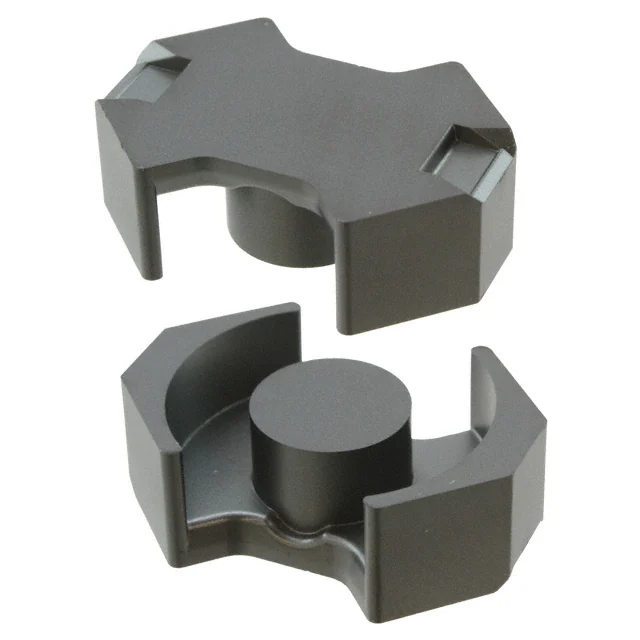

B65813J0160A087FERRITE CORE RM N87 2PCS |
739 |
|
Технический лист |
RM10 | Box | Active | RM | RM 10 | N87 | - | - | - | Gapped | - | - | 0.45 | 44.0 | 98.0 | 90.0 | 4310.0 | Uncoated | 0.368" (9.35mm) | 1.122" (28.50mm) | 0.531" (13.50mm) |
|
TX39/20/13-3E10-MFERRITE CORE TOROID |
296 |
|
Технический лист |
- | Bulk | Active | Toroid | TX 39 x 20 x 13 | - | 1.567" (39.80mm) | - | ±30% | Ungapped | 10000.0 | - | 0.76 | 84.9 | 112.0 | - | 9513.0 | Epoxy | 0.535" (13.60mm) | - | - |
|
B65811D0400A048FERRITE CORE RM 400NH N48 2PCS |
520 |
|
Технический лист |
RM8 | Box | Active | RM | RM 8 | N48 | - | 400 nH | ±3% | Gapped | 215.0 | - | 0.68 | 35.1 | 52.0 | - | 1825.0 | Uncoated | 0.324" (8.25mm) | 0.913" (23.20mm) | 0.433" (11.00mm) |
|
B65875B0000R049FERRITE CORE PQ 2.4UH N49 2PCS |
681 |
|
Технический лист |
PQ20/16 | Tray | Active | PQ | PQ 20 x 16 | N49 | - | 2.4 µH | -20%, +30% | Ungapped | 1105.0 | 1500 | 0.579 | 37.0 | 64.0 | 57.6 | 2367.0 | Uncoated | 0.319" (8.10mm) | 0.807" (20.50mm) | 0.551" (14.00mm) |
|
B65651D0000R030FERRITE CORE P N30 2PCS |
1,500 |
|
Технический лист |
P18/11 | Box | Active | P (Pot Core) | P 18 x 11 | N30 | 0.724" (18.40mm) | - | - | Ungapped | - | - | 0.6 | 25.9 | 43.0 | - | 1114.0 | Uncoated | 0.209" (5.30mm) | - | - |
|
PC95ELT22X8-ZFERRITE CORE ELH 6.54UH 1SET |
234 |
|
Технический лист |
Planar | Tray | Active | ELH, PLT | ELT 22 x 8 | PC95 | - | 6.54 µH | ±25% | Ungapped | - | - | 0.41 | 66.2 | 27.3 | 64.2 | 1810.0 | Uncoated | 0.237" (6.02mm) | 0.866" (22.00mm) | 0.693" (17.60mm) |
|
PQ32/25-3C95FERRITE CORE PQ 3C95 2PC SET |
511 |
|
Технический лист |
- | Bulk | Active | PQ | PQ 32 x 25 | 3C95 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.984" (25.00mm) | 1.299" (33.00mm) | 0.866" (22.00mm) |
|

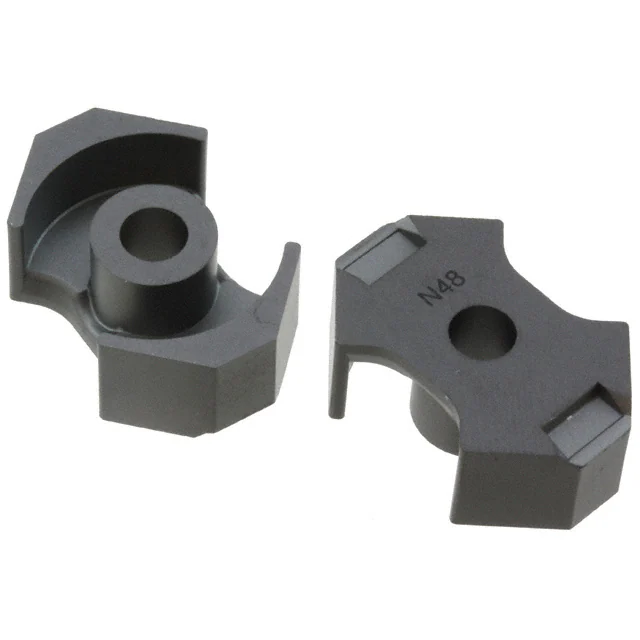

B65811D0000R048FERRITE CORE RM 2.9UH N48 2PCS |
522 |
|
Технический лист |
RM8 | Box | Active | RM | RM 8 | N48 | - | 2.9 µH | -20%, +30% | Ungapped | 1550.0 | - | 0.68 | 35.1 | 52.0 | - | 1825.0 | Uncoated | 0.324" (8.25mm) | 0.913" (23.20mm) | 0.433" (11.00mm) |
|
B65875A0000R095FERRITE CORE PQ 3.3UH N95 2PCS |
885 |
|
Технический лист |
PQ20/20 | Box | Active | PQ | PQ 20 x 20 | N95 | - | 3.3 µH | -20%, +30% | Ungapped | 1860.0 | 2000 | 0.718 | 45.2 | 62.9 | 54.4 | 2843.0 | Uncoated | 0.398" (10.10mm) | 0.807" (20.50mm) | 0.551" (14.00mm) |
