Ферритовые сердечники
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип ядра | Устройство поставщика Упаковка | Материал | Диаметр | Коэффициент индуктивности (Al) | Допуск | Зазор | Эффективная проницаемость (µe) | Начальная проницаемость (µi) | Коэффициент сердечника (ΣI/A) мм⁻¹ | Эффективная длина (le) мм | Эффективная площадь (Ae) мм² | Минимальное поперечное сечение сердечника (Amin) мм² | Эффективная Магнитный объем (Ve) мм³ | Отделка | Высота | Длина | Ширина |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E65/32/27-3C90-G1000Ferrite Misc |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
E65/32/27-3C90-G250Ferrite Misc |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
E65/32/27-3C94-E630Ferrite Misc |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
E65/32/27-3C94-G1000FERRITE CORE E 3C94 |
0 |
|
Технический лист |
- | Bulk | Active | E | E 65 x 32 x 27 | 3C94 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 1.291" (32.80mm) | 2.559" (65.00mm) | 1.079" (27.40mm) |
|
|
E65/32/27-3C94-G500FERRITE CORE E 3C94 |
0 |
|
Технический лист |
- | Bulk | Active | E | E 65 x 32 x 27 | 3C94 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 1.291" (32.80mm) | 2.559" (65.00mm) | 1.079" (27.40mm) |
|
|
E65/32/27-3C11Ferrite Misc |
0 |
|
Технический лист |
- | Bulk | Active | E | E 65 x 32 x 27 | 3C11 | - | 16.7 µH | ±25% | Ungapped | 3620.0 | - | 0.274 | 147.0 | 540.0 | 530.0 | 79000.0 | Uncoated | 1.291" (32.80mm) | 2.559" (65.00mm) | 1.079" (27.40mm) |
|
T60006L2040W452FERRITE CORE TOROID 10.2UH |
0 |
|
Технический лист |
- | Box | Active | Toroid | - | - | 1.697" (43.15mm) | 10.2 µH | - | Ungapped | - | - | - | 113.0 | 45.6 | - | - | Uncoated | 0.728" (18.50mm) | - | - |
|
T60006L2040W422FERRITE CORE TOROID 48UH |
0 |
|
Технический лист |
- | Box | Active | Toroid | - | - | 1.697" (43.10mm) | 48 µH | - | Ungapped | - | - | - | 113.0 | 45.6 | - | - | Uncoated | 0.728" (18.50mm) | - | - |
|
|
0P40905A250GAPPED POT CORE |
0 |
|
Технический лист |
- | Bulk | Active | P | - | P | 0.366" (9.30mm) | 250 nH | - | Ungapped | - | 2500 | - | 12.5 | 10.1 | - | 126.0 | Uncoated | 0.213" (5.40mm) | - | - |
|
|
E80/38/20-3C95FERRITE CORE E 3C95 |
0 |
|
Технический лист |
- | Bulk | Active | E | E 80 x 38 x 20 | 3C95 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 1.500" (38.10mm) | 3.150" (80.00mm) | 0.780" (19.80mm) |
|
|
P22/13-4C65Ferrite Misc |
0 |
|
- |
- | Bulk | Active | P | P 22 x 13 | 4C65 | 0.866" (22.00mm) | 310 nH | ±25% | Ungapped | 123.0 | - | 0.497 | 31.5 | 63.4 | 50.9 | 2000.0 | Uncoated | 0.264" (6.71mm) | - | - |
|
|
B65701D1000A048P30/19 N48 1000 +3% |
0 |
|
Технический лист |
B65701 | Tray | Active | P | P 30 x 19 | N48 | 1.200" (30.50mm) | 1 µH | ±3% | Gapped | 263.0 | - | 0.33 | 45.0 | 136.0 | - | 6120.0 | Uncoated | 0.362" (9.20mm) | - | - |
|
|
NR44230UGRM NH CORE |
0 |
|
Технический лист |
- | Bulk | Active | RM | - | R | - | 7 µH | - | Ungapped | - | 2300 | - | 70.0 | 198.0 | 168.0 | 13900.0 | Uncoated | 0.593" (15.05mm) | 1.661" (42.20mm) | 0.748" (19.00mm) |
|
|
C055125A2MPP 300 PERM GREY 130 SIZE |
0 |
|
Технический лист |
- | Bulk | Active | Toroid | - | MPP | 0.465" (11.81mm) | 127 nH | ±8% | Ungapped | - | 300 | - | 26.9 | 9.06 | - | 244.0 | Coated | 0.181" (4.60mm) | - | - |
|

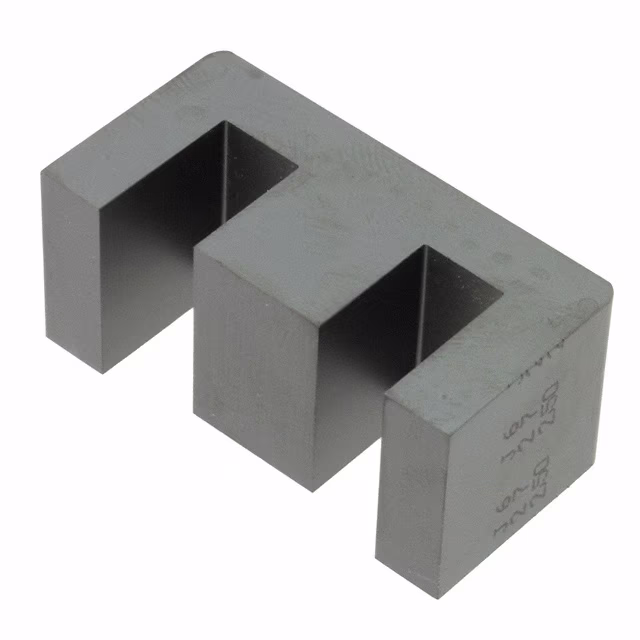

B66344G2500X127FERRITE CORE E N27 1PC |
0 |
|
Технический лист |
E55/28/25 | Box | Active | E | E 55 x 28 x 25 | N27 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 1.094" (27.80mm) | 2.165" (55.00mm) | 0.984" (25.00mm) |
|
|
P26/16-3D3-E160/NFerrite Misc |
0 |
|
Технический лист |
- | Bulk | Active | P | P 26 x 16 | 3D3 | 1.004" (25.50mm) | 160 nH | ±3% | Gapped | 51.0 | - | 0.4 | 37.6 | 93.9 | 77.4 | 3530.0 | Uncoated | 0.317" (8.05mm) | - | - |
|
|
P26/16-3H3-E160/NFerrite Misc |
0 |
|
Технический лист |
- | Bulk | Active | P | P 26 x 16 | 3H3 | 1.004" (25.50mm) | 160 nH | ±3% | Gapped | 51.0 | - | 0.4 | 37.6 | 93.9 | 77.4 | 3530.0 | Uncoated | 0.317" (8.05mm) | - | - |
|
|
B65701W0400A092FERRITE CORE N92 |
0 |
|
Технический лист |
P30/19 | Box | Active | - | P 30 x 19 | N92 | 1.200" (30.50mm) | - | - | Gapped | - | 1500 | 0.32 | 46.0 | 145.0 | 117.0 | 6670.0 | Uncoated | 0.374" (9.50mm) | - | - |
|
|
00X6020B026X FLUX 6020 BLOCK |
0 |
|
Технический лист |
- | Bulk | Active | Planar E/I | - | XFlux | - | - | - | Ungapped | - | 26 | - | - | - | - | - | Uncoated | 0.787" (20.00mm) | 2.382" (60.50mm) | 0.799" (20.30mm) |
|
|
00X6020B060X FLUX 6020 BLOCK |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
