Ферритовые сердечники
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип ядра | Устройство поставщика Упаковка | Материал | Диаметр | Коэффициент индуктивности (Al) | Допуск | Зазор | Эффективная проницаемость (µe) | Начальная проницаемость (µi) | Коэффициент сердечника (ΣI/A) мм⁻¹ | Эффективная длина (le) мм | Эффективная площадь (Ae) мм² | Минимальное поперечное сечение сердечника (Amin) мм² | Эффективная Магнитный объем (Ve) мм³ | Отделка | Высота | Длина | Ширина |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P18/11-3H3-E63Ferrite Misc |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
P18/11-3H3-A400Ferrite Misc |
0 |
|
Технический лист |
- | Bulk | Active | P | P 18 x 11 | 3H3 | 0.724" (18.40mm) | 400 nH | ±3% | Gapped | 190.0 | - | 0.597 | 25.8 | 43.3 | 36.0 | 1120.0 | Uncoated | 0.209" (5.30mm) | - | - |
|
|
P22/13-3F3Ferrite Misc |
0 |
|
Технический лист |
- | Bulk | Active | P | P 22 x 13 | 3F3 | 0.866" (22.00mm) | 3.55 µH | ±25% | Ungapped | 1410.0 | - | 0.497 | 31.5 | 63.4 | 50.9 | 2000.0 | Uncoated | 0.264" (6.71mm) | - | - |
|
B65819P0000R049FERRITE CORE RM 2.4UH N49 2PCS |
0 |
|
Технический лист |
RM7/LP | Box | Active | RM | RM 7 LP | N49 | - | 2.4 µH | -20%, +30% | Ungapped | 990.0 | 1500 | 0.52 | 23.5 | 45.3 | 39.6 | 1060.0 | Uncoated | 0.193" (4.90mm) | 0.799" (20.30mm) | - |
|

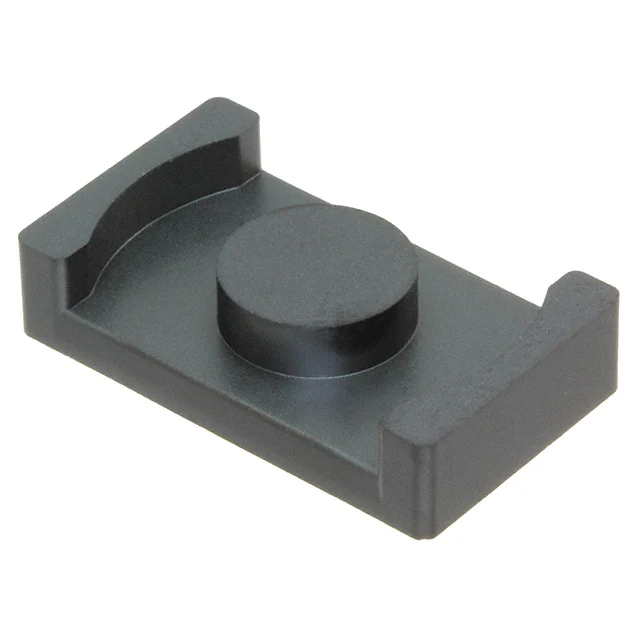

B66347G0000X127FERRITE CORE ER N27 1PC |
0 |
|
Технический лист |
ER42/22/15 | Box | Active | ER | ER 42 x 22 x 15 | N27 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.858" (21.80mm) | 1.654" (42.00mm) | 0.591" (15.00mm) |
|
|
0059211A2EDGE 075 PERM GREEN 206 SIZE |
0 |
|
Технический лист |
- | Bulk | Active | Toroid | - | Edge | 0.800" (20.32mm) | 41 nH | ±8% | Ungapped | - | 75 | - | 50.9 | 22.1 | - | 1120.0 | Uncoated | 0.250" (6.35mm) | - | - |
|
|
PJ42120UGEP CORE |
0 |
|
- |
- | Bulk | Active | EP | - | J | - | 9.6 µH | - | Ungapped | - | 5000 | - | 41.1 | 78.7 | 60.8 | 3230.0 | Uncoated | 0.843" (21.40mm) | 0.945" (24.00mm) | 0.591" (15.00mm) |
|
|
0059206A2EDGE 125 PERM GREEN 206 SIZE |
0 |
|
Технический лист |
- | Bulk | Active | Toroid | - | Edge | 0.800" (20.32mm) | 68 nH | ±8% | Ungapped | - | 125 | - | 50.9 | 22.1 | - | 1120.0 | Uncoated | 0.250" (6.35mm) | - | - |
|
|
0059210A2EDGE 090 PERM GREEN 206 SIZE |
0 |
|
Технический лист |
- | Bulk | Active | Toroid | - | Edge | 0.830" (21.08mm) | 49 nH | ±8% | Ungapped | - | 90 | - | 50.9 | 22.1 | - | 1120.0 | Uncoated | 0.250" (6.35mm) | - | - |
|
|
NJ43723UGRM DESIGN SCP |
0 |
|
Технический лист |
- | Bulk | Active | RM | - | J | - | 11.8 µH | - | Ungapped | - | 5000 | - | 56.6 | 146.0 | 125.0 | 8340.0 | Uncoated | 0.482" (12.25mm) | 1.472" (37.40mm) | 0.634" (16.10mm) |
|
|
B66367A0610D087ETD49/25/16 N87 610 +8% - |
0 |
|
Технический лист |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
B65819J0000R048FERRITE CORE RM N48 |
0 |
|
Технический лист |
RM7 | Box | Active | RM | RM 7 | N48 | - | - | - | - | - | 2300 | 0.7 | 30.4 | 43.0 | 39.0 | 1310.0 | Uncoated | 0.265" (6.75mm) | 0.799" (20.30mm) | - |
|
|
PQ32/20-3C95-E315Ferrite Misc |
0 |
|
Технический лист |
- | Bulk | Active | PQ | PQ 32 x 20 | 3C95 | - | 315 nH | - | Gapped | - | - | 0.331 | 55.9 | 169.0 | 142.0 | 9440.0 | Uncoated | 0.406" (10.30mm) | 1.299" (33.00mm) | 0.866" (22.00mm) |
|
|
PQ32/20-3C95-A400Ferrite Misc |
0 |
|
Технический лист |
PQ32/20 | Bulk | Active | PQ | PQ 32 x 20 | 3C95 | - | 400 nH | - | Gapped | - | - | 0.331 | 55.9 | 169.0 | 142.0 | 9440.0 | Uncoated | 0.406" (10.30mm) | 1.299" (33.00mm) | 0.866" (22.00mm) |
|
|
E42/21/20-3C92-G200FERRITE CORE E 3C92 |
0 |
|
Технический лист |
- | Bulk | Active | E | E 42 x 21 x 20 | 3C92 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.827" (21.00mm) | 1.693" (43.00mm) | 0.787" (20.00mm) |
|
|
E42/21/20-3C92-G500FERRITE CORE E 3C92 |
0 |
|
Технический лист |
- | Bulk | Active | E | E 42 x 21 x 20 | 3C92 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.827" (21.00mm) | 1.693" (43.00mm) | 0.787" (20.00mm) |
|
|
E42/21/20-3C92-G1200Ferrite Misc |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
E42/21/20-3C92-G900Ferrite Misc |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
E42/21/20-3C92-E150Ferrite Misc |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
E42/21/20-3C92-E160Ferrite Misc |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
