Ферритовые сердечники
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип ядра | Устройство поставщика Упаковка | Материал | Диаметр | Коэффициент индуктивности (Al) | Допуск | Зазор | Эффективная проницаемость (µe) | Начальная проницаемость (µi) | Коэффициент сердечника (ΣI/A) мм⁻¹ | Эффективная длина (le) мм | Эффективная площадь (Ae) мм² | Минимальное поперечное сечение сердечника (Amin) мм² | Эффективная Магнитный объем (Ve) мм³ | Отделка | Высота | Длина | Ширина |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RF41812UGR-RM DESIGN |
0 |
|
Технический лист |
- | Bulk | Active | RM | - | F | - | 2.8 µH | ±25% | Ungapped | - | 3000 | - | 25.6 | 32.0 | 22.6 | 819.0 | Uncoated | 0.244" (6.20mm) | 0.701" (17.90mm) | 0.291" (7.40mm) |
|
|
B65840F1106T001FERRITE CORE EP K1 |
0 |
|
Технический лист |
- | Box | Active | EP | EP 7 | K1 | - | - | - | - | - | 80 | - | - | - | - | - | Uncoated | - | - | - |
|
|
9598283402FERRITE CORE EER SET |
0 |
|
Технический лист |
- | Bulk | Active | EER | - | - | - | - | ±25% | Ungapped | - | 2400 | 87.0 | 74.4 | 85.2 | 77.0 | 6337.0 | Uncoated | - | 1.122" (28.50mm) | - |
|
|
E41/17/12-3C90Ferrite Misc |
0 |
|
Технический лист |
- | Bulk | Active | E | E 41 x 17 x 12 | 3C90 | - | 4.1 µH | ±25% | Ungapped | 1670.0 | - | 0.517 | 77.0 | 149.0 | 142.0 | 11500.0 | Uncoated | 0.654" (16.60mm) | 1.598" (40.60mm) | 0.488" (12.40mm) |
|
|
E41/17/12-3C91FERRITE CORE E 3C91 |
0 |
|
Технический лист |
- | Bulk | Active | E | E 36 x 21 x 12 | 3C91 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.856" (21.75mm) | 1.417" (36.00mm) | 0.472" (12.00mm) |
|

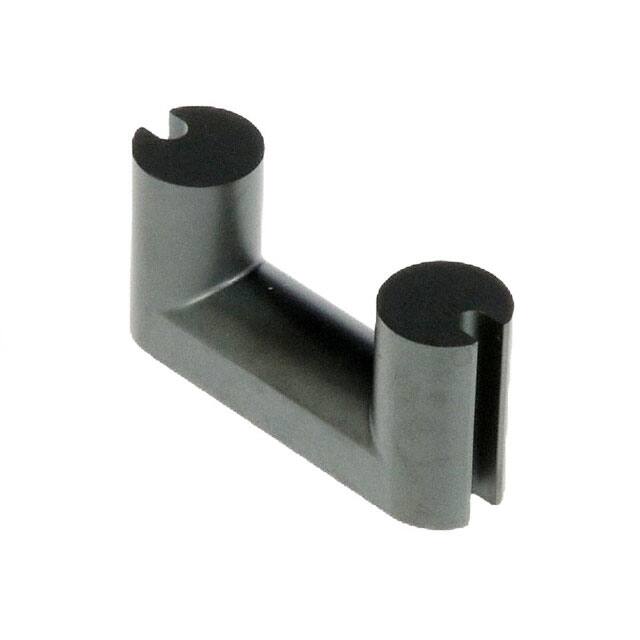

UR42/21/12-3C81FERRITE CORE UR |
0 |
|
Технический лист |
- | Bulk | Obsolete | UR | - | - | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.827" (21.00mm) | 1.654" (42.00mm) | 0.472" (12.00mm) |
|
|
EFD30/15/9-3F3-A100Ferrite Misc |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EFD30/15/9-3F3-A400Ferrite Misc |
0 |
|
Технический лист |
- | Bulk | Active | EFD | EFD 30 x 15 x 9 | 3F3 | - | 400 nH | ±8% | Gapped | 314.0 | - | 0.98 | 68.0 | 69.0 | 66.0 | 4700.0 | Uncoated | 0.591" (15.00mm) | 1.181" (30.00mm) | 0.358" (9.10mm) |
|
|
EFD30/15/9-3F3-A160Ferrite Misc |
0 |
|
Технический лист |
- | Bulk | Active | EFD | EFD 30 x 15 x 9 | 3F3 | - | 160 nH | ±3% | Gapped | 125.0 | - | 0.98 | 68.0 | 69.0 | 66.0 | 4700.0 | Uncoated | 0.591" (15.00mm) | 1.181" (30.00mm) | 0.358" (9.10mm) |
|
|
EFD30/15/9-3F3-A315Ferrite Misc |
0 |
|
Технический лист |
- | Bulk | Active | EFD | EFD 30 x 15 x 9 | 3F3 | - | 315 nH | ±5% | Gapped | 247.0 | - | 0.98 | 68.0 | 69.0 | 66.0 | 4700.0 | Uncoated | 0.591" (15.00mm) | 1.181" (30.00mm) | 0.358" (9.10mm) |
|
|
28N1110-000FERRITE CORE 4 HOLE 28 |
0 |
|
Технический лист |
- | Bulk | Active | Multi-Hole (4) | - | 28 | - | - | - | Ungapped | - | 850 | - | - | - | - | - | Uncoated | 0.375" (9.53mm) | 1.110" (28.19mm) | 0.260" (6.60mm) |
|
|
TX22/14/13-3F3Ferrite Misc |
0 |
|
Технический лист |
- | Bulk | Active | Toroid | TX 22 x 14 x 13 | 3F3 | 0.880" (22.35mm) | 2.2 µH | ±20% | Ungapped | - | 1800 | 1.07 | 54.2 | 50.9 | - | 2750.0 | Epoxy | 0.510" (12.95mm) | - | - |
|
|
TN29/19/7.5-3C90Ferrite Misc |
0 |
|
Технический лист |
- | Bulk | Active | Toroid | TN 29 x 19 x 7.5 | 3C90 | TN 29 x 19 x 7.5 | 1460 nH | ±25% | Ungapped | - | 2300 | 1.98 | 73.2 | 36.9 | - | 2700.0 | Coated | 0.319" (8.10mm) | - | - |
|
|
TX25/15/10-3C96Ferrite Misc |
0 |
|
Технический лист |
- | Bulk | Active | Toroid | TX 25 x 15 x 10 | 3C96 | 0.994" (25.25mm) | - | - | Ungapped | - | - | 1.23 | 60.2 | 48.9 | - | 2944.0 | Epoxy | 0.421" (10.40mm) | - | - |
|
|
LPK3020E026L118KOOL MU 026 PERM LP 3020 SIZE |
0 |
|
- |
- | Bulk | Active | ELP | - | Kool Mµ | - | 65 nH | ±8% | Ungapped | - | 26 | - | 68.5 | 114.0 | - | 7800.0 | Uncoated | 0.465" (11.80mm) | 1.181" (30.00mm) | 0.787" (20.00mm) |
|
|
0W40905UGPOT CORE |
0 |
|
Технический лист |
- | Bulk | Active | P | - | W | 0.366" (9.30mm) | 6.029 µH | - | Ungapped | - | 10000 | - | 12.5 | 10.1 | 8.0 | 126.0 | Uncoated | 0.106" (2.70mm) | - | - |
|
|
0J40905UGPOT CORE |
0 |
|
Технический лист |
- | Bulk | Active | P | - | J | 0.366" (9.30mm) | 2.727 µH | - | Ungapped | - | 5000 | - | 12.5 | 10.1 | 8.0 | 126.0 | Uncoated | 0.106" (2.70mm) | - | - |
|
|
0R42915TCTOROID UNCOATED |
0 |
|
- |
- | Bulk | Active | Toroid | - | R | 1.142" (29.00mm) | 2.96 µH | ±25% | Ungapped | - | 2300 | - | 73.2 | 74.9 | - | 5481.0 | Uncoated | 0.598" (15.20mm) | - | - |
|
|
HJ41408UGDOUBLE SLAB CP W/HOLE |
0 |
|
- |
- | Bulk | Active | EQ | - | J | - | 4.107 µH | - | Ungapped | - | 5000 | - | 20.6 | 21.0 | 19.2 | 433.0 | Uncoated | 0.334" (8.48mm) | 0.551" (14.00mm) | 0.370" (9.40mm) |
|
|
LPK3020E060L118KOOL MU 060 PERM LP 3020 SIZE |
0 |
|
- |
- | Bulk | Active | ELP | - | Kool Mµ | - | 134 nH | ±8% | Ungapped | - | 60 | - | 68.5 | 114.0 | - | 7800.0 | Uncoated | 0.465" (11.80mm) | 1.181" (30.00mm) | 0.787" (20.00mm) |
