Ферритовые сердечники
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип ядра | Устройство поставщика Упаковка | Материал | Диаметр | Коэффициент индуктивности (Al) | Допуск | Зазор | Эффективная проницаемость (µe) | Начальная проницаемость (µi) | Коэффициент сердечника (ΣI/A) мм⁻¹ | Эффективная длина (le) мм | Эффективная площадь (Ae) мм² | Минимальное поперечное сечение сердечника (Amin) мм² | Эффективная Магнитный объем (Ve) мм³ | Отделка | Высота | Длина | Ширина |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0055111A2MPP 026 PERM GREY 109 SIZE |
1 |
|
Технический лист |
- | Bulk | Active | Toroid | - | MPP | 2.250" (57.15mm) | 33 nH | ±8% | Ungapped | - | 26 | - | 143.0 | 144.0 | - | 20700.0 | Uncoated | 0.550" (13.97mm) | - | - |
|
T60006L2100V082FERRITE CORE TOROID 16.9UH |
0 |
|
Технический лист |
- | Box | Active | Toroid | - | - | 4.154" (105.50mm) | 16.9 µH | - | Ungapped | - | - | - | 283.0 | 190.0 | - | - | Uncoated | 1.165" (29.60mm) | - | - |
|
3067990841FERRITE CORE ROD 67 |
4 |
|
Технический лист |
- | Bulk | Active | ROD | - | 67 | 0.059" (1.50mm) | - | - | Ungapped | 22.0 | 40 | - | - | 1.77 | - | - | Uncoated | - | 0.591" (15.00mm) | - |
|

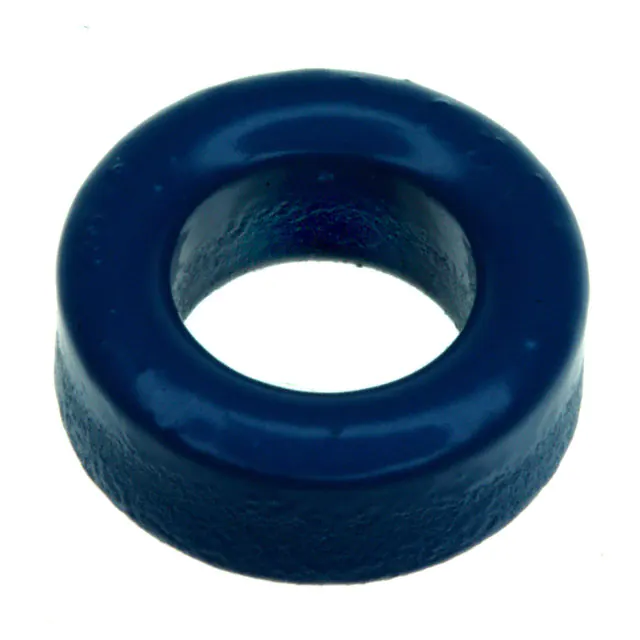

B64290L0038X038FERRITE CORE TOROID 4.09UH T38 |
0 |
|
Технический лист |
TX10/6/4 | Bulk | Active | Toroid | - | T38 | 0.425" (10.80mm) | 4.09 µH | ±30% | Ungapped | - | 10000 | 3.07 | 24.07 | 7.83 | - | 188.0 | Epoxy | 0.187" (4.75mm) | - | - |
|
B64290L0038X035FERRITE CORE TOROID 2.46UH T35 |
0 |
|
Технический лист |
TX10/6/4 | Box | Active | Toroid | - | T35 | 0.425" (10.80mm) | 2.46 µH | ±25% | Ungapped | - | 6000 | 3.07 | 24.07 | 7.83 | - | 188.0 | Epoxy | 0.187" (4.75mm) | - | - |
|
B66305G0000X187FERRITE CORE E N87 1PC |
0 |
|
Технический лист |
E13/7/4 | Box | Active | E | E 13 x 7 x 4 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.256" (6.50mm) | 0.496" (12.60mm) | 0.146" (3.70mm) |
|

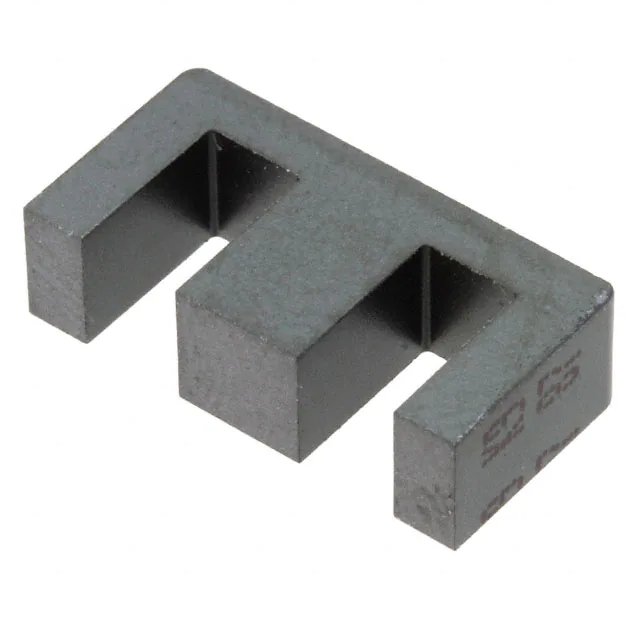

B66307G0000X187FERRITE CORE E N87 1PC |
1 |
|
Технический лист |
E16/8/5 | Box | Active | E | E 16 x 8 x 5 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.323" (8.20mm) | 0.630" (16.00mm) | 0.185" (4.70mm) |
|
4077276011FERRITE CORE ROD 77 |
0 |
|
Технический лист |
- | Bulk | Active | ROD | - | 77 | 0.250" (6.35mm) | - | - | Ungapped | 29.0 | 2000 | - | 25.0 | 7.07 | - | - | Uncoated | - | 1.000" (25.40mm) | - |
|

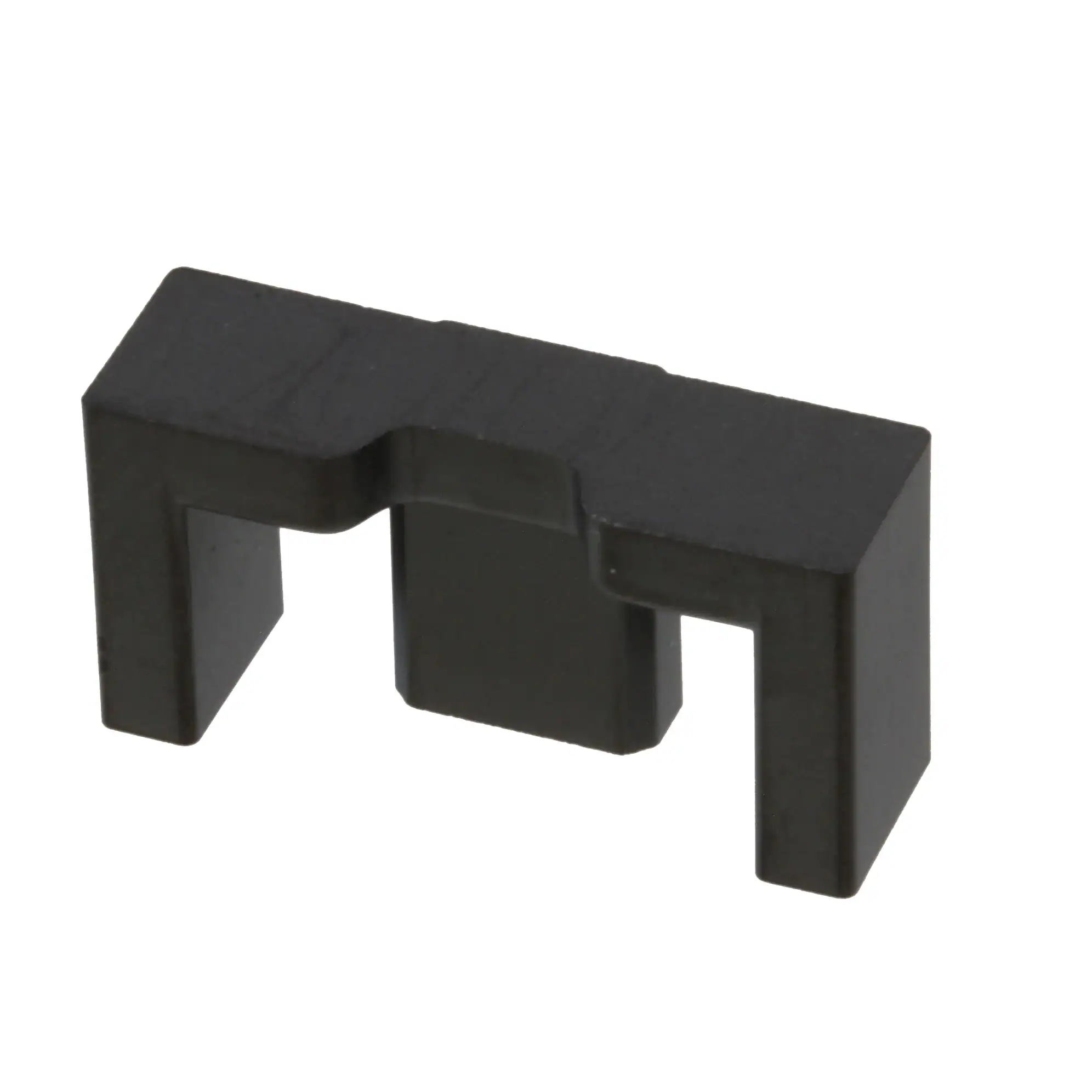

B66413U0100K187FERRITE CORE EFD N87 1PC |
0 |
|
Технический лист |
EFD15/8/5 | Box | Active | EFD | EFD 15 x 8 x 5 | N87 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.295" (7.50mm) | 0.591" (15.00mm) | 0.183" (4.65mm) |
|
B66417G0000X187FERRITE CORE EFD N87 1PC |
0 |
|
Технический лист |
EFD20/10/7 | Box | Active | EFD | EFD 20 x 10 x 7 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.394" (10.00mm) | 0.787" (20.00mm) | 0.262" (6.65mm) |
|
B66358G0000X127FERRITE CORE ETD N27 1PC |
5 |
|
Технический лист |
ETD29/16/10 | Box | Active | ETD | ETD 29 x 16 x 10 | N27 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.630" (16.00mm) | 1.205" (30.60mm) | 0.386" (9.80mm) |
|
B66421U0250K187FERRITE CORE EFD N87 1PC |
0 |
|
Технический лист |
EFD25/13/9 | Box | Active | EFD | EFD 25 x 13 x 9 | N87 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.492" (12.50mm) | 0.984" (25.00mm) | 0.358" (9.10mm) |
|
|
B66358G0000X197FERRITE CORE ETD N97 1PC |
0 |
|
Технический лист |
ETD29/16/10 | Box | Active | ETD | ETD 29 x 16 x 10 | N97 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.630" (16.00mm) | 1.205" (30.60mm) | 0.386" (9.80mm) |
|

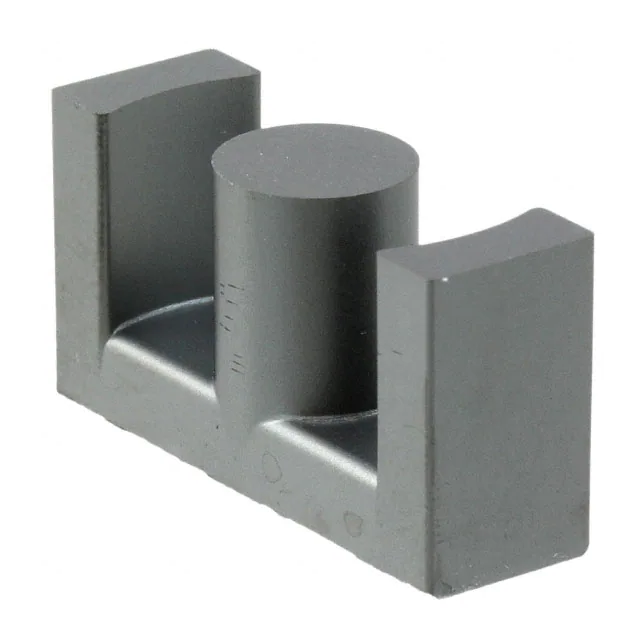

B66358G0000X187FERRITE CORE ETD N87 1PC |
0 |
|
Технический лист |
ETD29/16/10 | Box | Active | ETD | ETD 29 x 16 x 10 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.630" (16.00mm) | 1.205" (30.60mm) | 0.386" (9.80mm) |
|
4078375111FERRITE CORE ROD 78 |
4 |
|
Технический лист |
- | Bulk | Active | ROD | - | 78 | 0.372" (9.45mm) | - | - | Ungapped | - | 2300 | - | - | - | - | - | Uncoated | - | 1.500" (38.10mm) | - |
|
EP13-3C96FERRITE CORE EP 3C96 2PC SET |
0 |
|
Технический лист |
- | Bulk | Active | EP | EP 13 | 3C96 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.512" (13.00mm) | 0.504" (12.80mm) | 0.354" (9.00mm) |
|
EFD30/15/9-3F46FERRITE CORE EFD 3F46 |
8 |
|
Технический лист |
- | Bulk | Active | EFD | EFD 30 x 15 x 9 | 3F46 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.591" (15.00mm) | 1.181" (30.00mm) | 0.358" (9.10mm) |
|
B66361G0500X187FERRITE CORE ETD N87 1PC |
0 |
|
Технический лист |
ETD34/17/11 | Box | Active | ETD | ETD 34 x 17 x 11 | N87 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.689" (17.50mm) | 1.339" (34.00mm) | 0.433" (11.00mm) |
|
|
4061375411FERRITE CORE ROD 61 |
0 |
|
Технический лист |
- | Bulk | Active | ROD | - | 61 | 0.374" (9.50mm) | - | - | Ungapped | - | 125 | - | - | - | - | - | Uncoated | - | - | - |
|
B66482K0000X187FERRITE CORE I N87 1PC |
0 |
|
Технический лист |
I23/2/13 | Box | Active | I | I 23 x 2 x 13 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.083" (2.10mm) | 0.913" (23.20mm) | 0.492" (12.50mm) |
