Ферритовые бусины и чипы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип фильтра | Количество линий | Импеданс при частоте | Номинальный ток (макс.) | Сопротивление постоянному току (DCR) (макс.) | Номинальные значения | Рабочая температура | Тип крепления | Высота (макс.) | Размер/измерение | Особенности |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
BK2125HS750-TVFERRITE BEAD 75 OHM 0805 1LN |
0 |
|
Технический лист |
BK | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | - | 1 | 75 Ohms @ 100 MHz | 1A | 100mOhm | AEC-Q200 | -55°C ~ 125°C | Surface Mount | 0.041" (1.05mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - |
|
|
BK2125LL121-TVFERRITE BEAD 120 OHM 0805 1LN |
0 |
|
Технический лист |
BK | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | - | 1 | 120 Ohms @ 100 MHz | 400mA | 300mOhm | AEC-Q200 | -55°C ~ 125°C | Surface Mount | 0.041" (1.05mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - |
|
|
BK2125LL560-TVFERRITE BEAD 56 OHM 0805 1LN |
0 |
|
Технический лист |
BK | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | - | 1 | 56 Ohms @ 100 MHz | 600mA | 200mOhm | AEC-Q200 | -55°C ~ 125°C | Surface Mount | 0.041" (1.05mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - |
|
|
BK2125LM152-TVFERRITE BEAD 1.5K OHM 0805 1LN |
0 |
|
Технический лист |
BK | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | - | 1 | 1.5 kOhms @ 100 MHz | 400mA | 350mOhm | AEC-Q200 | -55°C ~ 125°C | Surface Mount | 0.041" (1.05mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - |
|
|
BK2125LM182-TVFERRITE BEAD 1.8K OHM 0805 1LN |
0 |
|
Технический лист |
BK | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | - | 1 | 1.8 kOhms @ 100 MHz | 300mA | 450mOhm | AEC-Q200 | -55°C ~ 125°C | Surface Mount | 0.057" (1.45mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - |
|
|
BK2125LM252-TVFERRITE BEAD 2.5K OHM 0805 1LN |
0 |
|
Технический лист |
BK | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | - | 1 | 2.5 kOhms @ 100 MHz | 200mA | 750mOhm | AEC-Q200 | -55°C ~ 125°C | Surface Mount | 0.057" (1.45mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - |
|
BKP1005HM121-TVFERRITE BEAD 120 OHM 0402 1LN |
0 |
|
Технический лист |
BK | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Power Line | 1 | 120 Ohms @ 100 MHz | 1.1A | 120mOhm | AEC-Q200 | -55°C ~ 125°C | Surface Mount | 0.022" (0.55mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - |
|
|
BKP1005HS121-TVFERRITE BEAD 120 OHM 0402 1LN |
0 |
|
Технический лист |
BK | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Power Line | 1 | 120 Ohms @ 100 MHz | 1A | 140mOhm | AEC-Q200 | -55°C ~ 125°C | Surface Mount | 0.022" (0.55mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - |
|
|
BKP1005HS330-TVFERRITE BEAD 33 OHM 0402 1LN |
0 |
|
Технический лист |
BK | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Power Line | 1 | 33 Ohms @ 100 MHz | 1.7A | 50mOhm | AEC-Q200 | -55°C ~ 125°C | Surface Mount | 0.022" (0.55mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - |
|
|
BKP1005HS680-TVFERRITE BEAD 68 OHM 0402 1LN |
0 |
|
Технический лист |
BK | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Power Line | 1 | 68 Ohms @ 100 MHz | 1.5A | 75mOhm | AEC-Q200 | -55°C ~ 125°C | Surface Mount | 0.022" (0.55mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - |
|
|
BKP1005TS121-TVFERRITE BEAD 120 OHM 0402 1LN |
0 |
|
Технический лист |
BK | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Power Line | 1 | 120 Ohms @ 100 MHz | 1.3A | 910mOhm | AEC-Q200 | -55°C ~ 125°C | Surface Mount | 0.022" (0.55mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - |
|
|
BKP1005TS330-TVFERRITE BEAD 33 OHM 0402 1LN |
0 |
|
Технический лист |
BK | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Power Line | 1 | 33 Ohms @ 100 MHz | 1.7A | 50.7mOhm | AEC-Q200 | -55°C ~ 125°C | Surface Mount | 0.022" (0.55mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - |
|
|
BKP1005TS680-TVFERRITE BEAD 68 OHM 0402 1LN |
0 |
|
Технический лист |
BK | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Power Line | 1 | 68 Ohms @ 100 MHz | 1.5A | 71.5mOhm | AEC-Q200 | -55°C ~ 125°C | Surface Mount | 0.022" (0.55mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - |
|
HF30ACC321611-TD25FERRITE BEAD 19 OHM 1206 1LN |
0 |
|
Технический лист |
HF-ACC | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Signal Line | 1 | 19 Ohms @ 100 MHz | 1.5A | 40mOhm | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.051" (1.30mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - |
|
HF50ACB322513-TD25FERRITE BEAD 60 OHM 1210 1LN |
0 |
|
Технический лист |
HF-ACB | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Signal Line | 1 | 60 Ohms @ 100 MHz | 400mA | 300mOhm | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.059" (1.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - |
|
HF50ACC453215-TD25FERRITE BEAD 125 OHM 1812 1LN |
0 |
|
Технический лист |
HF-ACC | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Signal Line | 1 | 125 Ohms @ 100 MHz | 1.5A | 50mOhm | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.069" (1.75mm) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - |
|
HF70ACB321611-TD25FERRITE BEAD 26 OHM 1206 1LN |
0 |
|
Технический лист |
HF-ACB | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Signal Line | 1 | 26 Ohms @ 100 MHz | 500mA | 200mOhm | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.051" (1.30mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - |
|
|
HF70ACB322513-TD25FERRITE BEAD 52 OHM 1210 1LN |
0 |
|
Технический лист |
HF-ACB | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Signal Line | 1 | 52 Ohms @ 100 MHz | 400mA | 300mOhm | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.059" (1.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - |
|
HF30ACB201209-TD25FERRITE BEAD 7 OHM 2012 1LN |
0 |
|
Технический лист |
HF-ACB | 2012 (5030 Metric) | Tape & Reel (TR) | Obsolete | Signal Line | 1 | 7 Ohms @ 100 MHz | 600mA | 100mOhm | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.043" (1.10mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - |
|

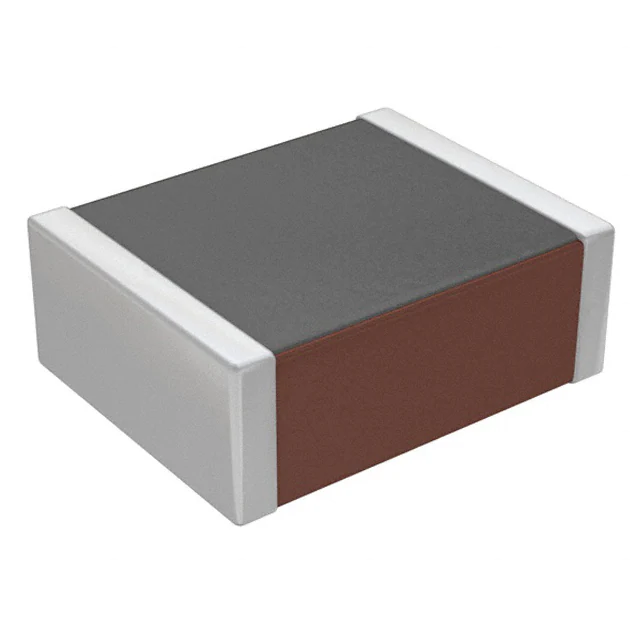

HF70ACB453215-TD25FERRITE BEAD 120 OHM 1812 1LN |
0 |
|
Технический лист |
HF-ACB | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Signal Line | 1 | 120 Ohms @ 100 MHz | 300mA | 400mOhm | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.069" (1.75mm) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - |
