Бесщеточные вентиляторы постоянного тока (BLDC)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Напряжение - Номинальное | Размер/измерение | Ширина | Поток воздуха | Статическое давление | Тип подшипника | Тип вентилятора | Особенности | Шум | Мощность (Вт) | Об/мин | Оконечная нагрузка | Защита от проникновения | Рабочая температура | Сертифицирующее агентство | Вес |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

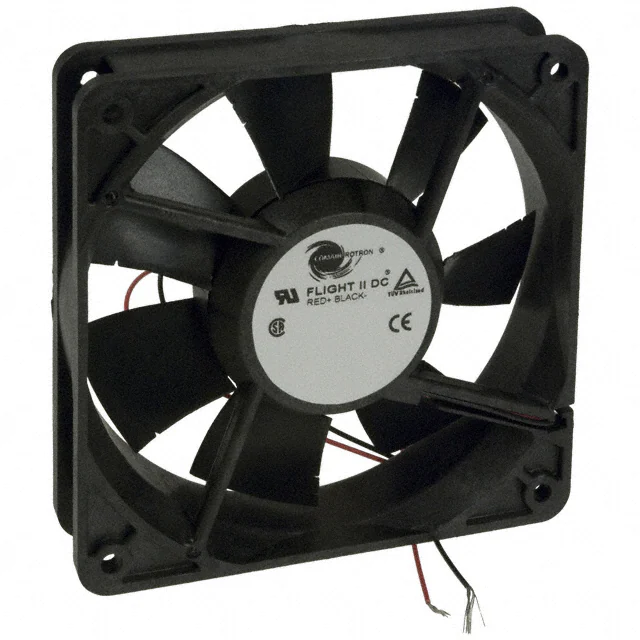

19031174AFAN AXIAL 120.1X25.6MM FT12B3 |
0 |
|
Технический лист |
Flight II 120 | - | Obsolete | 12VDC | Square - 120.1mm L x 120.1mm H | 25.60mm | 90.0 CFM (2.52m³/min) | 0.211 in H2O (52.6 Pa) | Ball | Tubeaxial | - | 42.9dB(A) | 4.1 W | 2924 RPM | 2 Wire Leads | - | - | - | 0.441 lb (200.03 g) |
|
9WF0624H402FAN AXIAL 60X25MM 24VDC WIRE |
0 |
|
Технический лист |
San Ace 60WF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 23.6 CFM (0.661m³/min) | 0.390 in H2O (97.1 Pa) | Ball | Tubeaxial | - | 41.0dB(A) | 3.6 W | 6500 RPM | 2 Wire Leads | Oil Resistant | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
|
9GA0648P1K031FAN |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9GA0648P1K03FAN |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DC1203824L2B-2T0FAN 120X38MM 24VDC |
0 |
|
Технический лист |
- | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 212.6 CFM (5.95m³/min) | 0.840 in H2O (209.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 59.0dB(A) | 51.84 W | 4600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
BCB1012UHF-F00FAN BLOWER 97.2X32.1MM 12VDC |
0 |
|
Технический лист |
BCB | Box | Obsolete | 12VDC | Rectangular/Rounded - 97.2mm L x 94.4mm H | 32.10mm | 45.0 CFM (1.26m³/min) | 3.937 in H2O (980.7 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 69.4dB(A) | 43.8 W | 9300 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.477 lb (216.36 g) |
|
|
9WP0624G402FAN AXIAL 60X25MM 24VDC WIRE |
0 |
|
Технический лист |
San Ace 60W | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 27.5 CFM (0.770m³/min) | 0.351 in H2O (87.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 39.0dB(A) | 3.12 W | 5600 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
|
GF92251B2-000U-AC9FAN AXIAL 92X25MM 12VDC WIRE |
0 |
|
Технический лист |
GF | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 70.0 CFM (1.96m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | - | 45.0dB(A) | 3.6 W | 4200 RPM | 2 Wire Leads | IP56 - Dust Protected, Water Resistant | - | - | 0.253 lb (114.76 g) |
|
|
GF92251B3-000U-AC9FAN AXIAL 92X25MM 12VDC WIRE |
0 |
|
Технический лист |
GF | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 65.0 CFM (1.82m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | - | 43.0dB(A) | 2.76 W | 3900 RPM | 2 Wire Leads | IP56 - Dust Protected, Water Resistant | - | - | 0.253 lb (114.76 g) |
|
|
DC1203824M2B-3T1FAN 120X38MM 24VDC TACH COMPUTER |
0 |
|
Технический лист |
- | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 101.4 CFM (2.84m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.0dB(A) | 6.72 W | 2300 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC1203824H2B-3T1FAN 120X38MM 24VDC TACH COMPUTER |
0 |
|
Технический лист |
- | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 114.7 CFM (3.21m³/min) | 0.410 in H2O (102.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 41.0dB(A) | 9.6 W | 2600 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0603848M2B-BT4FAN 60X38MM 48VDC PWM/TACH MOLEX |
0 |
|
Технический лист |
- | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 38.00mm | 67.0 CFM (1.88m³/min) | 2.070 in H2O (515.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 62.0dB(A) | 66.24 W | 12000 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0923848V2B-BT4FAN 92X38MM 48VDC PWM/TACH MOLEX |
0 |
|
Технический лист |
- | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 166.4 CFM (4.66m³/min) | 1.910 in H2O (475.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 72.0dB(A) | 141.6 W | 8000 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
9WP0924F401FAN AXIAL 92X25MM 24VDC WIRE |
0 |
|
Технический лист |
San Ace 92W | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 43.8 CFM (1.23m³/min) | 0.129 in H2O (32.1 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 30.0dB(A) | 1.92 W | 2650 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.265 lb (120.2 g) |
|
|
DC1203848W2B-2T2FAN 120X38MM 48VDC MOLEX 22-01-1 |
0 |
|
Технический лист |
- | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 178.4 CFM (5.00m³/min) | 0.940 in H2O (234.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 54.0dB(A) | 74.4 W | 4200 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC1203812H2B-3T3FAN 120X38MM 12VDC TACH MOLEX 22 |
0 |
|
Технический лист |
- | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 135.7 CFM (3.80m³/min) | 0.540 in H2O (134.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 48.0dB(A) | 9.6 W | 3200 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC1203812M2B-3T3FAN 120X38MM 12VDC TACH MOLEX 22 |
0 |
|
Технический лист |
- | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 123.3 CFM (3.45m³/min) | 0.450 in H2O (112.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 44.0dB(A) | 9 W | 2900 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
9GA0812L200280X32MM 12V,LOW POWER DC 0 |
0 |
|
Технический лист |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 32.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | - | - | 2 Wire Leads | - | - | cURus, TUV | - |
|
9GV0824P4K01FAN AXIAL 80X25.4MM 24VDC WIRE |
0 |
|
Технический лист |
San Ace 80 | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.40mm | 74.8 CFM (2.09m³/min) | 0.690 in H2O (171.8 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 52.0dB(A) | 10.56 W | 5600 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.276 lb (125.19 g) |
|
9GV0812P4J03FAN AXIAL 80X25.4MM 12VDC WIRE |
0 |
|
Технический лист |
San Ace 80 | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 60.7 CFM (1.70m³/min) | 0.440 in H2O (109.6 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 46.0dB(A) | 5.6 W | 4500 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.276 lb (125.19 g) |
