Бесщеточные вентиляторы постоянного тока (BLDC)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Напряжение - Номинальное | Размер/измерение | Ширина | Поток воздуха | Статическое давление | Тип подшипника | Тип вентилятора | Особенности | Шум | Мощность (Вт) | Об/мин | Оконечная нагрузка | Защита от проникновения | Рабочая температура | Сертифицирующее агентство | Вес |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASFN66391FAN AXIAL 60X25MM 12VDC WIRE |
0 |
|
- |
ASFN6 | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 26.8 CFM (0.750m³/min) | 0.242 in H2O (60.3 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 36.5dB(A) | 3.12 W | 4900 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus | - |
|
|
ASFN66392FAN AXIAL 60X25MM 24VDC WIRE |
0 |
|
- |
ASFN6 | Bulk | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 26.8 CFM (0.750m³/min) | 0.242 in H2O (60.3 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 36.5dB(A) | 2.88 W | 4900 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus | - |
|
|
CFM-9238BF-2110-663-20DC AXIAL FAN, 92 MM SQUARE, 38 M |
0 |
|
Технический лист |
CFM-92BF | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 151.0 CFM (4.23m³/min) | 2.900 in H2O (722.4 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 66.3dB(A) | 33.36 W | 11000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-9238BF-295-628-20DC AXIAL FAN, 92 MM SQUARE, 38 M |
0 |
|
Технический лист |
CFM-92BF | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 129.6 CFM (3.63m³/min) | 2.310 in H2O (575.0 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 62.8dB(A) | 20.64 W | 9500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
PMB2497PYB1-AY.(2).GNFAN BLOWER 97X33MM 24VDC WIRE |
0 |
|
Технический лист |
PMB | Bulk | Obsolete | 24VDC | Rectangular/Rounded - 97mm L x 94mm H | 33.00mm | 30.5 CFM (0.854m³/min) | 0.920 in H2O (229.2 Pa) | Ball | Blower | Auto Restart | 55.8dB(A) | 9.4 W | 3600 RPM | 2 Wire Leads | - | - | - | - |
|
|
PMB2497PYB2-AY.(2).GNFAN BLOWER 97X33MM 24VDC WIRE |
0 |
|
Технический лист |
PMB | Bulk | Obsolete | 24VDC | Rectangular/Rounded - 97mm L x 94mm H | 33.00mm | 26.6 CFM (0.745m³/min) | 0.650 in H2O (161.9 Pa) | Ball | Blower | Auto Restart | 53.1dB(A) | 6 W | 3200 RPM | 2 Wire Leads | - | - | - | - |
|
|
DC0803824V2B-3T3FAN 80X38MM 24VDC TACH MOLEX 22- |
0 |
|
Технический лист |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 130.0 CFM (3.64m³/min) | 2.000 in H2O (498.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 66.0dB(A) | 64.8 W | 9000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|

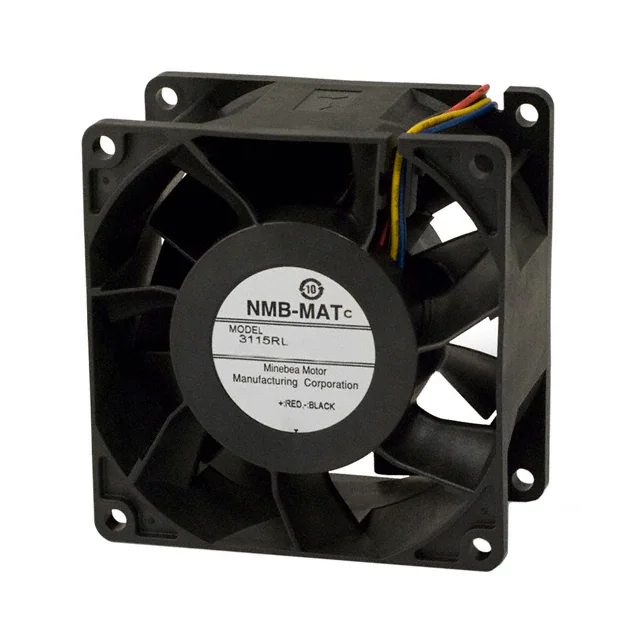

3115RL-04W-B50-E00FAN AXIAL 80X38MM 12VDC WIRE |
0 |
|
Технический лист |
3115RL | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 61.8 CFM (1.73m³/min) | 0.462 in H2O (115.2 Pa) | Ball | Tubeaxial | - | 46.0dB(A) | 4.9 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.452 lb (205.02 g) |
|
|
3115RL-04W-B70-E00FAN AXIAL 80X38MM 12VDC WIRE |
0 |
|
Технический лист |
3115RL | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 91.8 CFM (2.57m³/min) | 1.044 in H2O (260.0 Pa) | Ball | Tubeaxial | - | 56.0dB(A) | 13.8 W | 6500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.452 lb (205.02 g) |
|
|
3115RL-04W-B90-E00FAN AXIAL 80X38MM 12VDC WIRE |
0 |
|
Технический лист |
3115RL | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 123.6 CFM (3.46m³/min) | 1.887 in H2O (470.1 Pa) | Ball | Tubeaxial | - | 62.5dB(A) | 32.4 W | 8600 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.452 lb (205.02 g) |
|
|
3115RL-04W-B60-E00FAN AXIAL 80X38MM 12VDC WIRE |
0 |
|
Технический лист |
3115RL | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 75.9 CFM (2.13m³/min) | 0.720 in H2O (179.3 Pa) | Ball | Tubeaxial | - | 51.0dB(A) | 8.8 W | 5500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.452 lb (205.02 g) |
|
|
3115RL-04W-B80-E00FAN AXIAL 80X38MM 12VDC WIRE |
0 |
|
Технический лист |
3115RL | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 105.9 CFM (2.97m³/min) | 1.425 in H2O (354.9 Pa) | Ball | Tubeaxial | - | 59.5dB(A) | 21 W | 7500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.452 lb (205.02 g) |
|
|
9GA0624P1J031FAN AXIAL 60X38MM 24VDC WIRE |
0 |
|
Технический лист |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 38.00mm | 62.0 CFM (1.74m³/min) | 3.330 in H2O (829.5 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 63.0dB(A) | 18 W | 17500 RPM | 4 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
|

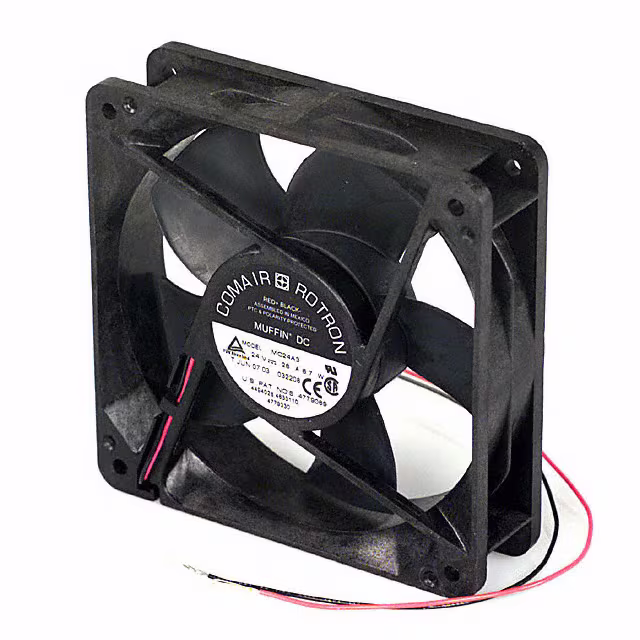

19032208AFAN AXIAL 120X32MM 24VDC MC24A3 |
0 |
|
Технический лист |
Muffin | - | Obsolete | 24VDC | Square - 120mm L x 120mm H | 32.00mm | 102.0 CFM (2.86m³/min) | 0.350 in H2O (87.2 Pa) | Sleeve | Tubeaxial | - | 47.8dB(A) | 6.7 W | 3700 RPM | 2 Wire Leads | - | - | - | 0.529 lb (239.95 g) |
|
19032207AFAN AXIAL 120X32MM 12VDC MC12A3 |
0 |
|
Технический лист |
Muffin | - | Obsolete | 12VDC | Square - 120mm L x 120mm H | 32.00mm | 102.0 CFM (2.86m³/min) | 0.350 in H2O (87.2 Pa) | Sleeve | Tubeaxial | - | 47.8dB(A) | 7.9 W | 3700 RPM | 2 Wire Leads | - | - | - | 0.529 lb (239.95 g) |
|
|
19032140AFAN AXIAL 120X32MM 12VDC MC12E3 |
0 |
|
Технический лист |
Muffin | - | Obsolete | 12VDC | Square - 120mm L x 120mm H | 32.00mm | 60.0 CFM (1.68m³/min) | 0.132 in H2O (32.9 Pa) | Sleeve | Tubeaxial | - | 39.7dB(A) | 2.2 W | 2170 RPM | 2 Wire Leads | - | - | - | 0.529 lb (239.95 g) |
|
MR1238L48B-FSRFAN AXIAL 120X38MM 48VDC WIRE |
0 |
|
Технический лист |
MR1238 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 184.4 CFM (5.16m³/min) | 0.660 in H2O (164.4 Pa) | Ball | Tubeaxial | Auto Restart | 58.5dB(A) | - | 3500 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.838 lb (380.11 g) |
|
|
9G1212G4D01FAN AXIAL 119X25MM 12VDC WIRE |
0 |
|
Технический лист |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 25.00mm | 130.0 CFM (3.64m³/min) | 0.482 in H2O (120.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 51.0dB(A) | 10.8 W | 4100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.529 lb (239.95 g) |
|
|
9G1212G4D011FAN AXIAL 119X25MM 12VDC WIRE |
0 |
|
Технический лист |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 25.00mm | 130.0 CFM (3.64m³/min) | 0.482 in H2O (120.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 51.0dB(A) | 10.8 W | 4100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.529 lb (239.95 g) |
|
|
9G1224E4D011FAN AXIAL 119X25MM 24VDC WIRE |
0 |
|
Технический лист |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 25.00mm | 115.0 CFM (3.22m³/min) | 0.394 in H2O (98.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 48.0dB(A) | 8.88 W | 3650 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.529 lb (239.95 g) |
