Бесщеточные вентиляторы постоянного тока (BLDC)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Напряжение - Номинальное | Размер/измерение | Ширина | Поток воздуха | Статическое давление | Тип подшипника | Тип вентилятора | Особенности | Шум | Мощность (Вт) | Об/мин | Оконечная нагрузка | Защита от проникновения | Рабочая температура | Сертифицирующее агентство | Вес |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
9RA0812H4D001180X25MM 12V, LOW NOISE, RBLS DC |
0 |
|
Технический лист |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | - | cURus, TUV | - |
|
|
9RA0812G4D001180X25MM 12V, LOW NOISE, RBLS DC |
0 |
|
Технический лист |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | - | cURus, TUV | - |
|
|
06038DA-12Q-EAD-0FAN AXIAL 60X38MM 12VDC WIRE |
0 |
|
Технический лист |
06038DA | Box | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 50.5 CFM (1.41m³/min) | 2.310 in H2O (575.0 Pa) | Ball | Tubeaxial | - | 58.0dB | 9.4 W | 13000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | UR, VDE | 0.271 lb (122.92 g) |
|
|
06038DA-12R-EAD-0FAN AXIAL 60X38MM 12VDC WIRE |
0 |
|
Технический лист |
06038DA | Box | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 58.6 CFM (1.64m³/min) | 2.970 in H2O (740.0 Pa) | Ball | Tubeaxial | - | 61.5dB | 14 W | 15000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | UR, VDE | 0.271 lb (122.92 g) |
|
|
06038DA-12S-EAD-0FAN AXIAL 60X38MM 12VDC WIRE |
0 |
|
Технический лист |
06038DA | Box | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 66.4 CFM (1.86m³/min) | 3.713 in H2O (925.0 Pa) | Ball | Tubeaxial | - | 63.5dB(A) | 19.8 W | 17000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | UR, VDE | 0.271 lb (122.92 g) |
|
|
DC0602512U2B-2T2FAN 60X25MM 12VDC MOLEX 22-01-10 |
0 |
|
Технический лист |
- | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 43.8 CFM (1.23m³/min) | 0.560 in H2O (139.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 56.0dB(A) | 5.4 W | 6800 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0602512V2B-2T2FAN 60X25MM 12VDC MOLEX 22-01-10 |
0 |
|
Технический лист |
- | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 47.8 CFM (1.34m³/min) | 0.790 in H2O (196.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 63.0dB(A) | 5.76 W | 7500 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0602512W2B-2T2FAN 60X25MM 12VDC MOLEX 22-01-10 |
0 |
|
Технический лист |
- | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 55.2 CFM (1.55m³/min) | 1.170 in H2O (291.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 66.0dB(A) | 6.48 W | 9800 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
9BD24SD6-1FAN BLOWER 76X20MM 24VDC WIRE |
0 |
|
Технический лист |
San Ace B76 | Box | Active | 24VDC | Rectangular/Rounded - 76mm L x 69.7mm H | 20.00mm | 10.2 CFM (0.286m³/min) | 1.200 in H2O (298.9 Pa) | Ball | Blower | Locked Rotor Sensor | 43.0dB(A) | 3.36 W | 4500 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.128 lb (58.06 g) |
.U.F.GN.jpg)
|

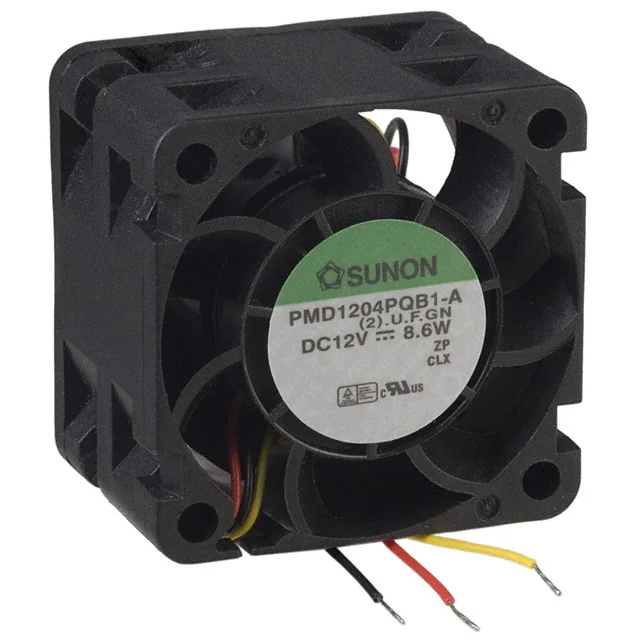

PMD1204PQB1-A.(2).U.F.GNFAN AXIAL 40X28MM 12VDC WIRE |
0 |
|
Технический лист |
PMD | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 24.0 CFM (0.672m³/min) | 1.340 in H2O (333.8 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 55.5dB(A) | 8.6 W | 15000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.101 lb (45.81 g) |
|
|
DC0402812W2B-3T1FAN 40X28MM 12VDC TACH COMPUTER |
0 |
|
Технический лист |
- | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 31.3 CFM (0.876m³/min) | 3.020 in H2O (752.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 64.0dB(A) | 16.8 W | 23000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC1203824M2B-3T0FAN 120X38MM 24VDC TACH |
0 |
|
Технический лист |
- | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 101.4 CFM (2.84m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.0dB(A) | 6.72 W | 2300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC1203824H2B-3T0FAN 120X38MM 24VDC TACH |
0 |
|
Технический лист |
- | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 114.7 CFM (3.21m³/min) | 0.410 in H2O (102.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 41.0dB(A) | 9.6 W | 2600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC1203848H2B-2T0FAN 120X38MM 48VDC |
0 |
|
Технический лист |
- | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 114.7 CFM (3.21m³/min) | 0.410 in H2O (102.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 41.0dB(A) | 19.2 W | 2600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0402824L2B-3T3FAN 40X28MM 24VDC TACH MOLEX 22- |
0 |
|
Технический лист |
- | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | 13.8 CFM (0.386m³/min) | 0.460 in H2O (114.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.0dB(A) | 3.36 W | 8000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
OD1225-48HB01AFAN AXIAL 120X25MM 48VDC WIRE |
0 |
|
Технический лист |
OD1225 | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 25.00mm | 120.0 CFM (3.36m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 42.0dB | 4.5 W | 3100 RPM | 3 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | 0.341 lb (154.67 g) |
|
|
OD1225-48HB02AFAN AXIAL 120X25MM 48VDC WIRE |
0 |
|
Технический лист |
OD1225 | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 25.00mm | 120.0 CFM (3.36m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 42.0dB | 4.5 W | 3100 RPM | 3 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | 0.341 lb (154.67 g) |
|
OD1238-48HS01AFAN AXIAL 120X38.5MM 48VDC WIRE |
0 |
|
Технический лист |
OD1238 | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 38.50mm | 100.0 CFM (2.80m³/min) | 0.280 in H2O (69.7 Pa) | Sleeve | Tubeaxial | Speed Sensor (Tach) | 42.0dB | 4.8 W | 3000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
|
OD1238-48HS02AFAN AXIAL 120X38.5MM 48VDC WIRE |
0 |
|
Технический лист |
OD1238 | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 38.50mm | 100.0 CFM (2.80m³/min) | 0.280 in H2O (69.7 Pa) | Sleeve | Tubeaxial | Locked Rotor Sensor | 42.0dB | 4.8 W | 3000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
|
OD1238-48LS01AFAN AXIAL 120X38.5MM 48VDC WIRE |
0 |
|
Технический лист |
OD1238 | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 38.50mm | 65.0 CFM (1.82m³/min) | 0.130 in H2O (32.4 Pa) | Sleeve | Tubeaxial | Speed Sensor (Tach) | 26.0dB | 3.36 W | 2000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
