Бесщеточные вентиляторы постоянного тока (BLDC)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Напряжение - Номинальное | Размер/измерение | Ширина | Поток воздуха | Статическое давление | Тип подшипника | Тип вентилятора | Особенности | Шум | Мощность (Вт) | Об/мин | Оконечная нагрузка | Защита от проникновения | Рабочая температура | Сертифицирующее агентство | Вес |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

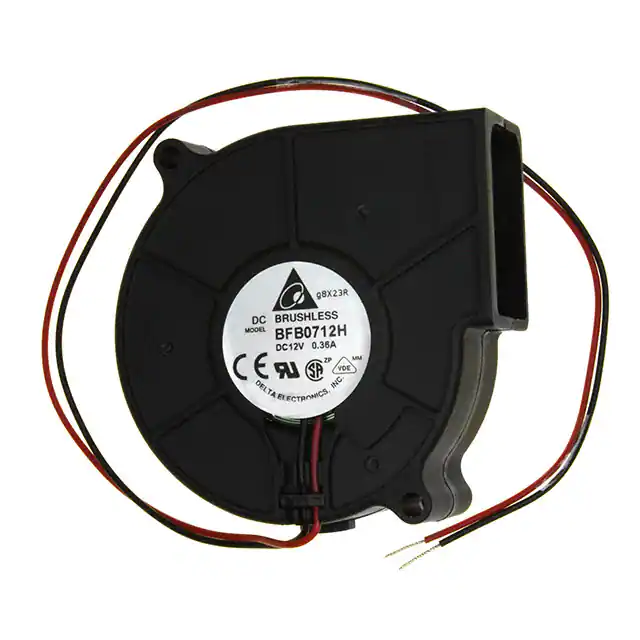

BFB0712HFAN BLOWER 75.7X30MM 12VDC WIRE |
0 |
|
Технический лист |
BFB | Box | Obsolete | 12VDC | Square/Rounded - 75.7mm L x 75.7mm H | 30.00mm | 11.3 CFM (0.316m³/min) | 0.480 in H2O (119.6 Pa) | Ball | Blower | Locked Rotor Protection | 38.0dB(A) | 2.64 W | 2900 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.211 lb (95.71 g) |
|
CFM-A238S-126-435-22FAN AXIAL 120X37.5MM 12VDC WIRE |
0 |
|
Технический лист |
CFM-120S | Box | Active | 12VDC | Square - 120mm L x 120mm H | 37.50mm | 100.7 CFM (2.82m³/min) | 0.240 in H2O (59.8 Pa) | Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 43.5dB(A) | 5.76 W | 2600 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-A238S-226-435-22FAN AXIAL 120X37.5MM 24VDC WIRE |
0 |
|
Технический лист |
CFM-120S | Box | Active | 24VDC | Square - 120mm L x 120mm H | 37.50mm | 100.7 CFM (2.82m³/min) | 0.240 in H2O (59.8 Pa) | Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 43.5dB(A) | 6.48 W | 2600 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0401024M2B-3T1FAN 40X10MM 24VDC TACH COMPUTER |
0 |
|
Технический лист |
- | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 10.00mm | 4.8 CFM (0.134m³/min) | 0.060 in H2O (14.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 21.0dB(A) | 480 mW | 4000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0401024U2B-3T1FAN 40X10MM 24VDC TACH COMPUTER |
0 |
|
Технический лист |
- | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 10.00mm | 9.3 CFM (0.260m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 35.0dB(A) | 1.44 W | 8000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0401024H2B-3T1FAN 40X10MM 24VDC TACH COMPUTER |
0 |
|
Технический лист |
- | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 10.00mm | 7.2 CFM (0.202m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 26.0dB(A) | 720 mW | 6000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
CFM-A238BJ-226-469DC AXIAL FAN, 120 MM SQUARE, 38 |
0 |
|
Технический лист |
CFM-A2BJ | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 118.0 CFM (3.30m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | Auto Restart | 46.9dB(A) | 6 W | 2600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
109P0412P3J03340X28MM 12V,GROOVE FOR LEAD DC T |
0 |
|
Технический лист |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 16.2 CFM (0.454m³/min) | 0.840 in H2O (209.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control | 44.0dB(A) | - | 12500 RPM | 3 Wire Leads | - | - | CSA, TUV, UR | - |
|
|
109P0412P3G03340X28MM 12V,GROOVE FOR LEAD DC T |
0 |
|
Технический лист |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 14.8 CFM (0.414m³/min) | 0.720 in H2O (179.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 42.0dB(A) | - | 11500 RPM | 4 Wire Leads | - | - | CSA, TUV, UR | - |
|
B6012M12D-BSR-CCFAN BLOWER 60X12MM 12VDC WIRE |
0 |
|
Технический лист |
B6012 | Box | Active | 12VDC | Square/Rounded - 60mm L x 60mm H | 12.00mm | 5.0 CFM (0.140m³/min) | 0.300 in H2O (74.7 Pa) | Sleeve | Blower | Conformal Coating, Thermal Overload Protector (TOP) | 34.0dB(A) | - | 3600 RPM | 2 Wire Leads | - | - | - | 0.057 lb (25.85 g) |
|
|
DC0402824U2B-3T3FAN 40X28MM 24VDC TACH MOLEX 22- |
0 |
|
Технический лист |
- | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | 24.8 CFM (0.694m³/min) | 1.640 in H2O (408.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 58.0dB(A) | 15.36 W | 15000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
PF92251V1-1000U-A99FAN AXIAL 92X25MM 12VDC WIRE |
0 |
|
Технический лист |
MagLev® PF | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 75.0 CFM (2.10m³/min) | 0.350 in H2O (87.2 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 45.5dB(A) | 4.44 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.234 lb (106.14 g) |
|
|
PF92251V2-1000U-A99FAN AXIAL 92X25MM 12VDC WIRE |
0 |
|
Технический лист |
MagLev® PF | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 70.0 CFM (1.96m³/min) | 0.300 in H2O (74.7 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 43.7dB(A) | 3.36 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.234 lb (106.14 g) |
|
|
PF92251V3-1000U-A99FAN AXIAL 92X25MM 12VDC WIRE |
0 |
|
Технический лист |
MagLev® PF | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 65.0 CFM (1.82m³/min) | 0.250 in H2O (62.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 41.6dB(A) | 2.76 W | 3900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.234 lb (106.14 g) |
|
PF80251V2-1000U-A99FAN AXIAL 80X25MM 12VDC WIRE |
0 |
|
Технический лист |
MagLev® PF | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 57.0 CFM (1.60m³/min) | 0.350 in H2O (87.2 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 43.1dB(A) | 2.88 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.201 lb (91.17 g) |
|
AFB0512MDFAN AXIAL 50X20MM 12VDC WIRE |
2 |
|
Технический лист |
AFB | Box | Obsolete | 12VDC | Square - 50mm L x 50mm H | 20.00mm | 13.4 CFM (0.375m³/min) | 0.137 in H2O (34.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 28.0dB(A) | 840 mW | 4800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.085 lb (38.56 g) |
|
|
DC0402824H2B-BT4FAN 40X28MM 24VDC PWM/TACH MOLEX |
0 |
|
Технический лист |
- | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | 18.7 CFM (0.524m³/min) | 0.920 in H2O (229.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 51.0dB(A) | 8.4 W | 11000 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|

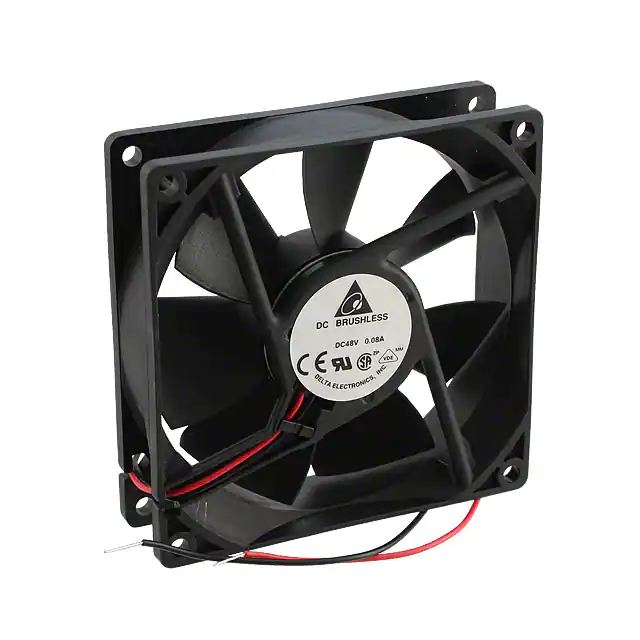

AFB0948LFAN AXIAL 92X25.4MM 48VDC WIRE |
0 |
|
Технический лист |
AFB | Bulk | Obsolete | 48VDC | Square - 92mm L x 92mm H | 25.40mm | 37.1 CFM (1.04m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 25.0dB(A) | 2.4 W | 2100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.219 lb (99.34 g) |
|
AFB0948HFAN AXIAL 92X25.4MM 48VDC WIRE |
0 |
|
Технический лист |
AFB | Box | Obsolete | 48VDC | Square - 92mm L x 92mm H | 25.40mm | 51.2 CFM (1.43m³/min) | 0.177 in H2O (44.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 34.0dB(A) | 2.88 W | 2850 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.219 lb (99.34 g) |
|
OD1225-48HSFAN AXIAL 120X25MM 48VDC WIRE |
0 |
|
Технический лист |
OD1225 | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 25.00mm | 86.0 CFM (2.41m³/min) | 0.240 in H2O (59.8 Pa) | Sleeve | Tubeaxial | Auto Restart | 42.0dB(A) | 4.5 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.341 lb (154.67 g) |
