Бесщеточные вентиляторы постоянного тока (BLDC)
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Напряжение - Номинальное | Размер/измерение | Ширина | Поток воздуха | Статическое давление | Тип подшипника | Тип вентилятора | Особенности | Шум | Мощность (Вт) | Об/мин | Оконечная нагрузка | Защита от проникновения | Рабочая температура | Сертифицирующее агентство | Вес |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9S0912P4M011FAN AXIAL 92X25MM 12VDC WIRE |
0 |
|
Технический лист |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 37.8 CFM (1.06m³/min) | 0.087 in H2O (21.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 22.0dB(A) | 1.32 W | 2250 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
DC0402812V2B-BT0FAN AXIAL 40X28MM 12VDC WIRE |
0 |
|
Технический лист |
- | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 29.5 CFM (0.826m³/min) | 2.890 in H2O (719.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 62.0dB(A) | 13.2 W | 21000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.045 lb (20.41 g) |
|
G9232E12B-FSRFAN AXIAL 92X32MM 12VDC WIRE |
0 |
|
Технический лист |
G9232 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 32.00mm | 60.0 CFM (1.68m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 38.0dB(A) | - | 3600 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.335 lb (151.95 g) |
|
|
G9232E24B-FSRFAN AXIAL 92X32MM 24VDC WIRE |
0 |
|
Технический лист |
G9232 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 32.00mm | 60.0 CFM (1.68m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 38.0dB(A) | - | 3600 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.335 lb (151.95 g) |
|
|
G9232H24B-FSRFAN AXIAL 92X32MM 24VDC WIRE |
0 |
|
Технический лист |
G9232 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 32.00mm | 55.0 CFM (1.54m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 35.0dB(A) | - | 3200 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.335 lb (151.95 g) |
|
|
G9232X24B-FSRFAN AXIAL 92X32MM 24VDC WIRE |
0 |
|
Технический лист |
G9232 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 32.00mm | 68.0 CFM (1.90m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 44.0dB(A) | - | 4000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.335 lb (151.95 g) |
|
|
CFM-9225BG-250-502-22DC AXIAL FAN, 92 MM SQUARE, 25 M |
0 |
|
Технический лист |
CFM-92BG | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 88.2 CFM (2.47m³/min) | 0.560 in H2O (139.5 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 50.2dB(A) | 6.48 W | 5000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
109P0412K3D0140X28MM 12V DC LCKRTRSNS |
0 |
|
Технический лист |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | 50.0dB(A) | - | 15500 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UR | - |
|
|
PE92252V3-000U-A99FAN AXIAL 92X25MM 24VDC WIRE |
0 |
|
Технический лист |
MagLev® PE | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 65.0 CFM (1.82m³/min) | 0.250 in H2O (62.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 42.0dB(A) | 3.72 W | 3900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.227 lb (102.97 g) |
|

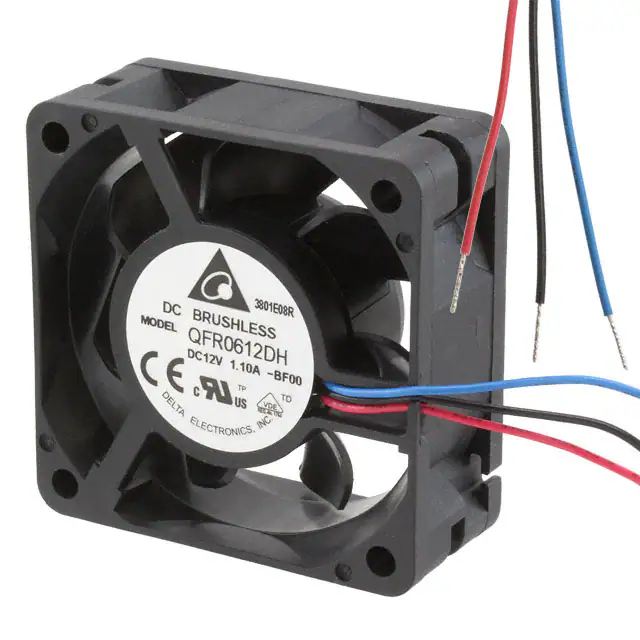

QFR0612DH-BF00FAN AXIAL 60X25.4MM 12VDC WIRE |
0 |
|
Технический лист |
QFR | Box | Not For New Designs | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 51.2 CFM (1.43m³/min) | 1.016 in H2O (253.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 54.5dB(A) | 9 W | 10600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, VDE | 0.199 lb (90.26 g) |
|
QFR0612EH-BF00FAN AXIAL 60X25.4MM 12VDC WIRE |
0 |
|
- |
QFR | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 28.9 CFM (0.809m³/min) | 0.353 in H2O (88.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 39.0dB(A) | 2.4 W | 6000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, VDE | 0.199 lb (90.26 g) |
|
QFR0612GH-BF00FAN AXIAL 60X25.4MM 12VDC WIRE |
0 |
|
- |
QFR | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 36.6 CFM (1.03m³/min) | 0.558 in H2O (139.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 44.7dB(A) | 3.6 W | 7600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, VDE | 0.199 lb (90.26 g) |
|

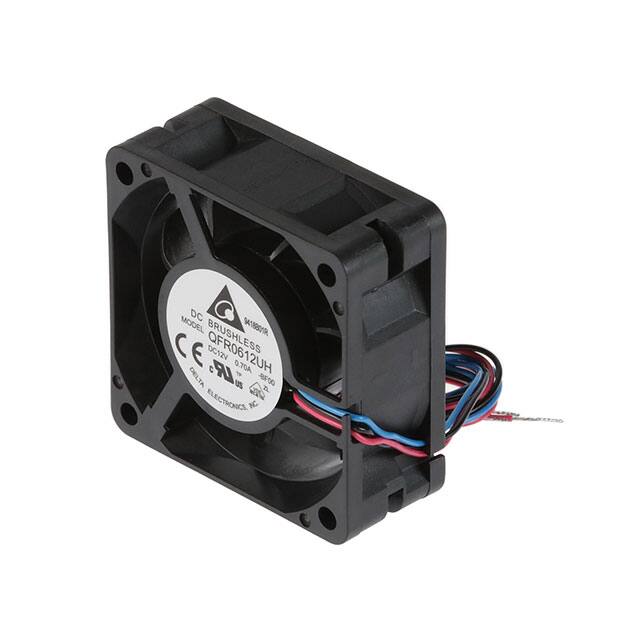

QFR0612UH-BF00FAN AXIAL 60X25.4MM 12VDC WIRE |
0 |
|
- |
QFR | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 36.6 CFM (1.03m³/min) | 0.558 in H2O (139.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 44.8dB(A) | 3.84 W | 7600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, VDE | 0.199 lb (90.26 g) |
|
CFM-3828BF-1210-590-22FAN AXIAL 38X28MM 12VDC WIRE |
0 |
|
Технический лист |
CFM-38BF | Box | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 19.7 CFM (0.552m³/min) | 2.450 in H2O (610.0 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 59.0dB(A) | 11.4 W | 21000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
9A0812E4011FAN AXIAL 80X25MM 12VDC WIRE |
0 |
|
Технический лист |
San Cooler 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 33.0dB(A) | - | 3700 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.199 lb (90.26 g) |
|
|
9A0812S4D011FAN AXIAL 80X25MM 12VDC WIRE |
0 |
|
Технический лист |
San Cooler 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 42.4 CFM (1.19m³/min) | 0.193 in H2O (48.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 34.0dB(A) | 2.16 W | 3400 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
|
9A0812E40180X25MM 12V DC TACH |
0 |
|
Технический лист |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 35.0dB(A) | - | 3700 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | - |
|
|
9A0812A40180X25MM 12V DC TACH |
0 |
|
Технический лист |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | - | - | Ball | Tubeaxial | Speed Sensor (Tach) | 39.0dB(A) | - | 4100 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | - |
|
|
FFB0412EHN-CFAN AXIAL 40X28MM 12VDC WIRE |
0 |
|
Технический лист |
FFB | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 20.3 CFM (0.568m³/min) | 1.232 in H2O (306.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 53.0dB(A) | 3.96 W | 14500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, VDE | 0.104 lb (47.17 g) |
|
|
CFM-6025BG-2100-535DC AXIAL FAN, 60 MM SQUARE, 25 M |
0 |
|
Технический лист |
CFM-60BG | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 42.9 CFM (1.22m³/min) | 1.200 in H2O (298.9 Pa) | Ball | Tubeaxial | Auto Restart | 53.5dB(A) | 12 W | 10000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
